| Features | |
|---|---|
| POWER | +5V output |
| ENVIRONMENTAL | Operational from -40°C to +85°C (-40°F to +185°F) RoHS compliant |
| MECHANICAL | Dimensions – 3.54 in x 1.65 in (90.0 mm x 42.0 mm) Weight – 0.79 oz (22.5 g) PC Board thickness 0.062 inches |
| MECHANICAL SHOCK TESTING | IEC 60068-2-27 40 g half-sine, 6 ms, 18 shocks |
| RANDOM VIBRATION TESTING | Vibration specification IEC 60068-2-64 7 g rms for all X, Y, and Z directions; 3 hours |
| ORDER INFORMATION | Part Number: ADP-USB-445
Package Contents: ADP-USB-445 Dual USB 2.0 adapter Two m3 x 5mm wafer head bolts |

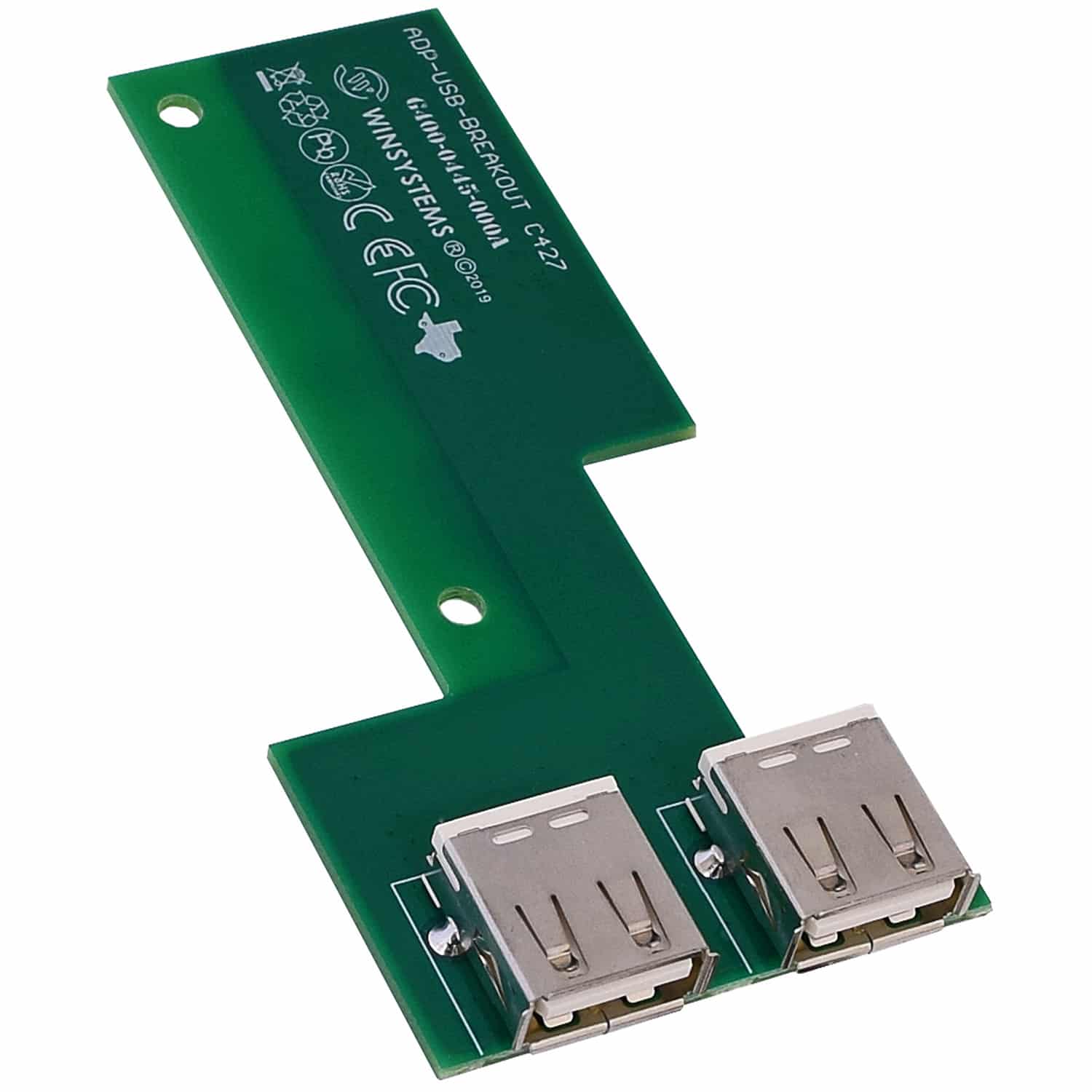

ADP-USB-445 Dual USB 2.0 Adapter for SBC35-427 Single Board Computer

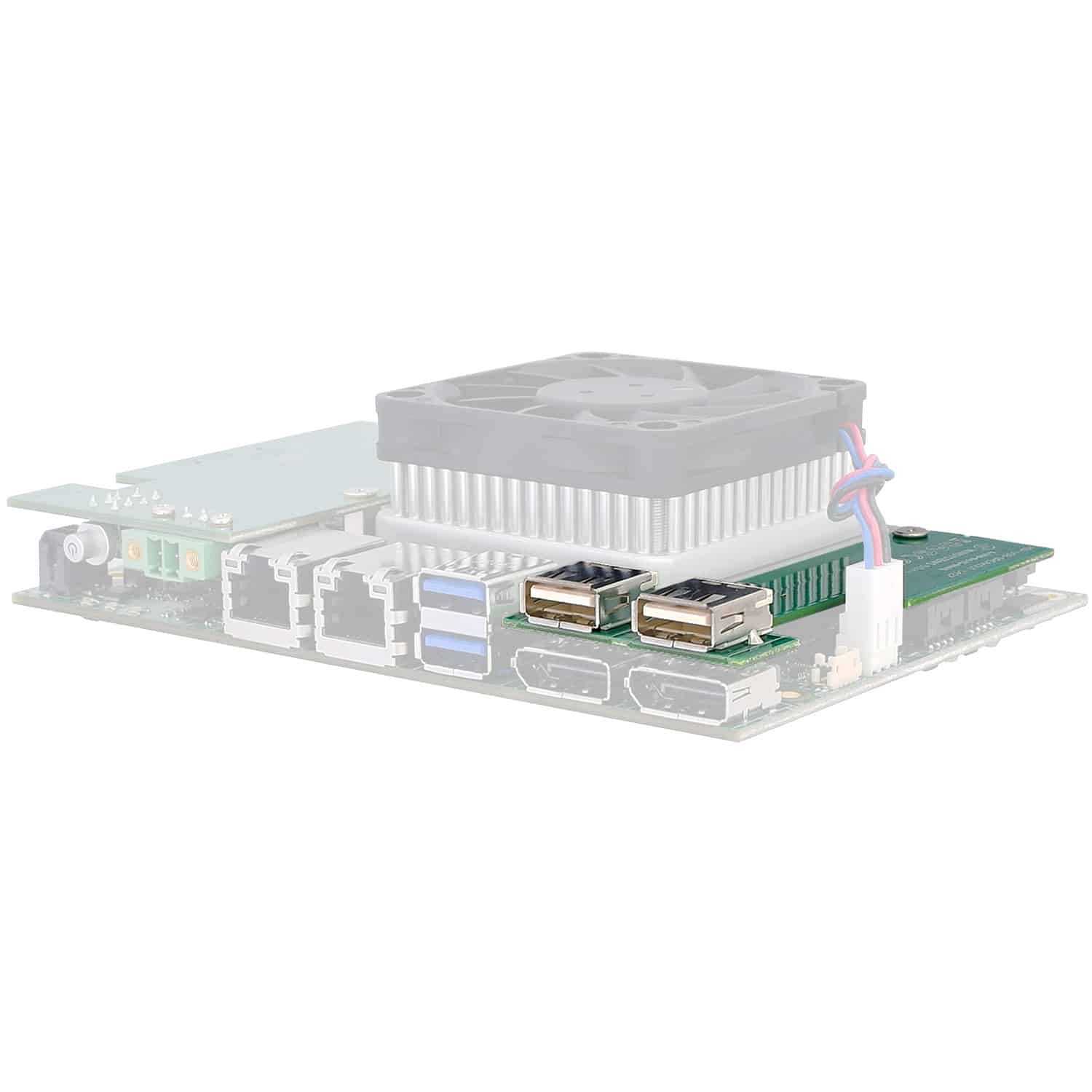

The ADP-USB-445 USB 2.0 adapter converts one of the USB 2.0 headers on-board the WINSYSTEMS SBC35-427 single board computer to two type-A connectors on the front I/O panel. The integrated circuitry ensures noise immunity from the type-A connections to the single board computer and provides a robust power solution for external devices.
DATA SHEET PRODUCT INFOFeatures
- Two USB 2.0 Type A connectors
- Gold plated contacts
- RoHS compliant
- ADP-USB-445 Datasheet(PDF)
