| Features | |
|---|---|
| Processor | Intel® Atom™ D525 (1.80 GHz) dual-core |
| Operating System Compatibility | Linux, Windows, DOS and other x86 compatible OS |
| Memory (RAM) | Up to 4 GB of DDR3 SODIMM (Socketed) |
| BIOS | Phoenix |
| Video | Analog VGA and 18-bit LVDS (simultaneous operation supported) |
| Ethernet | 2 Intel® 10/100/1000 Mbps controllers |
| Storage | 2 SATA (2.0) channels |
| Digital I/O | 48 Bidirectional GPIO; 24 with event sense |
| Serial I/O | 4 serial ports (RS-232/422/485) |
| Bus Expansion | PC/104 |
| USB | 8 USB 2.0 ports |
| Watchdog Timer | Adjustable from 1 second to 255 minute reset |
| Audio | HD Audio supported |
| Power | +5V required, 2.9A typical |
| Mechanical | EBX-compliant |
| Operating Temperature Range | -40°C to 75°C |
| Random Vibration Testing | Not tested with fan installed |
| Mechanical Shock Testing | Not tested with fan installed |

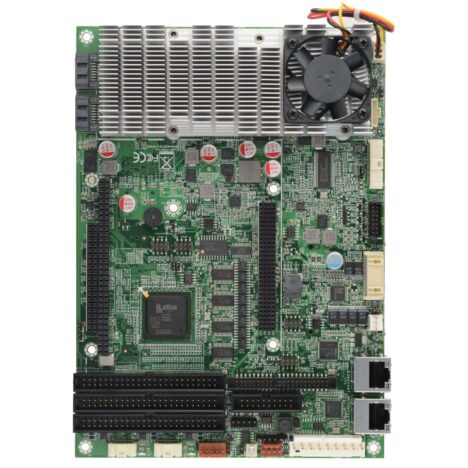

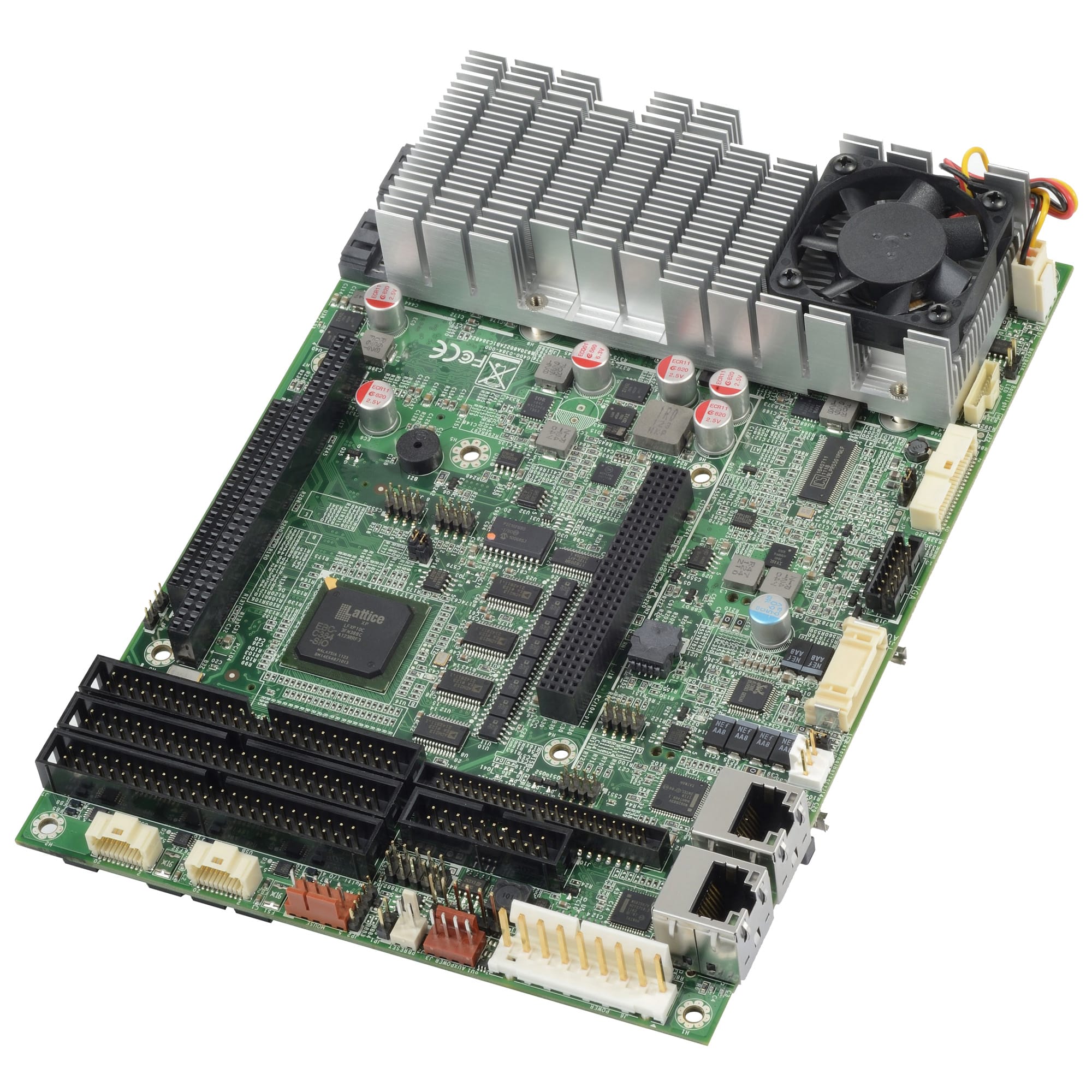

EBC-C384-D2-1 EBX – Industrial Dual-Core Intel® Atom™ D525 SBC
Description
Please contact us for availability and pricing.

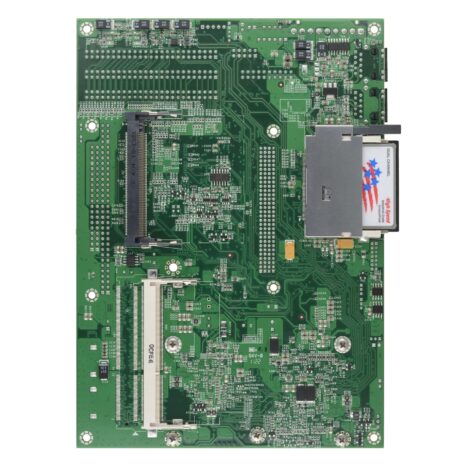

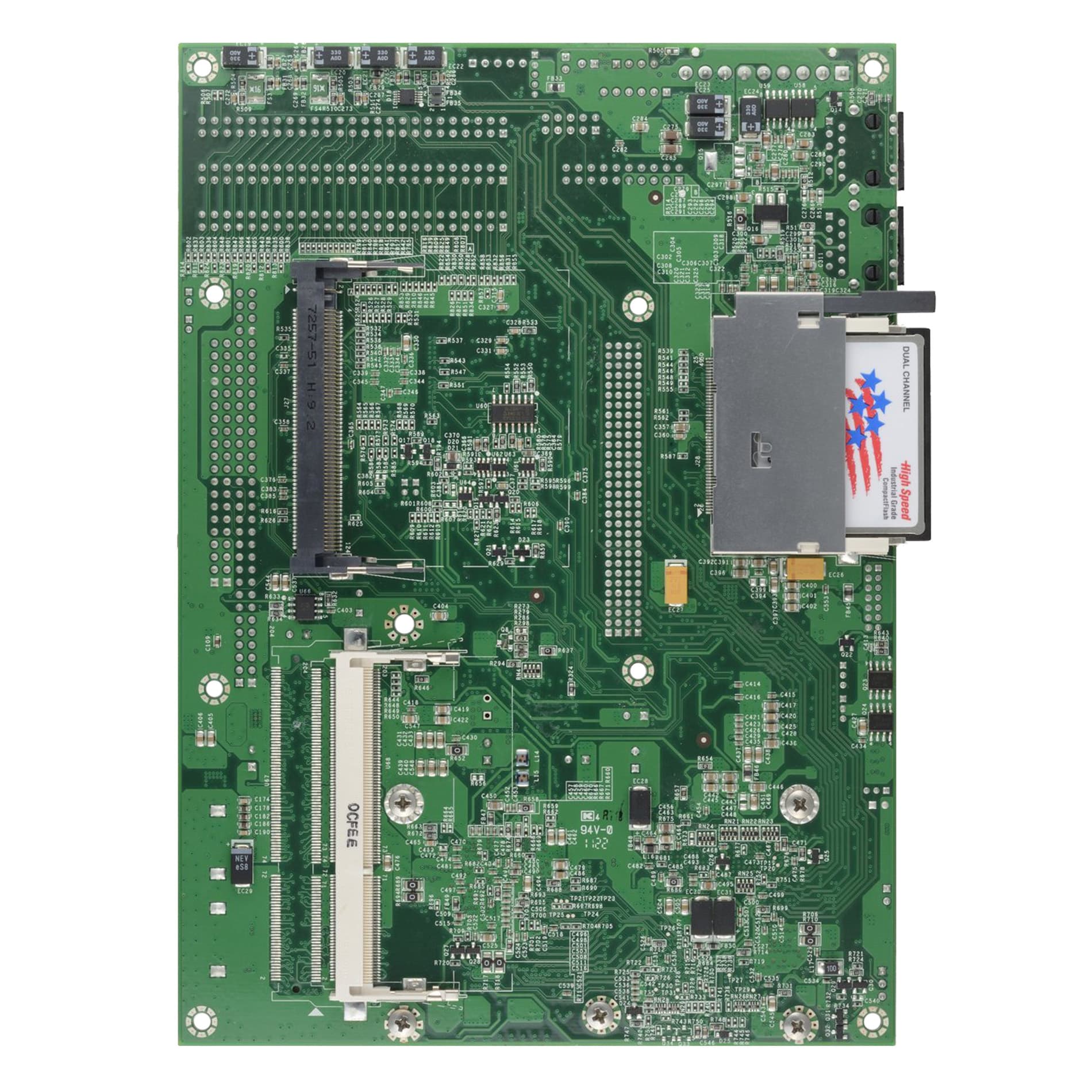

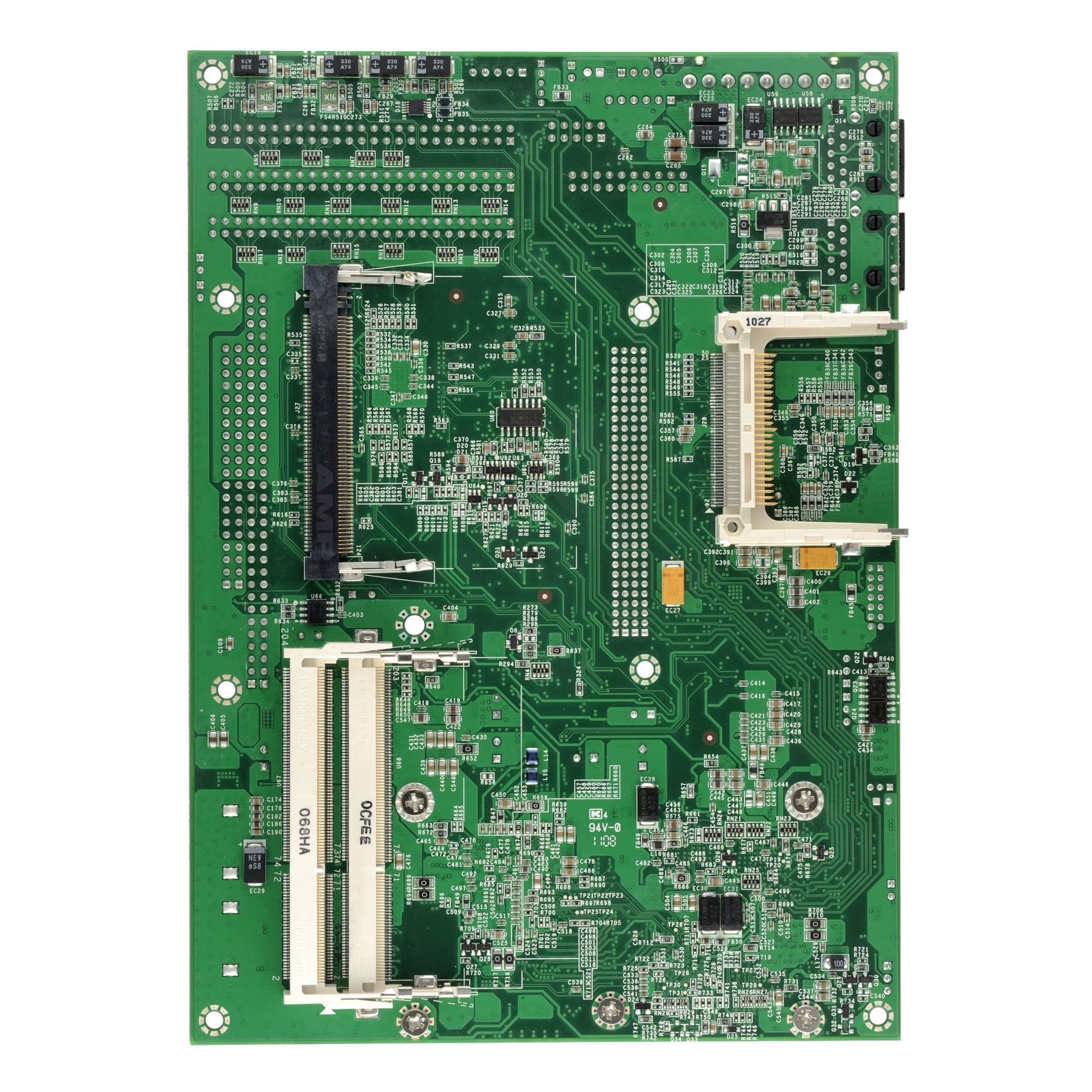

WINSYSTEMS’ EBC-C384-D2-1 is an industrial EBX-compatible Single Board Computer (SBC) that uses Intel’s Atom D525 dual-core 1.80GHz processor paired with the ICH8M I/O controller hub. It includes two SODIMM sockets for DDR3 system memory and one CompactFlash socket.
Features
- EBC-C384-D Datasheet (PDF)
Datasheets
- EBC-C384-D Product Manual (PDF)
Product Manuals
- EBC-C384-D Mechanical Drawing (PDF)
- EBC-C384-D Solid Works (ZIP)
- EBC-C384-D Step (ZIP)
- EBC-C384-D IGS (ZIP)
Mechanical Drawings
- Product Change Notice- ADP-IO (PDF)
- Product Change Notice - ICH8 EOL Notice(PDF)
Product Change_Notice
- EBC - Windows 7 (32-bit)
- EBC - Windows XP SP3
- Windows 7/8/10 (32-bit) - Watchdog Timer
- Windows 7/8/10 (64-bit) - Watchdog Timer
- Windows 7/8/10 (32-bit) - WS16C48 Digital I/O
- Windows 7/8/10 (64-bit) - WS16C48 Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - Watchdog Timer
- Linux - Kernel 3+ - Watchdog Timer
Drivers
- CBL-BKLT-000-14 | Video – (LCD Backlight) Unterminated, 14″
- CBL-234-G-1-1.375 | Video – VGA (DB15), 16.5″
- CBL-USB4-002-12 | USB – Dual 2mm Molex Milli-Grid, 12″
- CBL-USB4-001-12 | USB – Dual 1mm Molex Pico-Clasp, 12″
- CBL-USB4-000-14 | USB – Unterminated, 14″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- CBL-173-G-1-1.0 | Serial – Dual DB9, 12″
- CBL-SATA-701-20 | SATA – Data (Latching), 20″
- CBL-RST-402-18 | Power – PBReset, 18″
- CBL-236-G-2-1.5 | Power – Unterminated, 18″
- CBL-247-G-1-1.0 | Multi-I/O – KYB (PS/2), Serial (DB9) and LPT (DB25), 12″
- CBL-343-G-1-1.375 | Mouse – PS/2, 16.5″
- CBL-266-G-2-0.75A | IDE – 44-pin, 9″
- CBL-327-G-2-1.08 | Digital I/O – 50-pin IDC Male, 13″
- CBL-327-G-1-1.08 | Digital I/O – 50-pin IDC Male, 13″
- CBL-129-4 | Digital I/O – 50-pin IDC Female, 48″
- CBL-129-1 | Digital I/O – 50-pin IDC Female, 6″
- CBL-AUDIO7-102-12 | Audio – Nine 3.5mm Mini-Jacks (7.1 Surround), 12″
- CBL-AUDIO7-100-14 | Audio – Unterminated (7.1 Surround), 14″
- CBL-AUDIO5-102-12 | Audio – Six 3.5mm Mini-Jacks (5.1 Surround), 12″
- CBL-AUDIO2-102-12 | Audio – Three 3.5mm Mini-Jacks (Line In, Line Out and Mic), 12″
- CBL-SET-384-2 | Cable Set for EBC-C384
- BAT-LTC-E-36-27-1 | External 3.6V, 2400 mAH battery
- BAT-LTC-E-36-16-1 | External 3.6V, 1650 mAH battery
- RISER-PPM-1 | Spacer board with PCI-104 Connector
- RISER-PCM-1 | Spacer board with PC/104 Connector
