| Features | |
|---|---|
| Isolated Inputs | – 24 optically isolated and debounced inputs |
| Power | +5V required, 1 mA typical |
| Mechanical | Dimensions: 3.6 x 3.8 inches (90 x 96 mm) |
| Operating Temperature | -40°C to 85°C |
ISM-TRM-ISO-IN Termination Board – 24 Isolated Inputs
No longer in production
This product is listed to provide access to its documentation.

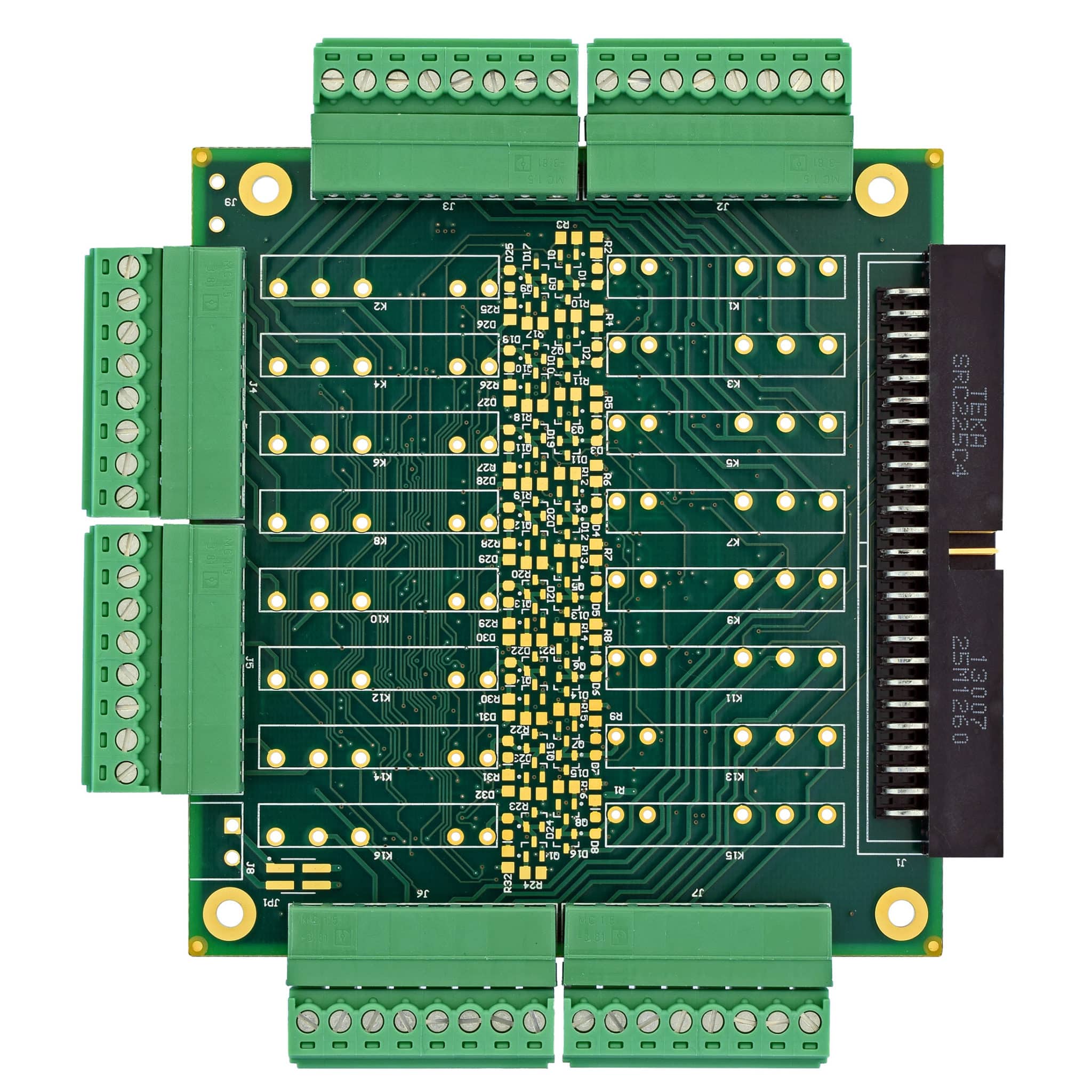

WINSYSTEMS’ ISM-TRM-ISO-IN provides 24 lines of optically isolated and digitally debounced inputs to provide easy connections and signal conditioning from field wiring. The board is needed for applications requiring signal isolation between an embedded computer and monitoring points. Isolation creates a barrier which will eliminate common mode voltage and prevents ground loops plus provides safety for industrial applications.
DATA SHEET PRODUCT INFOFeatures
- 24 optically isolated and debounced inputs
- Input voltage from 5 to 30 volts AC or DC
- 2500V isolation of the signals
- Convenient pluggable quick disconnect terminal block connectors for field wiring
- -40 to +85°C operation
- Custom configurations available in OEM quantities
- ISM-TRM-ISO-IN Datasheet (PDF)
Datasheets
- ISM-TRM-ISO-IN Product Manual (PDF)
Product Manuals
- EOL Notice - All ISM-TRM Variants (PDF)
Product Change_Notice
