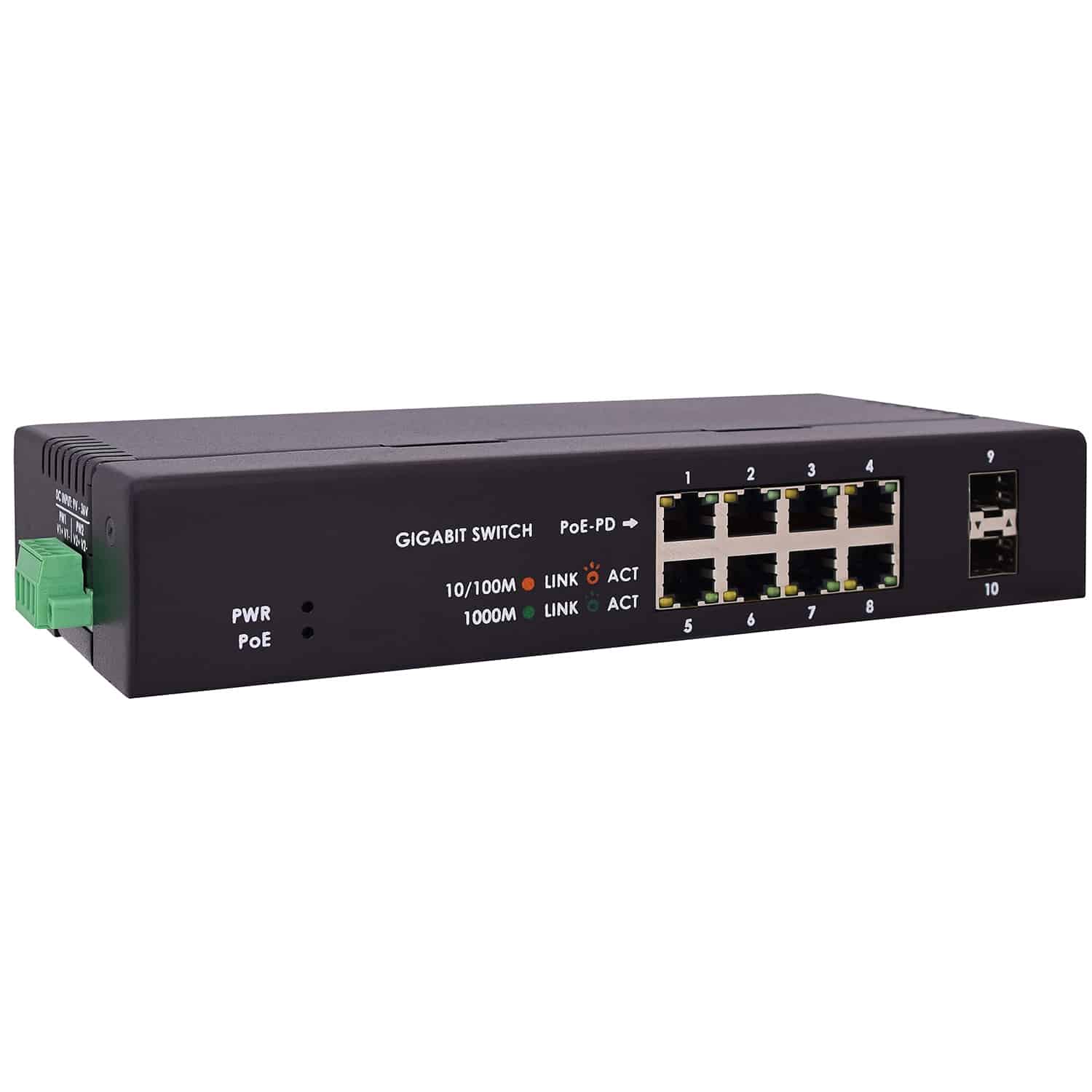

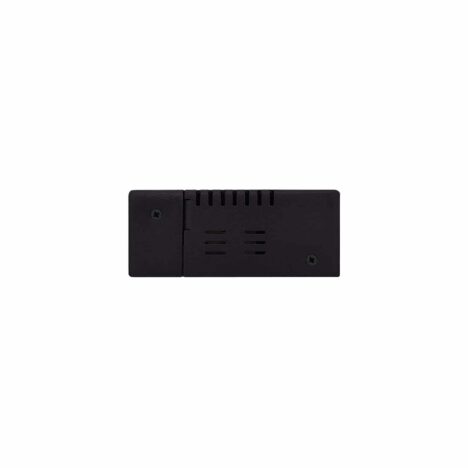

NET-429 Industrial 1588v2-Enabled Network Switch

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ NET-429 network switch is designed for the harsh environments of the factory floor and provides performance for time-critical industrial networks. The switch has eight 10/100/1000 Mbps RJ45 Ethernet ports plus two 1000Base-X SGMII SFP ports and redundant power inputs with Power-over-Ethernet (PoE) PD support. Enabled for the latest IEEE 802.1 standards for Quality of Service (QoS) and Time Sensitive Networking (TSN), it includes advanced prioritization and timing features to provide guaranteed delivery of time-sensitive data.

DATA SHEET PRODUCT INFO

Features

  • Performance for Industrial IoT Edge Computing
    • IEEE 1588v2 one-step Precision Time Protocol (PTP)

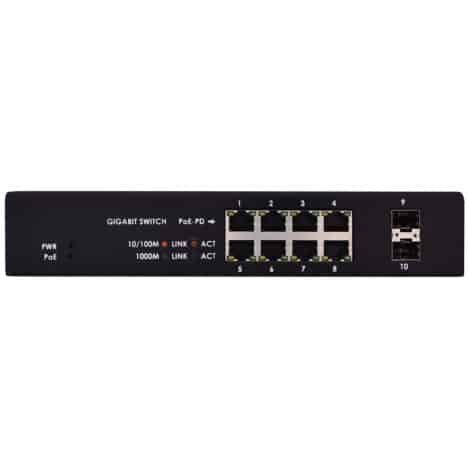

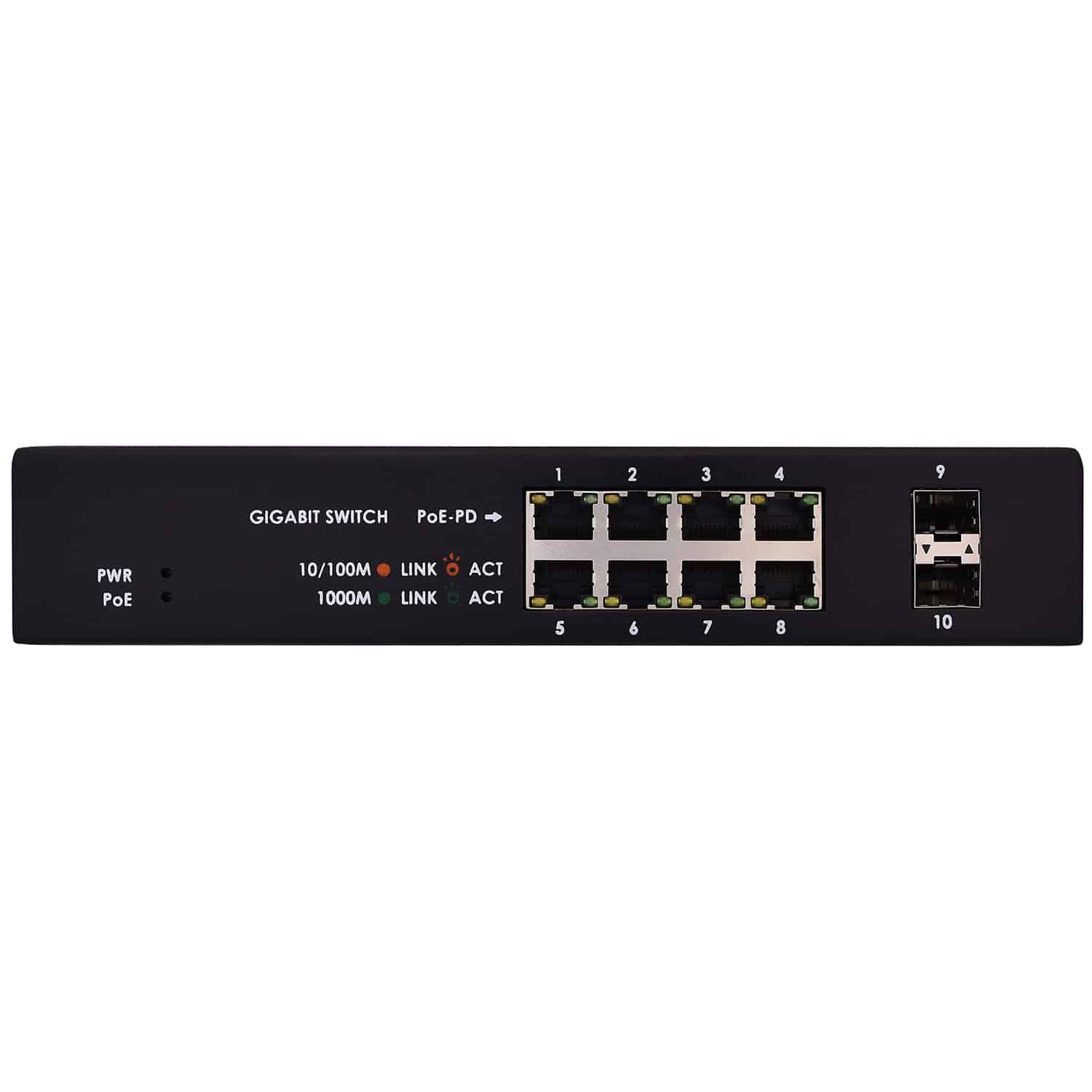

    • 8x 10/100/1000 Mbps RJ45 Ethernet ports
    • 2x 1000Base-X SGMII SFP ports
  • Integrated Security Features
    • 256 Entry TCAM for Deep Packet Inspection
    • Supports 4096 802.1Q VLANs
  • Powered for Remote Deployment
    • Redundant Wide Range 9-36V DC Inputs
    • Power over Ethernet (PoE) PD 802.3at Type1 device
    • Low power with Typical Power Consumption of 6 Watts
  • Designed to survive Industrial Control Applications
    • Fanless -40°C to +85°C Operating Temperature Range
    • Shock and Vibration Tested
    • Long lifetime (10+ years availability)
Features
CONNECTIVITY

• High performance, non-blocking, 10-port Ethernet Switch
– Eight 10/100/1000Mbps RJ-45 Ports with Advanced Virtual Cable Tester (VCT) diagnostic features
– 2x 1000Base-X SGMII SFP ports
• Low power Energy Efficient Ethernet PHYs
TIME CRITICAL DATA

• Supports IEEE 1588v2 one-step PTP
• Synchronous Ethernet for 1000Base-T or 100Base-TX
• Cut-through switch fabric for low latency applications
QUALITY OF SERVICE (QoS)

• QoS support with 8 traffic lanes
– IEEE 802.1P
– By port
– Source or Destination MAC address
– IEEE 802.1Q VLAN ID
– Frame Type
– IPv4 Type of Service (TOS)
– Differential Service
– IPv6 Traffic Class
• IEEE 802.1Qbb Priority Flow Control
SECURITY

• Marvell® Link Street®-88E6390X Switch
– Integrated 200MHz microprocessor
• Three levels of IEEE 802.1Q security supported
• Supports 4096 802.1Q VLANs
• Supports 802.1D/s/w Spanning Tree Protocols
• IPv4 IGMP and IPv6 MLD snooping
• IEEE 802.1x MAC Authentication
ADVANCED SWITCHING CAPABILITY

• High performance switch fabric
• Simultaneous line rate switching
– Up to 16K MAC addresses
• 256 Entry TCAM for Deep Packet Inspection
– Look up to 48 or 96 bytes deep into a frame
• Per port ingress rate limiting and broadcast storm prevention
• Per port rate shaping
POWER

• Three redundant power inputs for reliable

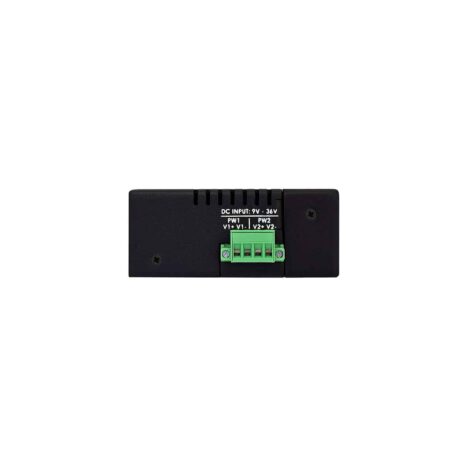

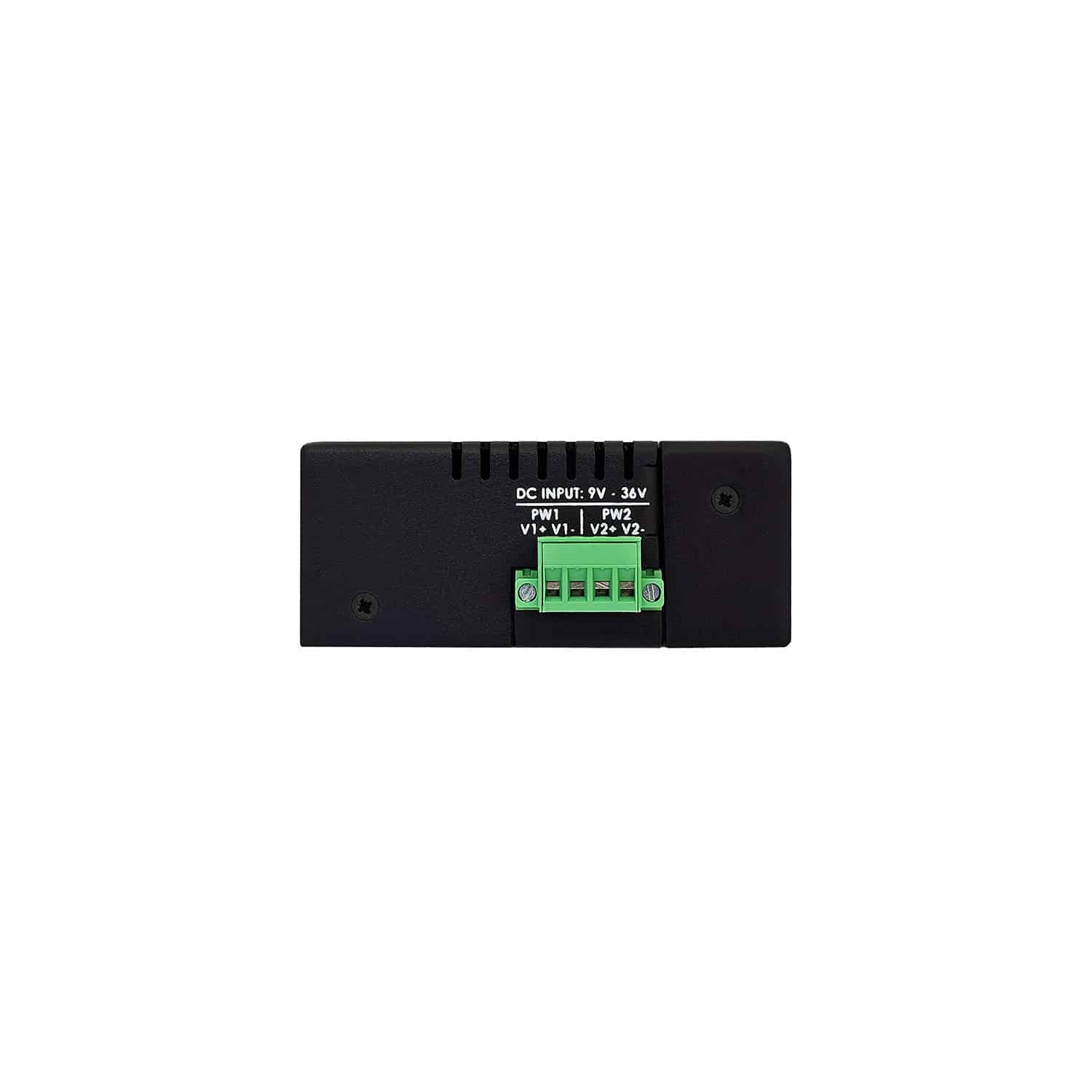

– Input 1 and 2: Wide Range 9-36V DC input
– Input 3: PoE PD 802.3 at Type 1
• Overload protection
• Typical Power is 6 Watts with Max Power of 13 Watts
ENVIRONMENTAL

• Fanless -40C to 85C Operating Temperature Range
• Shock Tested per IEC-60068-2-27 @ 4G rms
• Vibration Tested per IEC-60068-2-6 @ 2G rms
• Mean Time Between Failure (MTBF) 224604 hours (MIL217F)
COMPLIANCE & CERTIFICATION

• FCC Class B / CISPR Class B
• UL Listed, CE stamp
• REACH and RoHS Compliant
MECHANICAL

• Dimensions: LxWxH = 9.17in x 4.10in x 1.72in (233mm x 104mm x 44mm)
• Weight: 1.5lbs (680gr)
• Optional DIN Rail Mount
