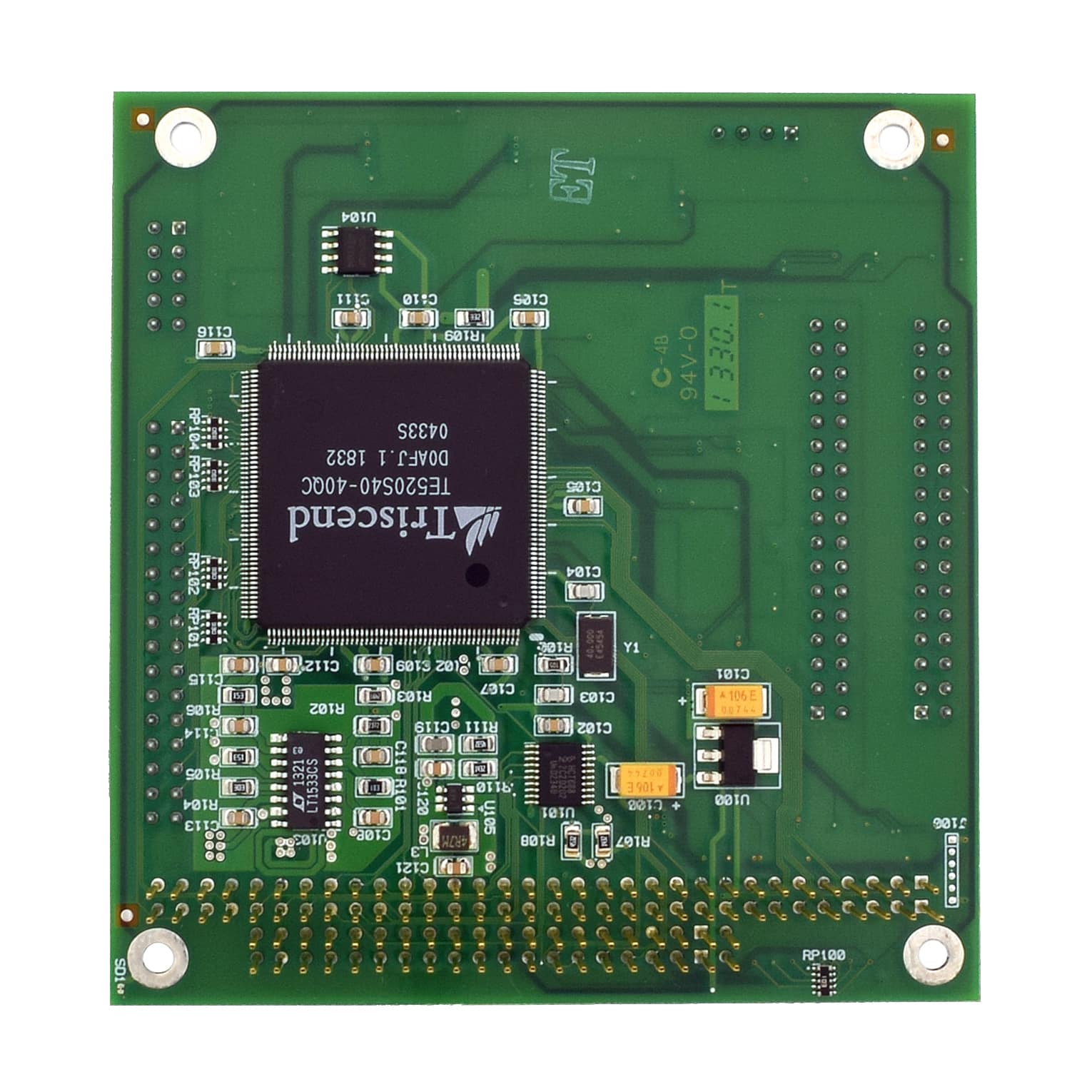

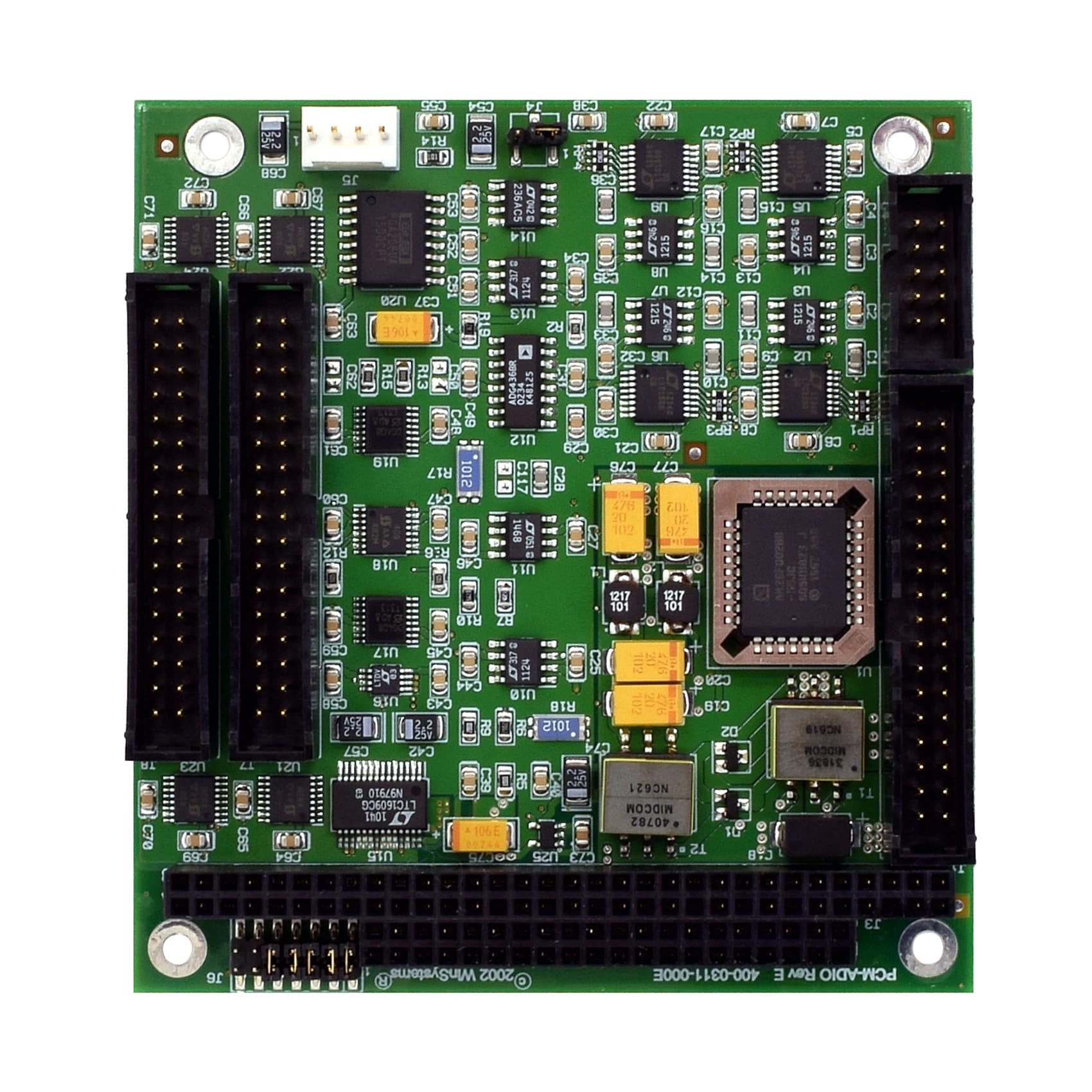

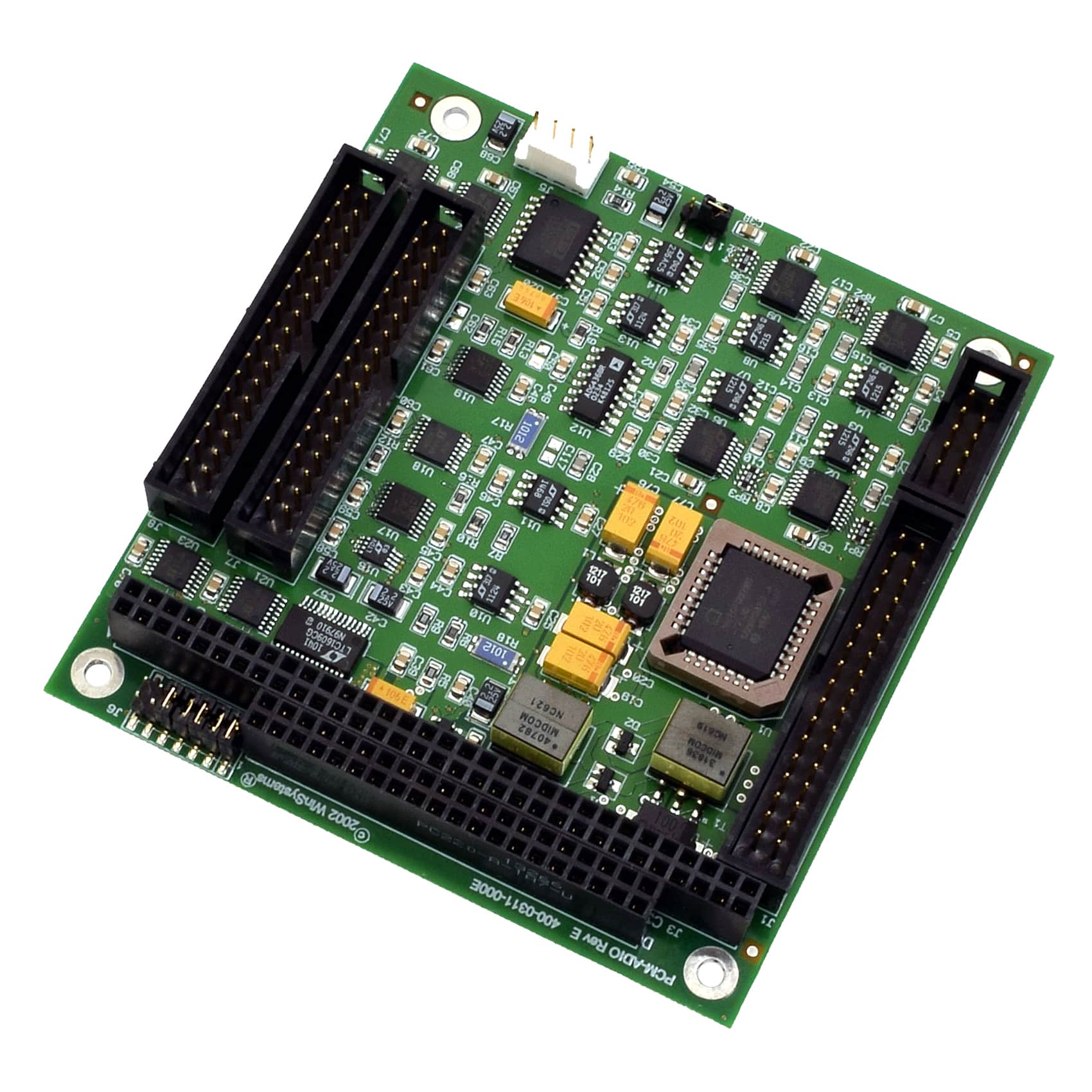

PCM-ADIO PC/104 Data Acquisition
No longer in production
This product is listed to provide access to its documentation.
The PCM-ADIO is an intelligent PC/104-based analog input, analog output, and digital I/O board designed to meet customer demands for high-accuracy and high channel count analog I/O. Based on 16-bit analog-to-digital and 12-bit digital-to-analog converters, the PCM-ADIO includes unique features such as advanced automatic conversion control and buffers, automatic calibration for all input modes of operation, and jumperless selection for all analog input/output ranges.
DATA SHEET PRODUCT INFOFeatures
- Command-based intelligent data acquisition system
- On-board processor handles all scheduling, mode selection, calibration control, and data buffer management
- Eight Analog Input Ranges: 0-1.25V, 0-2.5V, 0-5V, 0-10V, ±1.25V, ±2.5V, ±5V, and ± 10V
- 16-bit Analog-to-Digital (A/D) converter
- Ultra low noise DC/DC converter
- Four 12-bit Digital-to-Analog (D/A) converters
- 16 bits of TTL-compatible general purpose digital I/O
