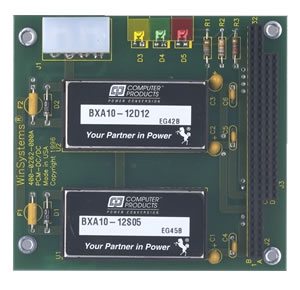

PCM-DC/DC PC/104 DC/DC supply

No longer in production

This product is listed to provide access to its documentation.

The PCM-DC/DC is a family of PC/104 Bus DC/DC converters suited for telecommunications, industrial, solar or battery powered applications. The module plugs directly into a PC/104 Bus stack to provide either a single +5V or triple output voltages for small systems. Nominal DC input voltages of +12 or +48 volts are accepted with a wide input range.

DATA SHEET PRODUCT INFO

Features

  • PCM-DC/DC-12-500 – PC/104 DC/DC supply, 12V (In) 5V @ 2 A (Out)
  • PCM-DC/DC-12-500-3 – PC/104 DC/DC supply, 12V (In) 5V @ 3 A (Out)
  • PCM-DC/DC-12-512 – PC/104 DC/DC supply, 12V (In) 5V @ 2 A,+/- 12V @ .416 A (Out)
  • PCM-DC/DC-12-512-3 – PC/104 DC/DC supply, 12V (In) 5V @ 3 A,+/- 12V @ .416 A (Out)
  • PCM-DC/DC-48-500 – PC/104 DC/DC supply, 48V (In) 5V @ 2 A (Out)
  • PCM-DC/DC-48-500-3 – PC/104 DC/DC supply, 48V (In) 5V @ 3 A (Out)
  • PCM-DC/DC-48-512 – PC/104 DC/DC supply, 48V (In) 5V @ 2 A,+/- 12V @ .416 A (Out)
  • PCM-DC/DC-48-512-3 – PC/104 DC/DC supply, 48V (In) 5V @ 3 A,+/- 12V @ .416 A (Out)
