| Features | |
|---|---|
| Digital I/O | 48 Bidirectional General Purpose I/O (GPIO) |
| Bus Interface | PC/104, 8-bit |
| Power | +5V required, 20 mA typical (configured for inputs only) |
| Mechanical | PC/104-compliant |
| Operating Temperature Range | -40°C to 85°C |

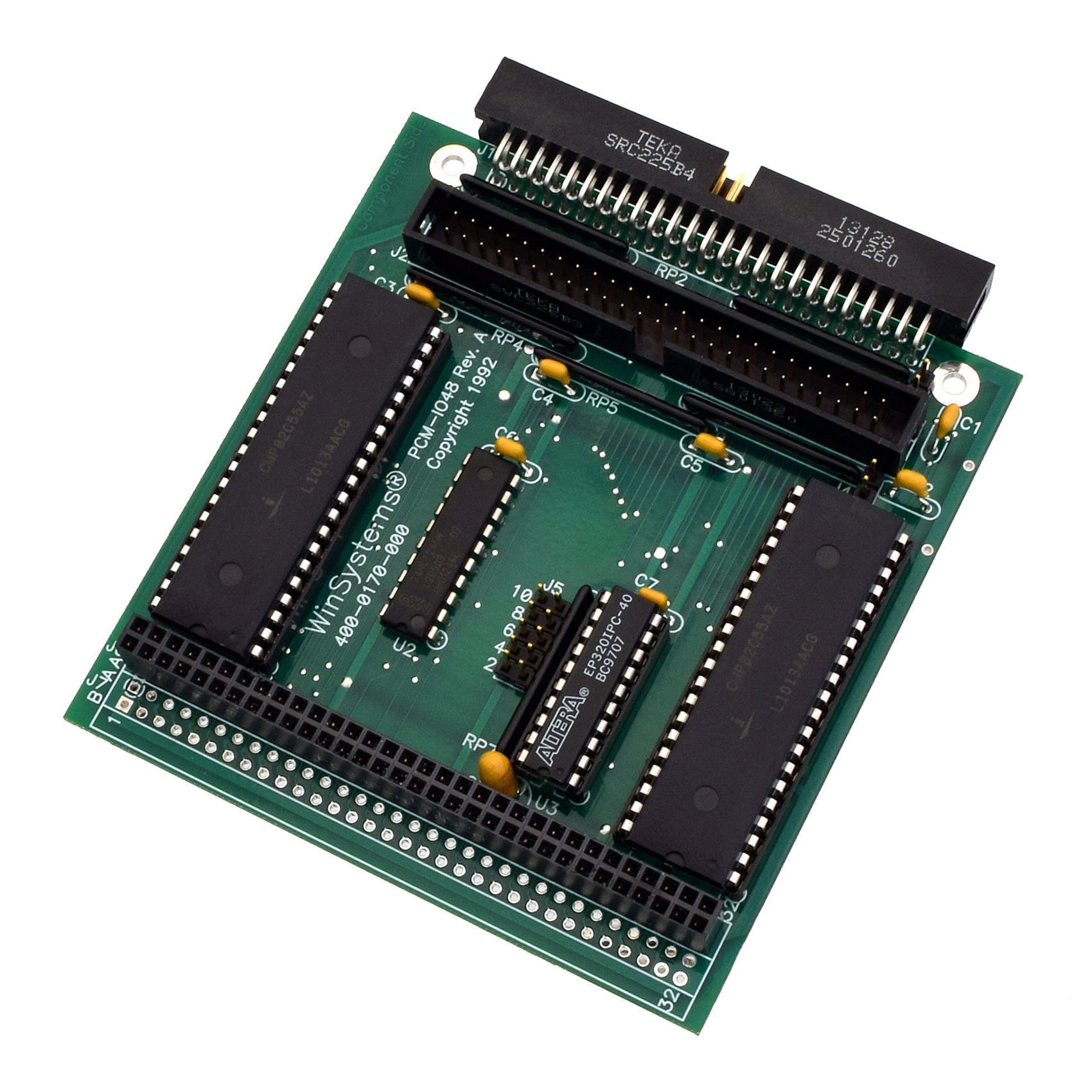

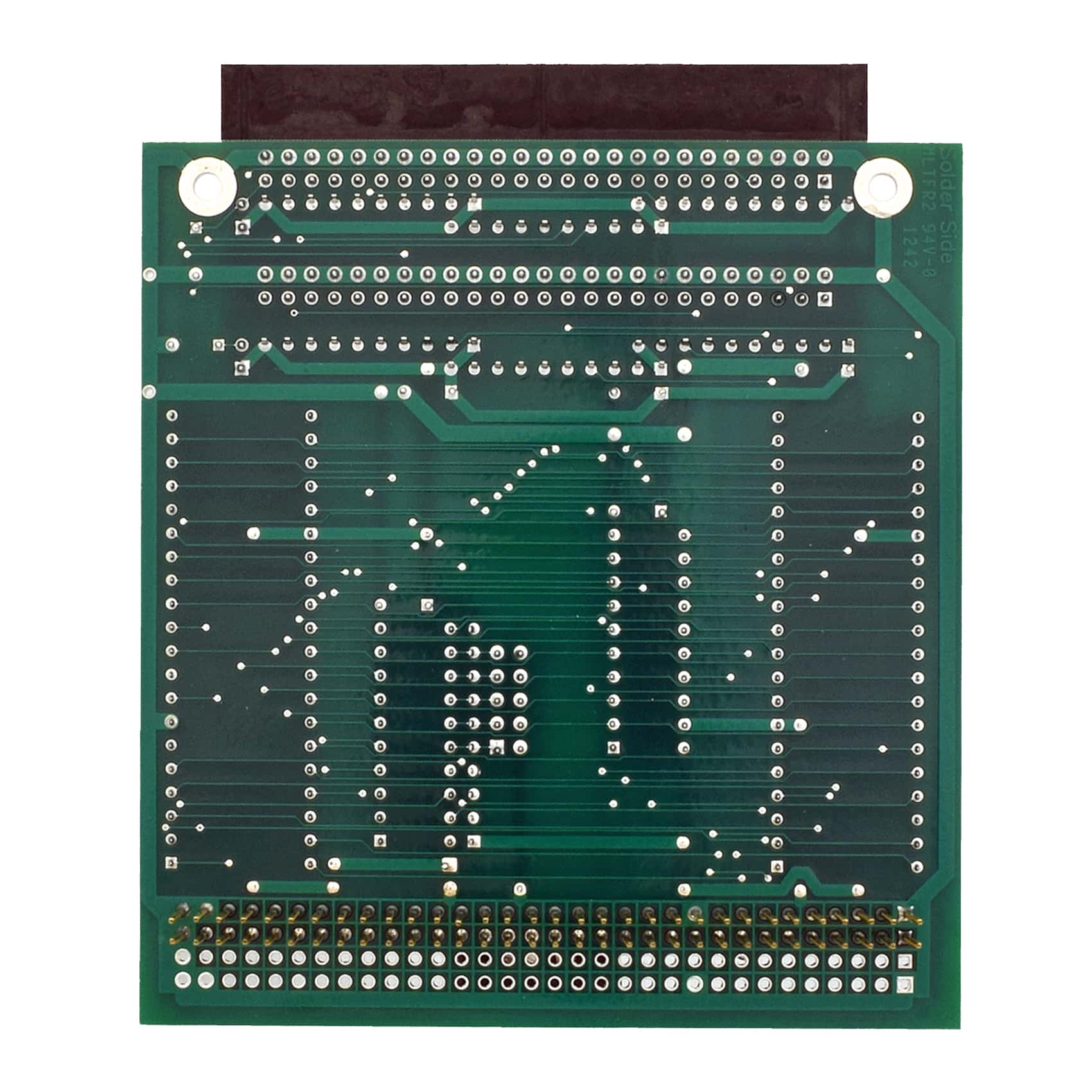

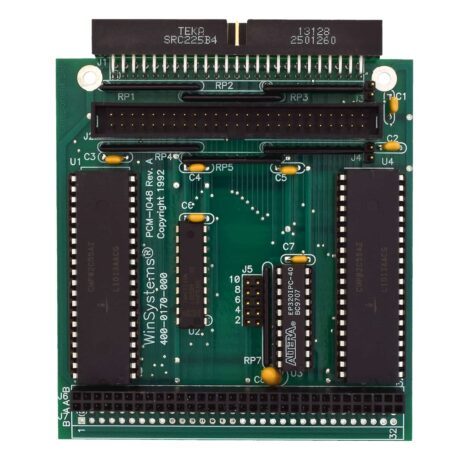

PCM-IO48 8255 Compatible PC/104 Module provides 48 GPIO
No longer in production
This product is listed to provide access to its documentation.
The PCM-IO48 is a low cost, general purpose, PC/104 compatible 48-line parallel I/O controller based upon two 82C55A integrated circuits. The I/O lines are organized as two groups of three, 8-bit I/O ports. It is wired to two, 50-pin connectors which each will interface directly to industry standard 4, 8, 16 and 24-I/O module solid state relay mounting racks (Opto-22, etc.).
DATA SHEET PRODUCT INFOFeatures
- 48 Bidirectional General Purpose I/O (GPIO)
- Uses two 82C55A compatible devices
- Each device is independent and supports 24 I/O
- Compatible with industry standard I/O racks
- Dual 50-pin header connectors
- Single +5V operation
- Industrial -40° to +85°C operational temperature
- PCM-IO48 Datasheet (PDF)
Datasheets
- PCM-IO48 Product Manual (PDF)
Product Manuals
- PCM-IO48 EOL Notice
Product Change_Notice
