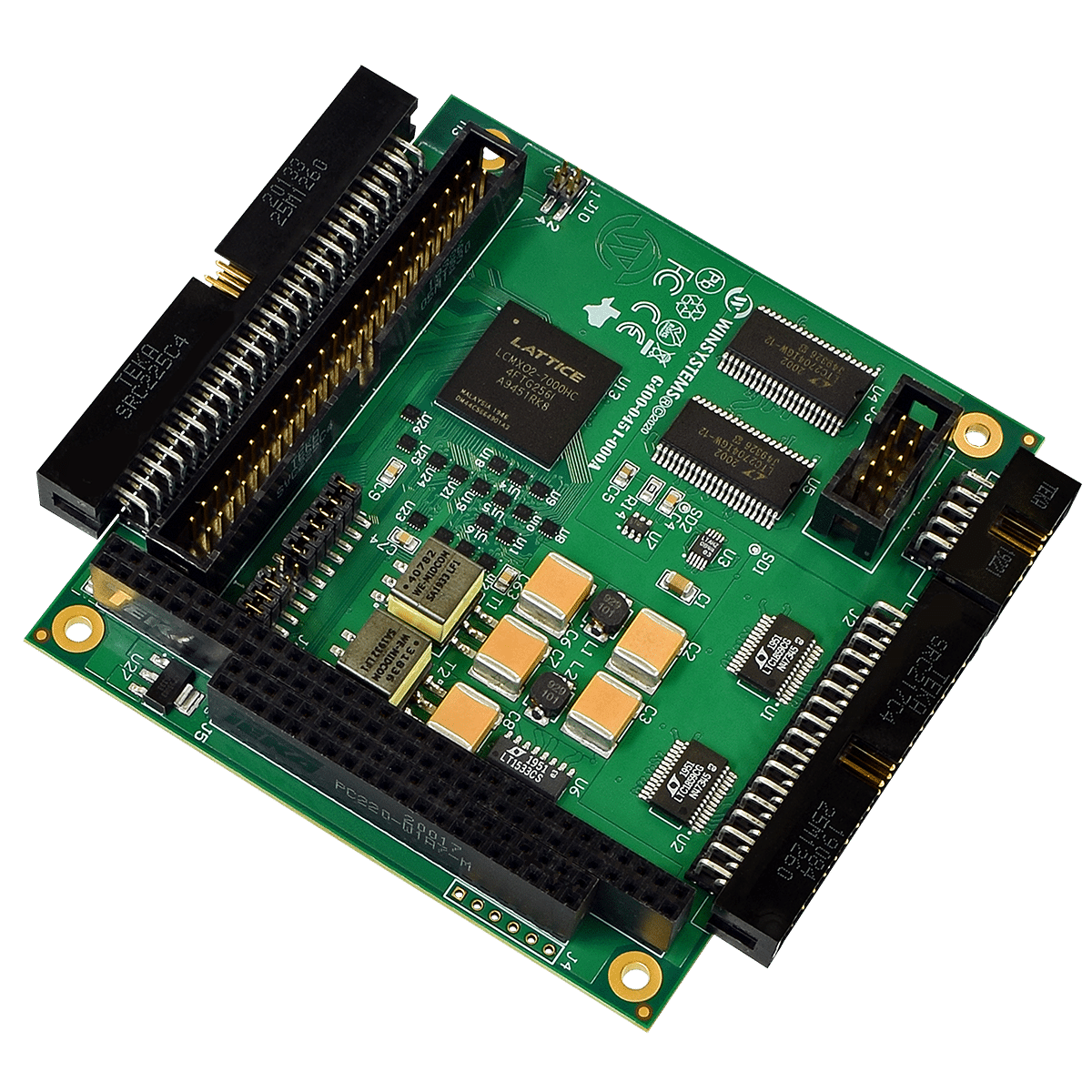

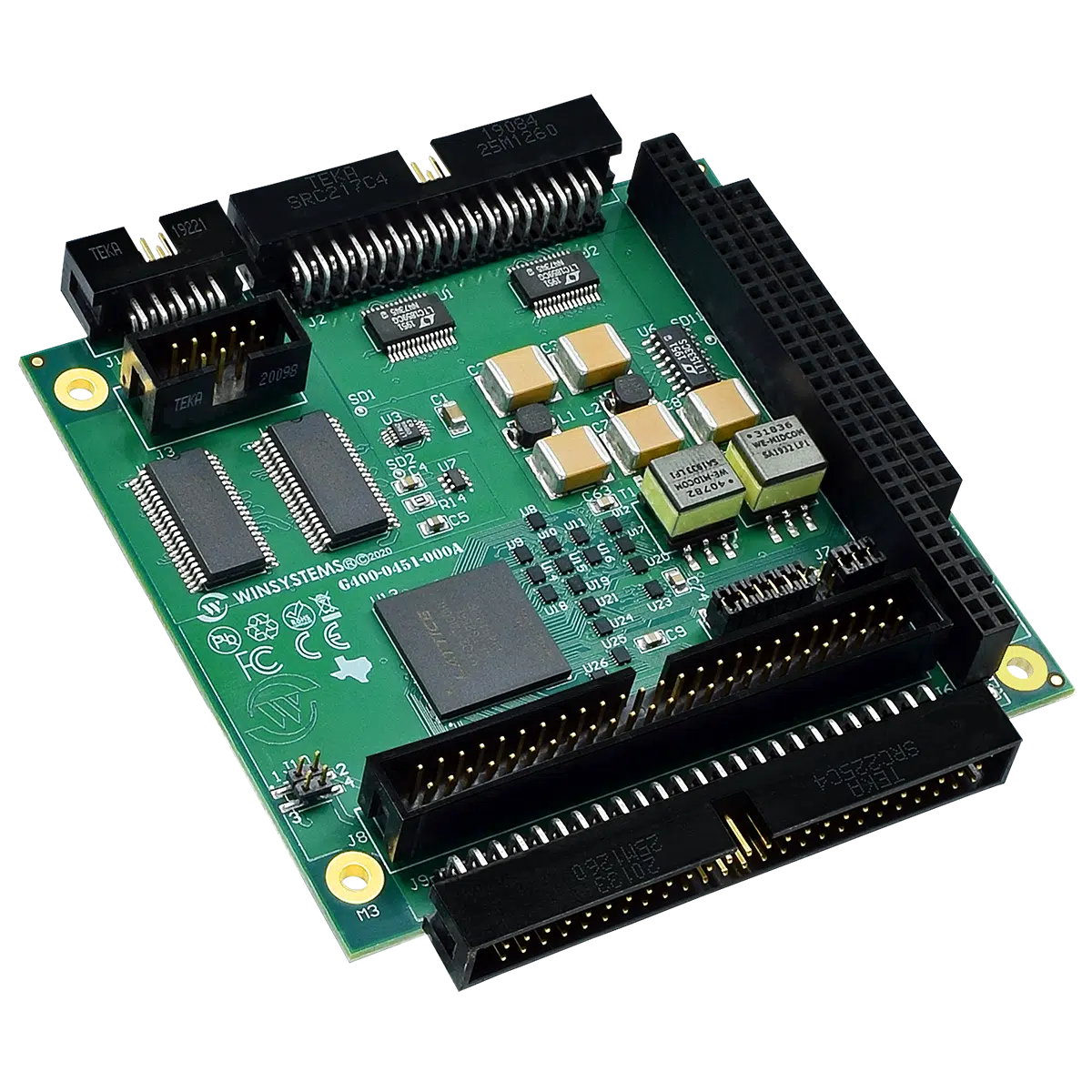

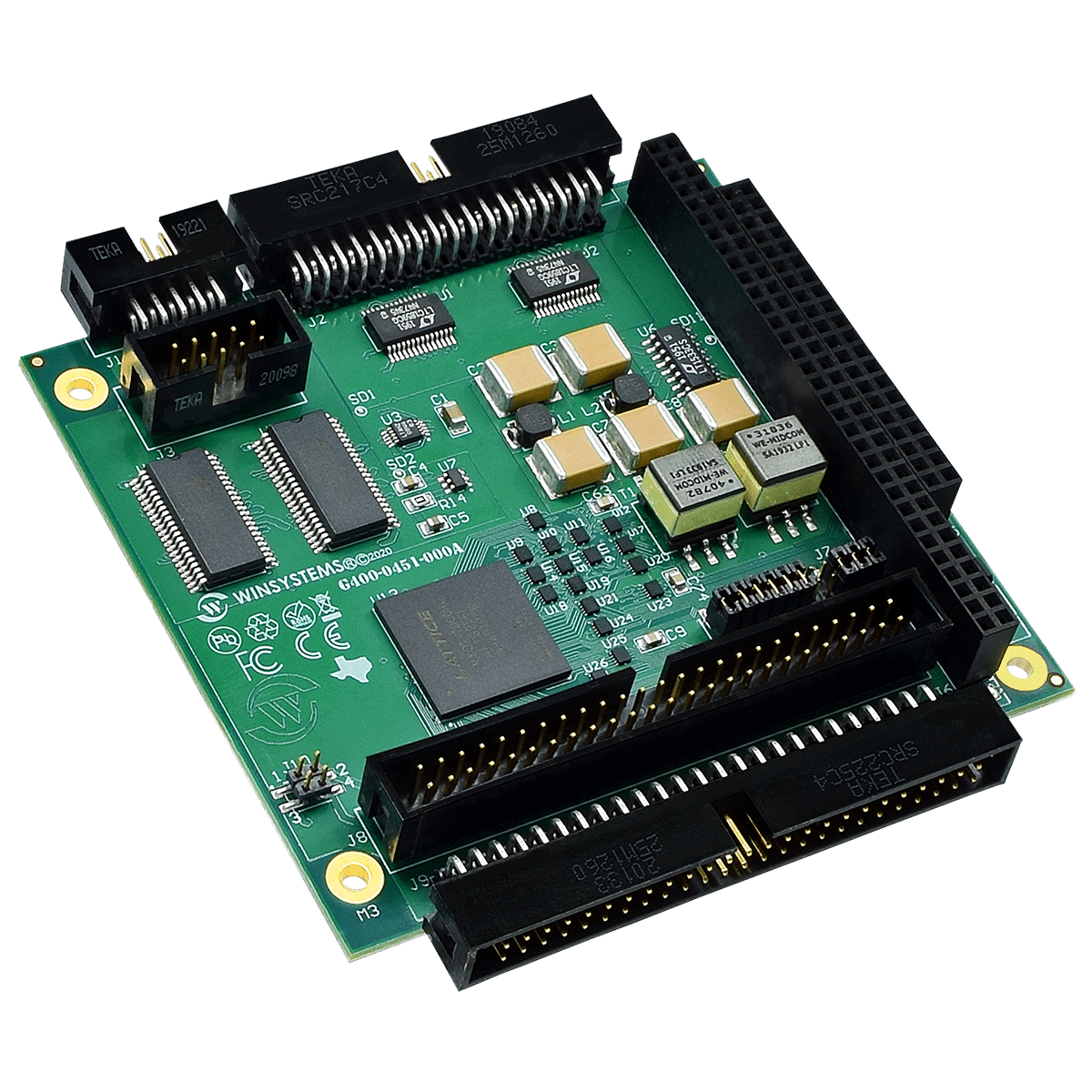

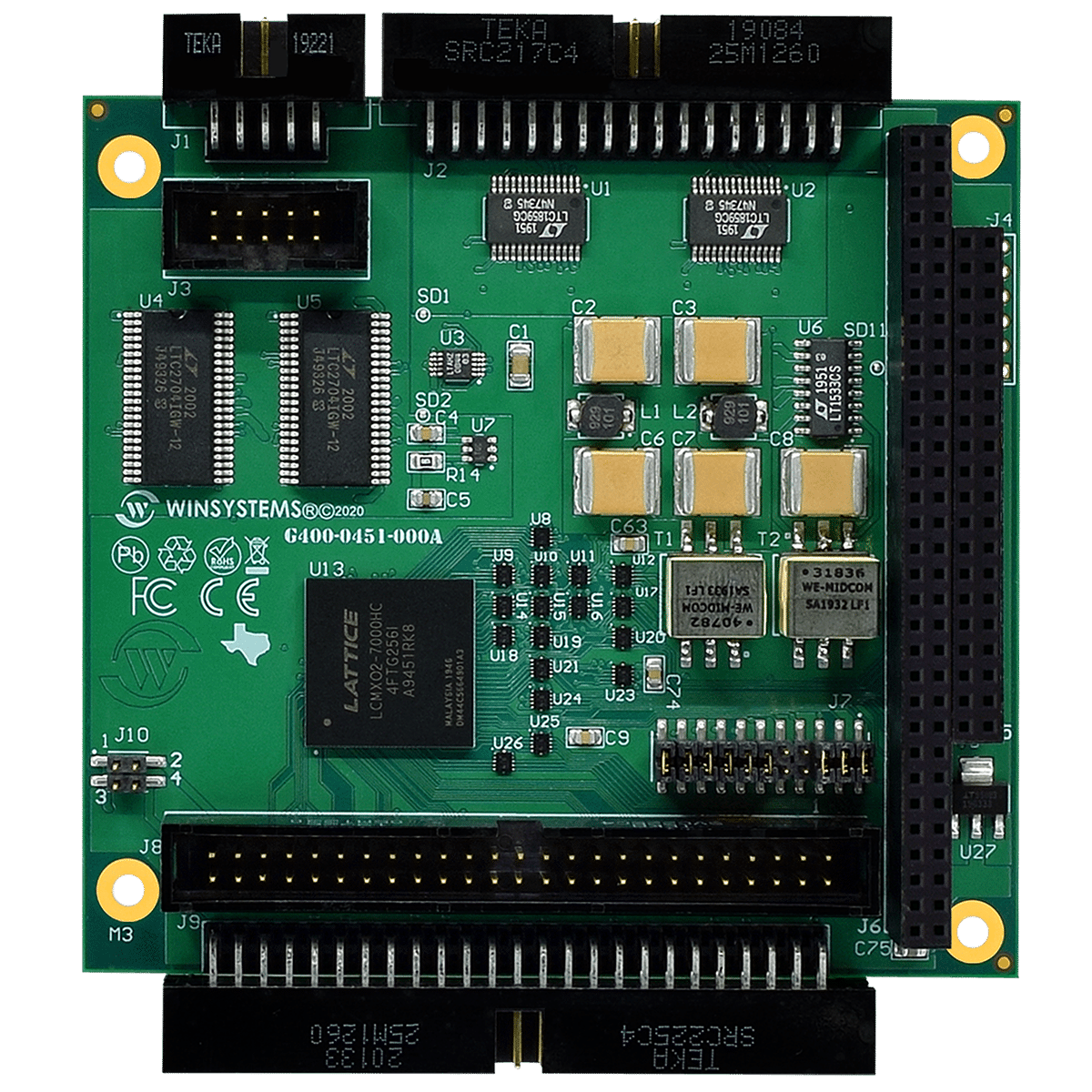

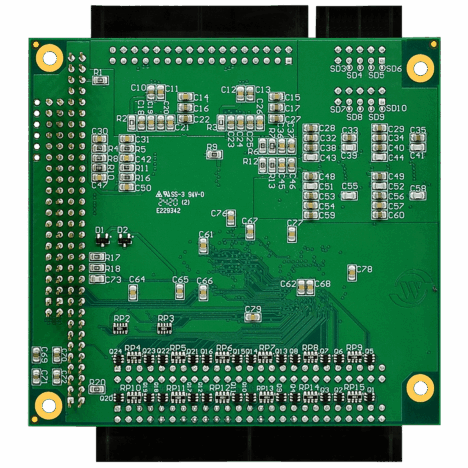

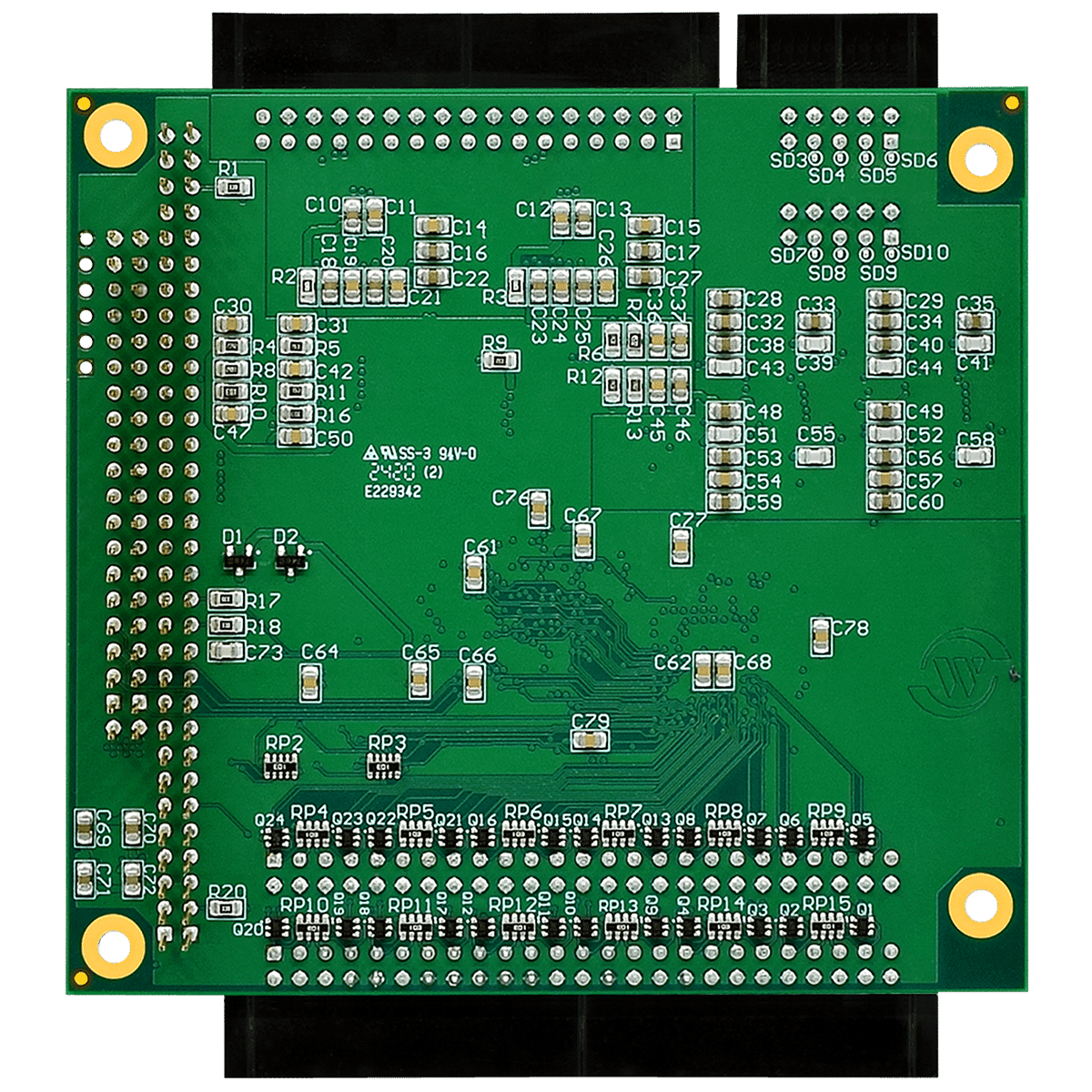

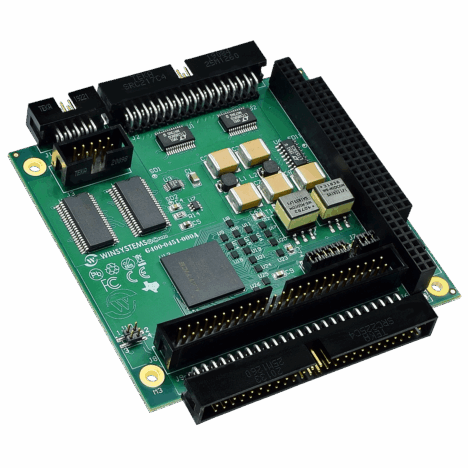

PCM-MIO-A-1 PC/104 I/O Module a1 – 16 ADC, 8 DAC, and 48 Digital I/O

The PCM-MIO-A-1 is a versatile, PC/104-based analog input, analog output, and digital I/O board designed for high-accuracy and high-channel-count analog and digital I/O. The board is based upon Linear Technology’s precision converters and voltage references which require no external calibration. The digital I/O utilizes WINSYSTEMS’ versatile WS16C48 Universal I/O controller functionality, also available on many of our SBCs and other I/O products.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

MADE IN THE USA

Features

Analog Inputs

16-bit Analog-to-Digital Converter (ADC) with sample-and-hold circuit
Input ranges: 0-5V, 0-10V, ±5V, and ±10V
Any combination up to 16 single-ended or eight differential input channels
Each channel independently software programmable for input type and range
±25V input protection on each channel
No missing codes over the full range
Low-noise DC/DC reference for accuracy
Programmable interrupt

Analog Outputs

Eight, 12-bit Digital-to-Analog converters (DAC)
Output ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V, and -2.5V to 7.5V
Channels are independently software programmable
Output channels can be updated and cleared individually or simultaneously

Digital Inputs/Outputs

48 Bidirectional lines with Input, Output, or Output with Readback, 24 capable of event-sense interrupt generation
12mA sink current per line

General

No calibration required
Standard 0.100” headers for easy cable access
Operating temperature: -40ºC to +85ºC
+5VDC operation
3.6 x 3.8 Inches (90 x 96mm)
Custom OEM configurations available
Compatible with industry-standard I/O racks

Features
Electrical	PC/104 Bus: 16-bit, stackthrough Voltage: +5V ±5% @ 500mA (typ.) All outputs unloaded PC/104 Bus: 16-bit, stackthrough Voltage: +5V ±5% @ 500mA (typ.) All outputs unloaded
A/D Section	Input: Up to 16 single-ended or 8 differential Range: 0-5V, 0-10V, ±5V, and ±10V Resolution: 16-bits Input Impedance: − 42kohm (typ.) unipolar mode − 31kohm (typ.) bipolar mode Input: Up to 16 single-ended or 8 differential Range: 0-5V, 0-10V, ±5V, and ±10V Resolution: 16-bits Input Impedance: − 42kohm (typ.) unipolar mode − 31kohm (typ.) bipolar mode
D/A Section	Input: Output: Eight channels Range: 0-5V, 0-10V, ±2.5V, ±5V, ±10V, and -2.5V to 7.5V Resolution: 12-bits, no missing codes Settling Time: 2μS to 0.1% full scale step Output Current: ±10mA per output (typ) with ±30mA max per board N/A
Digital	Type: 48-bits organized in six, 8-byte segments Logic: TTL-compatible with 12mA sink for each pin Type: 48-bits organized in six, 8-byte segments Logic: TTL-compatible with 12mA sink for each pin
Environmental	Operational from -40°C to +85°C RoHS compliant Operational from -40°C to +85°C RoHS compliant
Mechanical	Dimensions: 3.6 x 3.8 inches (90 x 96mm) Weight: 3.20 oz. (90.72 g) Dimensions: 3.6 x 3.8 inches (90 x 96mm) Weight: 3.20 oz. (90.72 g)
