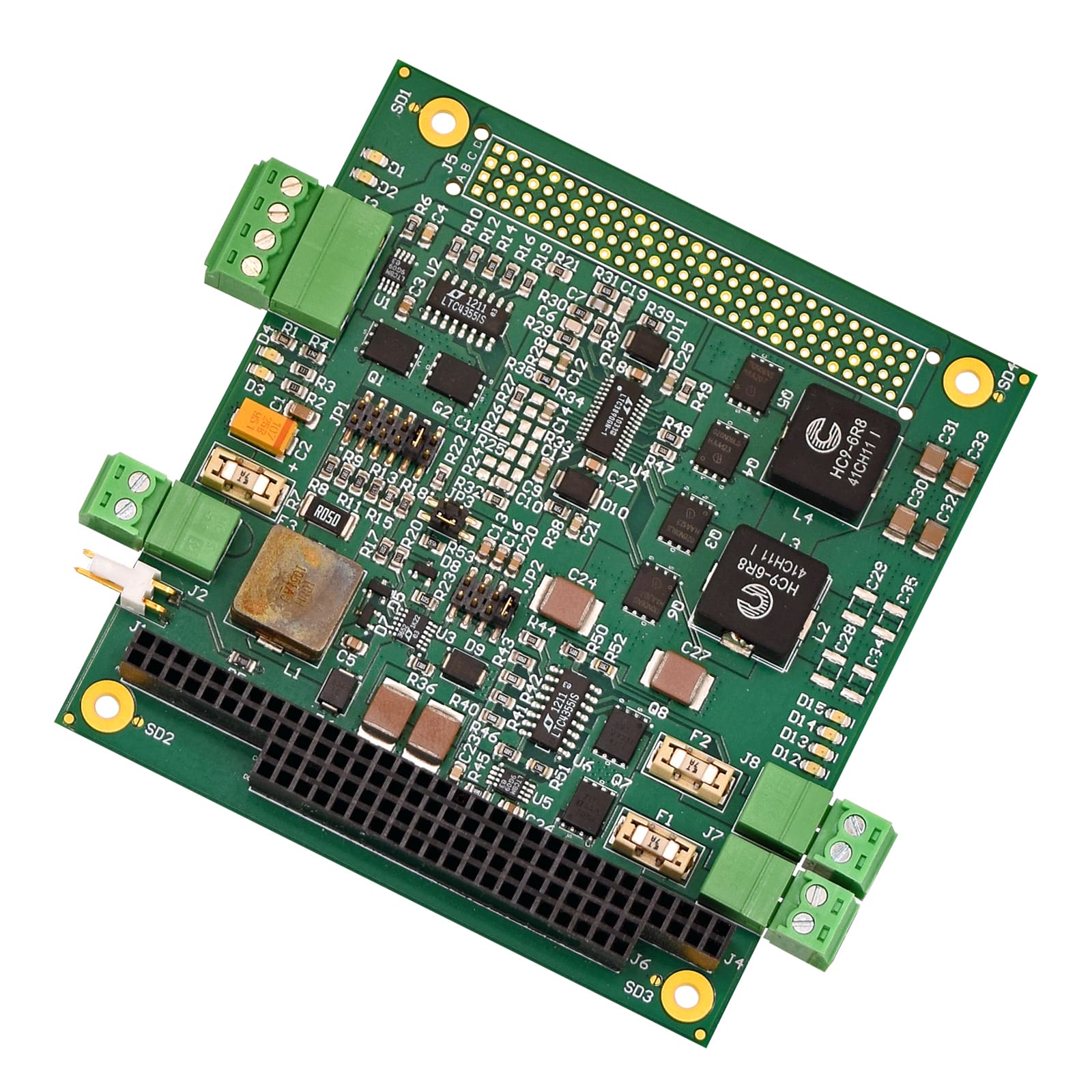

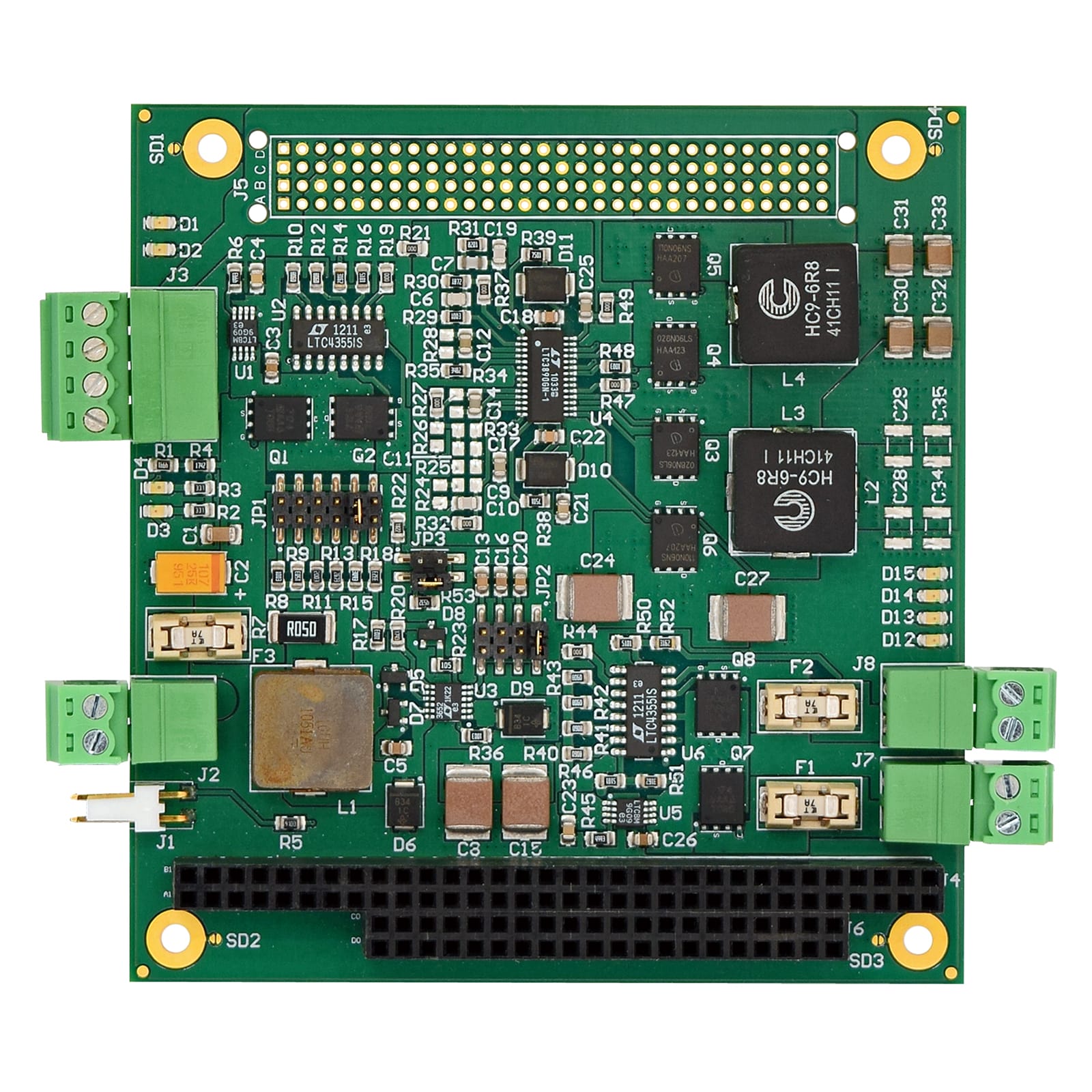

PCM-PS394-500 Dual Input PC104 DC/DC with battery charger +5V output

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ PCM-PS394-500 is a +5VDC output, wide inputrange, DC/DC converter with a built in battery charger and uninterruptable power supply (UPS) controller. It provides power to a single board computer (SBC) from a wind turbine, solar panel, battery or other DC source. This product can be used for off grid applications in harsh temperature ranges from -40° to +85°C.

DATA SHEET PRODUCT INFO

Features

  • Wide input range: 9V to 32 VDC
    • Dual fused inputs accept solar panel, wind turbine, or other DC sources
    • Automatically selects best input source and provides rapid switchover
  • UPS operation with battery pack
  • Battery charger supports Lead Acid, Li-Ion Polymer, LiFePO, and SLA chemistries
    • MPPT charging supported for solar panels
    • NTC thermistor input to monitor temperature

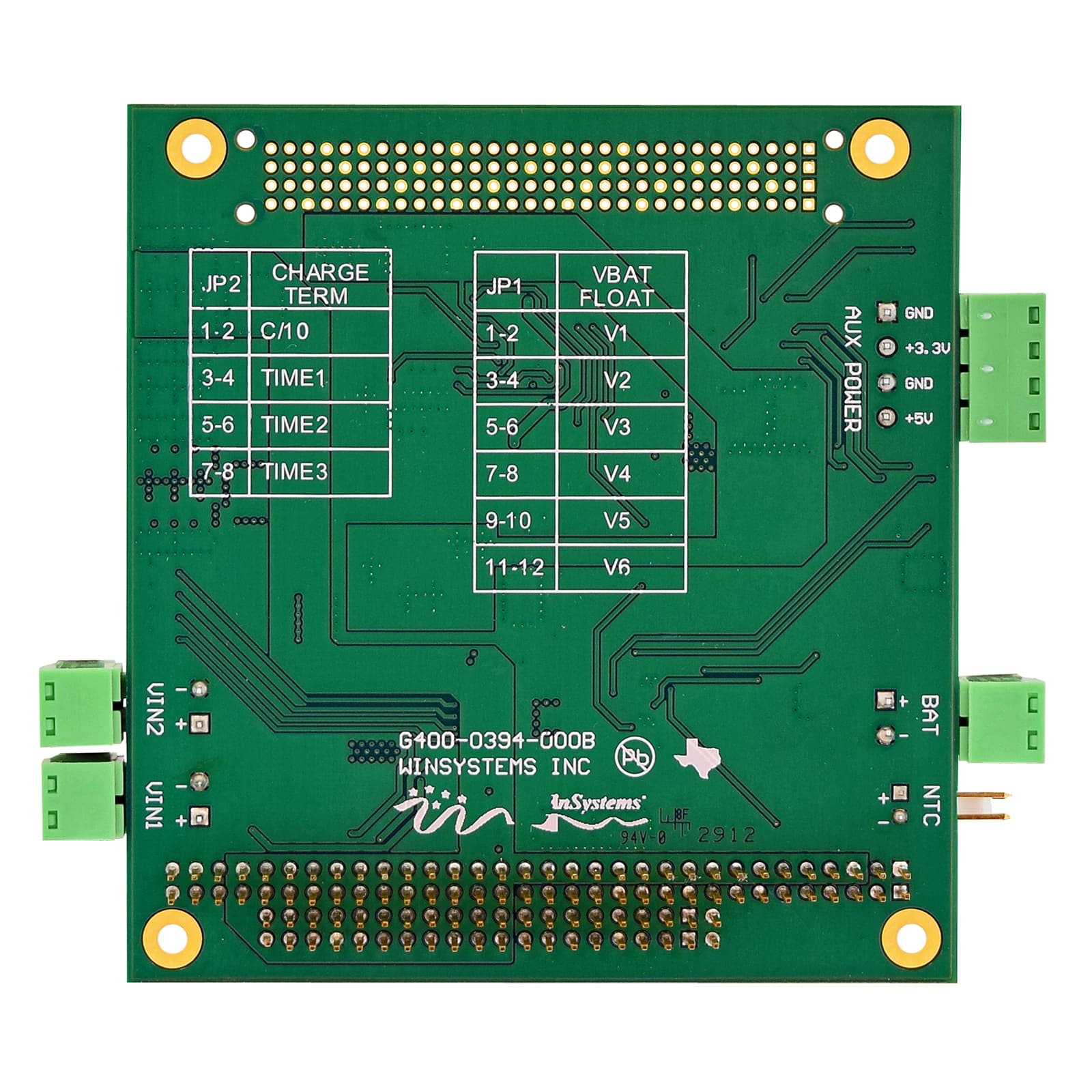

    • Jumper configurable End of Charge and Float voltage
  • Voltage output: +5V @ 10A
  • -40 to +85°C operation
Features
Input Voltage

Wide range: 9-32 VDC
Dual fused inputs accept solar panel, wind turbine, or other DC sources
Automatically selects best input source and provides rapid switchover
Output Voltage

+5V @ 10A
Over current protection (OCP) and over voltage protection (OVP) for all outputs
High efficiency
Fast transient response
Low voltage ripple
No minimum load required for regulation
Battery Charger

UPS Operation with battery pack
MPPT battery charger for Lead Acid, Li-Ion/Polymer, LiFePO, and SLA chemistries
User replaceable safety fuse for the battery and NTC thermistor input to monitor temperature
Jumper configurable End of Charge and Float Voltage
Bus Expansion

PC104
Mechanical

PC104-compliant
Dimensions: 3.6 x 3.8 inches(90 x 96 mm)
Weight: 3.1 oz (87.1g)
Operating Temperature Range

-40°C to 85°C
Random Vibration Testing

MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis
Mechanical Shock Testing

MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis
