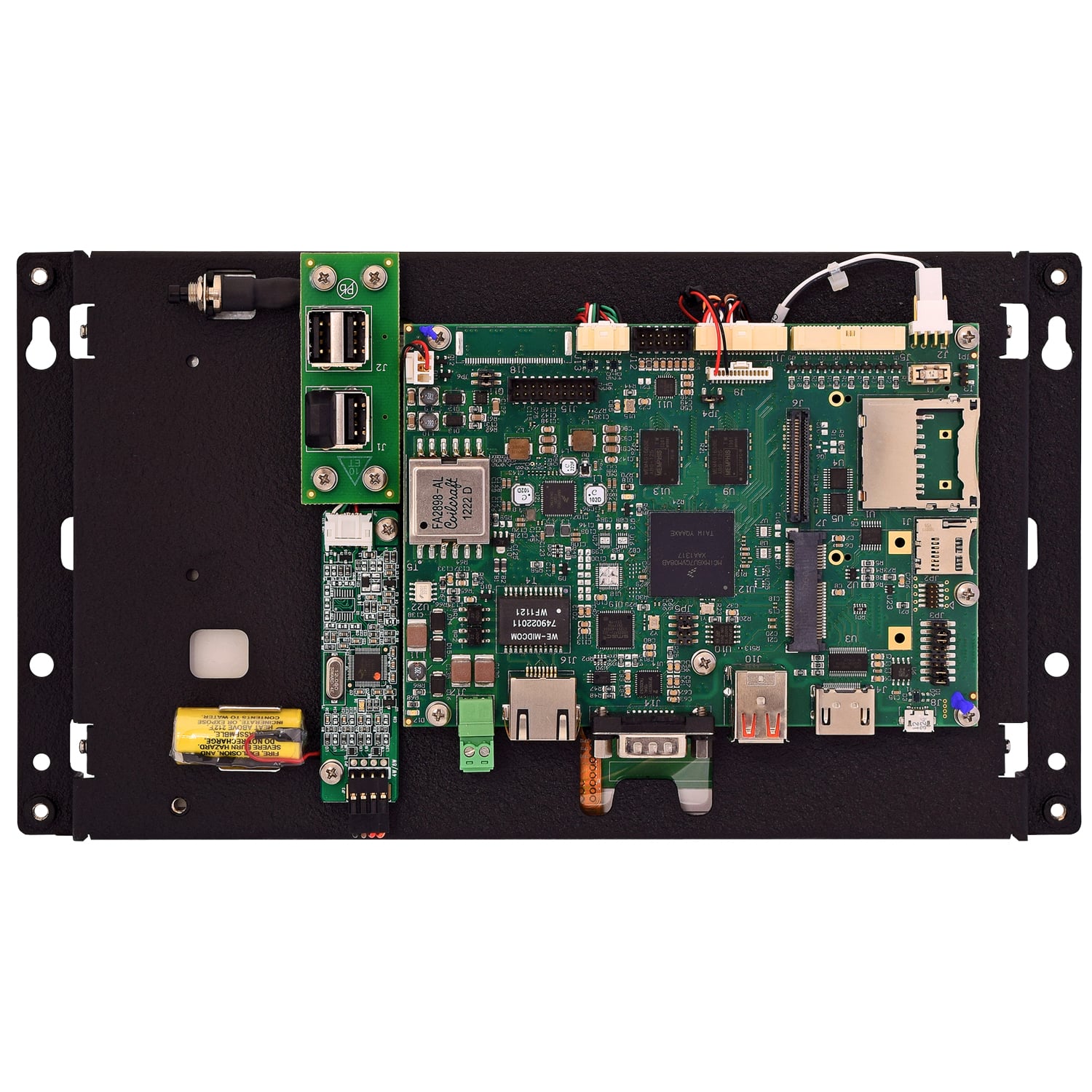

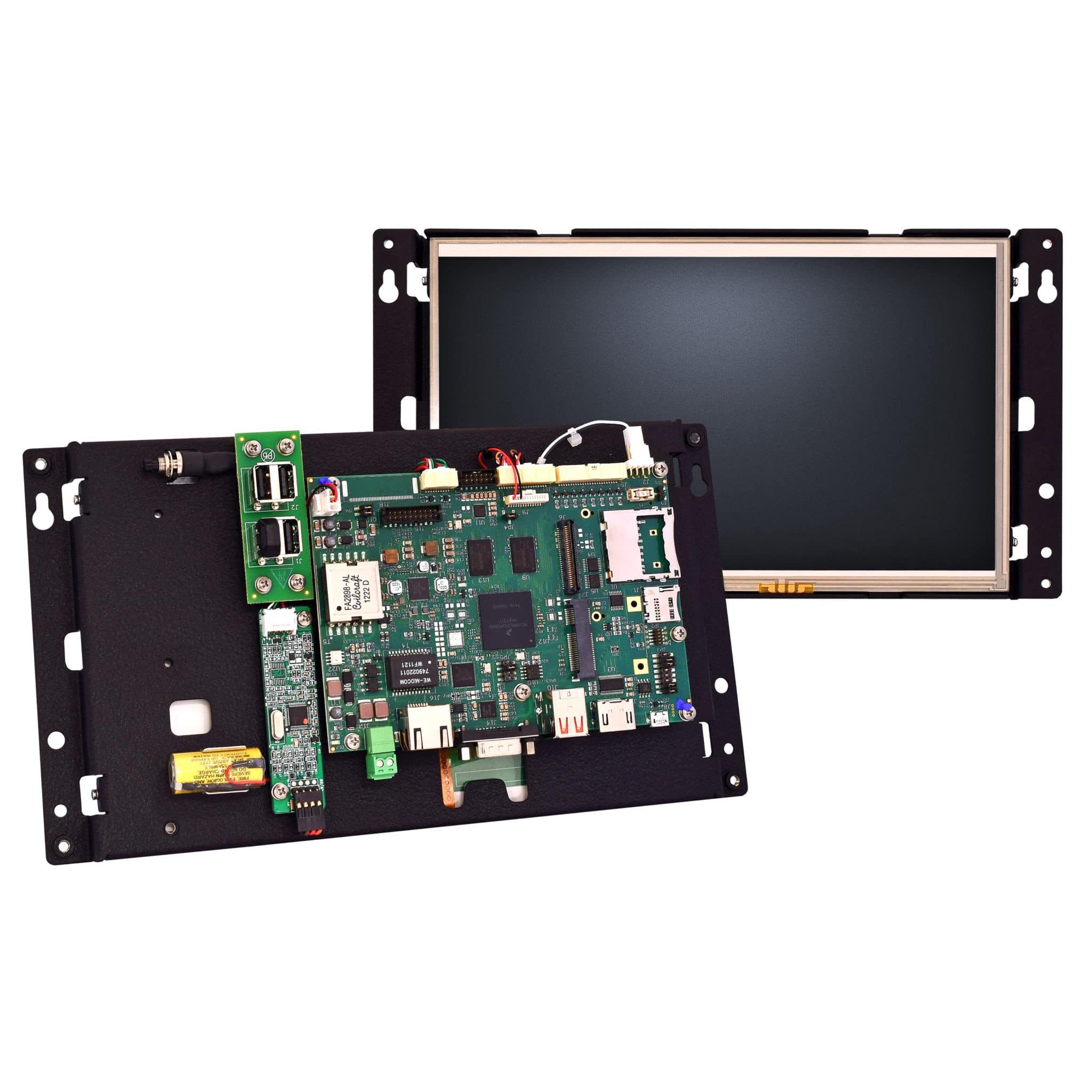

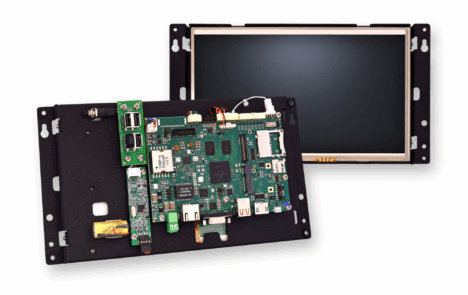

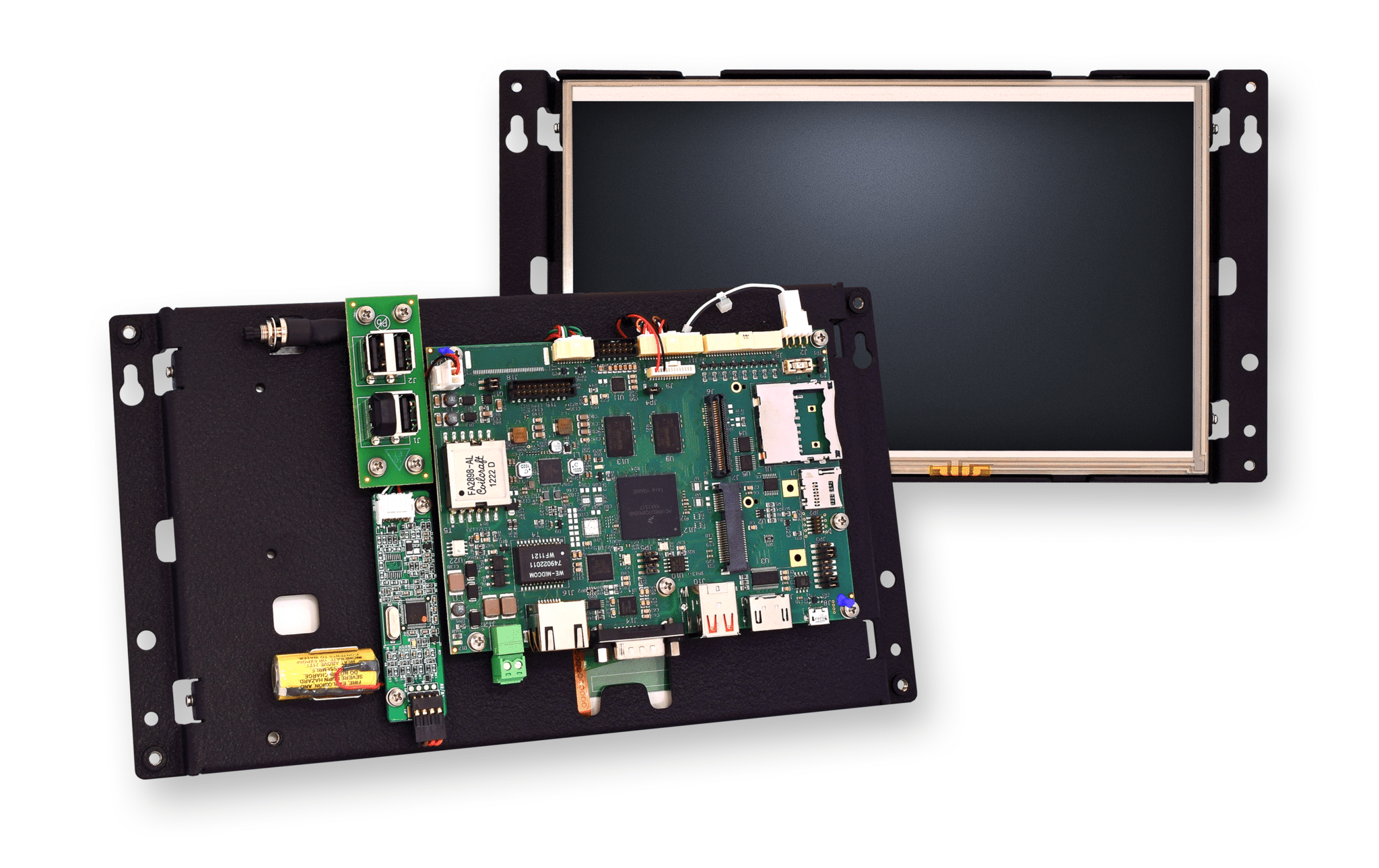

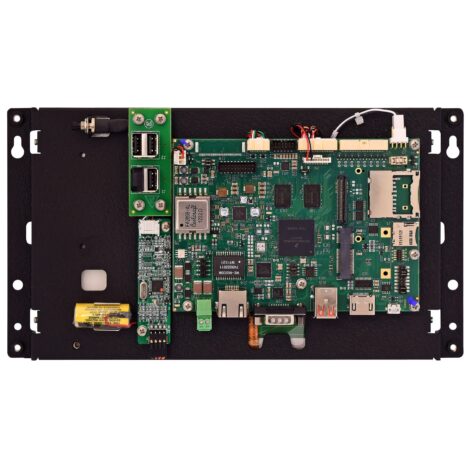

PPC-10W-398D Dual-Core ARM® Panel PC with Freescale i.MX 6DL Cortex A9 Processor

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ PPC-10W-398D dual-core open frame Panel PC combines high performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6DL processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

MADE IN THE USA

Features

1024×600 Resolution 10” Panel PC with Touchscreen
Dual-core Freescale® i.MX 6DL Cortex A9 Industrial ARM CPU @ 800 MHz
2GB of Soldered DDR3 RAM
High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
Multiple Video Interfaces: HDMI 1.4 and Two LVDS
Gigabit Ethernet with IEEE-1588™
Six USB 2.0 ports and one USB On-The-Go Port
Two CAN Bus ports, One High Speed Serial port
24 lines GPIO tolerant up to 30 VDC
SD/SDIO and MicroSD sockets
MiniPCIe and IO60 expansion
Wide range DC or Power over Ethernet (PoE) PD Power Input
Fanless -40° to +85°C operational temperature

Features
Panel Specs	10″ Open Frame Panel PC with Touchscreen
Processor	Industrial Freescale i.MX6DL – 800 MHz – 2x ARM Cortex A9 Cores – 32KB/32KB L1, 512 KB L2 Cache
Operating System Compatibility	Linux, Android™
Memory (RAM)	2 GB DDR3 RAM (Soldered) 128 KB Embedded SRAM
Video	Up to 2 Active Displays HDMI 1.4 Type A (HD1080p30) Two Channel LVDS (1366×768)
Camera	8 bit CMOS interface
Ethernet	1 Gbps Wake on LAN (WOL) IEEE-1588
Storage	SD/SDIO Socket (Bootable) MicroSD Socket (Bootable)
Digital I/O	24 GPIO lines tolerant to 30V
Serial I/O	1 Serial port (RS-232/422/485) up to 1 Mbps
Control Area Network (CAN)	Two FlexCAN Ports
Bus Expansion	IO60 MiniPCIe
USB	6 USB 2.0 ports 1 USB On-The-Go
Audio	HDMI 1.4 Type A Stereo audio supported
Power	POE PD: IEEE 802.3at (Up to 25W) Aux Input: +10 to +50 VDC
Mechanical	Dimensions: 4 x 5.75 inches(102 x 146 mm) Weight: 4.8 oz (136.1g) PCB Thickness: 0.078″
Operating Temperature Range	-40°C to 85°C
Random Vibration Testing	MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis (CFast card not installed)
Mechanical Shock Testing	MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis (CFast card not installed)

Datasheets

PPC-10W-398D Datasheet (PDF)

Product Manuals

PPC-10W-398D Product Manual (PDF)
