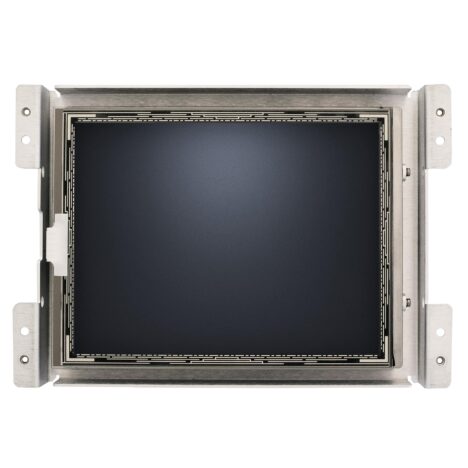

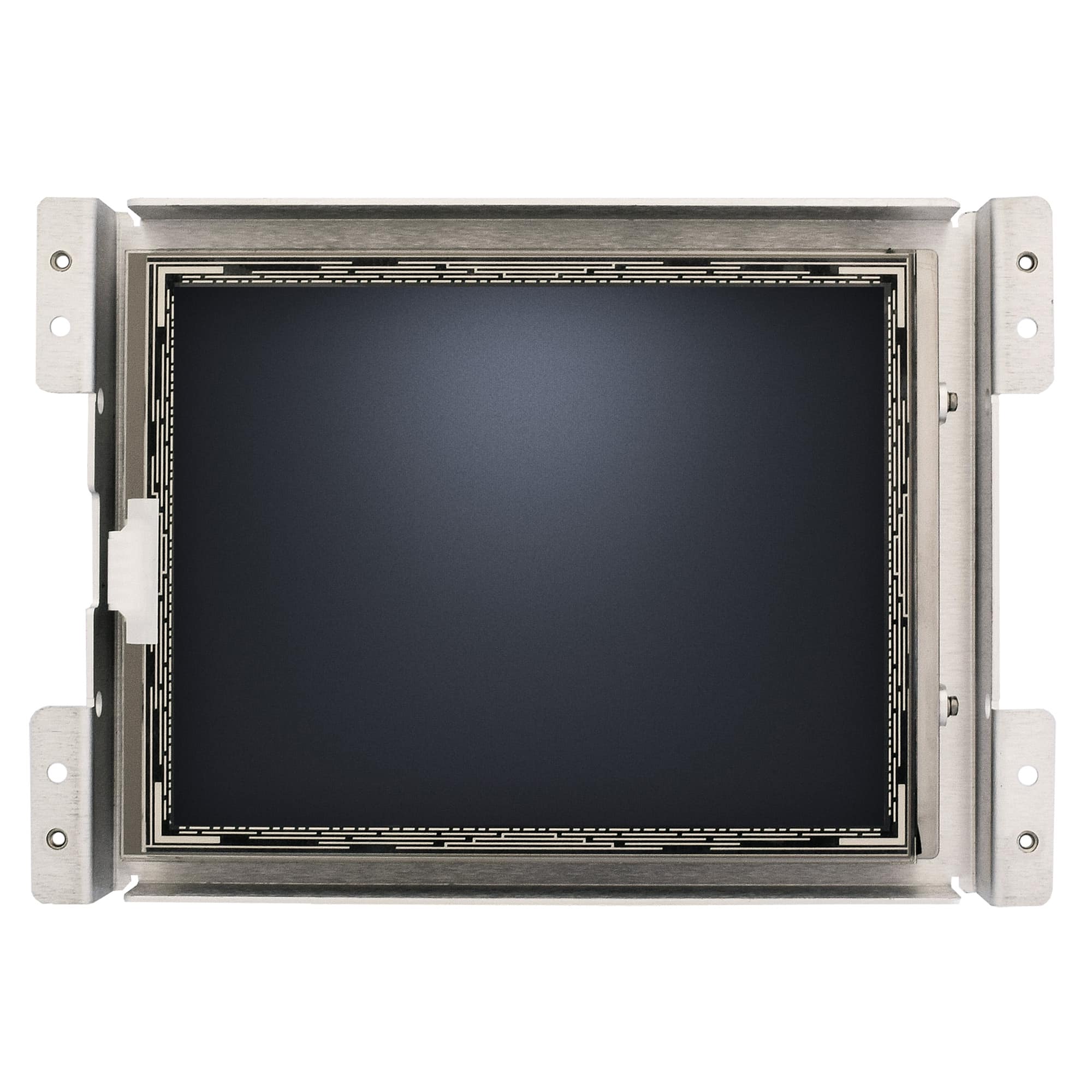

PPC3-G-6.5L-359-1 6.5″ Touch Panel PC with AMD LX800 CPU and PC104-Plus expansion
No longer in production
This product is listed to provide access to its documentation.
WINSYSTEMS’ PPC3-6.5 Panel PC is a compact, open frame display subsystem that includes a 6.5-inch fl at panel, PCcompatible Single Board Computer (SBC) with Ethernet port integrated into an open-frame enclosure less than three inches thick. An integrated touchscreen is included and other input devices can be added.
DATA SHEETFeatures
- Compact 6.5-inch AM TFT Flat Panel display
- 640×480 resolution with LED backlight
- -20°C to +70°C operating temperature
- Resistive touchscreen
- Single Board Computer (PPM-LX800-G)
- Low power AMD LX800 processor
- PC/104 and PC/104-Plus expansion connectors
- 10/100 Mbps Ethernet port
- Four serial ports (two RS-232/422/485 and two RS-232)
- 16 Bidirectional GPIO with event sense
- USB, LPT, keyboard, mouse, and audio
