PPM-GIGABIT-G PC/104-Plus Gigabit Ethernet module

No longer in production

This product is listed to provide access to its documentation.

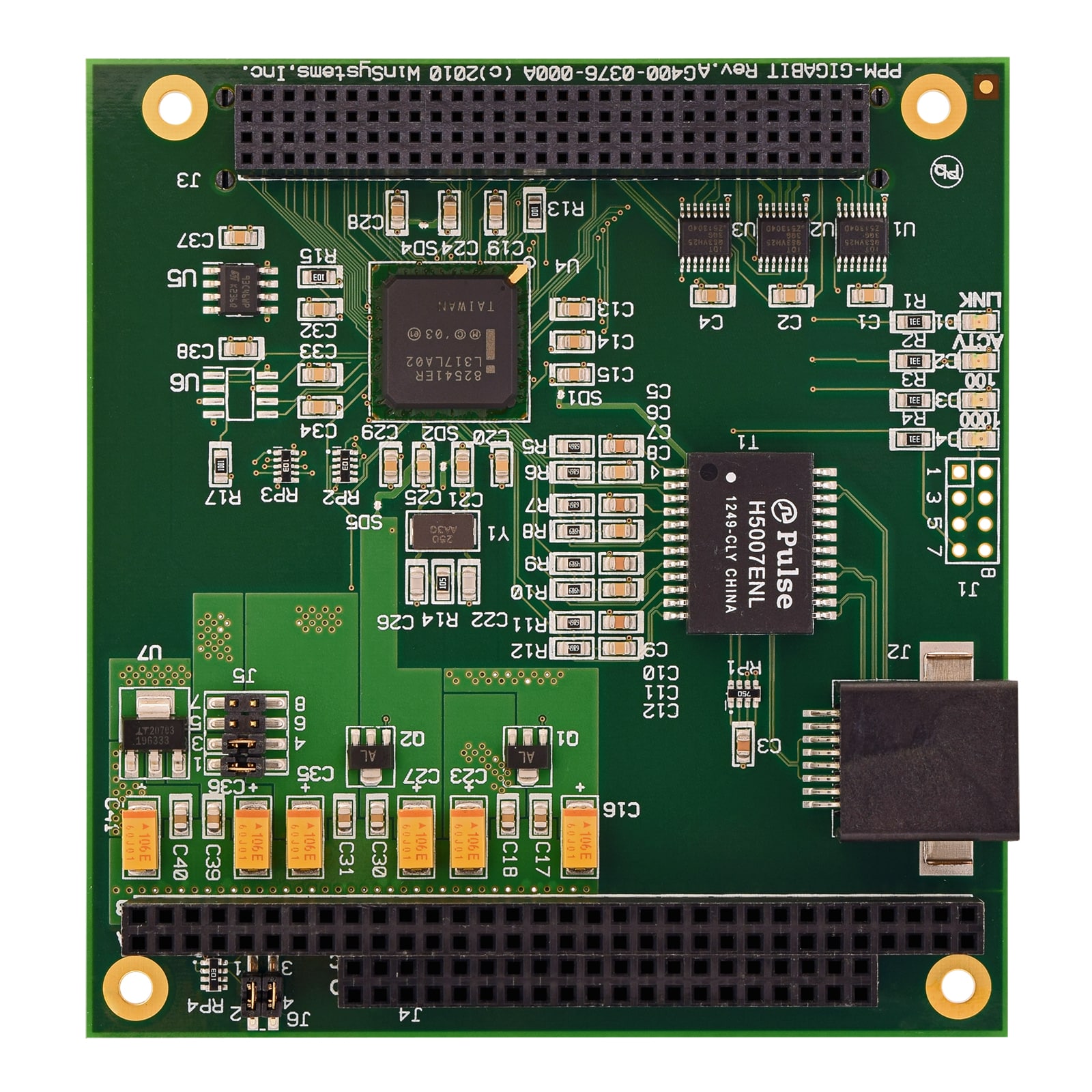

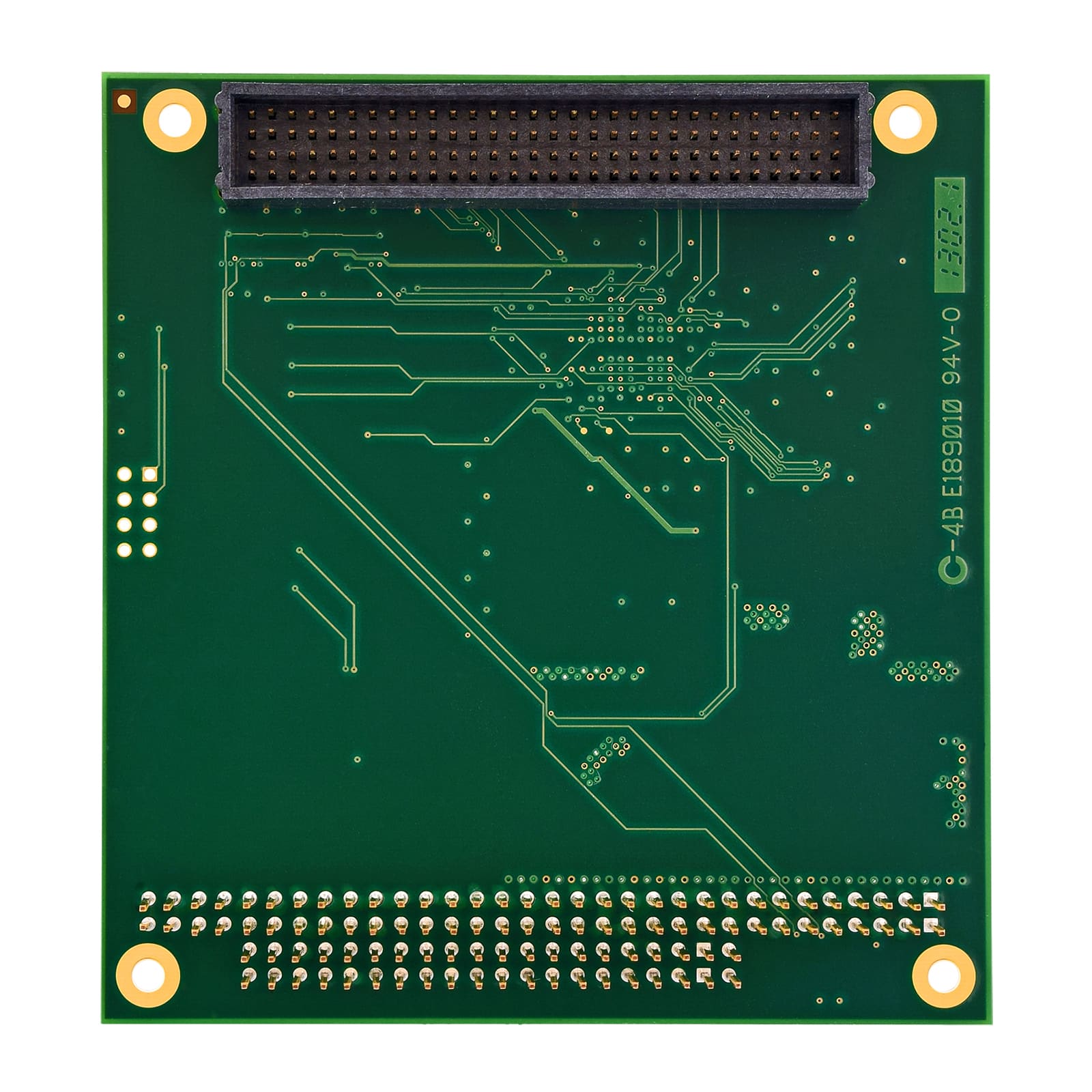

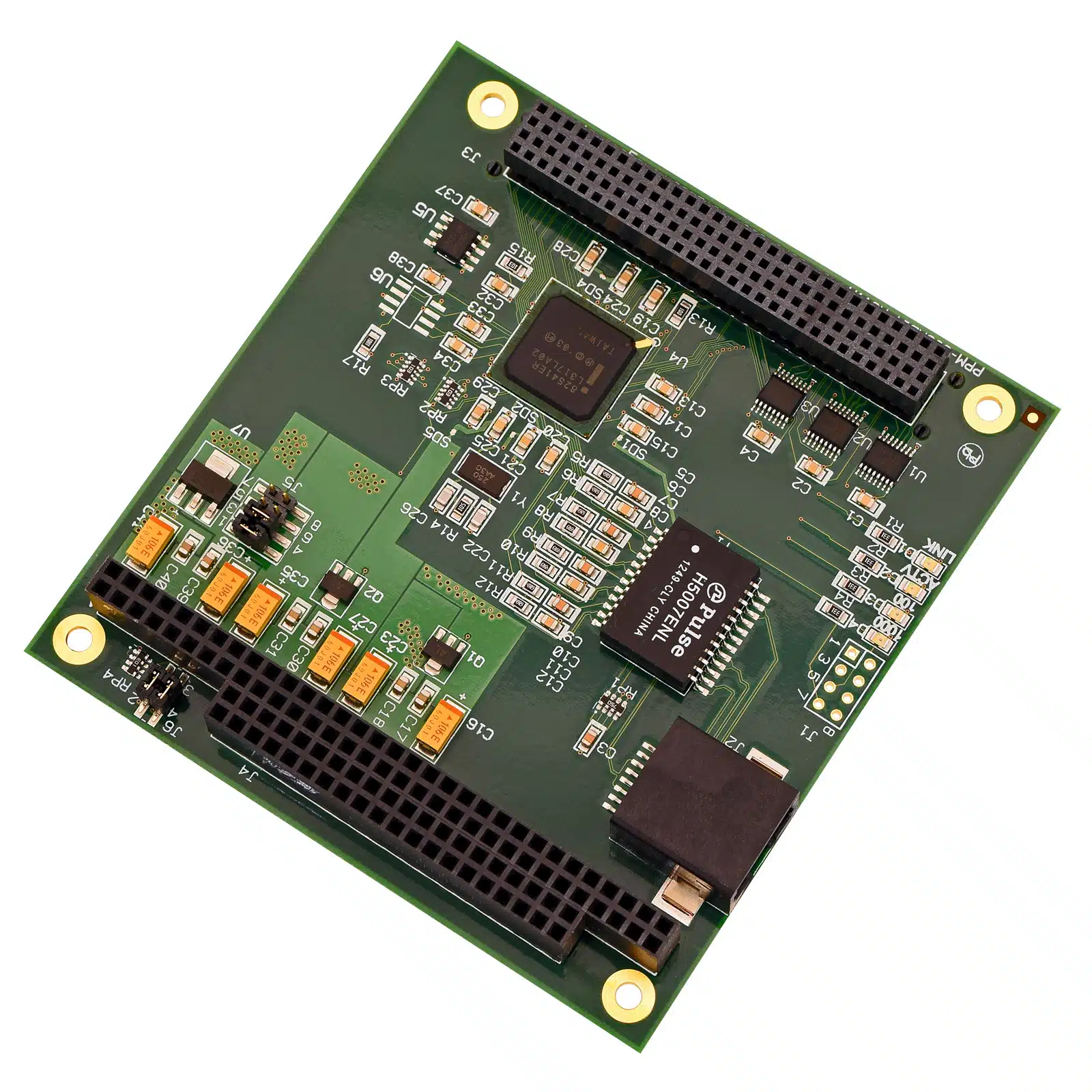

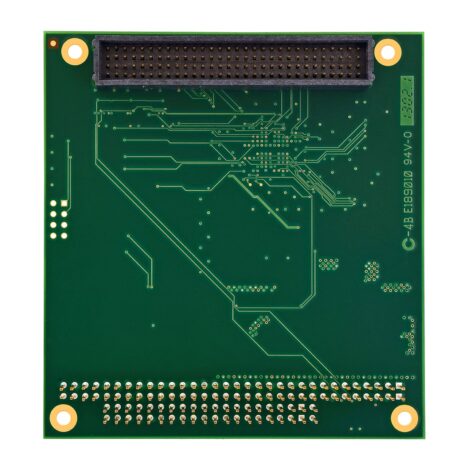

The PPM-Gigabit is a high-performance, PC/104-Plus compliant Gigabit Ethernet module. This add-in module allows connection to 10, 100, and 1000 Mbps networks using standard CAT5 twisted pair copper cables. Based upon the popular Intel 82541ER controller, it is supported by a wide range of operating systems including Windows, Linux, and other x86-compatible operating systems.

DATA SHEET PRODUCT INFO

Features

IEEE 802.3 support for 1000BASE-T, 100BASE-TX, and 10BASE-T applications
Automatic switching from 1 Gbps to 100 or 10 Mbps and full- and half-duplex operation
Intel 82541ER Gigabit Ethernet PCI Controller
IEEE 802.3ab Auto-Negotiation support
IEEE 802.3x-compliant full duplex flow control support
Jumbo frames supported
Adaptive equalization supported
64 KByte Rx and 8K Tx packet FIFO on each channel
PHY supports 2-pair and 3-pair cable downshift

Features
Ethernet	1 10/100/1000 Mbps (82541ER) controller Full- /Half-duplex operation 1 RJ-45 connector interface MAC FIFO Buffer: 64 KByte receive and 8-KByte transmit FIFO Flow Control: IEEE 802.3x-compliant full-duplex support PHY IEEE 802.3ab Auto-Negotiation with next page support 2 pair/3 pair cable downshift support Adaptive equalization support Jumbo frames supported Automatic switching from 1 Gbps to 100 or 10 Mbps Jumper selectable support EEPROM configuration supported
Operating System Compatibility	Linux, Windows, DOS and other x86 compatible OS
Power	+5V required
Mechanical	PC/104-Plus-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm
Operating Temperature Range	-40°C to 85°C

Datasheets

PPM-GIGABIT-G Datasheet (PDF)

Product Manuals

PPM-GIGABIT-G Product Manual (PDF)

Product Change_Notice

Product Change Notice - End of Life Notice (PDF)

Drivers

PPM-GIGABIT-G Mechanical Drawing (PDF)
