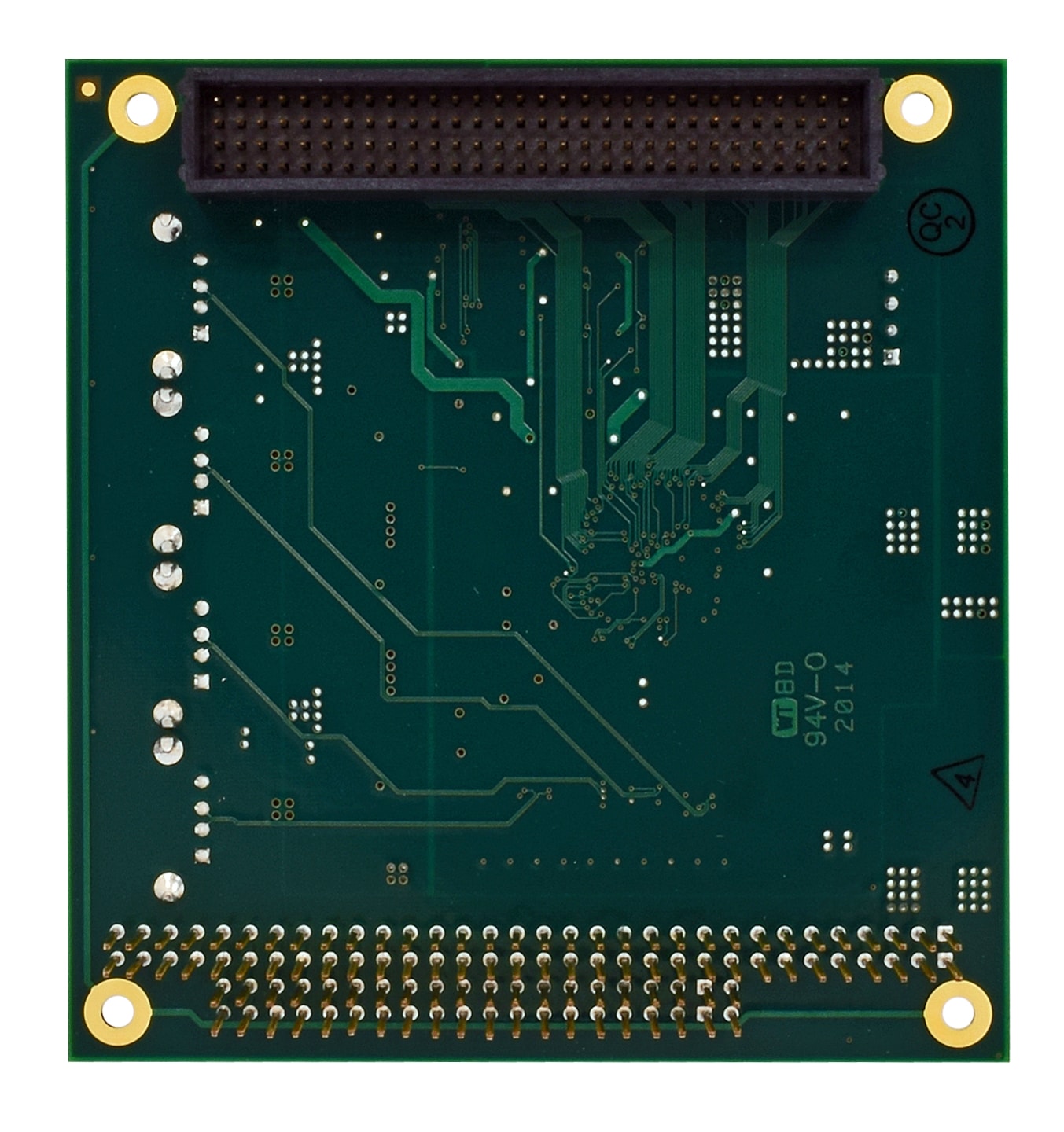

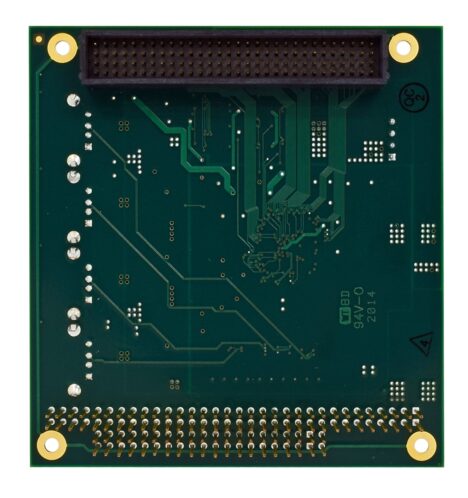

PPM-USB2-G PC104-Plus Four Channel USB 2.0 Module

No longer in production

This product is listed to provide access to its documentation.

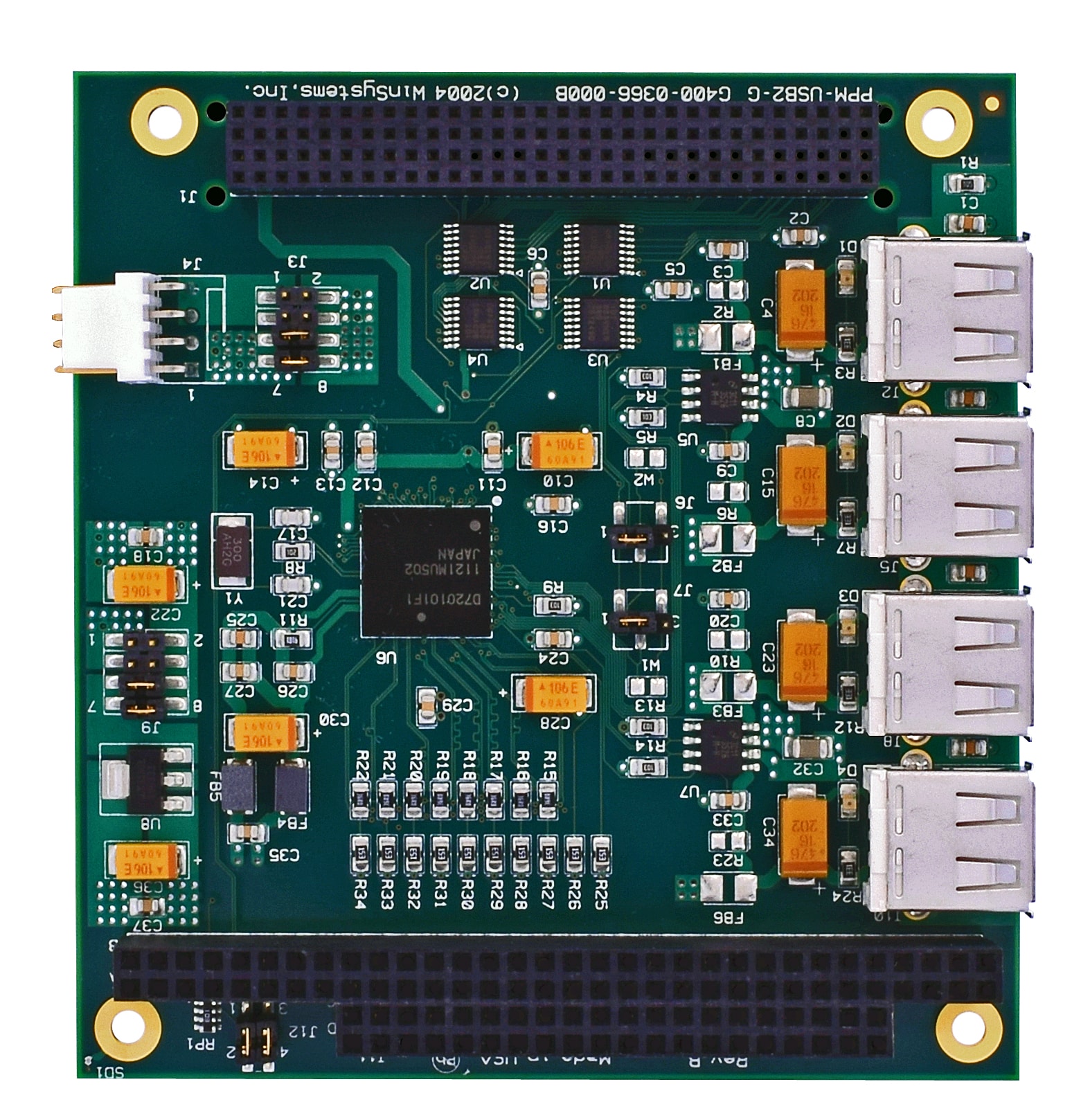

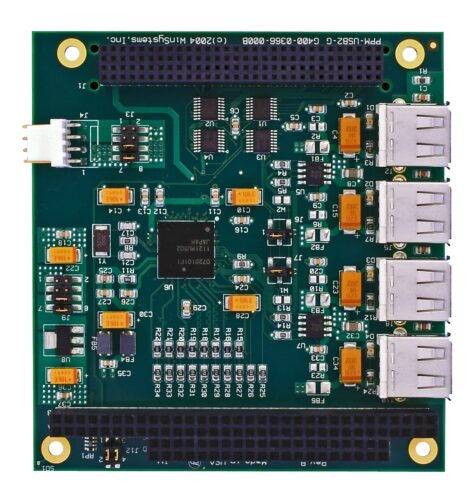

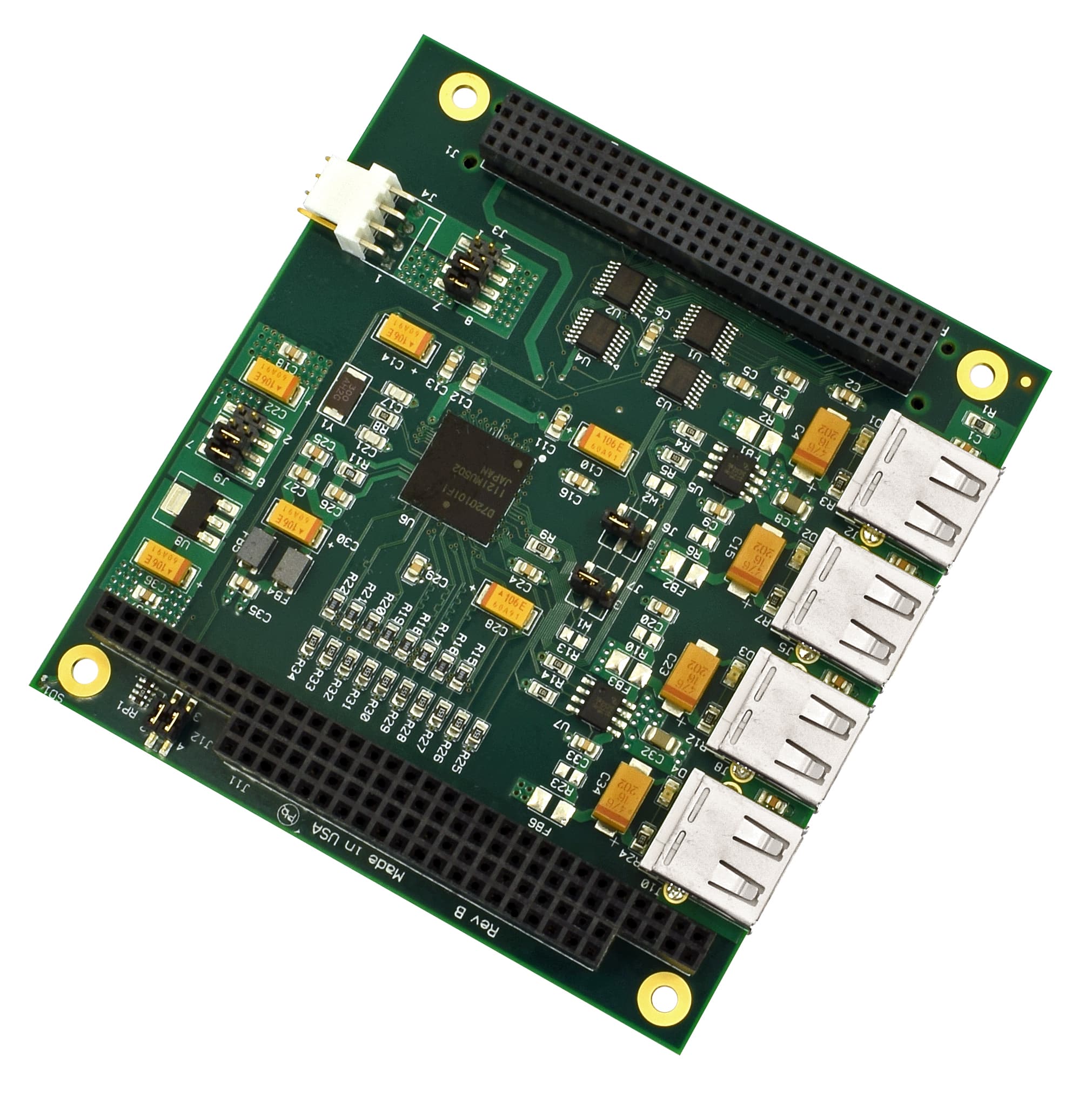

The PPM-USB2 is a high-speed, 4-port PC104-Plus Universal Serial Bus (USB 2.0) compliant module. This add-in module is 40 times faster than USB 1.x implementations and supports signaling up to 480 Megabits per second (Mbps). It is based upon the NEC uPD720101 USB 2.0 host controller that is supported by a wide range of operating systems including Windows and Linux.

DATA SHEET PRODUCT INFO

Features

USB 2.0 supported on PC104-Plus module which is 40 times greater speed than USB 1.1
NEC uPD720101 host controller supports simultaneous operation of multiple high-performance devices
OHCI host and EHCI Host Compliant Cores that are USB 2.0 (480 Mbps) and USB 1.1/USB 1.0 (12 Mbps) compliant
Root hub and four downstream facing ports on-board
All downstream ports handle low-speed (1.5 Mbps), full-speed (12 Mbps), and high-speed (480 Mbps) transactions

SPECIFICATIONS
DOCUMENTATION

Features
USB	USB 2.0 supported on PC104-Plus module (NEC uPD720101) 40 times faster than USB 1.1 Root hub and four downstream facing ports on-board Hot insertion/removal support Supports 32-bit 33 MHz PC104-Plus host interface compliant with PCI Rev. 2.2 Simultaneous operation of multiple high-performance devices supported Port Speed Overcurrent and inrush protection for each port All downstream ports handle speeds: 1.5 Mbps (low) 12 Mbps (full 480 Mbps (high)
Host Controller	OHCI/EHCI-compliant
Operating System Compatibility	Linux, Windows, DOS and other x86 compatible OS
Power	+5V 125mA typical
Mechanical	PC104-Plus-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm) Weight: 3.5 oz (99.2g)
Operating Temperature Range	-40°C to 85°C

Datasheets

PPM-USB2-G Datasheet (PDF)

Product Manuals

PPM-USB2-G Product Manual (PDF)

Product Change_Notice

Product Change Notice - EOL Notice (PDF)
Product Change Notice - Standoff (PDF)
Product Change Notice - Packaging (PDF)
