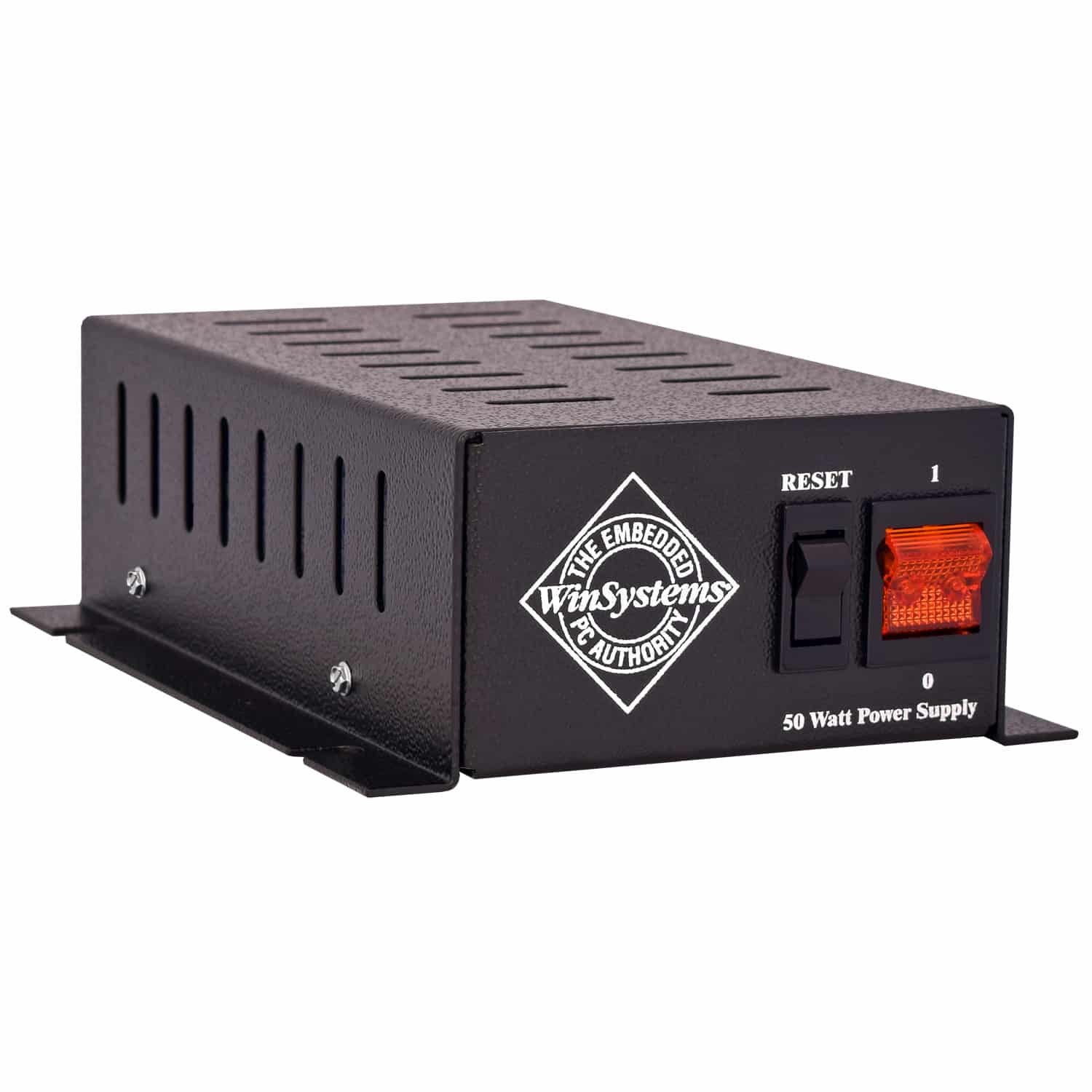

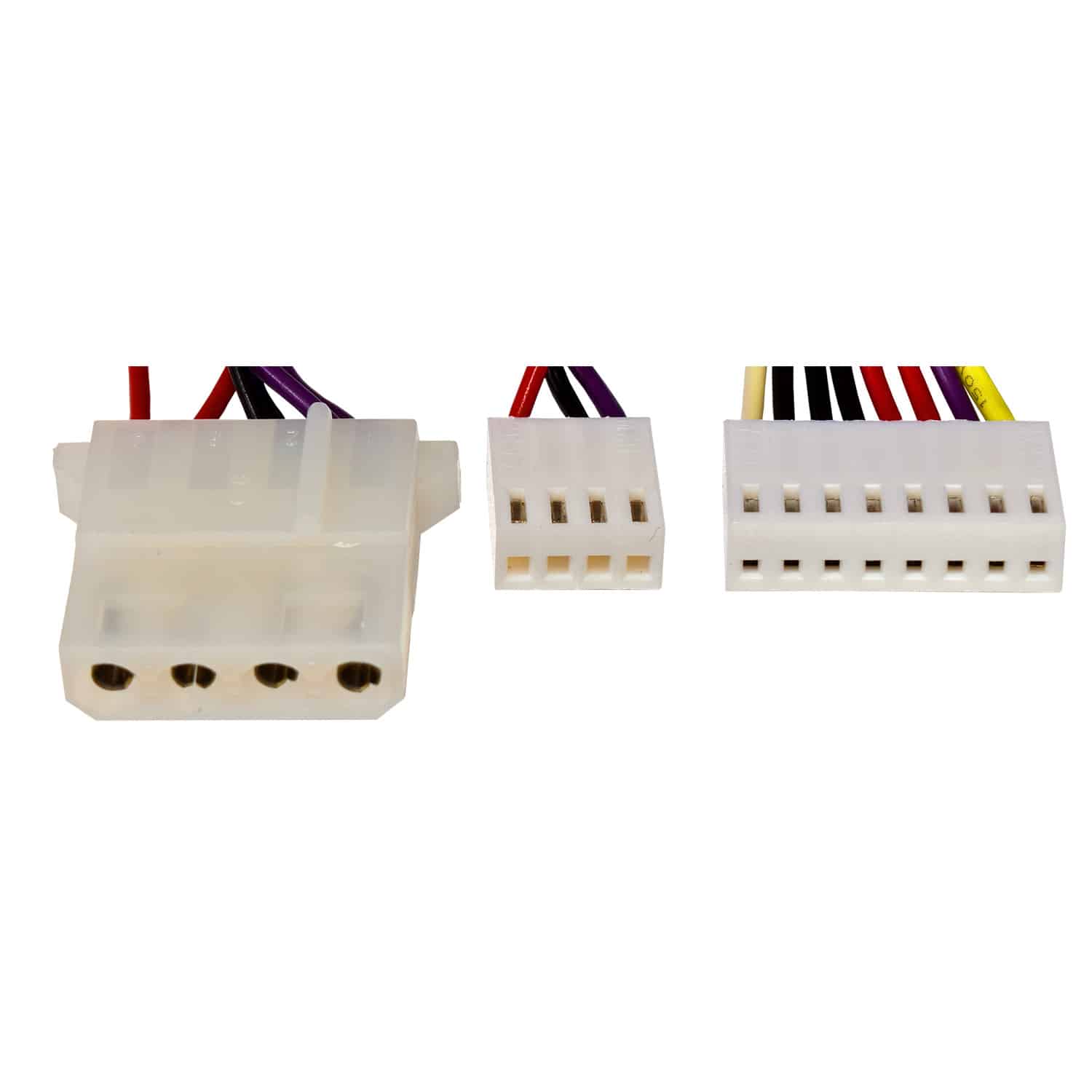

PS-50W-1 50W Switching Power Supply with A/C cord and PCM Cable

No longer in production

This product is listed to provide access to its documentation.

The PS-50W-1 is a 50 Watt universal input switching power supply for use with WINSYSTEMS’ embedded single board computers. It can be used both during initial prototyping and development or in the final application environment. There is enough current capacity to allow it to power hard and floppy disks drives for DOS based applications. The wide input voltage range allows its use internationally.

DATA SHEET PRODUCT INFO

50W Switching Power Supply with A/C cord and PCM Cable

Features

85 – 264 VAC continuous input
Input frequency: 47-63 Hz
Fused input line

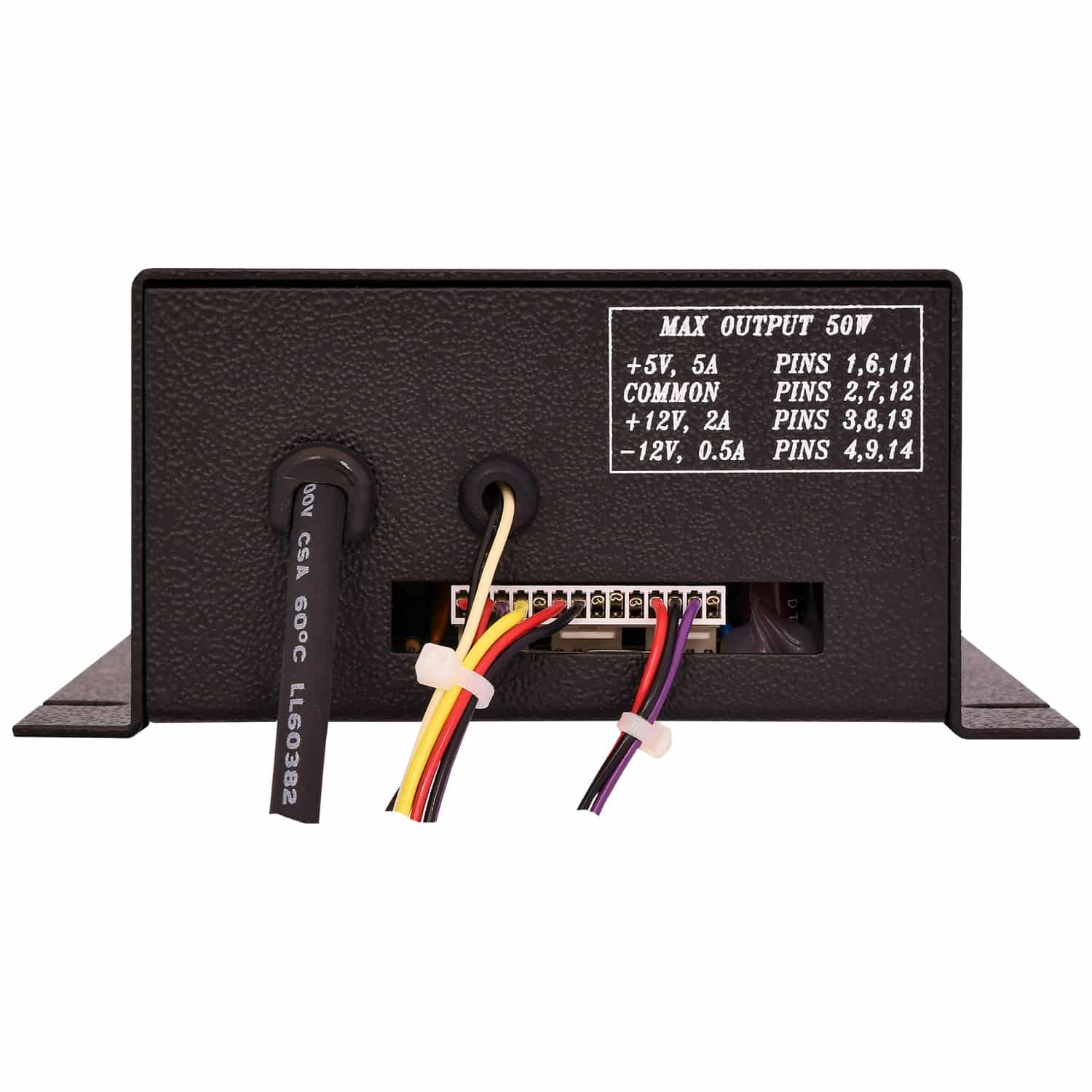

Triple output voltage:
- +5 VDC @ 5A
- +12 VDC @ 2A
- -12 VDC @ 0.5A
+5V short circuit and overload protection

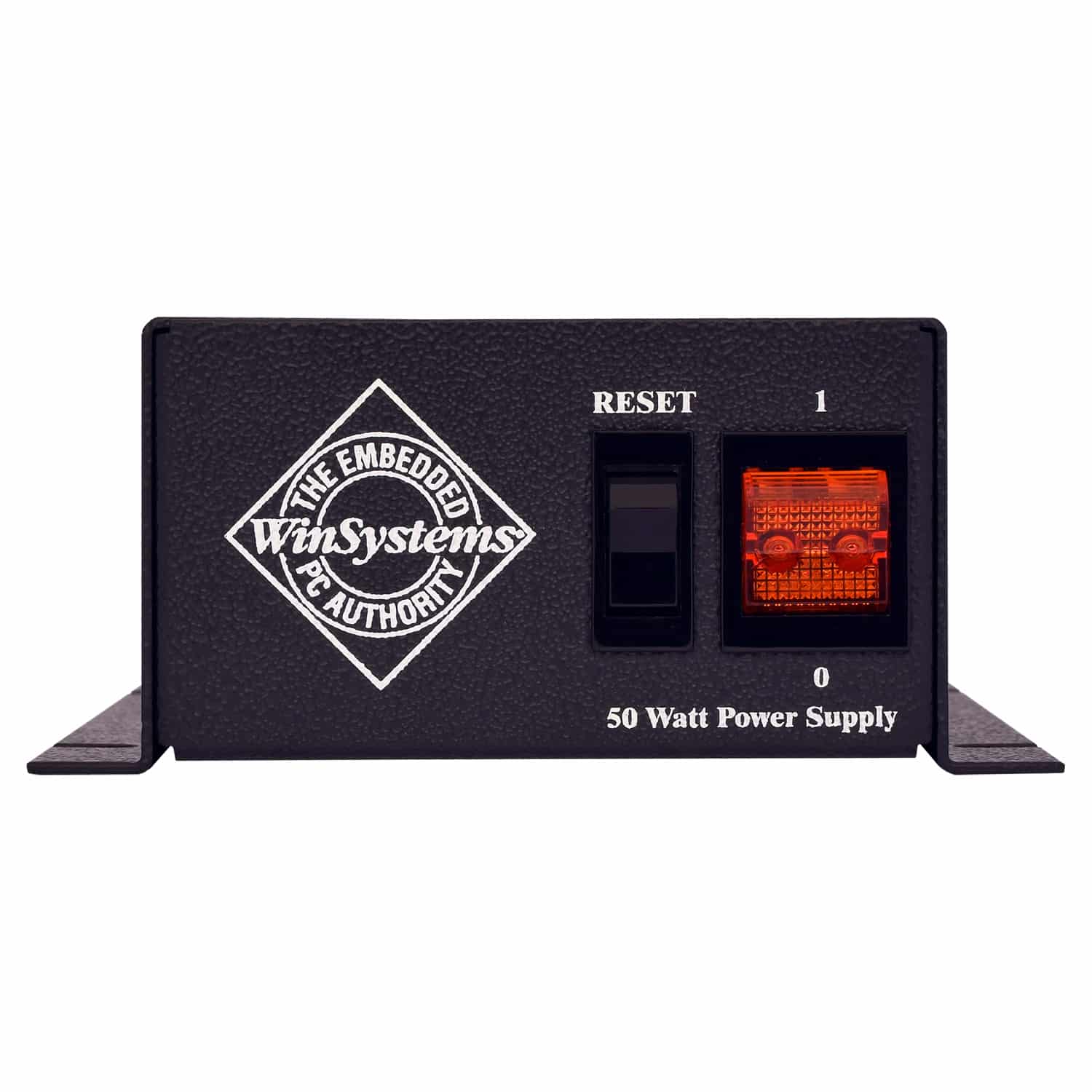

Momentary push button reset switch

SPECIFICATIONS
DOCUMENTATION

Features
Input Voltage	85 VAC – 264 VAC continuous input 47 Hz – 63 Hz input frequency
Output Voltage	+5V @ 5A +12V @ 2A -12V @ .5A Short circuit protection on all outputs Overvoltage protection on all outputs
Mechanical	Dimensions: 7.5 x 5.575 x 2.46 inches Weight: 30 oz (851g)
Operating Temperature Range	0°C to 50°C
