Features | |
---|---|
PXM-C388-S1-0-0 | PC104 Computer with Atom N455 processor, heat spreader, non-stackthrough |
PXM-C388-S1-0-0-ST | PC104 Computer with Atom N455 processor, heat spreader, stackthrough |
PXM-C388-S1-0-1 | PC/104 Computer with Atom N455 processor, heat sink, non-stackthrough |
PXM-C388-S1-0-1-ST | PC/104 Computer with Atom N455 processor, heat sink, stackthrough |
PXM-C388-S
Description
Please contact us for availability and pricing.

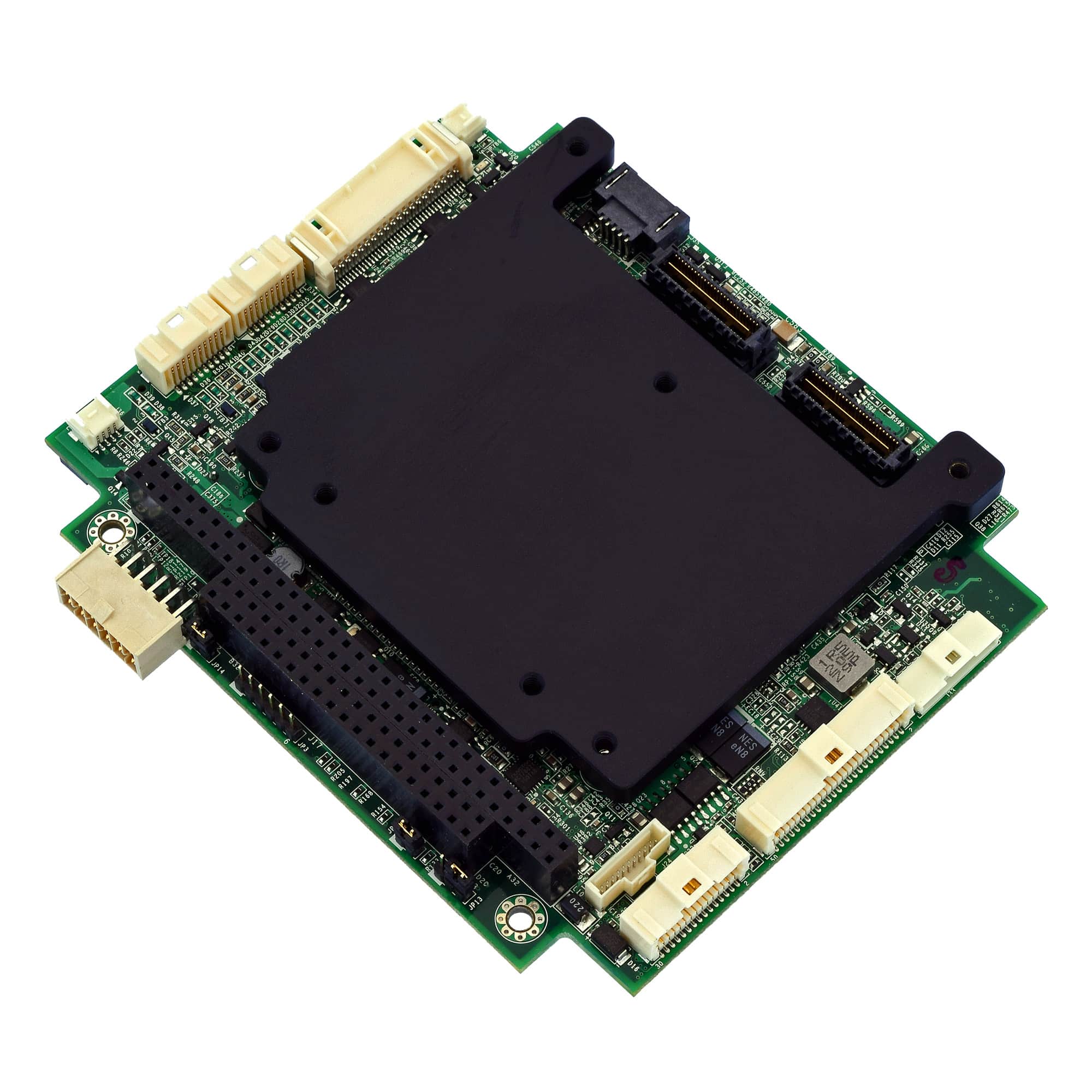

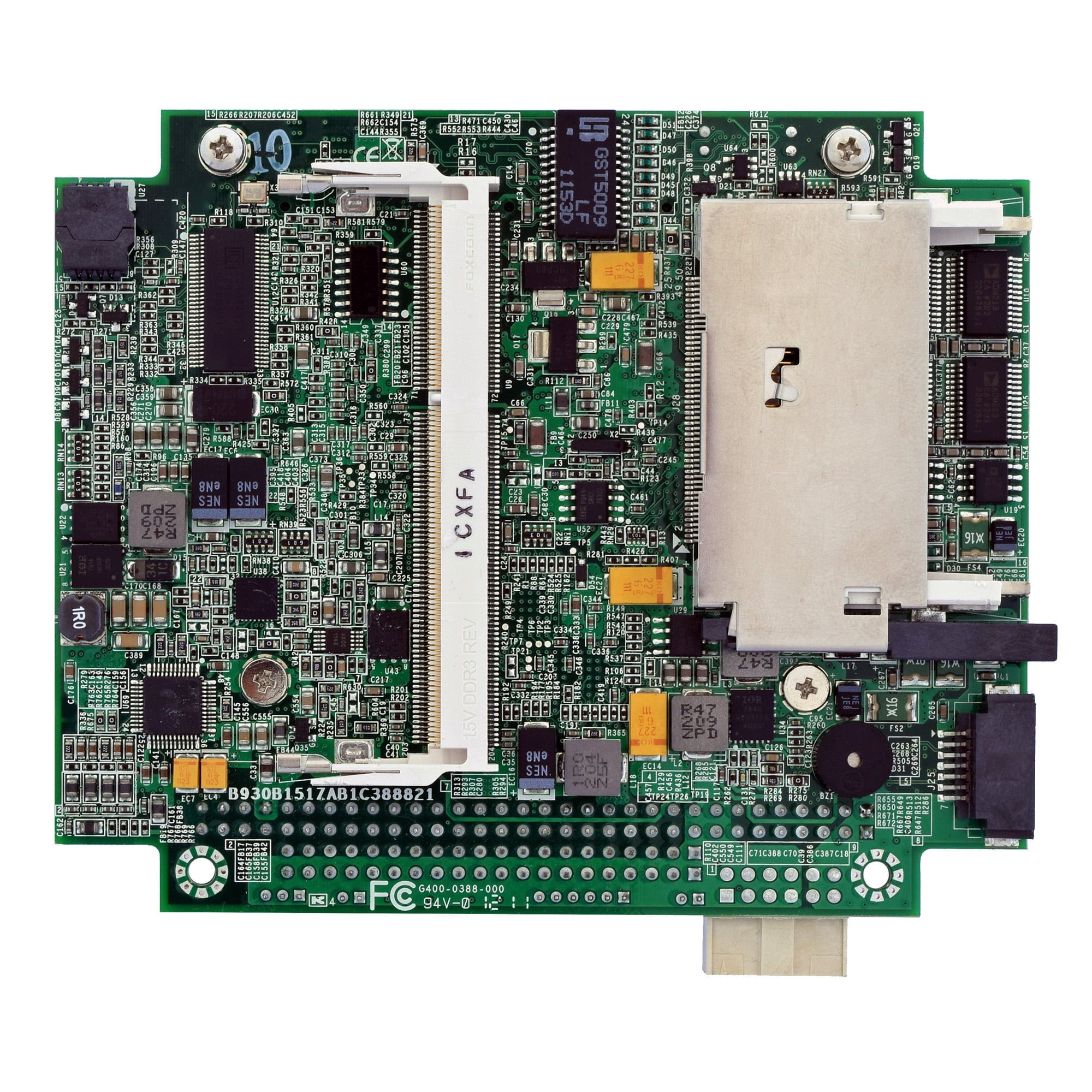

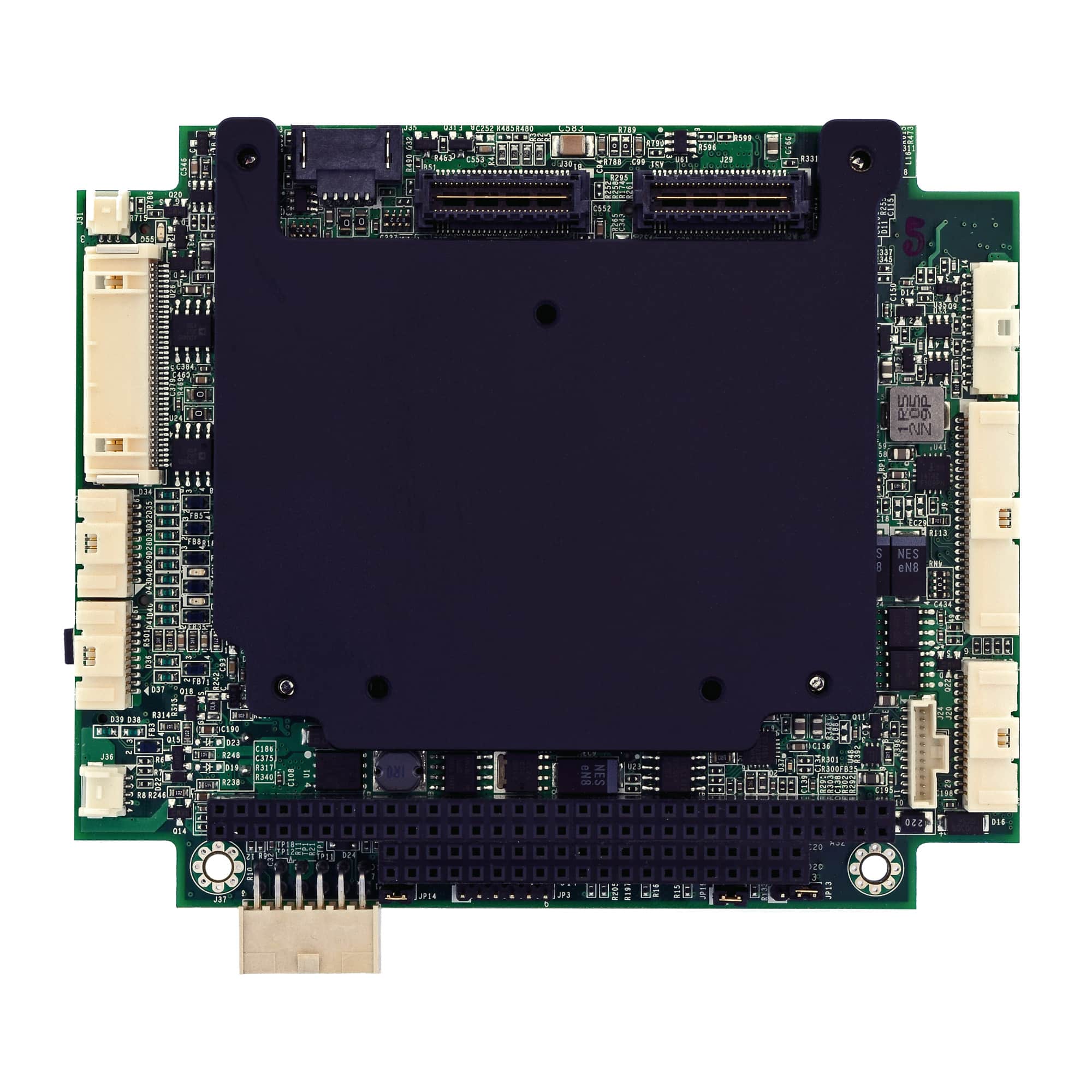

WINSYSTEMS’ PXM-C388-S is an industrial Single Board Computer (SBC) with PC/104 and SUMIT AB expansion that uses Intel’s Atom N455 single core 1.66GHz processor paired with the ICH8M I/O controller hub. The SBC is full-featured with onboard I/O that supports CRT/LVDS video simultaneously, a Gigabit Ethernet port, eight USB 2.0 ports, two serial RS-232/422/485 COM channels, two serial RS-232 COM channels, 24 digital I/O lines with event sense, audio, and a watchdog timer.
Features
- PXM-C388-S1 Datasheet (PDF)
Datasheets
- PXM-C388-S1 Product Manual (PDF)
Product Manuals
- PXM-C388-S1-0-0 Mechanical Drawing (PDF)
- PXM-C388-S1-0-0 Solid Works (ZIP)
- PXM-C388-S1-0-0 Step (ZIP)
- PXM-C388-S1-0-0 IGS (ZIP)
Mechanical Drawings
- Product Change Notice- ADP-IO (PDF)
- Product Change Notice - ICH8 EOL Notice(PDF)
Product Change_Notice
- PXM-C388 - Windows 7 (32-bit)
- PXM-C388 - Windows XP SP3
- Windows 7/8/10 (32-bit) - Watchdog Timer
- Windows 7/8/10 (64-bit) - Watchdog Timer
- Windows 7/8/10 (32-bit) - Digital I/O
- Windows 7/8/10 (64-bit) - Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - Watchdog Timer
- Linux - Kernel 3+ - Watchdog Timer
Drivers
- CBL-VGA-002-12 | Video – (VGA) DB15, 12″
- CBL-USB4-002-12 | USB – Dual 2mm Molex Milli-Grid, 12″
- CBL-USB4-001-12 | USB – Dual 1mm Molex Pico-Clasp, 12″
- CBL-USB4-000-14 | USB – Unterminated, 14″
- CBL-SPL-001-14 | Video – (LVDS) Unterminated, 14″
- CBL-SER4-002-12 | Serial – Four DB9, 12″
- CBL-SER4-001-12 | Serial – Dual 1.25mm Molex Duo-Clasp, 12″
- CBL-SER4-000-14 | Serial – Unterminated, 12″
- CBL-SATA-701-20 | SATA – Data (Latching), 20″
- CBL-PWR-904-12 | Power – Mini-ATX, PBReset, PBPower, 12″
- CBL-PWR-903-18 | Power – ATX, PBReset, PBPower, 18″
- CBL-PWR-803-18 | Power – 12-pin and 4-pin Molex, 18″
- CBL-PWR-700-18 | Power – Unterminated, 18″
- CBL-PWR-602-18 | Power – Two Spade Lugs and PBReset, 18″
- CBL-PWR-116-01 | Power – Mini-ATX (5VSB Jumper)
- CBL-LED3-001-12 | Ethernet – Remote LED, 1mm Molex Pico-Clasp, 12″
- CBL-LED3-000-14 | Ethernet – Remote LED, Unterminated, 14″
- CBL-ENET1-303-12 | Ethernet – RJ45 Male, 12″
- CBL-ENET1-302-12 | Ethernet – RJ45 Female, 12″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- CBL-SET-388-1 | Cable Set for PXM-C388
- BAT-LTC-E-36-27-2 | External 3.6V, 2400 mAH battery
- BAT-LTC-E-36-16-2 | External 3.6V, 1650 mAH battery
- RISER-SUMIT-2 | Spacer board with SUMIT AB Connectors
- RISER-PCM-1 | Spacer board with PC/104 Connector
