PXM-GIGE SUMIT-ISM™ Gigabit Ethernet Controller

No longer in production

This product is listed to provide access to its documentation.

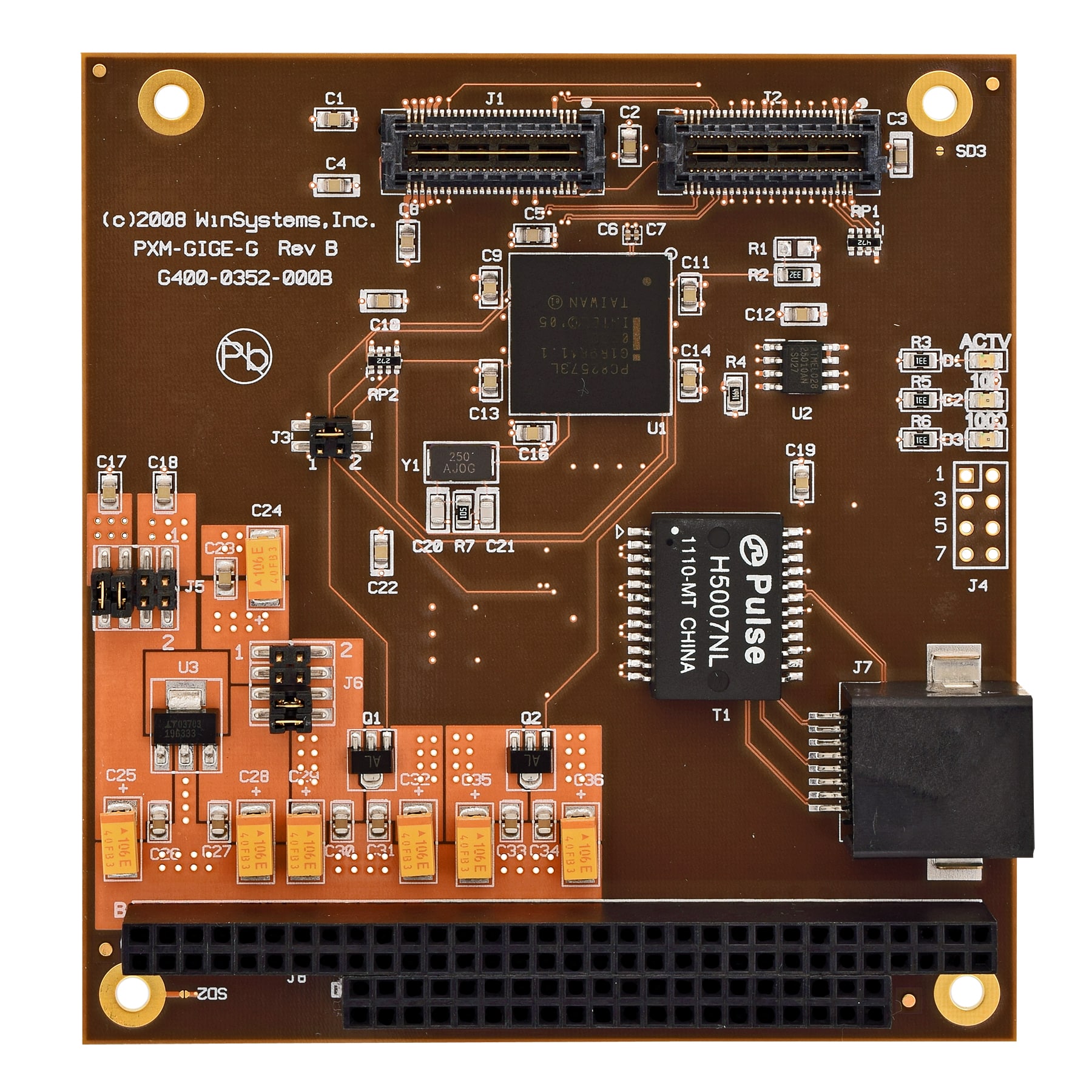

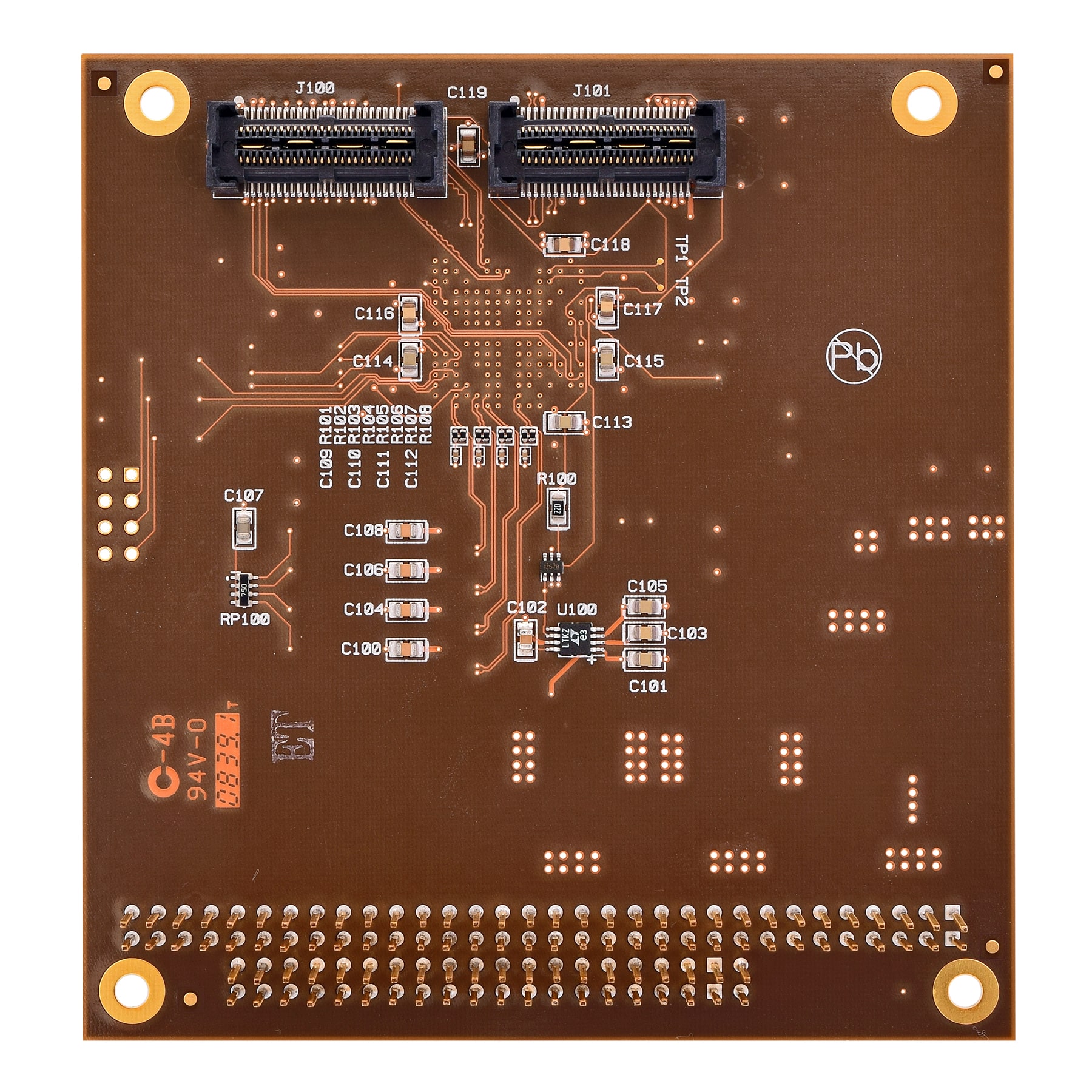

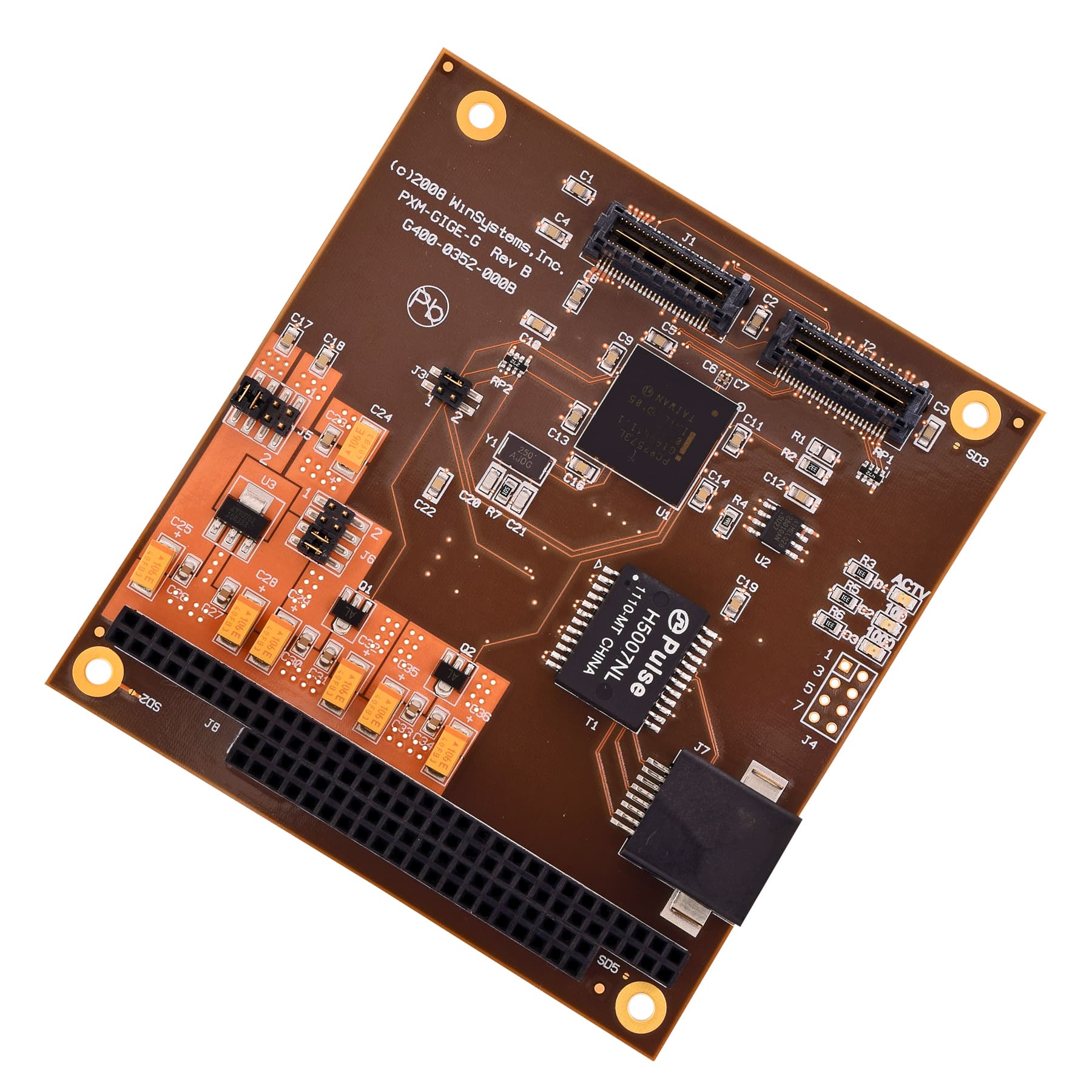

The PXM-GIGE is a high-performance, Gigabit Ethernet, SUMIT-AB compliant, Industry Standard module. This stackable, add-in module allows connection to 10, 100, and 1000 Mbps networks using standard CAT5 twisted pair copper cables. It is based upon the Intel 82573 controller that is supported by a wide range of operating systems including Windows, Linux, and other x86-compatible operating systems.

DATA SHEET PRODUCT INFO

Features

SUMIT-ISM module with Gigabit Ethernet support
Automatic switching from 1 Gbps to 100 or 10 Mbps and full- and half-duplex operation
Intel Gigabit ENET PCI Express x1 Controller
IEEE 802.3ab Auto-Negotiation support
IEEE 802.3x-compliant full duplex flow control support
Adaptive equalization supported
PHY supports 2-pair and 3-pair cable downshift

SPECIFICATIONS
DOCUMENTATION

Features
Ethernet	Intel® Gigabit ENET PCI Express x1 Controller 10/100/1000 Mbps Full- / Half-Duplex operation 1 RJ-45 connector interface Automatic switching from 1 Gbps to 100 or 10 Mbps MAC FIFO Buffer: 32 KByte configurable transmit and receive FIFO buffer Flow Control: IEEE 802.3x-compliant full-duplex support PHY IEEE 802.3ab Auto-Negotiation with next page support 2 pair/3 pair cable downshift support Adaptive equalization, echo cancellation, and cross-talk cancellation supported
Operating System Compatibility	Linux, Windows, and other x86 compatible OS
Power	+5V required, 670mA typical
Mechanical	SUMIT-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm) Weight: 2.4 oz (68g)
Operating Temperature Range	-40°C to 85°C

Datasheets

PXM-GIGE Datasheet (PDF)

Product Manuals

PXM-GIGE Product Manual (PDF)
