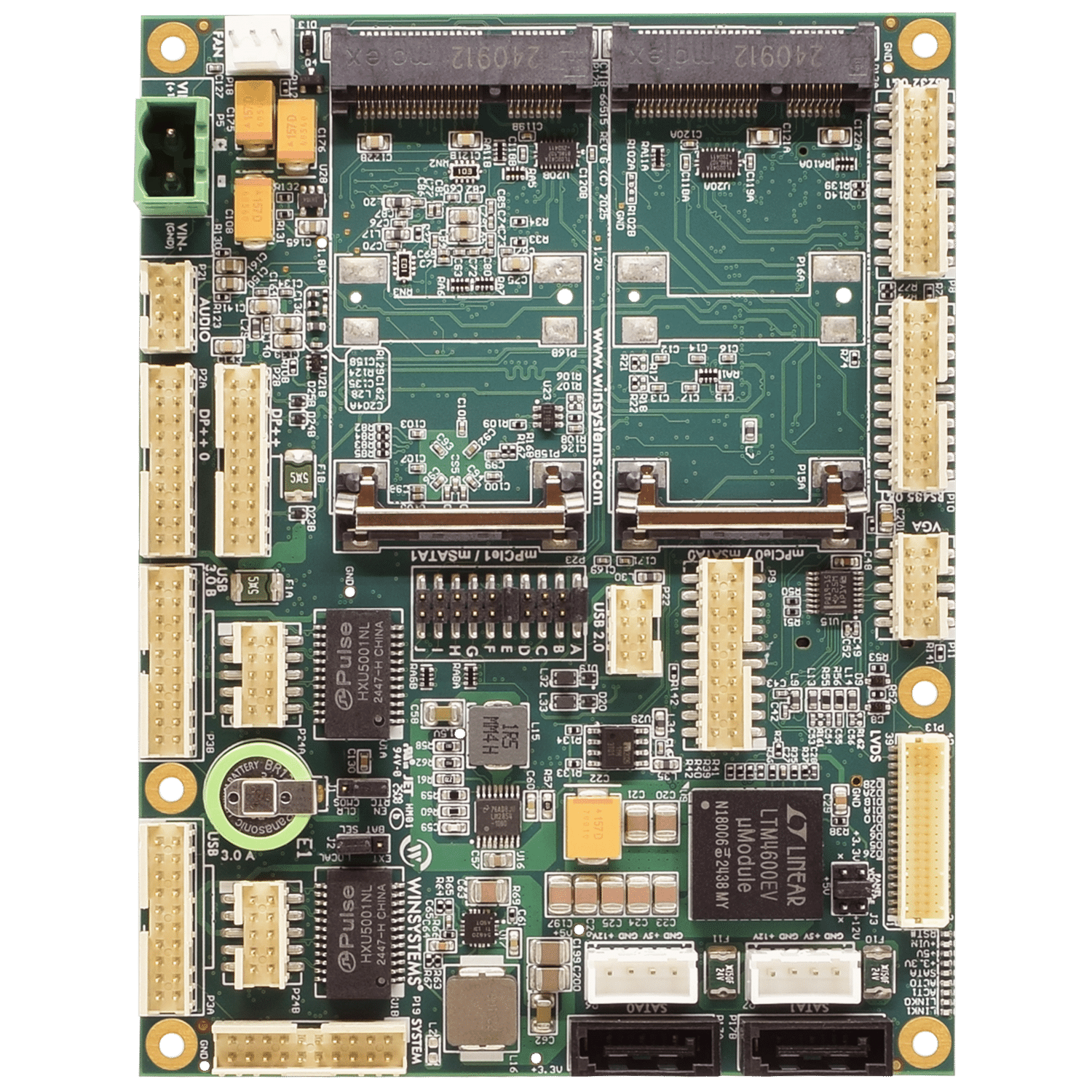

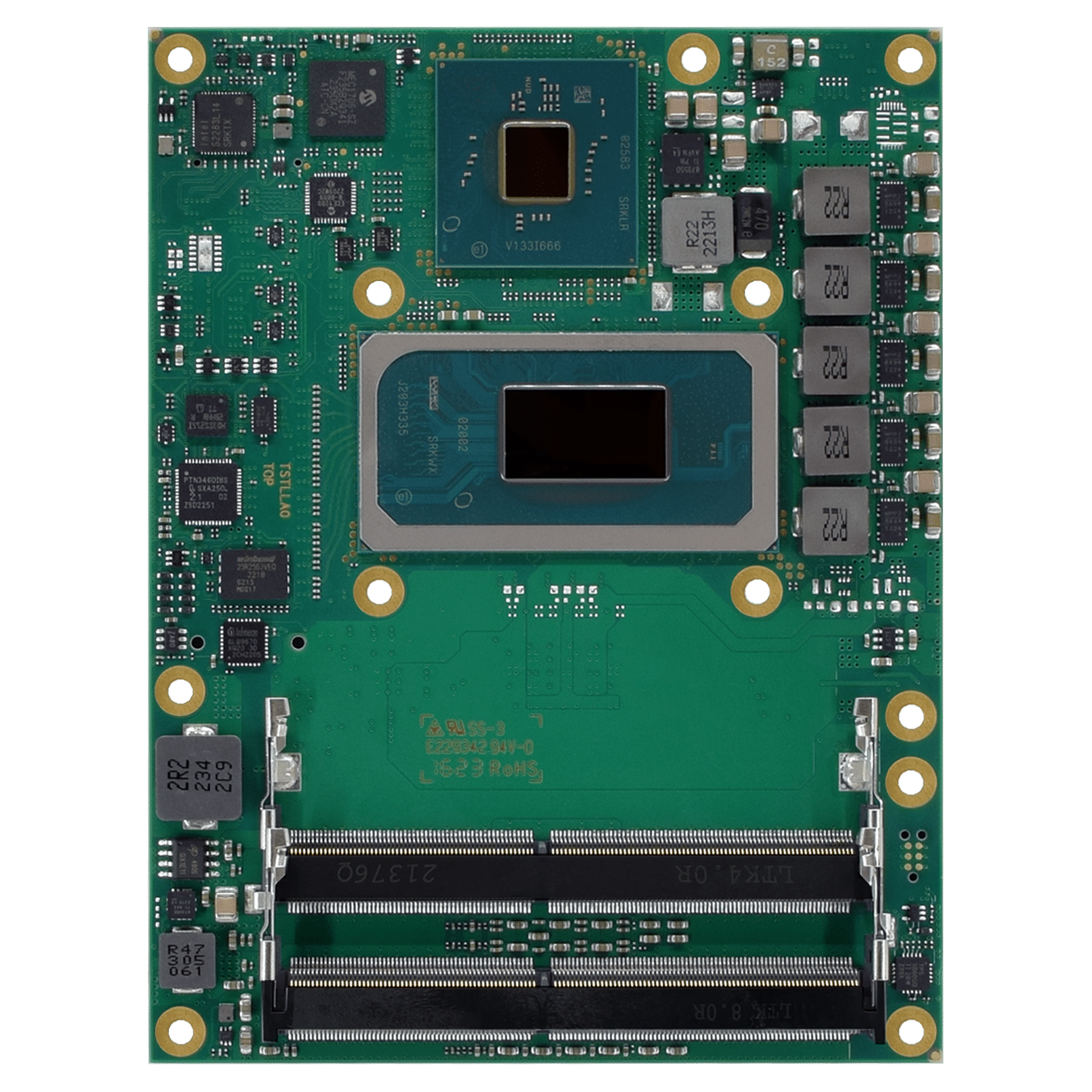

SBC-472-TS570 Rugged Compact Carrier with Intel® Xeon® W-11865MRE COM Express Type 6 Module, MiniPCIe expansion and USB 2.0

Description

The SBC-472-TS570 is a rugged small form factor embedded computer designed for high-performance applications. It features an Intel® Core™ i7-1185GRE COM Express Type 6 Module mounted on a compact carrier, providing MiniPCIe expansion and 8 x USB 2.0 connectivity. Engineered for extreme conditions, it operates reliably within an extended temperature range of -40°C to +85°C with an appropriate thermal solution.

This embedded system includes on-board discrete TPM 2.0 hardware security, supports multiple display configurations, and offers versatile expansion options. It is compatible with Linux, Windows 10 IoT, Windows 11 IoT, and other x86 real-time operating systems.

PRODUCT INFO

Features

Product Badges
SKU: SBC-472-TS570 Categories: , , Tags: , , , , , ,
Features
PROCESSOR OPTIONS

Intel® Xeon® W-11865MRE
8 Cores, 16 Threads (4.7 GHz)
Cache: 1.5 MB L2
OPERATING SYSTEM

Linux, Windows 10/11 IoT
SOFTWARE

Custom configurable UEFI-based AMI BIOS
System Management Libraries and Tools
SECURITY

On-board discrete TPM 2.0 hardware security
vPro® Security Platform
MEMORY

128GB DDR4-3200
STORAGE

4x SATA ports: 2x mSATA and 2x mSATA with External Vertical Locking Connectors
DISPLAY

4K UltraHD
2x DisplayPort++ (DDI) interface which can be used for DisplayPort, HDMI, DVI or VGA
1x VGA (Analog/CRT)

1x LVDS interface (single ch 24-bit, dual ch 48-bit)
AUDIO

HD Audio (Cirrus Logic CS4207 codec)
1x stereo input
1x stereo output
NETWORK

2x Gigabit Ethernet (10/10/1000) Ports
EXPANSION

Mini PCIe Expansion:
2x half or full-length cards (Both sockets have PCIe, USB, and SATA signaling for mSATA operation)
1x SIM Card Expansion
I/O

8-bit GPIO
8x USB 2.0 (2 used for miniPCIe)
1x Console RS-232 (TX/RX)
2x RS-232 (w/ full modem signals)
2x RS-422/485
EXTERNAL INTERFACES

SMBus, I2C, Battery Low Indication, PC speaker Interface, System Status (S3 and Reset Outputs)
POWER

Input: Single +12V input +/- 5% (5mm pitch terminal connector)

On-board RTC Battery 3V 48mAh, with option to select from external RTC battery
MECHANICAL

Dimensions: 125mm x 95mm x 34.95mm
Weight: 590g / 20.81oz
ENVIRONMENTAL

Industrial Temperature (w/ -3 Heatsink + Fan): -40°C to +85°C (-40ºF to +185°F)1

Humidity: 5% to 95% non-condensing

CE Compliant

RoHS Compliant

1 Requires thermal solution via heatsink and airflow
ORDER INFORMATION

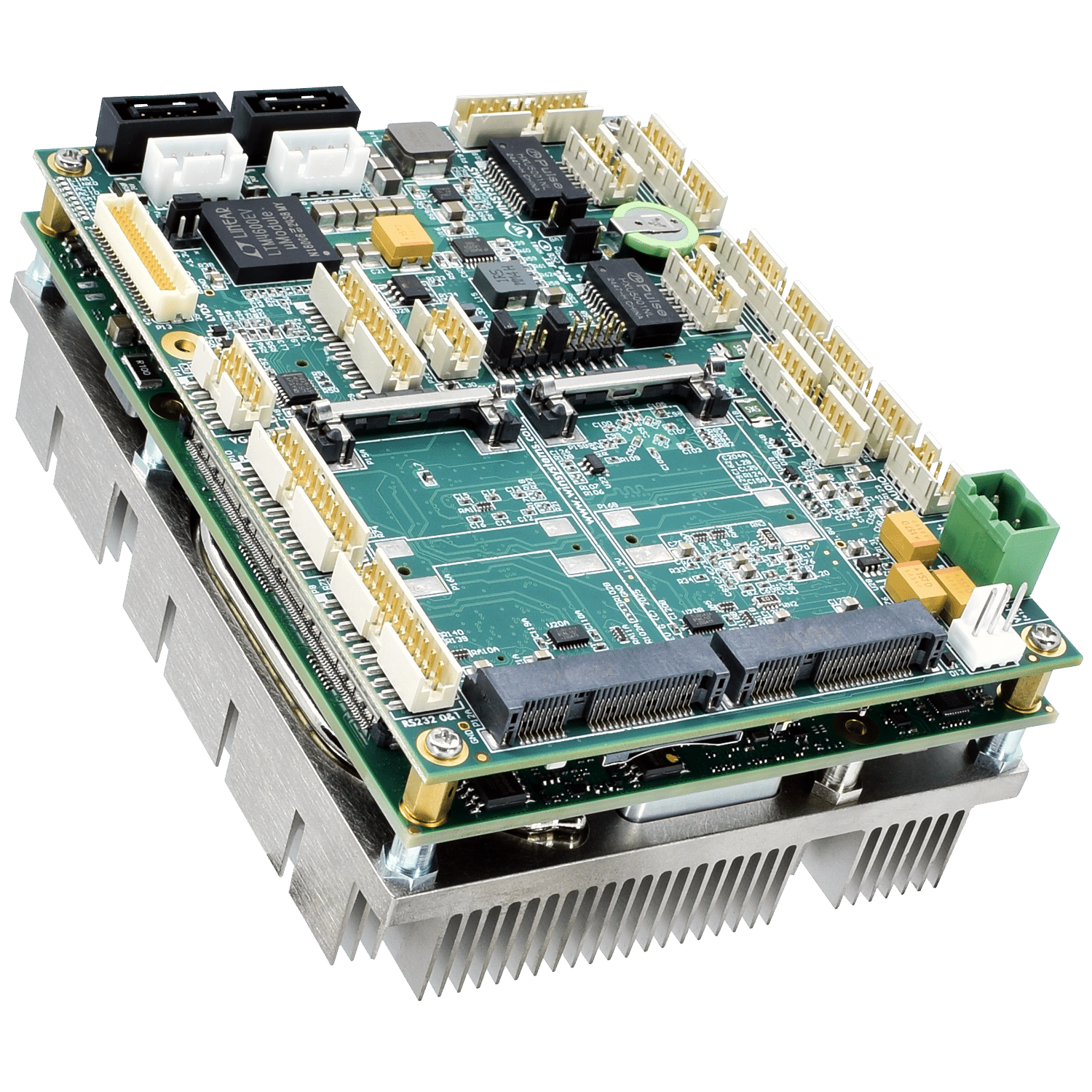

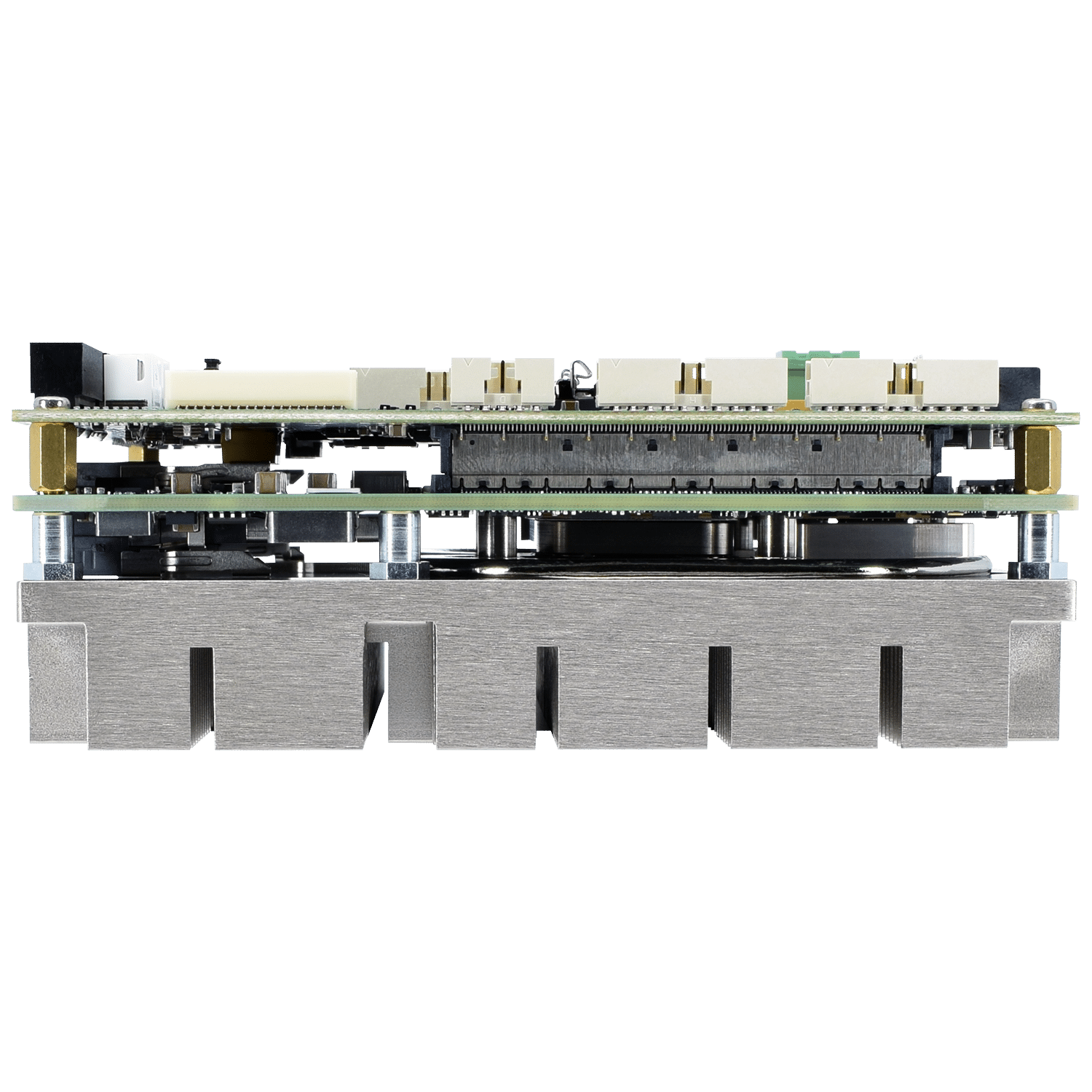

SBC-472-TS570-2: With Heatsink

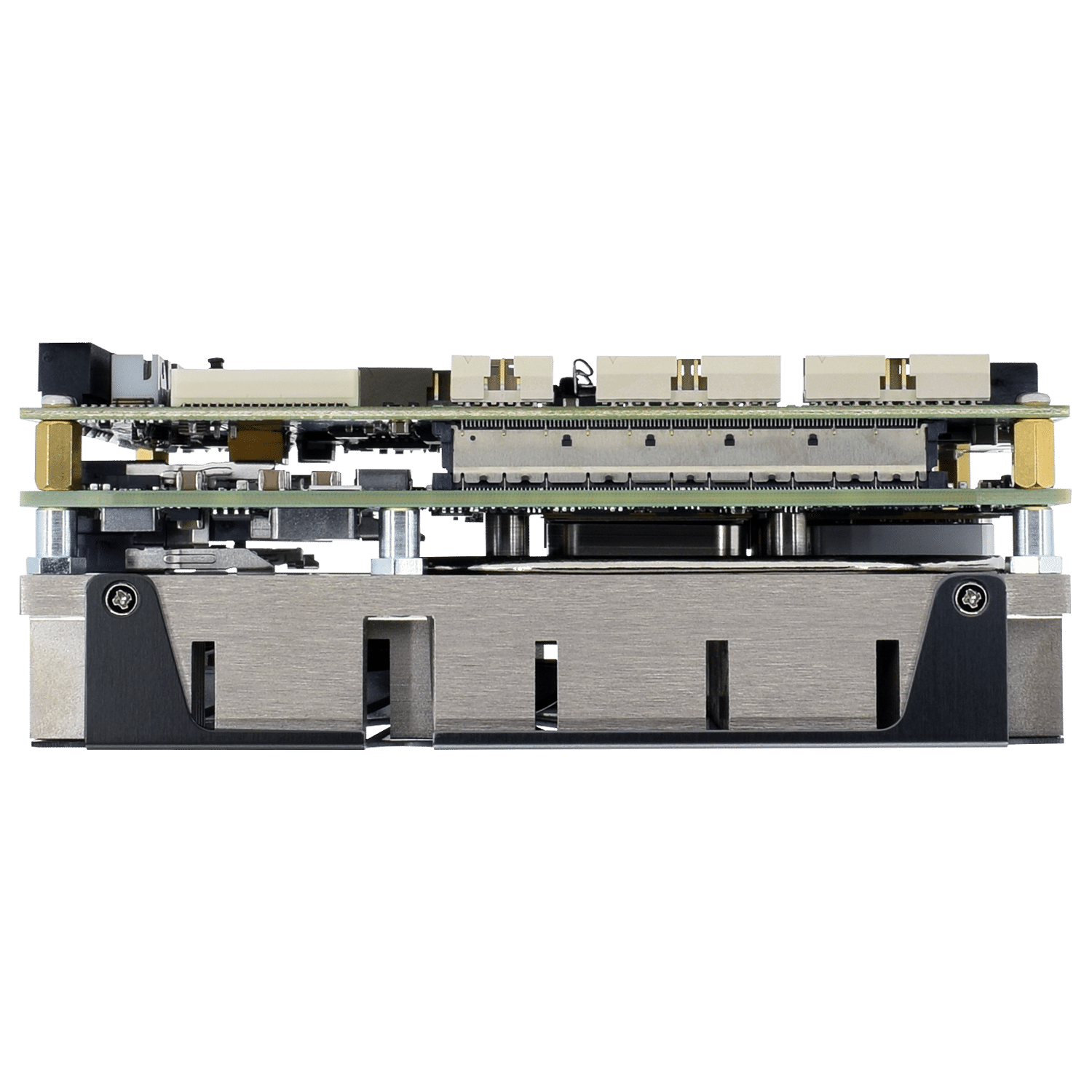

SBC-472-TS570-3: With Heatsink and Fan
