SBC-477 PowerTier Series Rugged SBC with 13th Gen Intel® Core™ Raptor Lake Processor

WINSYSTEMS’ SBC-477 PowerTier™ Series of rugged single board computers meet the needs of industrial applications where performance, power, reliability and space are critical. These embedded computers support a wide range of uses including industrial automation, energy management, transportation management and MIL/COTS. The SBC-477 PowerTier Series delivers powerful computing in a compact footprint, powered by an 13th Gen Intel® Core™ Raptor Lake hybrid CPU – an i7, i5, i3, or Intel® Processor U300E, to achieve the balance of performance and power efficiency to meet the performance, power, and I/O requirements for your specific application. They support Windows 10/11, Ubuntu Linux, and other x86 real-time operating systems. Designed to operate in extreme environments, these rugged SBCs support an extended temperature range of -40°C to +85°C with an appropriate thermal solution. Thermal options include a heatspreader and active cooling.

DATA SHEET PRODUCT INFO

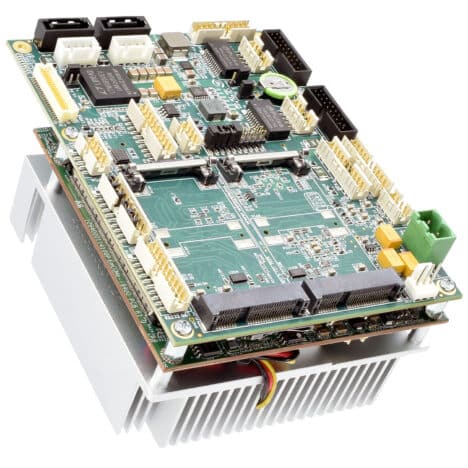

SBC-477 PowerTier(TM) Series rugged single board computer shown with heat sink and fan - oblique view - WINSYSTEMS

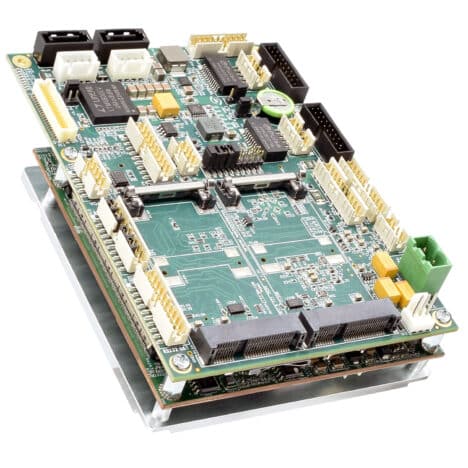

SBC-477 PowerTier Series rugged single board computer shown with heat spreader - WINSYSTEMS

SBC-477 PowerTier Series COM top view - WINSYSTEMS

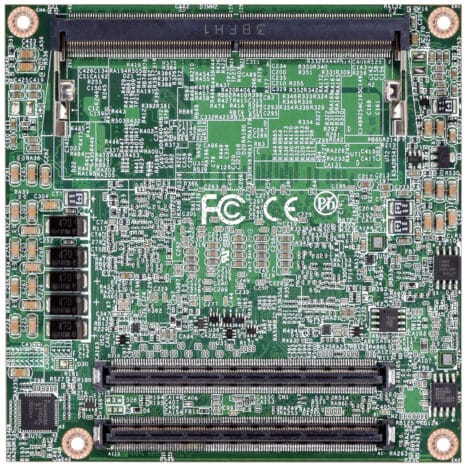

SBC-477 PowerTier Series COM bottom view - WINSYSTEMS

SBC-477 PowerTier Series - heatsink and fan -side view - WINSYSTEMS

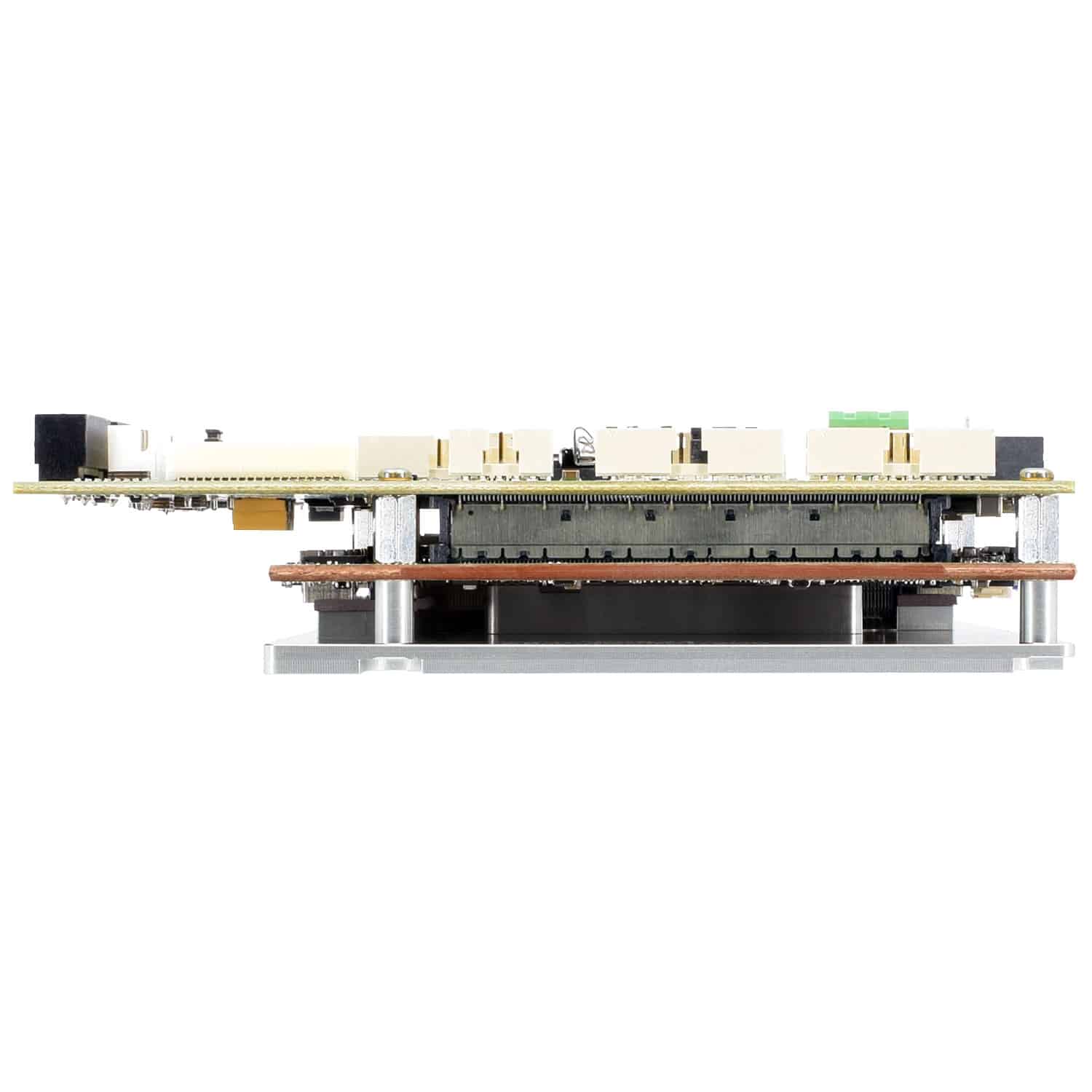

SBC-477 PowerTier Series - heat spreader - side view - WINSYSTEMS

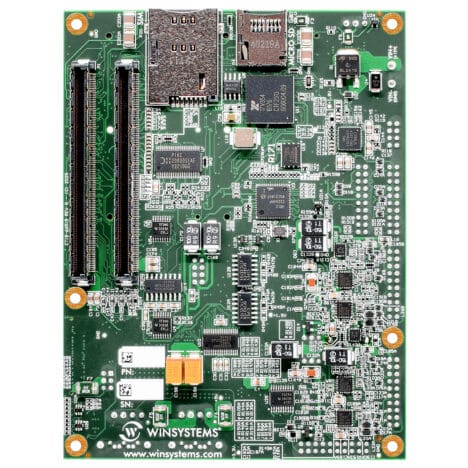

SBC-472 and SBC-477 carrier bottom view - WINSYSTEMS

-40° C to +85° C

ROHS COMPLIANT

Features

Industrial-rated Embedded Computer

Compact form factor for space-constrained applications
13th Generation Intel® Core™ Raptor Lake hybrid processors
-40°C to +85°C extended temperature range with thermal solution
Extended product life cycle of 10+ years
High MTBF
Ruggedized locking pin header connectors
Mini PCIe expansion

Features
PROCESSOR	Intel Core i7-1365UE Cores: 10 \| Core Speed: 2.8 (4.4) GHz \| Cache: 12 MB \| Base Power: 15W Intel Core i5-1335UE Cores: 10 \| Speed: 1.3 (4.5) GHz \| Cache: 12 MB \| Base Power: 15W Intel Core i3-1315UE Cores: 6 \| Speed: 1.2 (4.5) GHz \| Cache: 10 MB \| Base Power: 15W Intel Processor U300E Cores: 5 \| Speed: 1.1 (4.3) GHz \| Cache: 8 MB \| Base Power: 15W
OPERATING SYSTEM	Ubuntu Linux, Windows 10/11 IoT, other x86 real-time OS
SOFTWARE	Custom configurable UEFI-based AMI BIOS System Management Libraries and Tools
SECURITY	On-board discrete TPM 2.0 hardware security
RAM	Up to 64GB DDR5 5200 MT/s, in 2 sockets
STORAGE	2x SATA ports with External Vertical Locking Connector
DISPLAY	Triple Display, UltraHD 2x DisplayPort++ 1x VGA (Analog/CRT) 1x LVDS interface (single ch 24-bit, dual ch 48-bit)
AUDIO	HD Audio (Cirrus Logic CS4207 codec)
NETWORK	Port 0, Intel I226IT, 2.5Gb Ethernet Port 1, Intel 82574I, 1Gb Ethernet
EXPANSION	MiniPCIe Expansion: 2x full-length cards (Both sockets have PCIe and USB) 1x SIM Card Expansion option (One socket supports 4G/5G and SIM Card)
I/O	8-bit GPIO 4x USB 3.0 2x USB 2.0 1x Console RS-232 (TX/RX) 2x RS-232 (w/ full modem signals) 2x RS-422/485 I2C
POWER	Input: Single +12V input +/- 5% (5mm pitch terminal connector) Typical Power Use: 32W* * See product manual for Passmark® details.
THERMAL OPTIONS	SBC-477-P-R-1 with Heat Spreader SBC-477-P-R-3 with Heatsink and Fan
MECHANICAL	SBC-477-P-R-1 with Heat Spreader: 125mm x 95mm x 35mm \| 320g / 11.3oz SBC-477-P-R-3 with Heatsink and Fan: 125mm x 95mm x 99mm \| 790g / 27.9oz
ENVIRONMENTAL	Industrial Temperature: -40°C to +85°C (-40ºF to +185°F) with Heatsink and Fan or other adequate thermal solution Humidity: 5% to 95% non-condensing CE Compliant RoHS Compliant
ORDER INFORMATION	SBC-477-P-R-T – P = Processor (U300, 1315UE, 1335UE, 1365UE) – R = DDR5 SODIMM (16, 32, 64 GB) – T = Thermal option (1 = Heat spreader, 3 = Heatsink and fan) Accessories: CBL-SET-477-CNT-1 Ask us about storage options and other accessories.
