What processor does the SBC35-474 use?

It uses the Intel Atom x7000RE Series "Amston Lake" processor, available in x7835RE, x7433RE, and x7211RE variants, each with an integrated 16EU GPU.

What temperature range does the SBC35-474 support?

It operates reliably from -40 degrees celsius to +85 degrees celsius (-40 degrees fahrenheit to +185 degrees fahrenheit) with appropriate fanless thermal solution, making it suitable for harsh industrial and outdoor environments.

Is the SBC35-474 fanless?

Yes. It is a fanless, rugged single board computer designed for silent, solid-state operation in industrial enclosures without active cooling.

What operating systems does the SBC35-474 support?

The SBC35-474 supports Windows 11 IoT Enterprise, Ubuntu Linux, and other x86-compatible RTOS platforms.

What expansion options does the SBC35-474 offer?

It includes one M.2 E-Key slot and two M.2 B-Key slots, supporting PCIe, SATA, USB 3.0/2.0, Wi-Fi/Bluetooth, and cellular (WWAN) expansion modules.

What is the product life cycle of the SBC35-474?

This rugged SBC is backed by an extended product life cycle of 10+ years, supporting long-term BOM stability for OEM and industrial deployments.

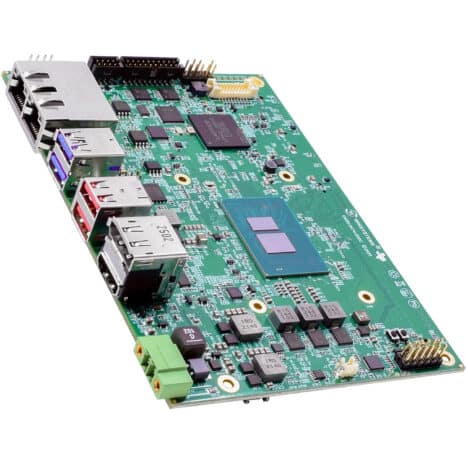

SBC35-474 Fanless Rugged Single Board Computer with Intel® Amston Lake Processors

DATA SHEET

WINSYSTEMS’ SBC35-474 is a fanless, rugged 3.5″ single board computer (SBC) powered by an Intel Atom® Amston Lake x7000RE processor with an integrated 16UE GPU. This industrial SBC is engineered to power robust performance for latency-sensitive applications in embedded, industrial IoT, and communications markets that demand 24/7 reliability. It delivers power-efficient accelerated performance for real-time control and secure edge computing. Rated for -40°C to +85°C operating temperatures, it’s designed for industrial applications in harsh environments.

The SBC35-474 is designed for flexibility to meet your application requirements. It features three M.2 sockets – one for M.2 E-Key and two for M.2 B-Key, to support a wide variety of I/O expansion modules with PCIe, SATA, USB3/2, Wi-Fi/Bluetooth, cellular connectivity and more.

Developers can build and deploy applications in their preferred environment, with OS support for Windows 11, Linux, and other x86-compatible RTOS. It uses an AMI UEFI-based BIOS and supports integrated AI datatype on the CPU.

SPECIFICATIONS DOCUMENTATION Mechanical Drawings

Features
PROCESSOR	Amston Lake, the Intel Atom® Processor x7000RE Series with industrial integrated GPU: Intel Atom® x7835RE Cores: 8 \| Core Speed: 1.3 (3.6) GHz \| Cache: 6 MB of L3\| Base Power: 12W Intel Atom® x7433RE Cores: 4 \| Speed: 1.5 (3.4) GHz \| Cache: 6 MB of L3\| Base Power: 9W Intel Atom® x7211RE Cores: 2 \| Speed: 1.0 (3.2) GHz \| Cache: 6 MB of L3 \| Base Power: 6W
OPERATING SYSTEM	Linux, Windows 10/11 IoT, other x86 real-time OS
SOFTWARE	Custom configurable UEFI-based AMI BIOS System Management Libraries and Tools
SECURITY	On-board discrete TPM 2.0 hardware security
RAM	8GB or 16GB DDR5 SO-DIMM, 4800 MT/s. Supports In-Band ECC
STORAGE	128GB eMMC on-board Optional MVNe or SATA
DISPLAY	Triple Display, UltraHD 1x DisplayPort++ 1x HDMI 2.0 1x eDP VESA 40-pin
AUDIO	HD Audio
NETWORK	2x 2.5 GbE (Intel i226), RJ-45
EXPANSION	• M.2 E-Key 2230 (WiFi/Bluetooth®) • M.2 B-Key 2280 (SATA, NVMe, or I/O) • M.2 B-Key 2242/2252/2260/3042/3052/3060 (WAN/Cellular with Nano SIM or I/O)
I/O	8-bit GPIO 2x USB 3.0 7x USB 2.0 (3 used for M.2) 2x Multi-Protocol Serial Ports (2mm HDR) I2C Nano SIM socket Watchdog Timer 1-255
POWER	Wide Power Input: +9V to +36V TDP: 22W* * Average power use under standard load, varies per selected processor. See product manual for PassMark® details.

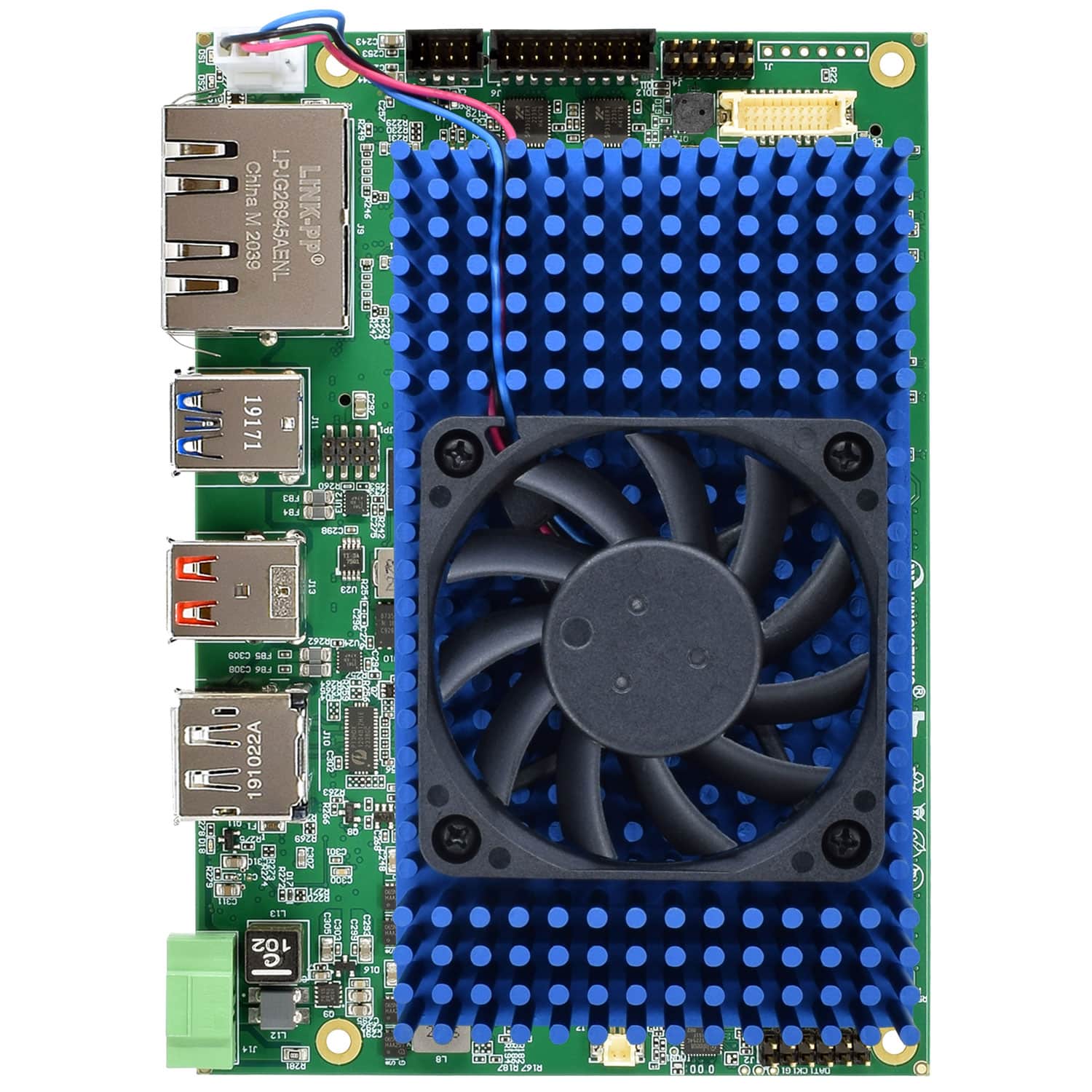

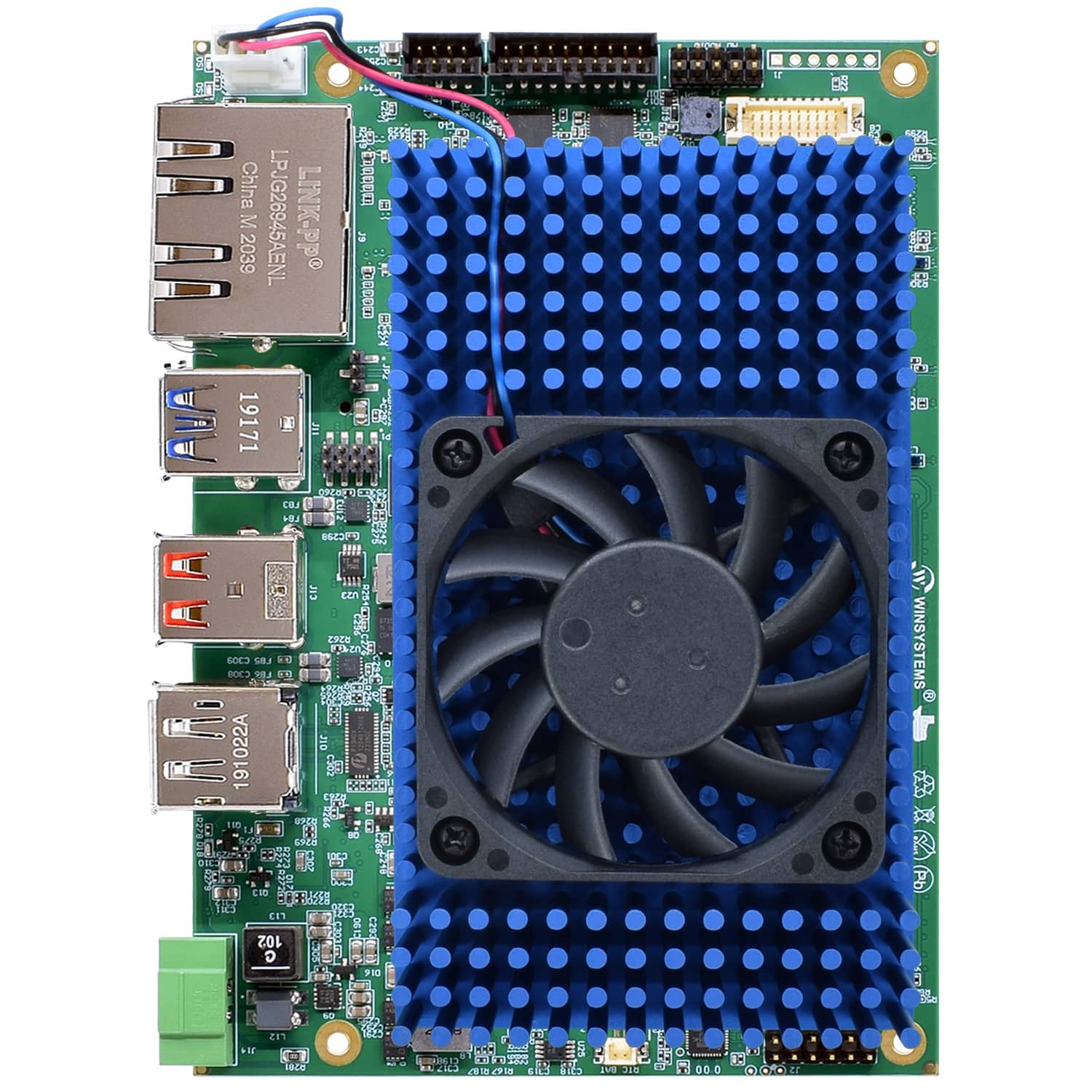

THERMAL OPTIONS	Heat Spreader, Heatsink, and Heatsink with Fan
MECHANICAL	Dimensions: 3.5″ form factor; 146mm x 102mm (5.75″ x 4″). 22mm or 32mm depending on thermal option selected.
ENVIRONMENTAL	Industrial Temperature: -40°C to +85°C (-40ºF to +185°F) Humidity: 5% to 95% non-condensing RoHS Compliant

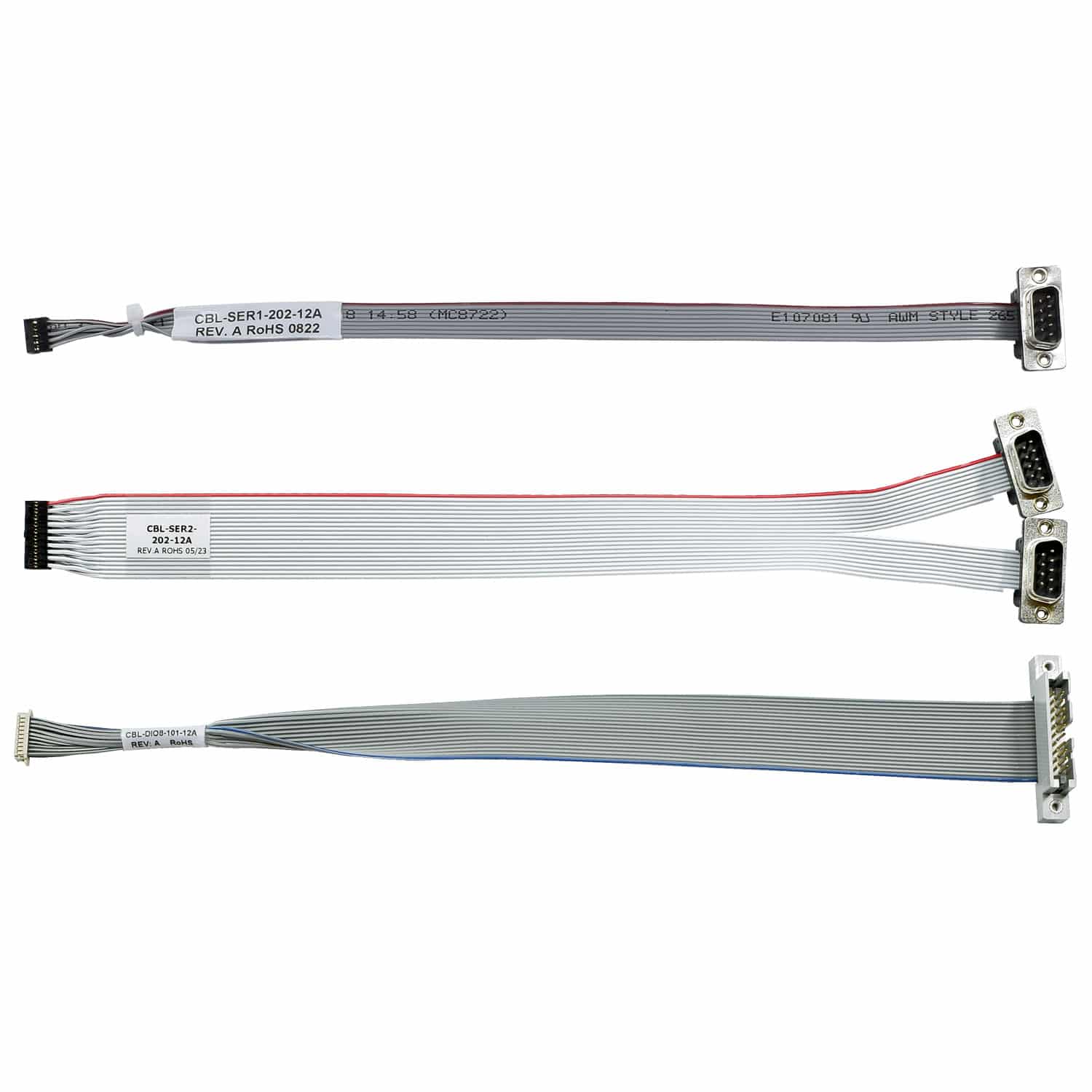

ORDER INFORMATION	SBC-474-P-R-T – P = Processor (x7211RE, x7433RE, x7835RE) – R = DDR5 4800 MT/s SODIMM (8GB, 16GB) – T = Thermal option (1 = Heatspreader, 2 = Heatsink, 3 = heatsink with fan) Accessories: Ask us about cables, storage, OS licenses, and other options.

Features

Rugged Industrial Embedded SBC

Powerful yet power-efficient industrial performance
Amston Lake Intel Atom® Processors x7000RE Series
Integrated GPU and AI support features
Triple display support with UHD graphics
3x M.2 expansion connectors to support PCIe, SATA, USB
and I2C, Wi-Fi®, Bluetooth® and cellular
-40°C to +85°C extended temperature range with thermal solution
Extended product life cycle of 10+ years
Made in USA

Key Specifications

Form Factor: 3.5” SBC
Processor: Intel Atom x7835RE | x7433RE | x7211RE (Amston Lake)
Architecture: x86
Max Memory: 16GB DDR5 SO-DIMM
Graphics: Integrated Intel UHD Graphics
Storage: 128GB eMMC on-board | optional MVNe or SATA
Networking: 2x 2.5GbE
USB Ports: 2x USB 3.0
Serial Ports: 2x RS-232
Expansion: 2x M.2 B Key sockets and 1x M.2 E-Key socket
Display Interface: DP++, HDMI 2.0, eDP VESA 40-pin | Triple display support
Power Input: 9V-36V DC
Operating Temperature: -40°C to +85°C
Cooling: Fanless
Security: Discrete TPM 2.0
Rugged Features: Wide temperature, shock and vibration tolerant
