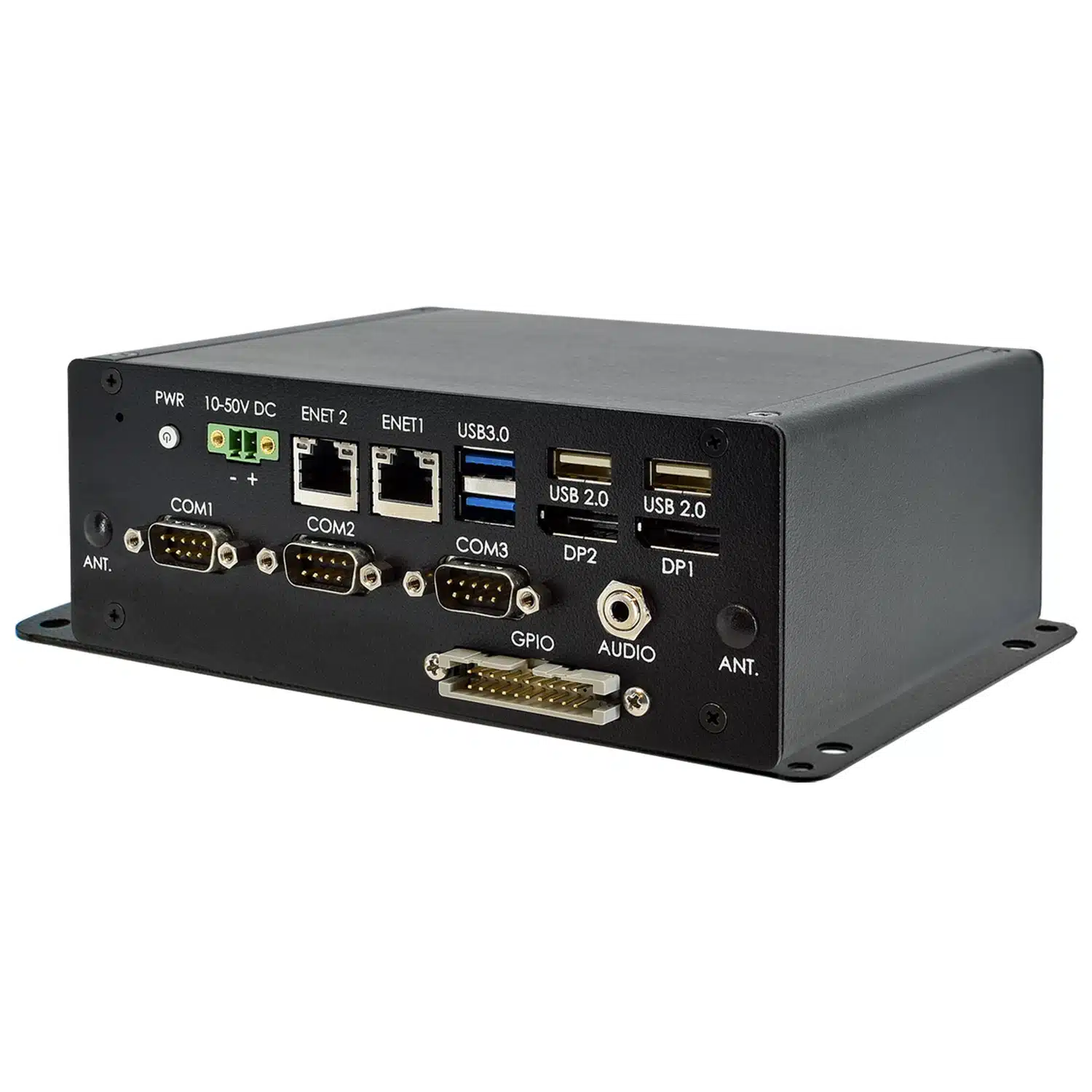

SYS-427X Industrial Embedded Computer with Intel Apollo Lake-I E3950 Processor, Dual Ethernet, Multi-Display and Configuration Options

WINSYSTEMS’ SYS-427X is a rugged, fanless industrial computer with the Intel Atom® Apollo Lake-I SOC quad-core processor. Its compact size, low power, and extended operational temperature make it a great fit for rugged embedded systems in the industrial control, transportation, energy, and IIoT markets. In addition to the standard system configuration, three optional configurations are available, adding WiFi 6, CAN Bus, or both.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

Made in the USA

MADE IN THE USA

Features

Performance for Industrial IoT Edge Computing

  • Intel Atom® Apollo Lake-I E3950 Quad-Core Processor
  • 8GB ECC DDR3L SODIMM (socketed) Memory
  • 64GB LPDDR4 eMMC Storage
  • Supports 2x Displays (2x DisplayPort with 4K Resolution)
  • 2x Gigabit Ethernet ports (front panel only)
  • Watchdog Timer
  • Wide Range Power Input (10 – 50 VDC)
  • Fanless Wide Operating Temperature Range -40°C to +85°C
  • On-board TPM 2.0 Hardware Security

Connectivity and I/O for Embedded Data Acquisition

  • 2x USB 3.1 Gen 1 and (front panel I/O)
  • 2x USB 2.0 (front panel I/O)
  • 3x RS-232/422/485 Serial Ports
  • 8x Channel Bi-directional 20-pin General Purpose I/O (GPIO)
  • 1x MIPI-CSI (4-lane)
  • 1x PPI bus (future expansion)
  • 1x I2C bus (future expansion)

Storage

  • 64GB LPDDR4 eMMC Storage
  • mSATA 2.5″ SSD with up to 250GB (internal only)

Expansion and Configuration Options

  • 1x Full-size Mini-PCIe Socket (with mSATA support)
  • M.2 E-Key Type 2230 Form Factor
Features
Processor

Intel Atom® Apollo Lake-I E3950 Quad-core Processor
Core Speed: 1.6 GHz (2.0 GHz Burst)
Cache: 2MB L2
Power: 12W typical
Operating System

Linux, Windows 10, other x86 compatible RTOS
Memory (RAM)

8 GB ECC DDR3L SODIMM (socketed)
BIOS

AMI – UEFI
Display Support

2x DisplayPort (v1.2)

4K Resolution (4096 x 2160) at 60Hz
Ethernet

2x Gigabit Ethernet ports (front panel I/O)
Storage

64GB LPDDR4 eMMC Storage

mSATA 2.5″ SSD with up to 250GB (internal)

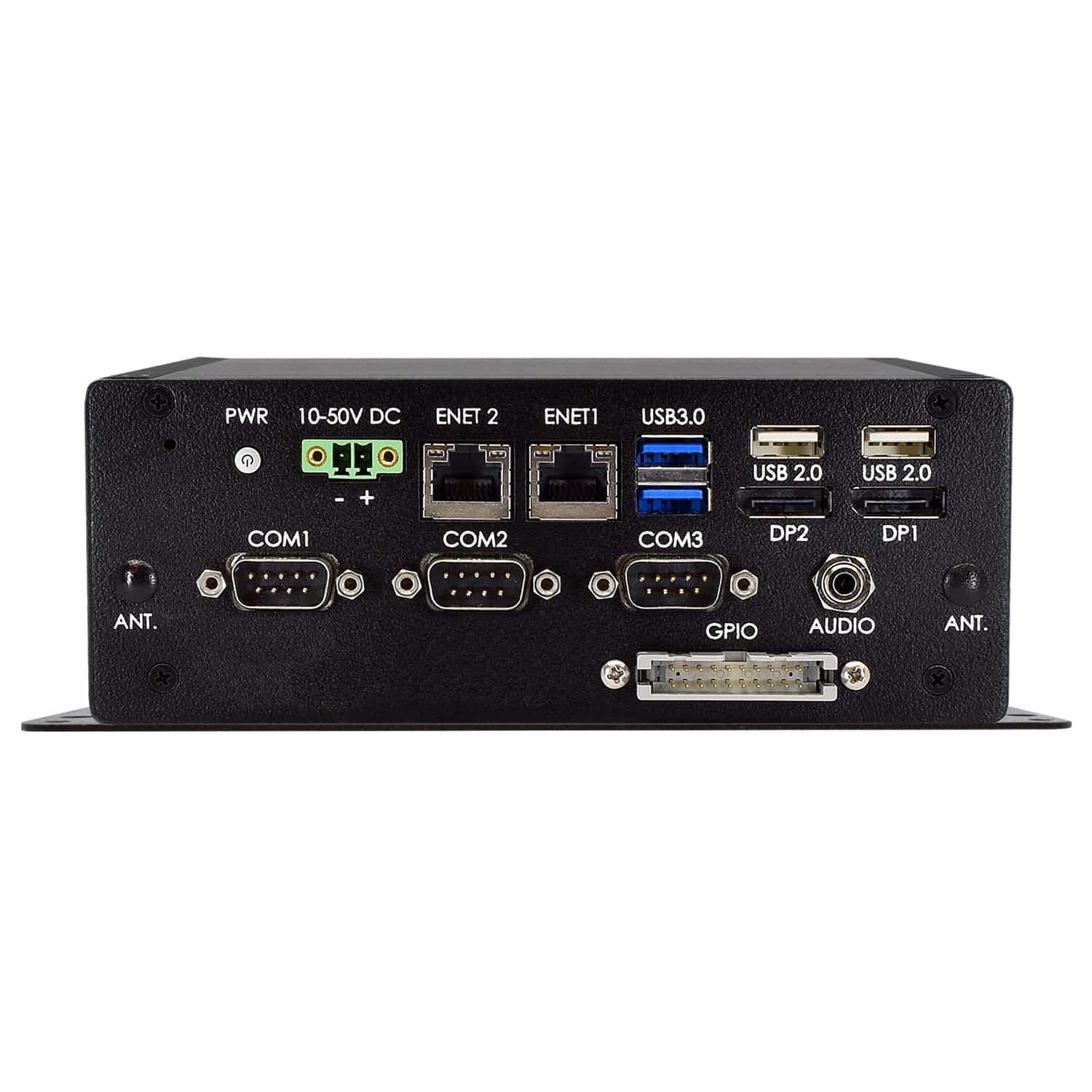

I/O

2x Gigabit Ethernet ports (front panel only)

2x USB 3.1 Gen 1 and (front panel I/O)

2x USB 2.0 (front panel I/O)

3x RS-232/422/485 Serial Ports

8x Channel Bi-directional 20-pin GPIO

1x MIPI-CSI (4-lane)

1x PPI bus (future expansion)

1x I2C bus (future expansion)
Expansion

1x Full-size Mini-PCIe Socket (mSATA support)

M.2 E-Key Type 2230 Form Factor
Watchdog Timer

Adjustable from 1 second to 255 minutes
Power

Mode: AT, ATX

Power Supply: Wide Range +10-50V DC

Phoenix Contact Terminal Block Header

Total Dissipated Power: 12W
Physical

Dimensions (standard configuration): 6.5 in x 4.5 in x 2.5 in (165.1 mm x 114.3 mm x 63.5 mm)

Weight: 38.32 oz (1086.35 g)

Construction: Extruded Aluminum with HD Metal

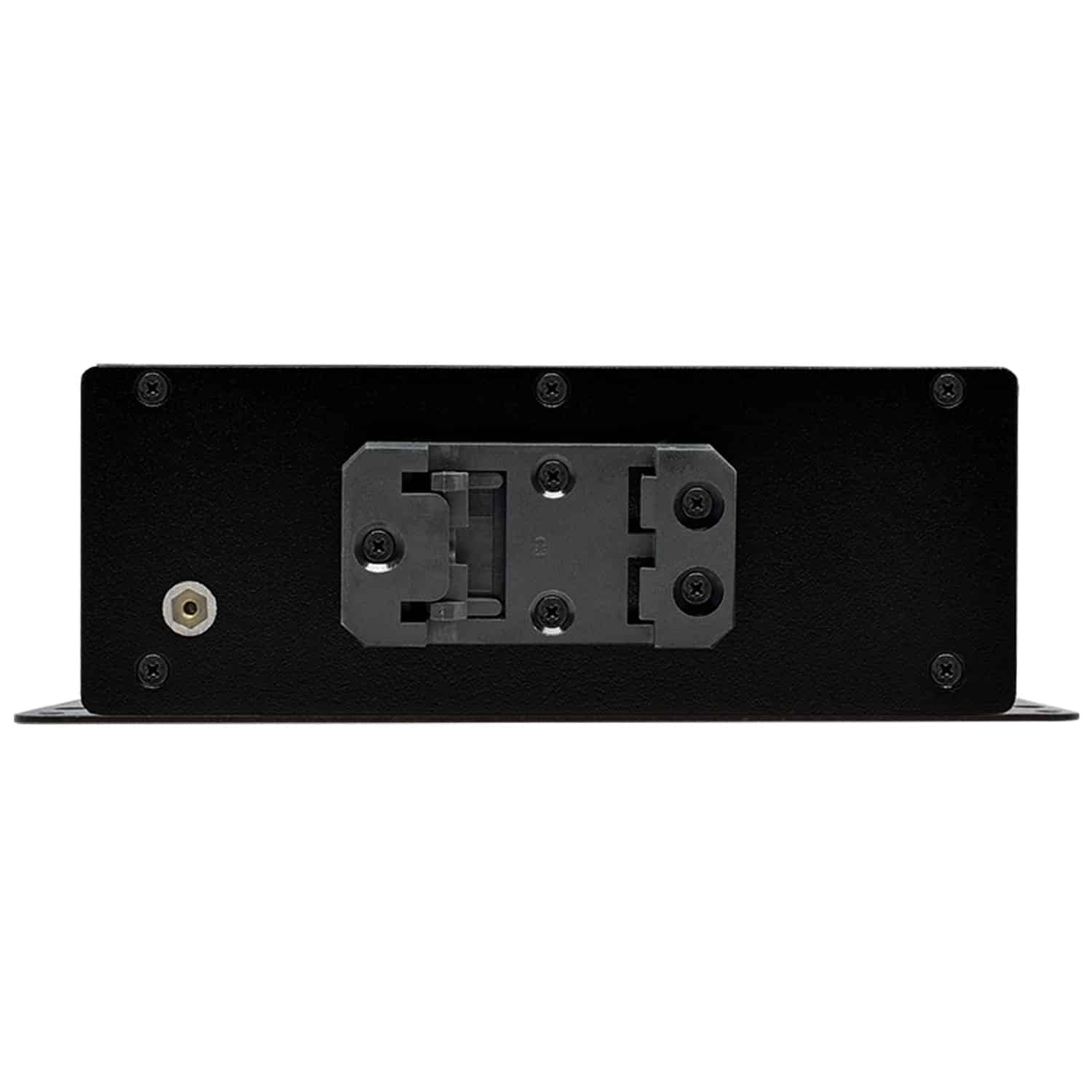

Mounting Options: Wall, Side, VESA, DIN-Rail
Environmental

Wide Temp: -40°C to +85°C (-40 to +185°F)

Relative Humidity: 10% – 90% (non-condensing)

CE, RoHS-Compliant
Security

On-board TPM 2.0 hardware security
Configuration Options

Option 1: 2x Isolated CAN Bus 2.0B/J1939/CAN Open

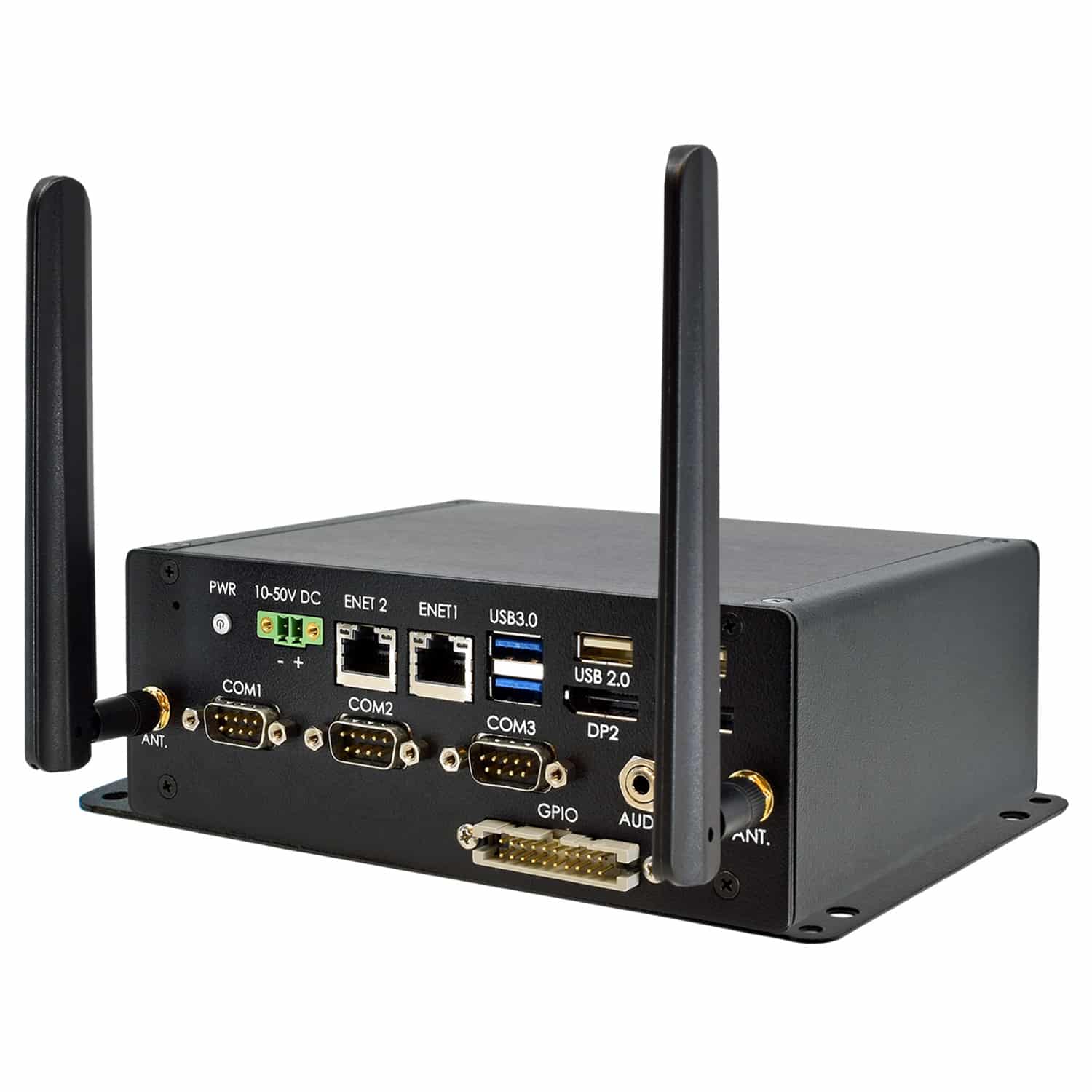

Option 2: WiFi 6 Connectivity (Dual Antennas)

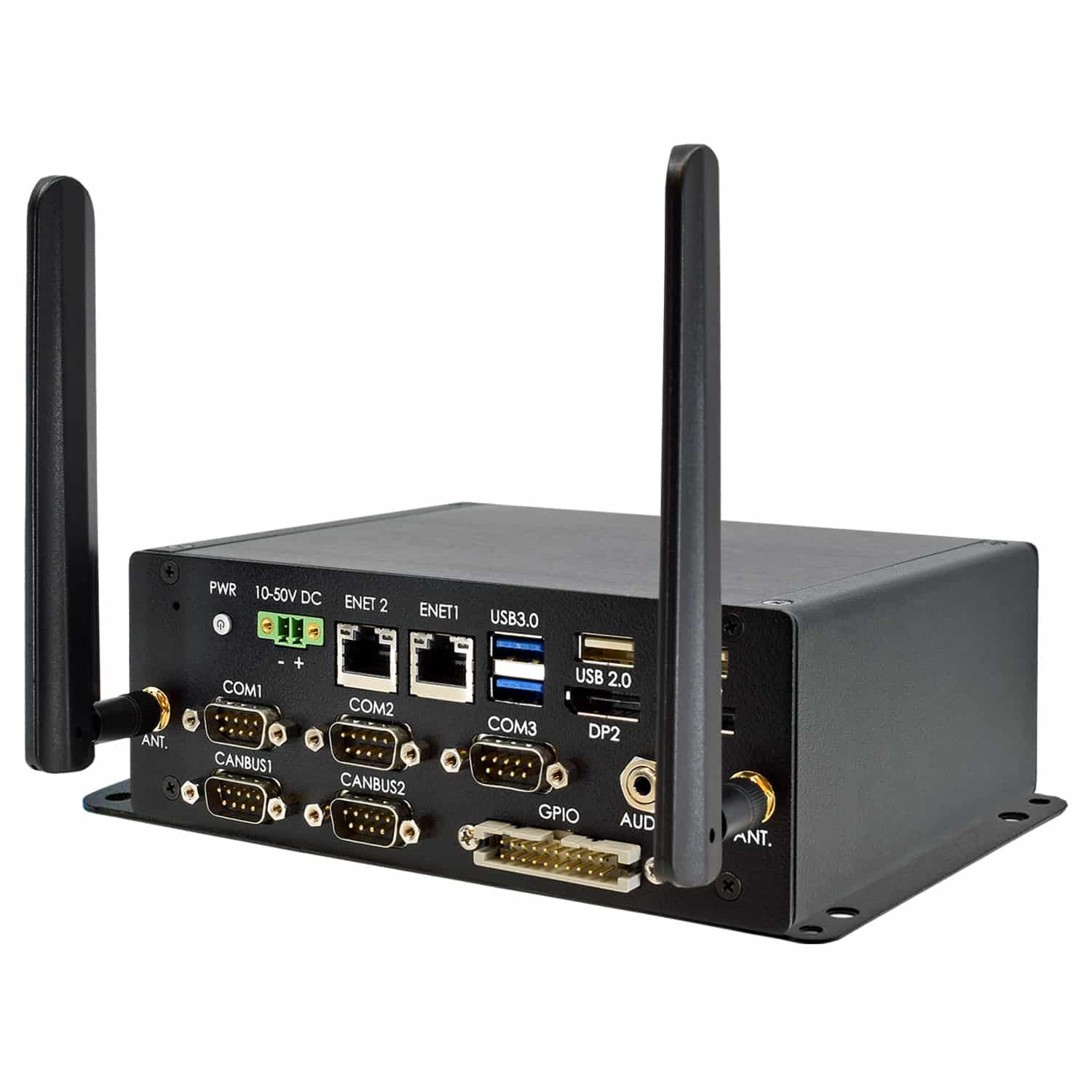

Option 3: 2x Isolated CAN Bus 2.0B/J1939/CAN Open + WiFi 6 Connectivity (Dual Antennas)

Additional Storage: 2.5″ SATA SSD 250GB
