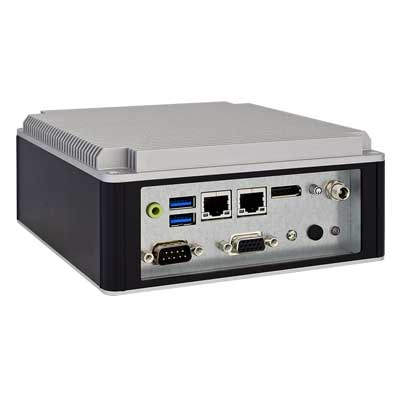

SYS-ITX-N-3900 Industrial Computer with Intel Atom® E3900 Processor

WINSYSTEMS’ SYS-ITX-N-3900 is an Industrial Computer based on the Intel Atom® E3900 Apollo Lake processor family. It uses less than 12 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -20º to +60ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3 system memory and internal mounting support for one 2.5” SATA HDD/SSD. Additional expansion is available through Mini PCIe.

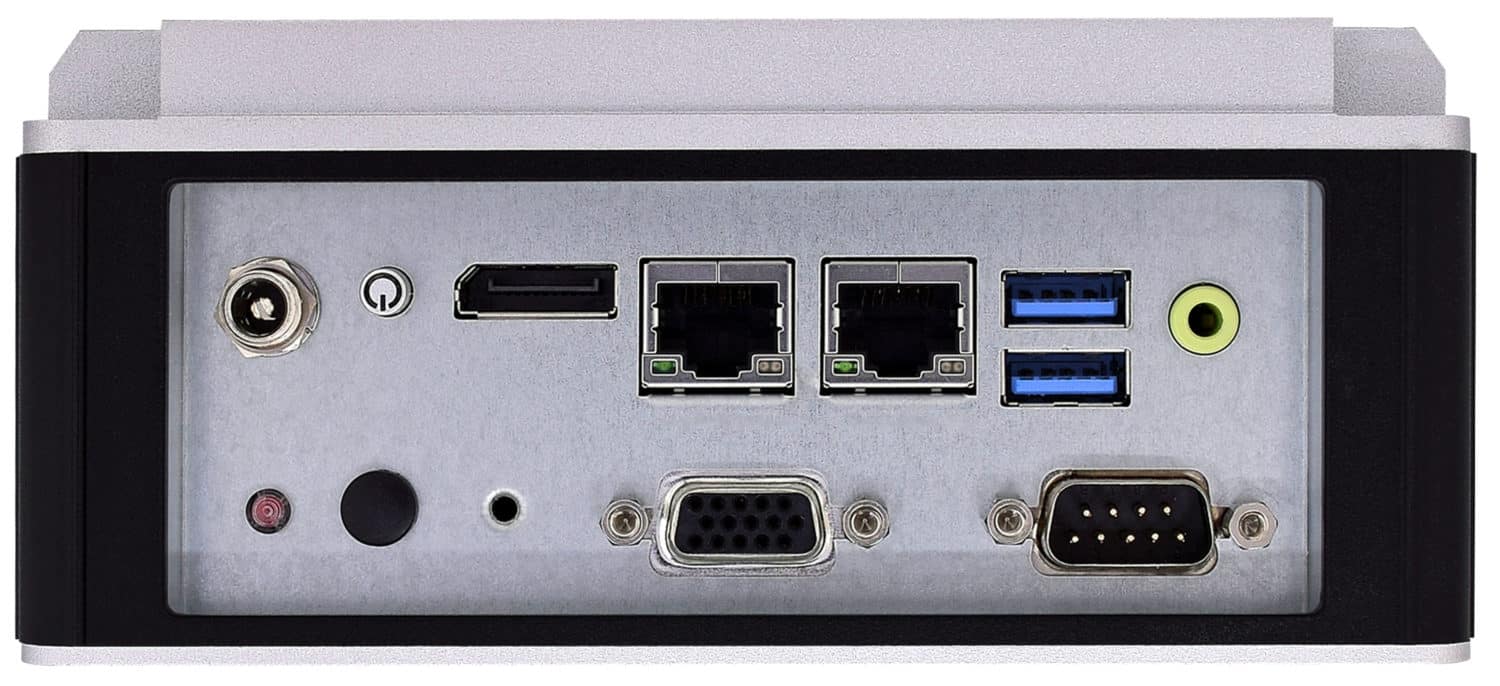

The SYS-ITX-N-3900 is a full-featured fanless embedded computer with onboard I/O that simultaneously supports VGA and DisplayPort video, dual Gigabit Ethernet ports, two USB 3.0 ports, one serial RS-232/422/485 port, audio, and watchdog timer. It also has a half-size Mini PCIe socket and an antenna hole for WiFi or 3G/GPS module.

This embedded computer supports Linux, Windows® 10 Desktop, Windows 10 IoT, and other x86-compatible real-time operating systems. Drivers are available on request. The SYS-ITX-N-3900 is designed for long-term availability and is FCC- and CE-certified, and designed for industrial IoT, medical, communications and digital signage applications.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

Not Recommended for New Designs

Features

  • Intel Atom Apollo Lake E3950/E3940 Processor
  • Two 10/100/1000 Mbps Ethernet Ports
  • DisplayPort and VGA outputs for dual displays
  • Up to 8GB DDR3-LV RAM
  • TPM 2.0 onboard
  • 2 USB 3.0
  • 1 Serial Port (RS-232/422/485)
  • Audio Output
  • 1 MiniPCIe Socket with MSATA support
  • 1 M.2 Socket, with E key, type 2230
  • One SATA 3.0 ports and 1 Micro SD for storage
  • -20°C to +60°C Operational Temperature
Features
Processor

Intel Atom x5-E3940 Quad-Core
– Up to 1.6 GHz (base frequency 1.6 GHz)
– Cache up to 2MB (for Quad-Core)
– Support Intel. VT-x technology

Intel Atom x7-E3950 Quad-Core
– Up to 1.6 GHz (base frequency 1.6 GHz)
– Cache up to 2MB (for Quad-Core)
– Support Intel. VT-x technology

Memory

Up to 8GB DDR3L 1600/1866 MHz SDRAM on 1x 204-pin SODIMM

Storage

1x SATA 2.0
1x Micro-SD Socket
1x mSATA socket

Display

Graphic Controller
Intel. Gen 9 graphic engine supports DirectX 12, QuickSync, OpenGL
Video decode hardware acceleration supports for H.265/HEVC, H.264, MPEG2, MVC, VC-1, WMV9, and VP8 formats

Display Interface
VGA: 1x VGA connector, resolution up to 1920×1200 (WUXGA)
DP: 1x DP connector, resolution up to 4096 x 2160 @ 60Hz

Serial Interface

1x Serial Port RS232/422/485
2x USB 3.0 ports

Network Interface

2x Intel I210-IT Gigabit Ethernet

Onboard I/O

HDA controller integrated in Intel SoC
Realtek ALC892 HDA codec, audio jack on rear I/O with Line-out
Watchdog timer programmable by embedded controller

Expansion Bus

1x Full-size Mini-PCIe
1x M.2 Socket, with E key, type 2230

Power

Typical power +12-24V DC input, 7 Watts

Software

AMI UEFI BIOS

Environmental

Operation temperature: -20 to +60°C
Storage temperature: -40 to +85°C
Relative humidity: 5 to 95%, non-condensing

Mechanical

Dimensions
Length: 5.9 in. (150mm)
Width: 5.9 in. (150mm)
Height: 2.36 in. (60mm)
Weight: 2.9 lbs (1.3 kg)

Mounting Options
VESA
Wall/ Panel
DIN rail
