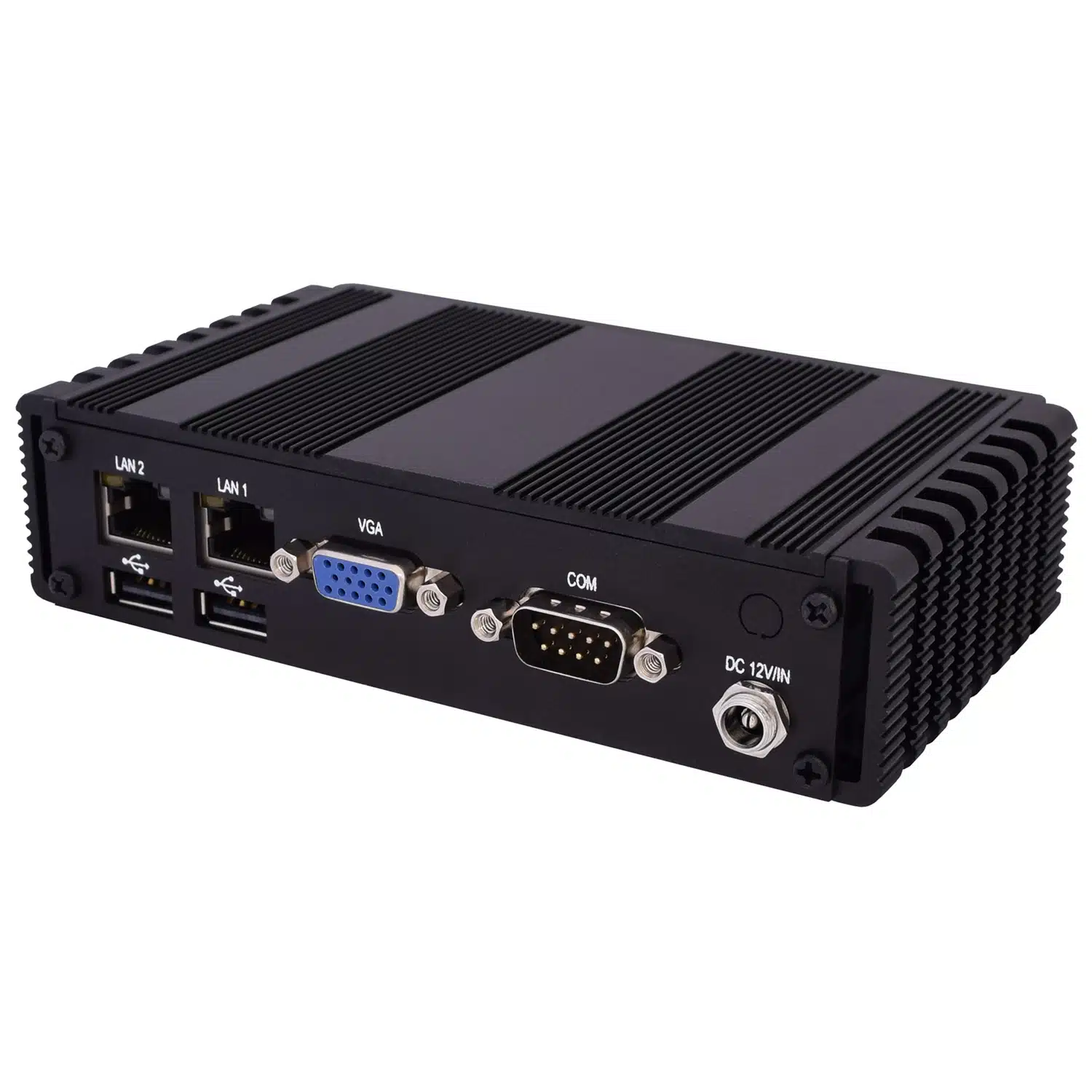

SYS-ITX-P-3800 Small Form Factor Industrial Computer with Intel Atom® E3800 SoC and Dual LAN

WINSYSTEMS’ SYS-ITX-P-3800 Series embedded computers pack an impressive feature set into a small form factor Pico-ITX design. The SBCs are based on the Intel Atom® E3800 processor family which provides CPU and graphics performance. The SYS-ITX-P-3800 is a perfect choice for applications requiring low power and Intel performance in a small form factor package with industrial connectors and I/O.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

Features

Industrial Intel Atom E3845(Quad-core)/E3825(Dual-core) SoC
Intel Gen7 Graphics and HD Audio
Small Form Factor 5.71 x 3.46 x 1.3 inches (145 x 88 x 35mm)
Up to 4G of DDR3L RAM

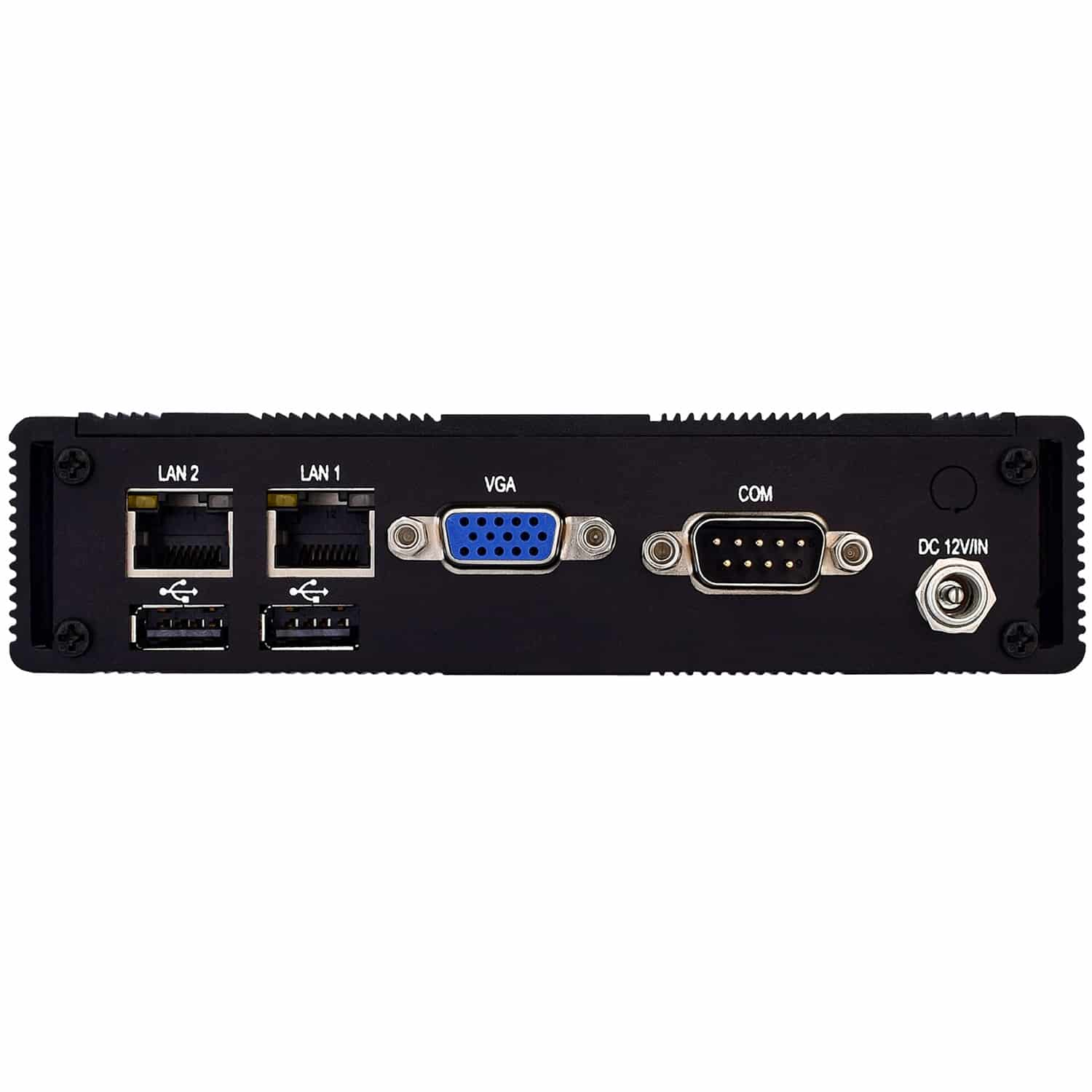

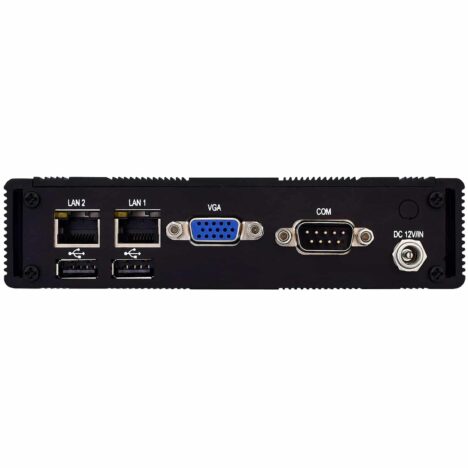

Two 10/100/1000 Ethernet (Intel I210)
Four RS-232 serial ports (1x DB9 and 3x Internal headers)
Four USB 2.0 ports (2x Type-A connectors and 2x headers)
Bus Expansion
- 1x Full size Mini-Card slot with mSATA
- 1x Half size Mini-Card slot with mSATA
Bootable SATA and mSATA
+12V DC input
Fanless -20° to +70°C operational temperature
