Rugged Industrial PCs for the Edge
Small, tough, and power-efficient, with the right I/O for the job.
This is what makes an industrial PC different from a commercial model. You can count on WINSYSTEMS’s 40+ years of experience in meeting our customers’ requirements from design-in thru long-life deployment.

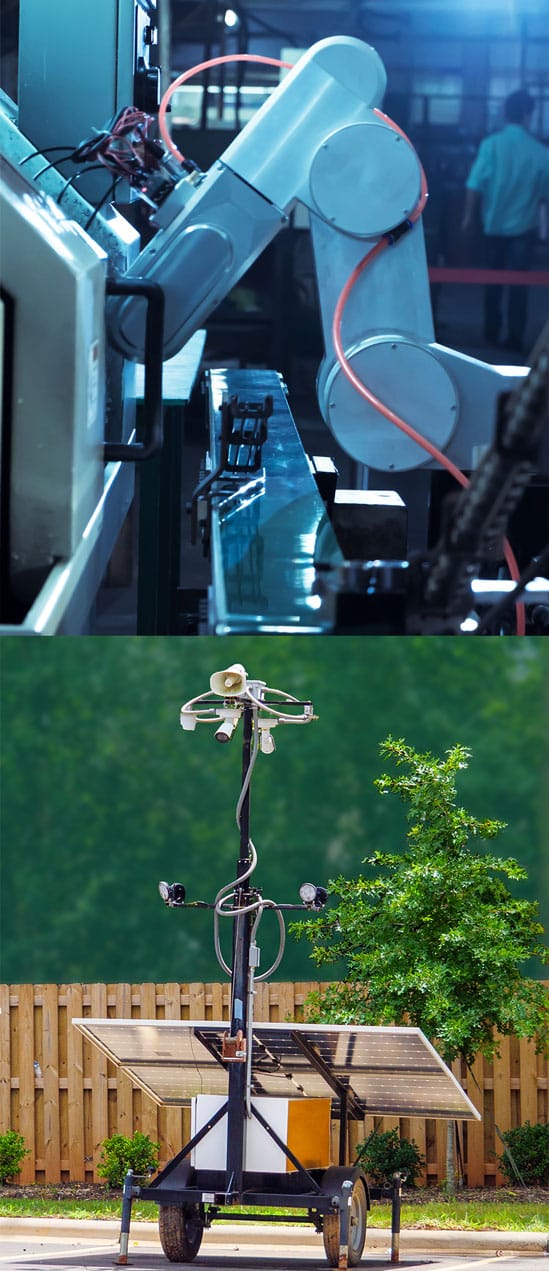

Learn more about these fanless industrial PCs with TPM 2.0 security that are ready for the challenges of demanding factory floors and harsh out of doors in temps from -40°C to +85°C. Which meets your application requirements?
Featured Rugged Industrial PCs
|
|
|
|

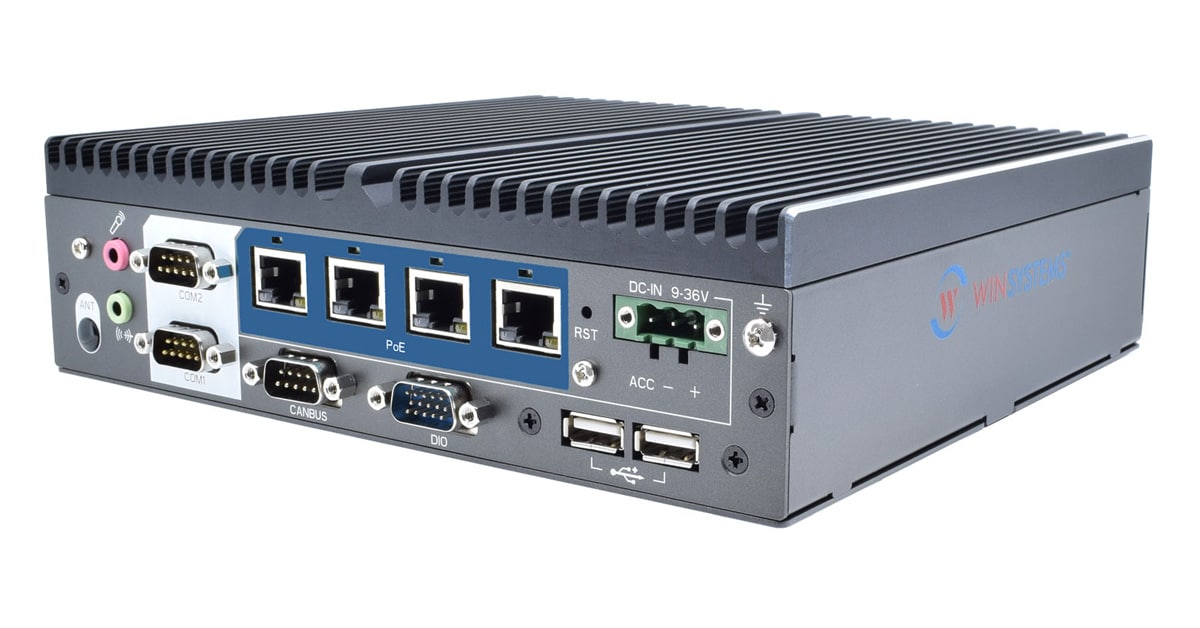

| Key Specs | SYS-480 |

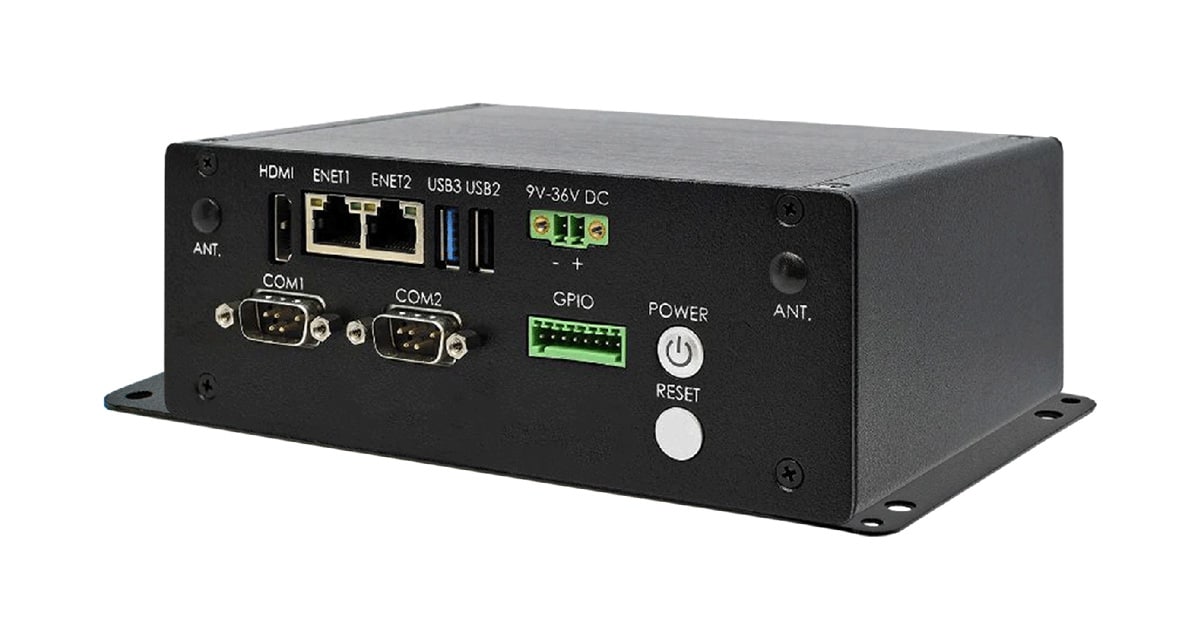

SYS-444Q |

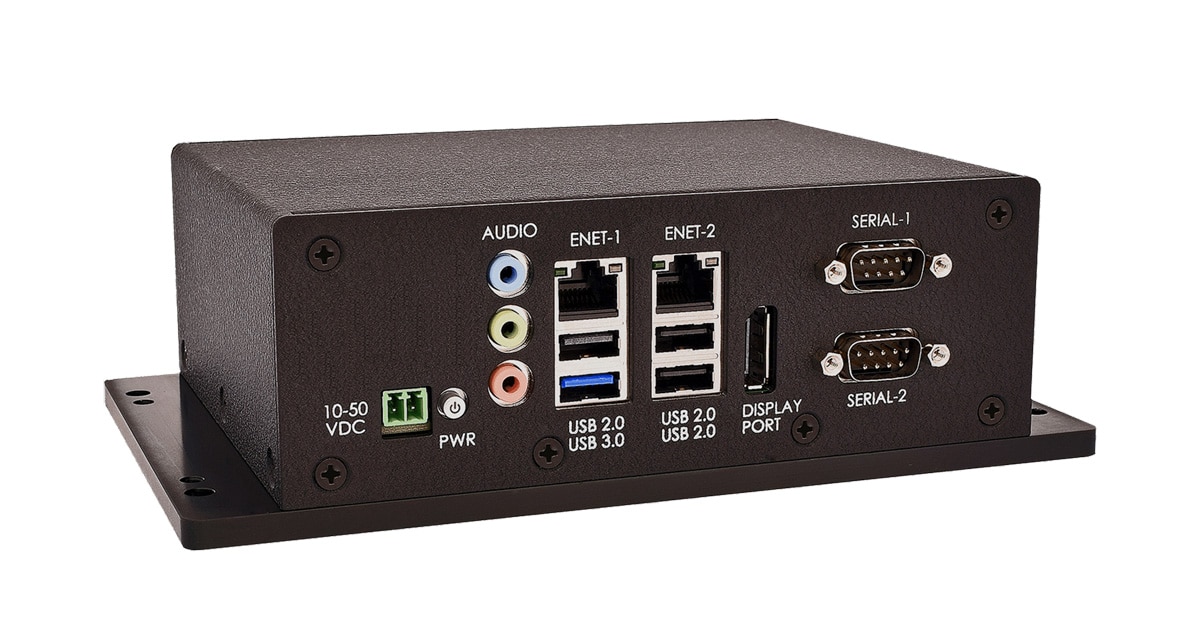

SYS-405Q-TCA7 |
|---|---|---|---|
| DATA SHEET | DATA SHEET | DATA SHEET | |
| Processor | Intel Atom® x7433RE Amston Lake, 4-core, 1.5 (3.4) GHz | NXP® i.MX 8M, 4-core, Arm®, 1.3 GHz | Intel Atom® x6425RE Elkhart Lake, 4-core, 1.9 GHz |
| OS compatibility | Windows 11, Linux, other real-time OS | Linux, other real-time OS | Windows 11, Linux, other real-time OS |
| RAM | 8GB or 16GB DDR5 | 4GB LPDDR4 | 8GB or 16GB DDR4 |
| Storage | 2.5" SATA, SD card, M.2 B Key | eMMC & MicroSD | CFast, mSATA |
| I/O |
4x PoE+ 2.5 GbE 2x Serial Ports 2x isolated CAN 2.0 A/B 2x USB 3.2 Gen 2 4x USB 2.0 |
2x 1 GbE 2x Serial Ports 8x GPIO 1x USB 3.1 Gen 1 3x USB 2.0 |
2x 1 GbE 2x Serial Ports 1x USB 3.0 3x USB 2.0 |
| Display | 2x HDMI | HDMI, LVDS | HDMI, optional 2nd HDMI |
| Expansion | 2x M.2 B Key, Mini PCIe | Full-size Mini PCIe | 2x Full-size Mini PCIe |
| Source | TAA-Compliant | Made in USA | Made in USA |
| SYS-480 full details | SYS-444Q full details | SYS-405Q-TCA7 full details |
