Compact Rugged Single Board Computers with a Wide Offering of Intel® Processors

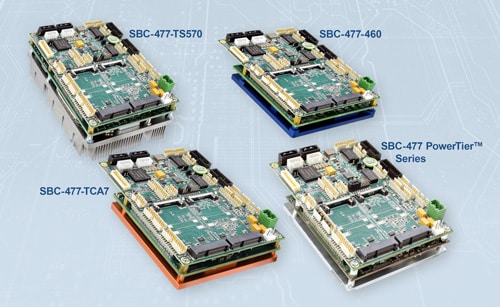

Leverage the configurability of the WINSYSTEMS’ SBC-477 family of rugged embedded computers to meet the requirements of your industrial application.
The first three of these industrial SBCs offer a choice of Intel Atom® (Elkhart Lake), 11th Gen Intel® Core™, and Intel® Xeon® (Tiger Lake) processors, to meet a range of energy-efficient processing needs.
The next four models comprise the SBC-477 PowerTier Series of industrial SBCs. These offer a choice of hybrid 13th Gen Intel® Core™ i7, i5 i3 processors and the Intel®Processor U300E, to meet the balance of performance and power efficiency that meets your application’s needs. These models can be customized to run in high-power and low-power modes, which enables an OEM or system integrator to gain the advantages of deploying a single embedded computer in support of various applications.
All SBC-477 models support Windows 10/11, Ubuntu Linux, and other x86 real-time operating systems and enable a broad spectrum of use cases across multiple industry sectors including transportation and energy management, industrial automation, Mil-COTS, and more.
SBC-477 family models are engineered for operating in harsh conditions, with extended operating temperature ranges, vibration and shock resistance, and TPM 2.0 hardware-level security. In addition to the standard I/O, they offer Mini PCIe expansion and storage up to 2 TB depending on model.
These models pair a processor module with a COM Express Type 6 Basic carrier board, making the SBC-477 an ideal solution for space-constrained applications and providing a future-proof design.
Key Features
- Up to 13th Gen Intel Core Processors for a wide range of processing and power choices
- -40 C to +85 C extended temp range, with appropriate thermal
- Support for Windows 10/11, Ubuntu Linux, and other x86 real-time OS
- Ruggedized locking pin header connectors
- Robust standard I/O and options
- Extended product life cycle of 10+ years
- COTS and custom configurations
SBC-477 Family Comparison Table
| Features | Intel Core 11-Gen (Xeon Series) SBC-477-TS570 | Intel Atom x6000 Series SBC-477-TCA7 | Intel Core 11-Gen (UP3 Series) SBC-477-460 | Intel Core 13-Gen (U Series) SBC-477-U300 | Intel Core 13-Gen (U Series) USB-477-1315UE | Intel Core 13-Gen (U Series) USB-477-1335UE | Intel Core 13-Gen (U Series) USB-477-1365UE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Processor |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Ubuntu Linux, Windows 10/11 IoT, and other x86 real-time OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Software | Custom configurable UEFI-based AMI BIOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | On-board discrete TPM 2.0 hardware security | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Memory | Up to 96GB DDR4 SODIMM, in 3 sockets | 16GB or 32GB DDR4 SODIMM, in 2 sockets | 32GB LPDDR4 | Up to 64 GB DDR5 5200 MT/s, in 2 sockets | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | HD Audio (Cirrus Logic CS4207 codec) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network / Ethernet |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Expansion |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| I/O |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thermal / Mechanical |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Footnotes
1 - with Heatsink and Fan or other adequate thermal solution
2 - with Heatsink or other adequate thermal solution
*See product manual for Passmark© details
