| Features | |
|---|---|
| COMPLIANCE | 802.3af/at and LTPoE++ |
| POWER | 802.3af TYPE I 3.84W, 6.49W, or 13W 802.3at TYPE II 25.5W LTPoE++ 38.7W, 52.7W, 70W, or 90W |
| ENVIRONMENTAL | Operational from -40°C to +85°C (may require cooling or derating at power levels above 30W) RoHS compliant |
| MECHANICAL | Dimensions – 3.5 x 2.0 inches Weight – 2.1 oz (60 gm) PC Board thickness 0.062 inches |

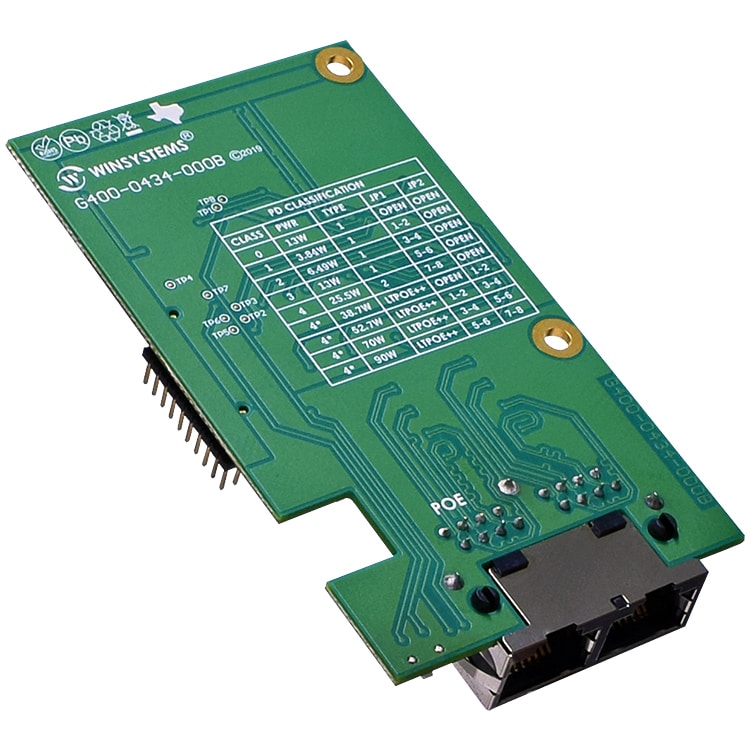

ADP-PS-434-POE ADP 802.3af/at and LTPOE++ Powered Device (PD) Controller Mezzanine Board
No longer in production
This product is listed to provide access to its documentation.

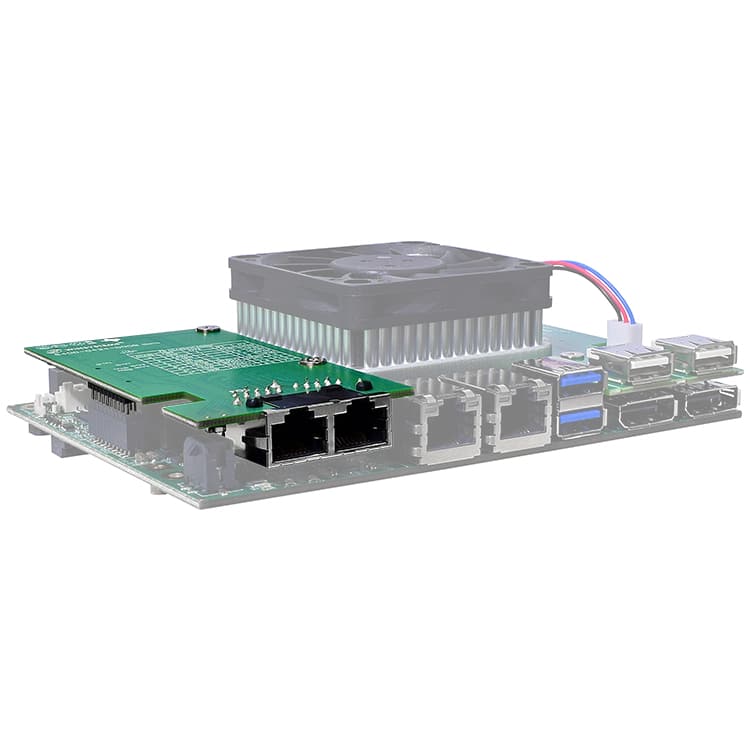

WINSYSTEMS’ ADP-PS-434-POE Mezzanine board is a small form factor 802.3af/at and LTPoE++ Powered Device (PD) adapter module designed for use with a FlexPower enabled WinSystems solution. PoE allows the system to be powered from an ethernet port connected to 802.3af/at or LTPoE++ compliant Power Supplying Equipment (PSE). The adapter card is intended for use in industrial control, transportation, Mil/COTS, and energy market applications.
PRODUCT INFOFeatures
Highly Efficient PoE for Industrial Applications
- 802.3af/at Compliant
- Compatible with PoE, PoE+, LTPoE++
- LTPoE++ Class 4
- 38.7W, 52.7W, 70W, 90W
- 2-event Classification

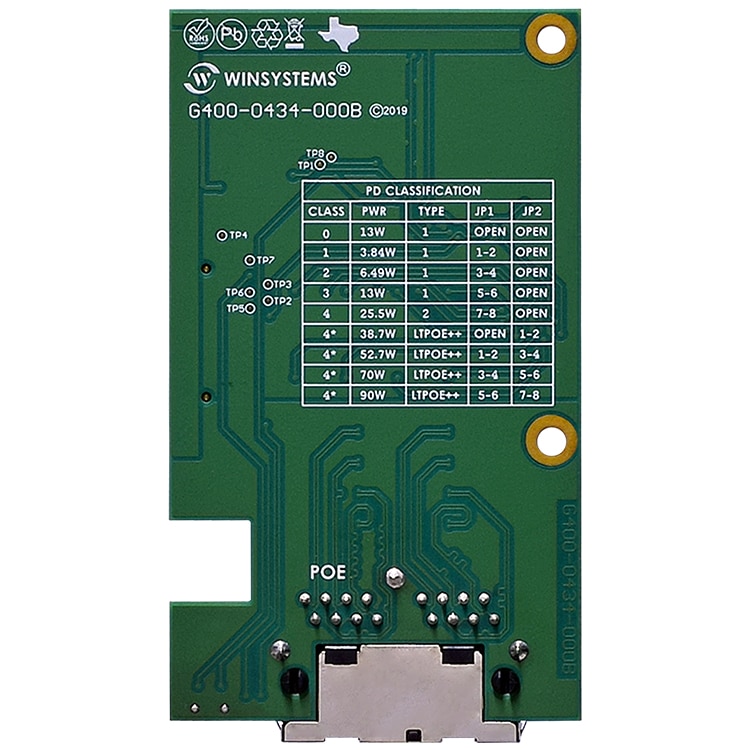

- Jumper Configurable Class
- Supports Type I and Type II PSEs
- Non-isolated
- 10Y+ availability
Rugged Design for Demanding Environments
- -40ºC to +85ºC Operating Temperature Range
- Over Temperature Protection
- 48-57VDC input power
- Low EMI
Connectivity and I/O for Embedded Systems

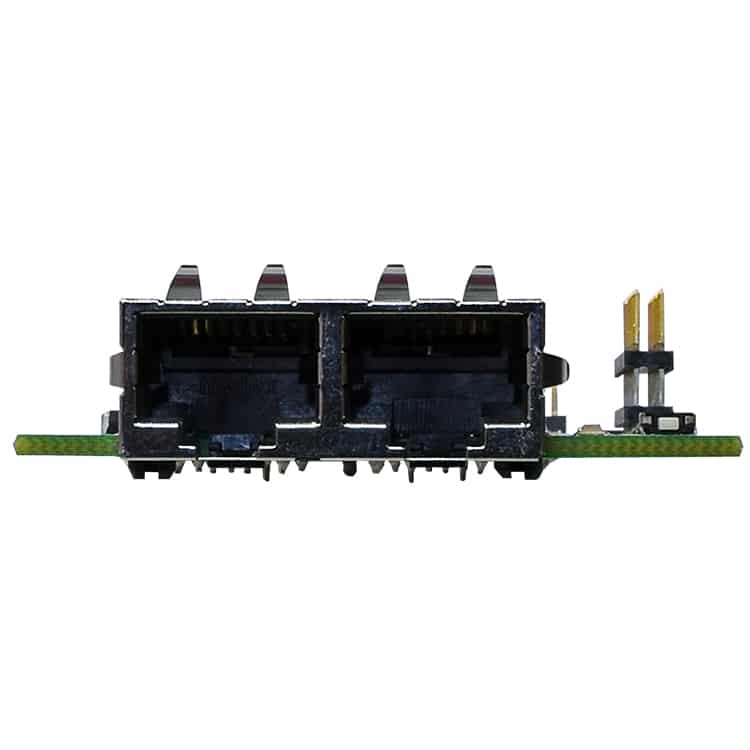

- Shielded Dual Gigabit Ethernet Connectors
- System Reset Button
