COMeT10-3900

$ 399.00$ 700.40

Description

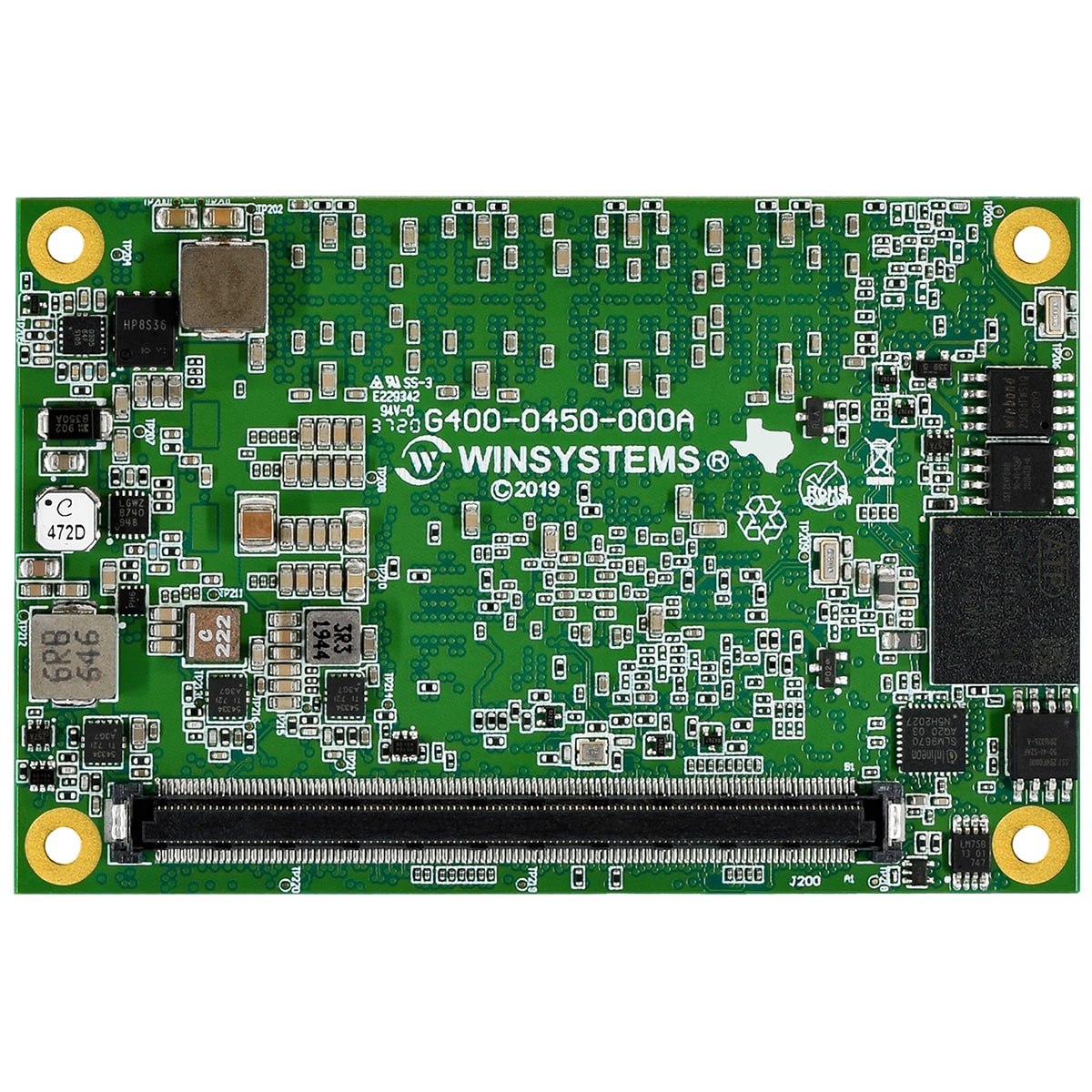

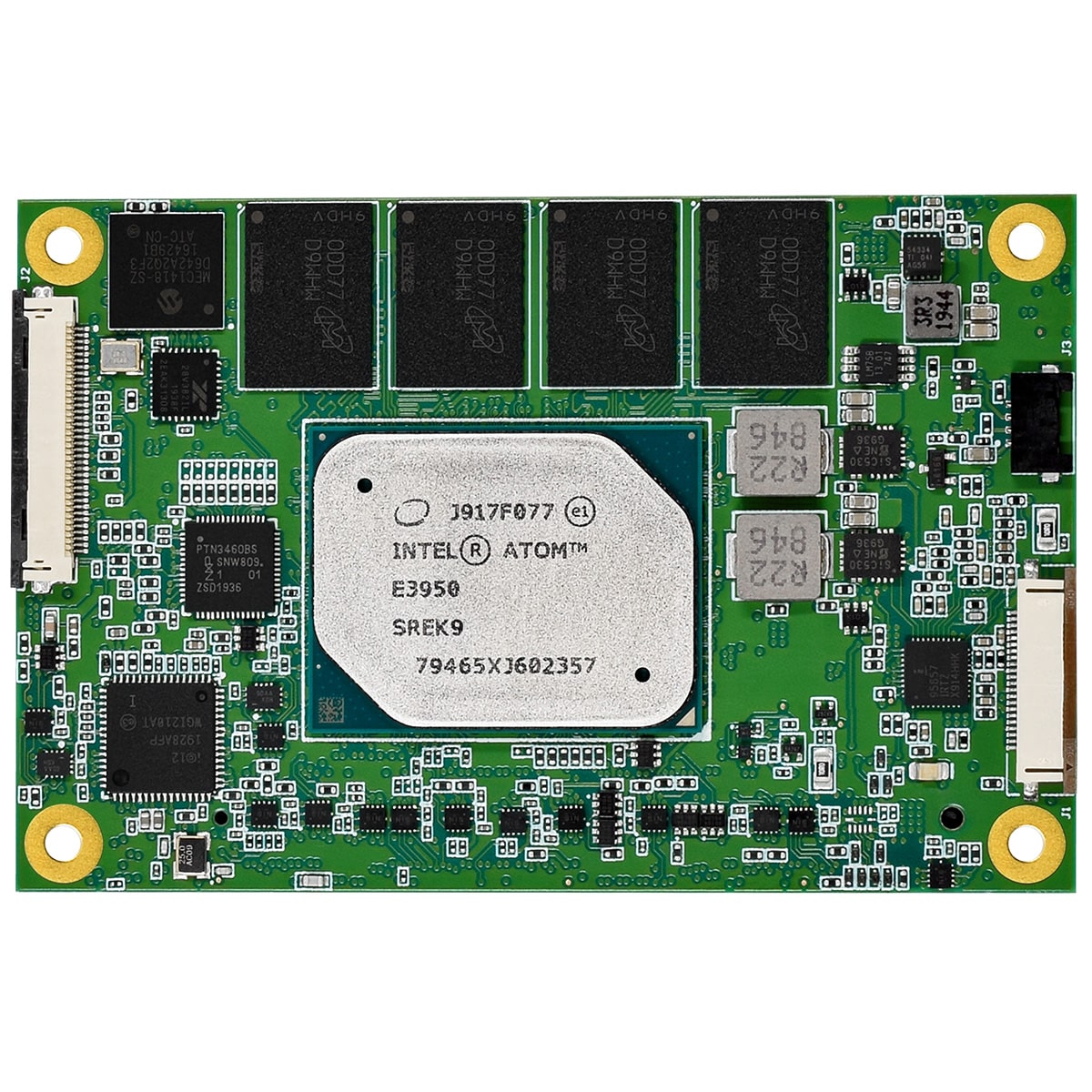

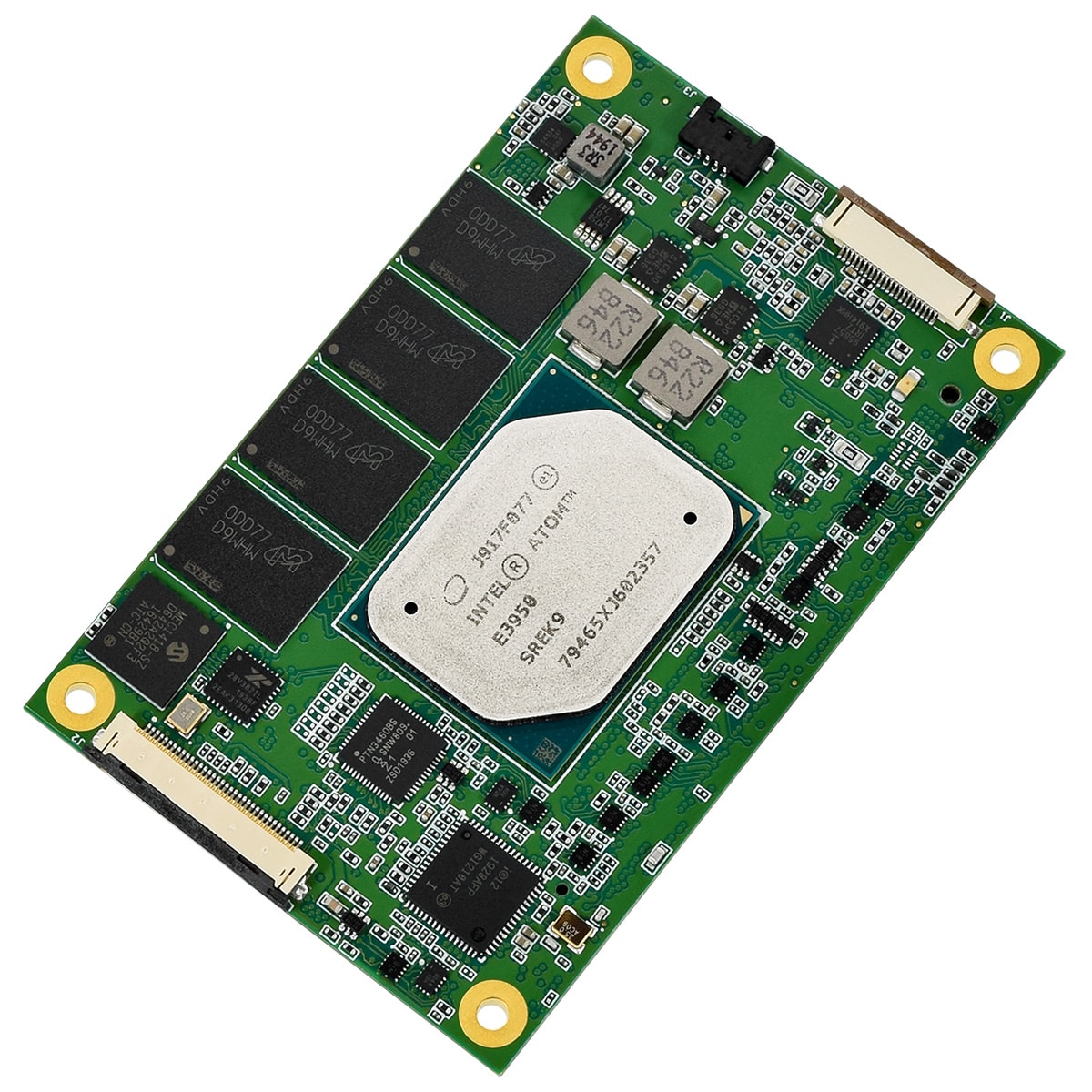

The COMeT10-3900 is an industrial COM Express® Type 10 Mini module with an Intel Atom® E3900 processor. This low power, industrial module was designed and manufactured in the USA. The small form factor module is designed as a processor mezzanine that can be plugged onto a carrier board that contains user-specific I/O requirements.

Features

Features
  • COMeT10-E3930
  • COMeT10-E3940
  • COMeT10-E3950
Processor
  • Intel Atom x5-E3930 Dual-Core, up to 1.8 GHz (base frequency 1.3 GHz)
  • Intel Atom x5-E3940 Quad-Core, up to 1.8 GHz (base frequency 1.6 GHz)
  • Intel Atom x7-E3950 Quad-Core, up to 2.0 GHz (base frequency 1.6 GHz)
Memory
  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

  • Up to 8GB LPDDR4 2400 MT/s (1200MHz) System Memory

Storage
  • On-board eMMC 5.x (64GB to 128GB)

  • On-board eMMC 5.x (64GB to 128GB)

  • On-board eMMC 5.x (64GB to 128GB)

Display
  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

  • Two independent video outputs
    − 1x Dual Mode Display (DisplayPort, HDMI, DVI)
    − 1x eDP (optional LVDS)

Expansion
  • 4x PCIe lanes (4×1 Default, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

  • 4x PCIe lanes (4x1Default, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

  • 4x PCIe lanes (4x1Default, 2×1 + 1×2, or 1×4)
    2x USB 3.1 Gen 1, 6x USB 2.0
    1x i210 1Gb/s Enet RGMII /w 1588 support
    HD Audio
    2x SATA III (6 Gb/s)
    2x UART
    4x GPI, 4x GPO

Power
  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

  • Wide Input: +4.75 to 20 VDC, Max Power Usage = 30W

Software
  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

  • – Compatible: Linux, Windows10, other x86 operating systems
    – Custom configurable UEFI based AMI BIOS
    – System Management Libraries and Tools
    – EAPI v1.1 support for System Info, WDT, I2C, Brightness, GPIO, and User Storage Area

Environmental
  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

  • – Operational from -40°C to +85°C (-40 to +185°F)
    – RoHS compliant

Mechanical
  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)

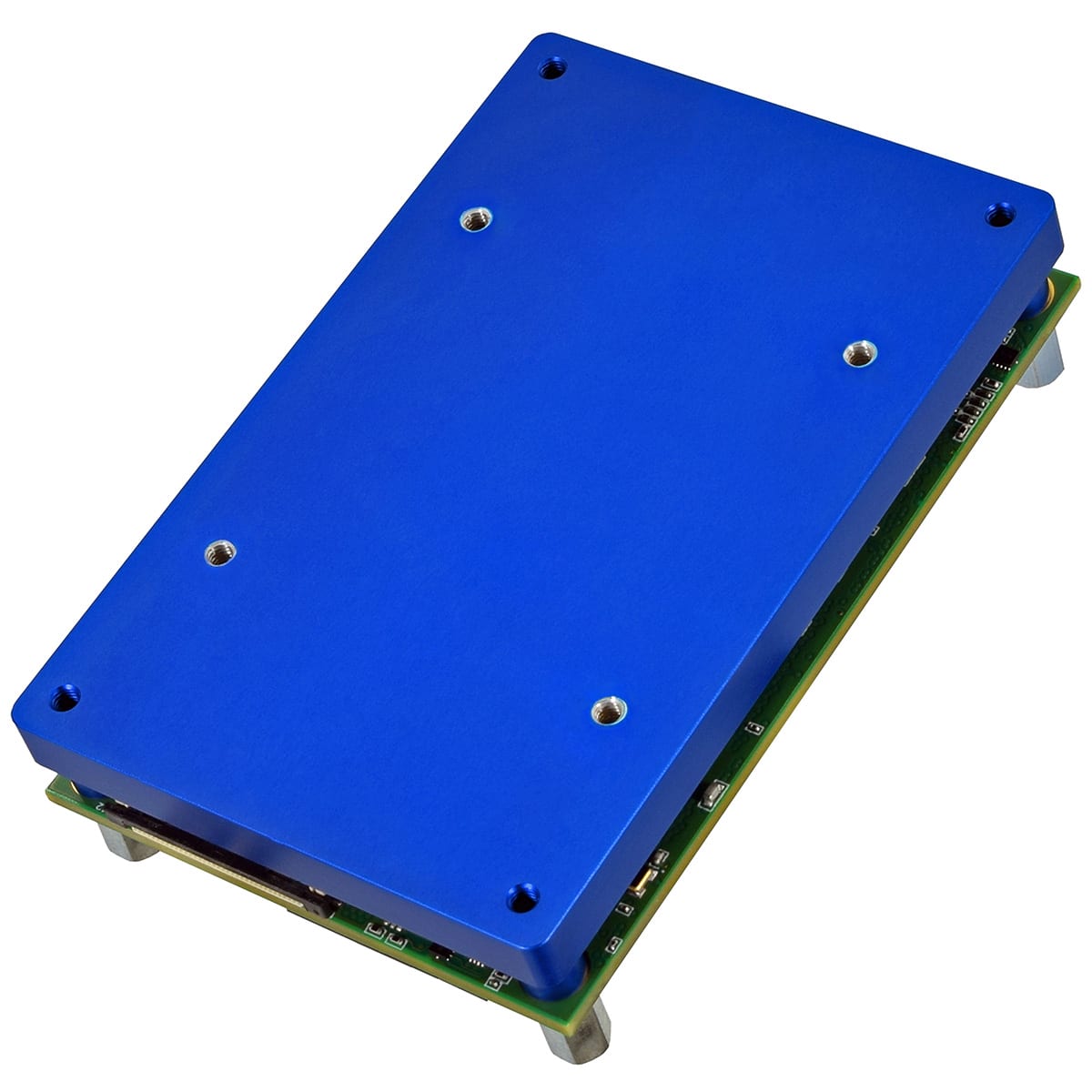

    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches

  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)
    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches

  • – Dimensions: 3.31 in x 2.17 in (84mm x 55mm)
    – Weight: 8.0 oz (225 gm) with heat spreader
    – PC Board thickness: 0.078 inches
