| Features | |
|---|---|
| Processor | Low Power Industrial Single-Core 1.66 GHz Intel® Atom™ N455 processor |
| Operating System Compatibility | Linux, Windows, DOS and other x86 compatible OS |
| Memory (RAM) | Up to 2 GB of DDR3 SODIMM (Socketed) |
| BIOS | Phoenix |
| Video | Analog VGA and 18-bit LVDS (simultaneous operation supported) |
| Ethernet | 2 Intel® 10/100/1000 Mbps controllers |
| Storage | 2 SATA (2.0) channels |
| Digital I/O | 48 Bidirectional GPIO; 24 with event sense |
| Serial I/O | 4 serial ports (RS-232/422/485) |
| Bus Expansion | PC/104 |
| USB | 8 USB 2.0 ports |
| Watchdog Timer | Adjustable from 1 second to 255 minute reset |
| Audio | HD Audio supported |
| Power | +5V required, 2.1A typical |
| Mechanical | EBX-compliant |
| Operating Temperature Range | -40°C to 85°C |
| Random Vibration Testing | MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis |
| Mechanical Shock Testing | MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis |
EBC-C384-S2-0 EBX – Industrial Single-Core Intel® Atom™ N455 SBC
Description
Please contact us for availability and pricing.

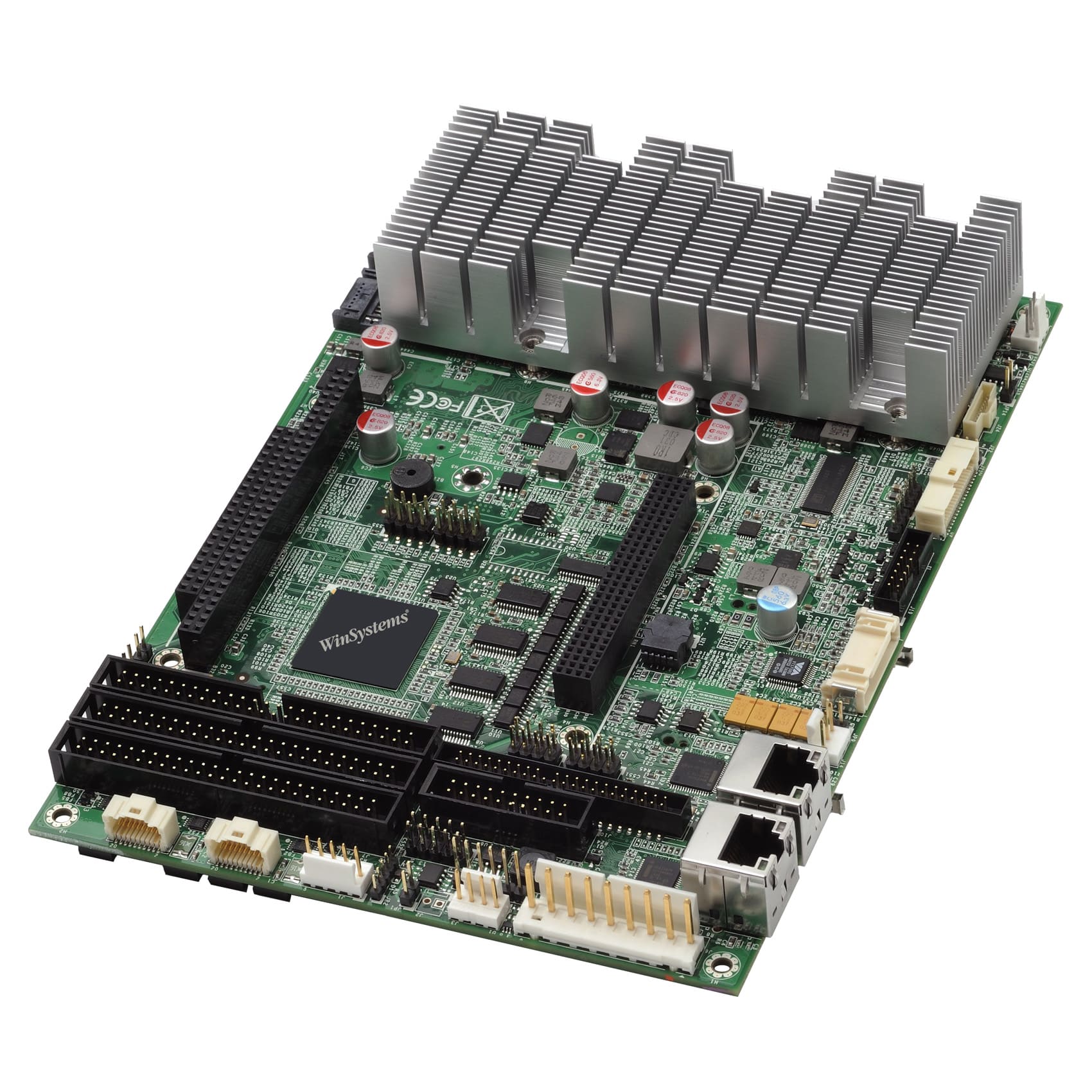

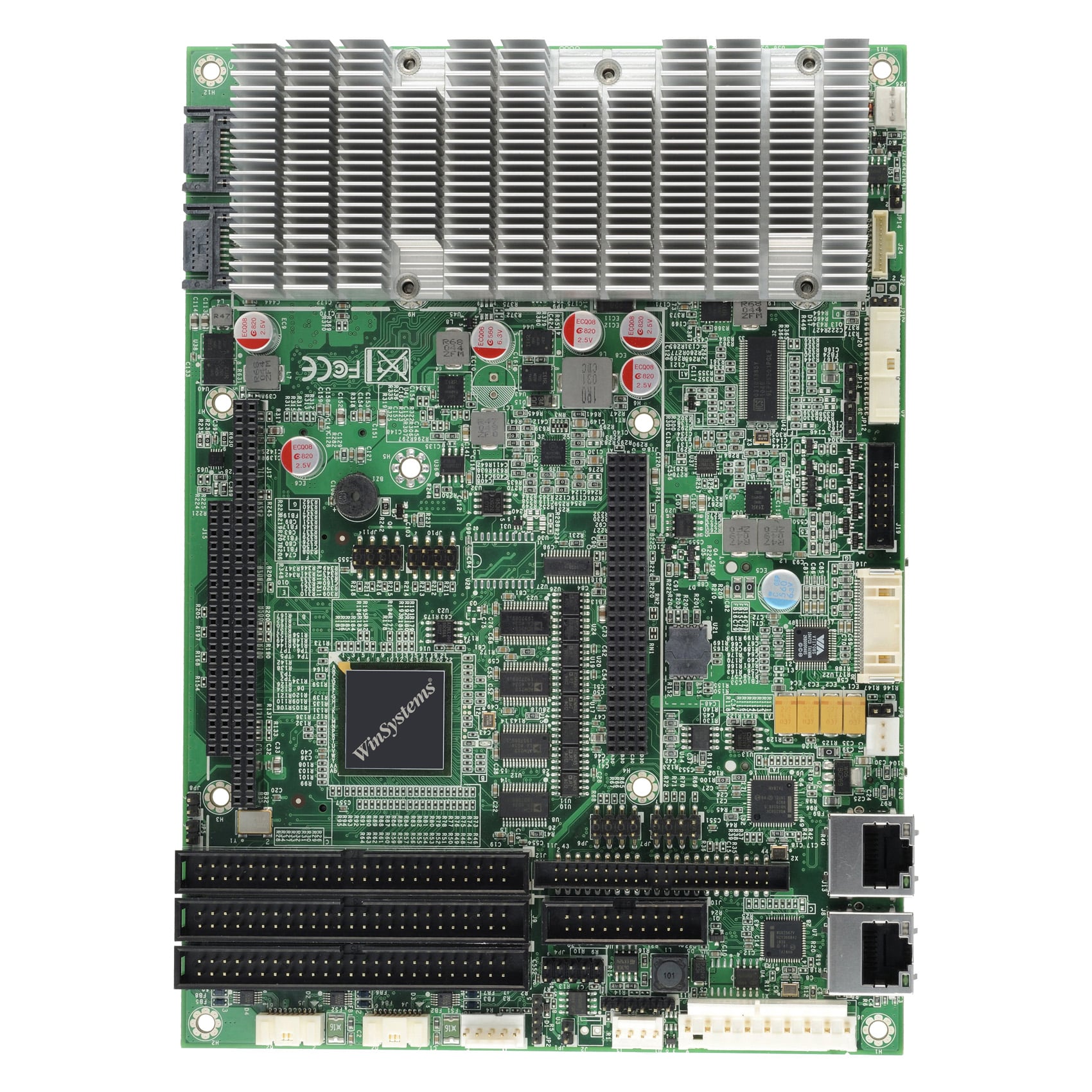

WINSYSTEMS’ EBC-C384-S2-0 is an industrial EBX-compatible Single Board Computer (SBC) which uses Intel’s Atom N455 single core 1.66GHz processor paired with the ICH8M I/O controller hub. It includes one SODIMM sockets for DDR3 system memory and one CompactFlash socket.
