EPX-C414 EPIC Industrial Single Board Computer Intel Atom® E3845/E3825

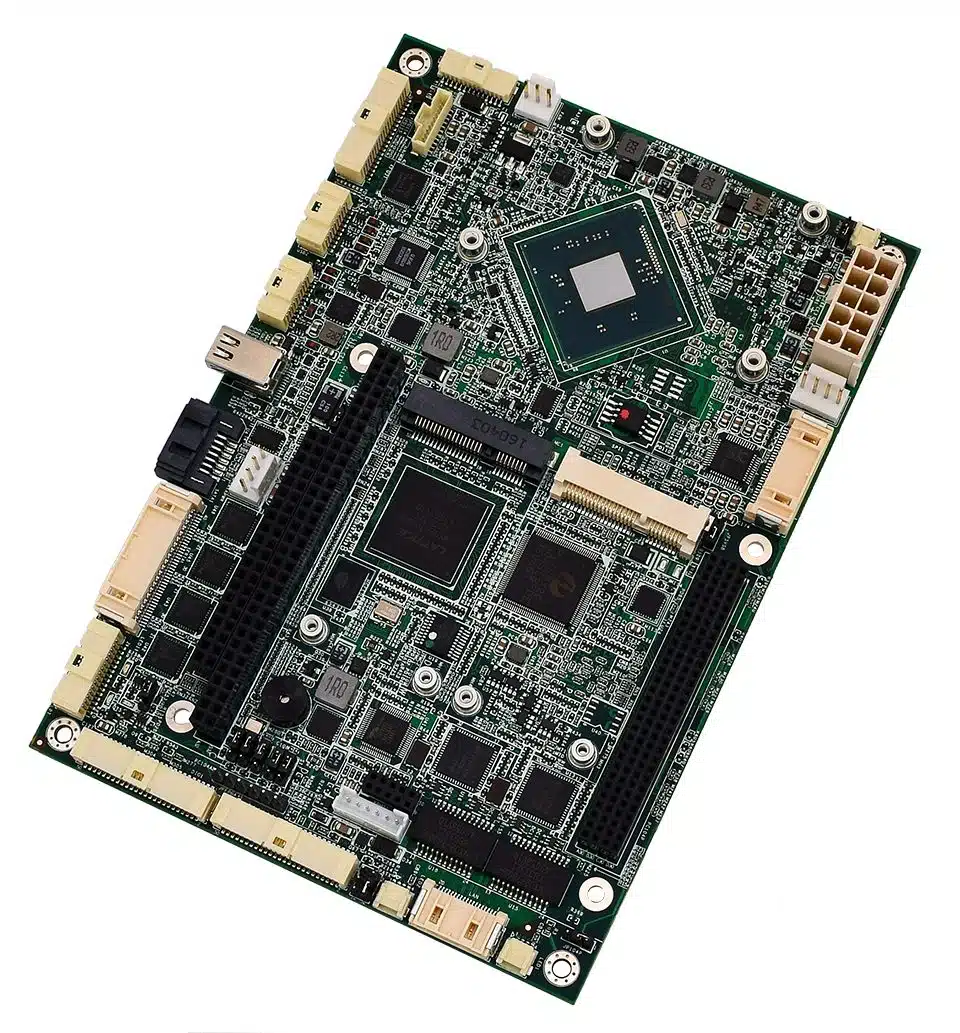

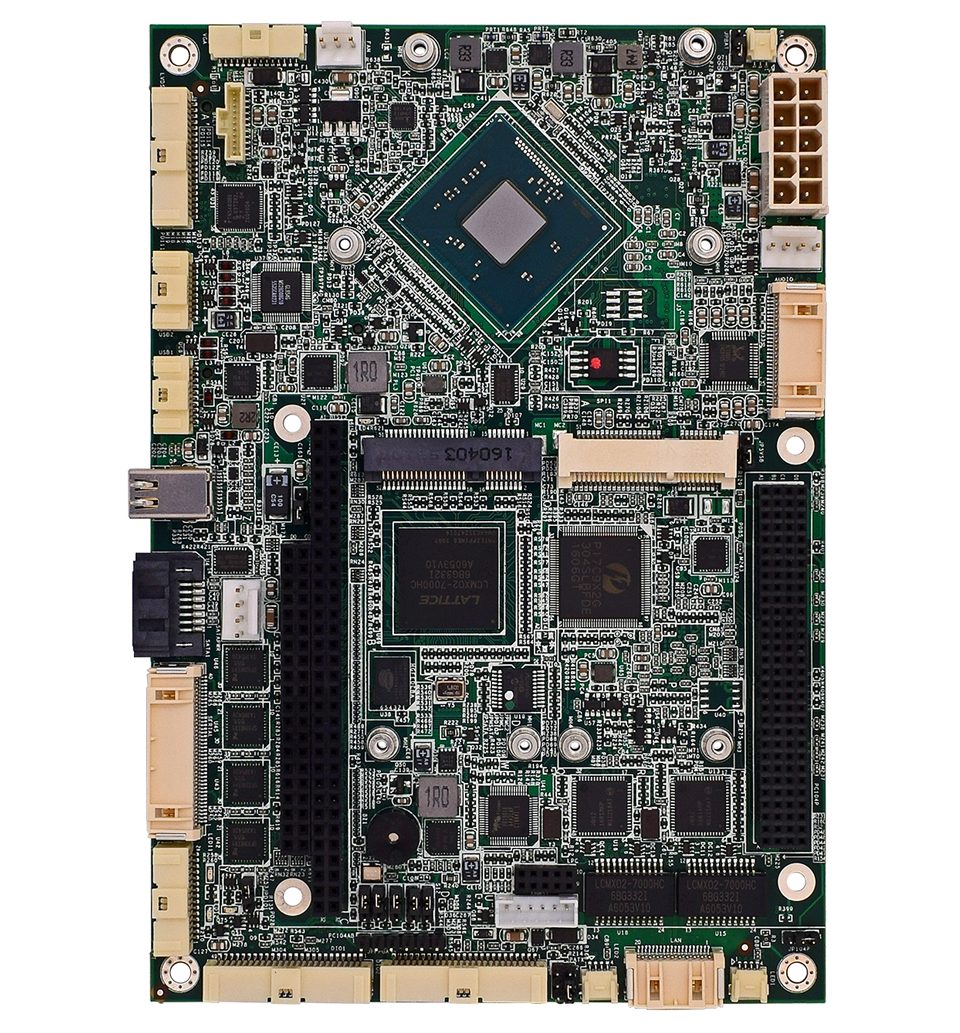

WINSYSTEMS’ EPX-C414 is an EPIC-compatible single board computer using the Intel Atom® Bay Trail E3845 or E3825 processor. Its rugged design and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

Features

  • Intel Atom® (Bay Trail) E3845/E3825 Processor
  • Intel Graphics Engine
  • EPIC Single Board Computer (SBC)
  • PC/104 and PC/104-Plus Expansion Buses
  • -40°C to +85°C Operational Temperature
  • 8 USB 2.0 Ports
  • 4 Serial Ports (RS-232/422/485)
  • Two 10/100/1000 Mbps Ethernet Ports
  • 48 Bidirectional GPIO
  • Hi-Definition Audio
  • 2 MiniPCIe Sockets, 1 MSATA
  • Onboard CFast Socket
Features
Processor
  • Intel Atom E3825 Dual-Core 1.33 GHz
  • Intel Atom E3845 Quad-core 1.91 GHz
Operating System Compatibility
  • Linux, Windows, DOS, and other x86 compatible OS
  • Linux, Windows, DOS, and other x86 compatible OS
Memory (RAM)
  • Up to 8 GB of DDR3 SODIMM (Socketed)
  • Up to 8 GB of DDR3 SODIMM (Socketed)
BIOS
  • UEFI
  • UEFI
Video
  • Analog VGA and 18-bit LVDS (simultaneous operation supported)
    Analog VGA resolution up to SXGA 1400×1050
    LVDS resolution up to 1366×768 or 1280×800
  • Analog VGA and 18-bit LVDS (simultaneous operation supported)
    Analog VGA resolution up to SXGA 1400×1050
    LVDS resolution up to 1366×768 or 1280×800
Ethernet
  • 2 Intel® 10/100/1000 Mbps controllers
  • 2 Intel® 10/100/1000 Mbps controllers
Storage
  • 1 SATA (2.0) channels
    1 mSATA Socket
    1 CFast socket
    1 MB SRAM
  • 1 SATA (2.0) channels
    1 mSATA Socket
    1 CFast socket
    1 MB SRAM
Digital I/O
  • 48 Bidirectional GPIO; 24 with event sense
  • 48 Bidirectional GPIO; 24 with event sense
Serial I/O
  • 4 serial ports (RS-232/422/485)
  • 4 serial ports (RS-232/422/485)
Bus Expansion
  • PC/104
    PC/104-Plus
    Mini PCIe
  • PC/104
    PC/104-Plus
    Mini PCIe
USB
  • 8 USB 2.0 ports
  • 8 USB 2.0 ports
Watchdog Timer
  • Adjustable from 1 second to 255 minute reset
  • Adjustable from 1 second to 255 minute reset
Audio
  • HD Audio supported
  • HD Audio supported
Power
  • +5V DC +/- 5%, Max: 1.9A, Typical: 1.5A, S3 Suspend: 350mA
  • +5V DC +/- 5%, Max: 2.2A, Typical: 1.8A, S3 Suspend: 350mA
Mechanical
  • EPIC-compliant
    Dimensions: 4.5 x 6.5 inches (115 x 165 mm)
    Weight: 9.6 oz. (273 g) /w heat sink, 10.4 oz. (295 g) /w optional fan
  • EPIC-compliant
    Dimensions: 4.5 x 6.5 inches (115 x 165 mm)
    Weight: 9.6 oz. (273 g) /w heat sink, 10.4 oz. (295 g) /w optional fan
Environmental
  • -40ºC to +85ºC (-40ºF to +185ºF) with 200 LFM airflow
    -40ºC to +80ºC (-40ºF to +176ºF) still air
  • -40ºC to +85ºC (-40ºF to +185ºF) with 200 LFM airflow
    -40ºC to +70ºC (-40ºF to +158ºF) still air
