SBC-474 Fanless Rugged Single Board Computer with Intel® Amston Lake Processors

COMING Q1 2026

WINSYSTEMS’ SBC-474 is a rugged 3.5-inch single board computer (SBC) powered by an Intel Atom® X7000RE Series Amston Lake processor with integrated 16UE GPU. The SBC-474 is engineered to power robust performance for latency-sensitive applications in embedded, industrial IoT, and communications markets with exceptional reliability.

The SBC-474 is designed for flexibility to meet the needs of your specific application. It features an M.2 E-Key slot and two B-Key slots that support a wide variety of I/O expansion modules with PCIe, SATA, USB3/2, Wi-Fi/Bluetooth, cellular connectivity and more. This rugged SBC is built to perform in harsh industrial environments and operates from -40°C to +85°C.

Support for Windows 11, Ubuntu Linux, and other x86-compatible real-time operating systems enable developers to build and deploy in their preferred environment. The SBC-474 supports integrated AI datatype on the CPU and a custom configurable UEFI based BIOS, to deliver power-efficient accelerated performance for real-time control and secure edge computing.

DATA SHEET PRODUCT INFO

SBC-474 x86 Single Board Computer with Intel Atom® X7000RE Series Amston Lake processor - WINSYSTEMS

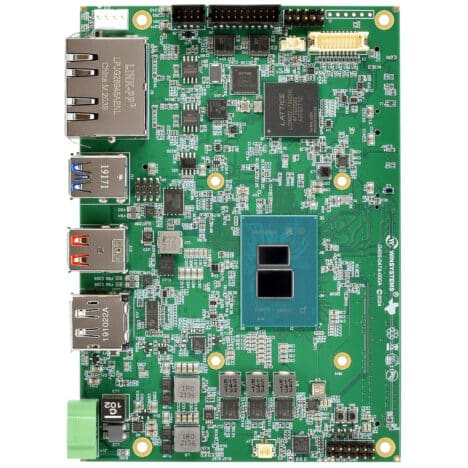

SBC-474 Single Board Computer - top view - WINSYSTEMS

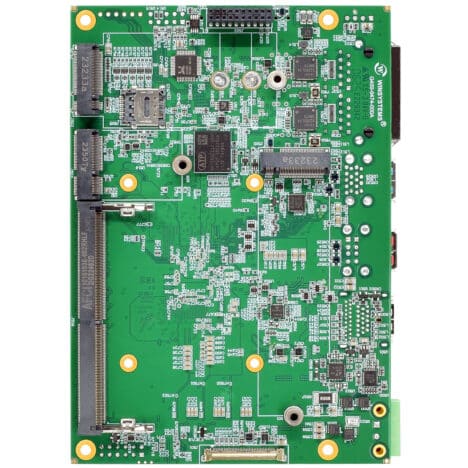

SBC-474 Single Board Computer - bottom view - WINSYSTEMS

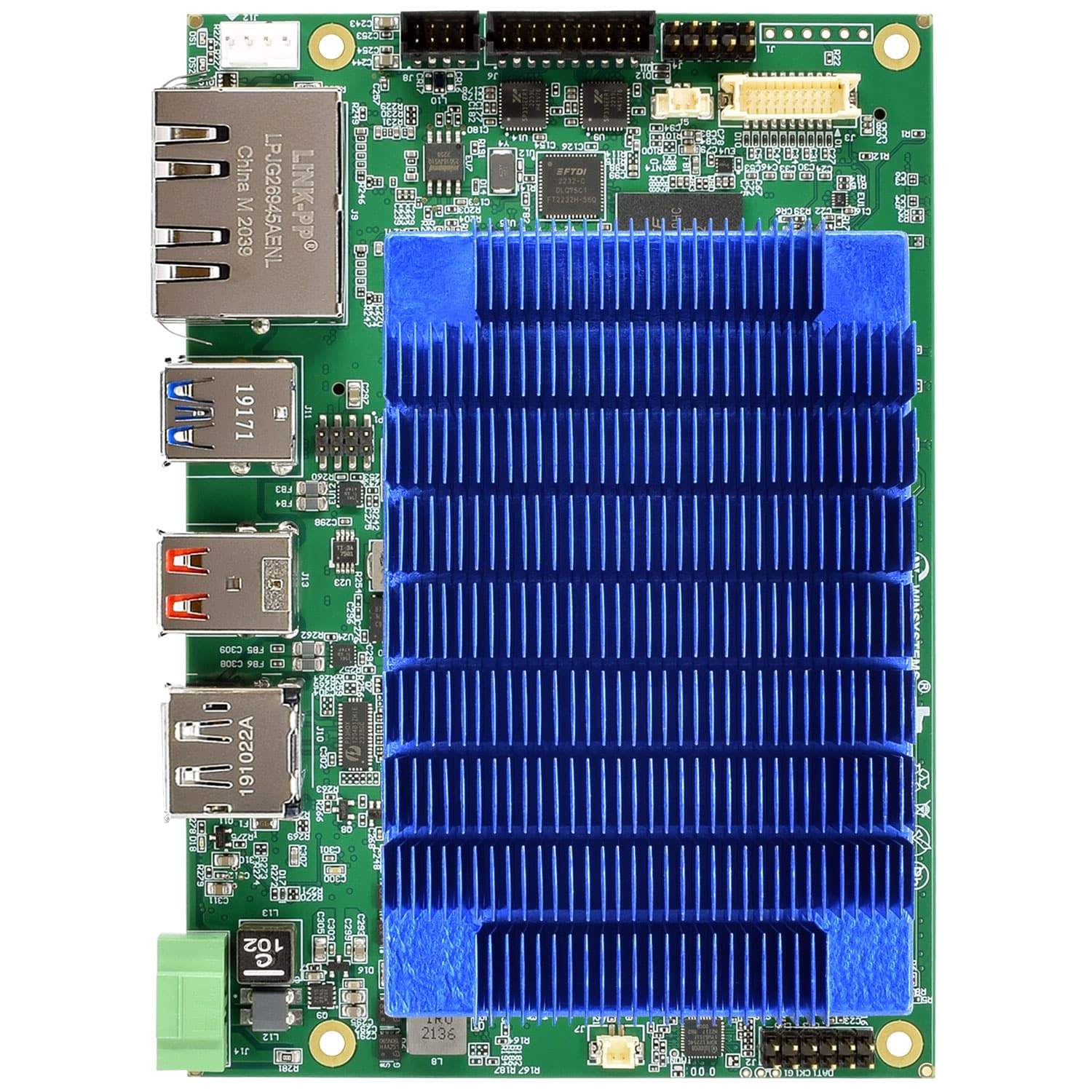

SBC-474 Single Board Computer - top view with heat sink - WINSYSTEMS

-40° C to +85° C

ROHS COMPLIANT

MADE IN THE USA

Features

Industrial-rated Embedded Computer

Powerful yet power-efficient industrial performance
Amston Lake – Intel Atom® Processors x7000RE Series
Integrated GPU and AI support features
Triple display support with UHD graphics
Supports Wi-Fi®, Bluetooth® and cellular
3x M.2 expansion connectors to support PCIe, SATA, USB
and I2C
-40°C to +85°C extended temperature range with thermal solution
Extended product life cycle of 10+ years

SPECIFICATIONS
DOCUMENTATION

Features
PROCESSOR	Amston Lake, the Intel Atom® Processor x7000RE Series with industrial integrated GPU: Intel Atom® x7835RE Cores: 8 \| Core Speed: 1.3 (3.6) GHz \| Cache: 6 MB of L3\| Base Power: 12W Intel Atom® x7433RE Cores: 4 \| Speed: 1.5 (3.4) GHz \| Cache: 6 MB of L3\| Base Power: 9W Intel Atom® x7211RE Cores: 2 \| Speed: 1.0 (3.2) GHz \| Cache: 6 MB of L3 \| Base Power: 6W
OPERATING SYSTEM	Ubuntu Linux, Windows 10/11 IoT, other x86 real-time OS
SOFTWARE	Custom configurable UEFI-based AMI BIOS System Management Libraries and Tools
SECURITY	On-board discrete TPM 2.0 hardware security
RAM	8GB or 16GB DDR5 4800 MT/s, non-ECC
STORAGE	128GB eMMC on-board Optional MVNe or SATA
DISPLAY	Triple Display, UltraHD 1x DisplayPort++ 1x HDMI 2.0 1x eDP VESA 40-pin
AUDIO	HD Audio
NETWORK	2x 2.5 GbE (Intel i226), RJ-45
EXPANSION	• M.2 E-Key 2230 (WiFi/Bluetooth®) • M.2 B-Key 2280 (SATA, NVMe, or I/O) • M.2 B-Key 2242/2252/2260/3042/3052/3060 (WAN/Cellular with Nano SIM or I/O)
I/O	8-bit GPIO 2x USB 3.0 7x USB 2.0 (3 used for M.2) 2x Multi-Protocol Serial Ports (2mm HDR) I2C Nano SIM socket Watchdog Timer 1-255
POWER	Wide Power Input: +9V to +36V TDP: 22W* * Average power use under standard load.
THERMAL OPTIONS	Heat Spreader and Heatsink
MECHANICAL	Dimensions: 3.5″, 146mm x 102mm x 35mm (5.75″ x 4″)
ENVIRONMENTAL	Industrial Temperature: -40°C to +85°C (-40ºF to +185°F) Humidity: 5% to 95% non-condensing RoHS Compliant
ORDER INFORMATION	ASK US ABOUT PRE-ORDERS! SBC-474-P-R-T – P = Processor (x7211RE, x7433RE, x7835RE) – R = DDR5 4800 MT/s SODIMM (8GB, 16GB) – T = Thermal option (1 = Heatspreader, 2 = Heatsink) Accessories: Ask us about cables, storage options and other accessories. More information coming soon.
