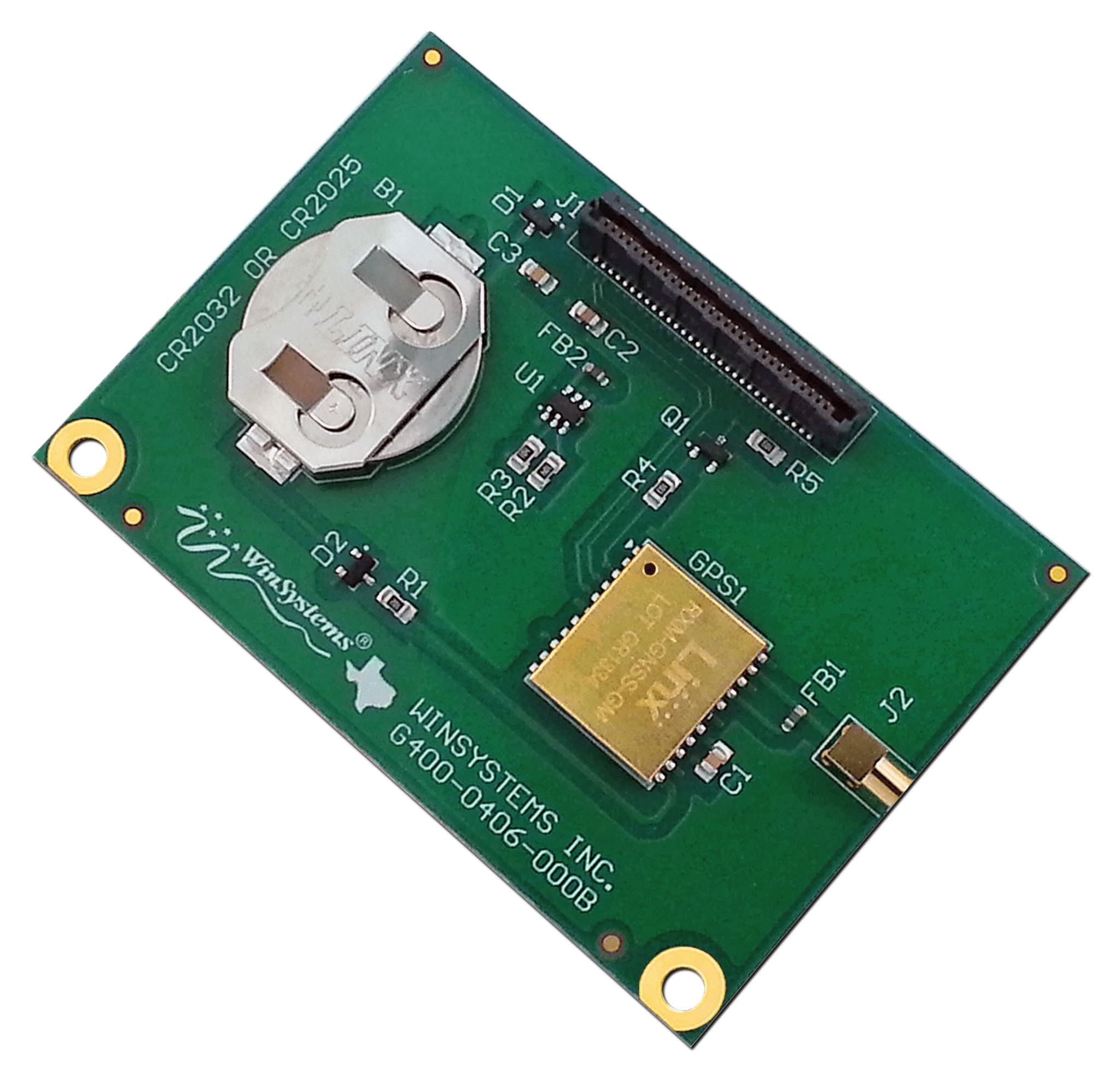

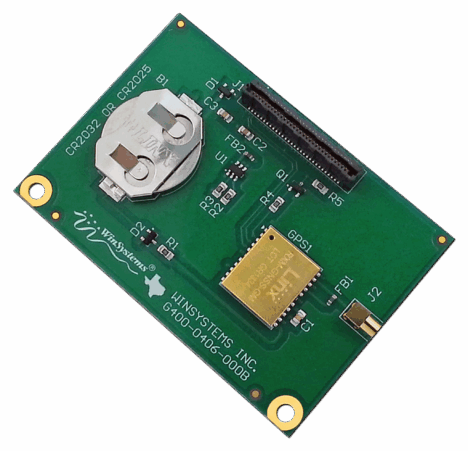

IO60-GNSS GNSS/GPS Receiver Module with Bus Expansion

No longer in production

This product is listed to provide access to its documentation.

The WINSYSTEMS GNSS/GPS Receiver Module is a self-contained, high performance Global Navigation Satellite System receiver based on the MediaTek 3337 chip set. While consuming less power than competitive products, the 3337 chip set can still simultaneously acquire and track up to 33 satellites in the GNSS constellation. These include the United States GPS System, Europe’s GALILEO, Russia’s GLONASS, and Japan’s QZSS. Small and lightweight, with minimal power demand, this high performance module is ideal for a variety of applications such as security/loss prevention, surveying, logistics, fleet management, tracking, positioning and navigation. Augment your new or existing infrastructure with the next generation of global satellite navigation.

DATA SHEET PRODUCT INFO

Features

Simultaneous acquisition and tracking of multiple satellite constellations, including GPS, GALILEO, GLONASS, and QZSS
Exceptional sensitivity even in dense foliage and urban canyons
Low power consumption/maximum run time
Small (50mm x 72mm) Form Factor
15 second cold start
Fast Time To First Fix
High-performance RF architecture acquires and tracks signals as low as 161dBm
Compatible with wide range of external antennas
Low profile and vibration resistant
Battery-backed SRAM
Standard NMEA data output
1 Pulse-Per-Second (PPS) signal available
