Features | |
---|---|
Power Supply Module | ISM dual output DC/DC power supply |
Input Voltage | Wide range: 10-50 VDC |
Output Voltage | +5V @ 20A |
Bus Expansion | None |
Mechanical | Dimensions: 3.6 x 3.8 inches (90 x 96 mm) |
Operating Temperature Range | -40°C to 85°C |

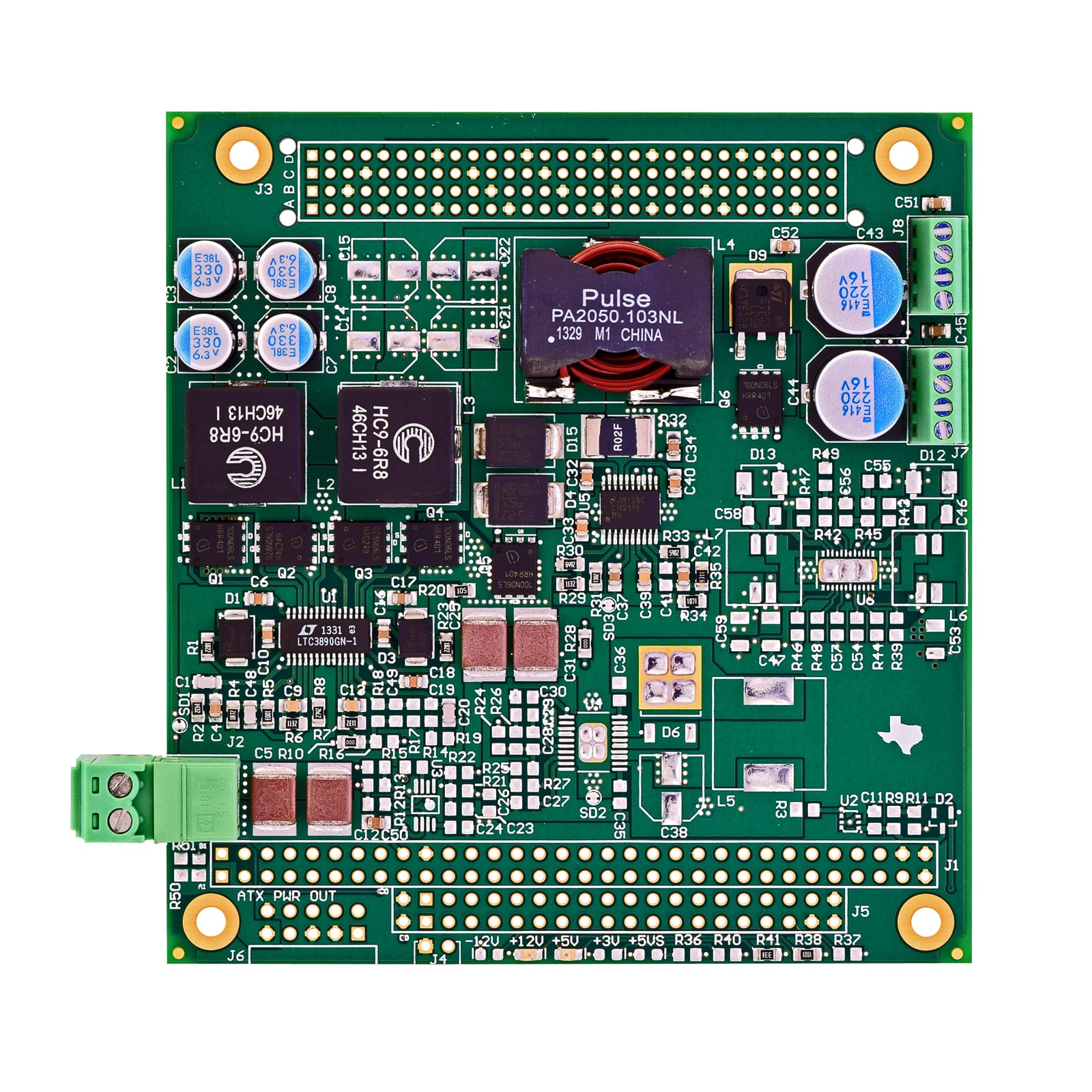

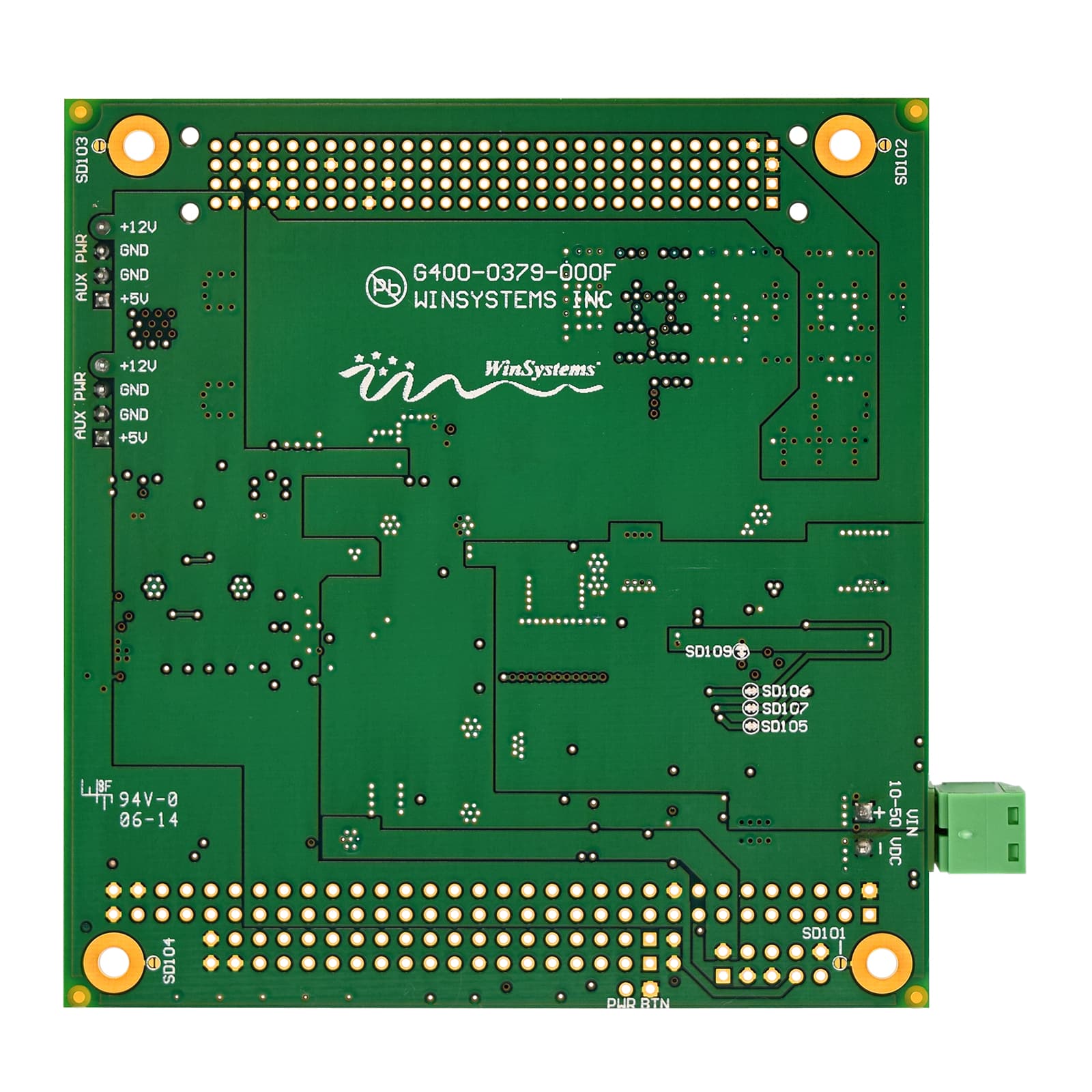

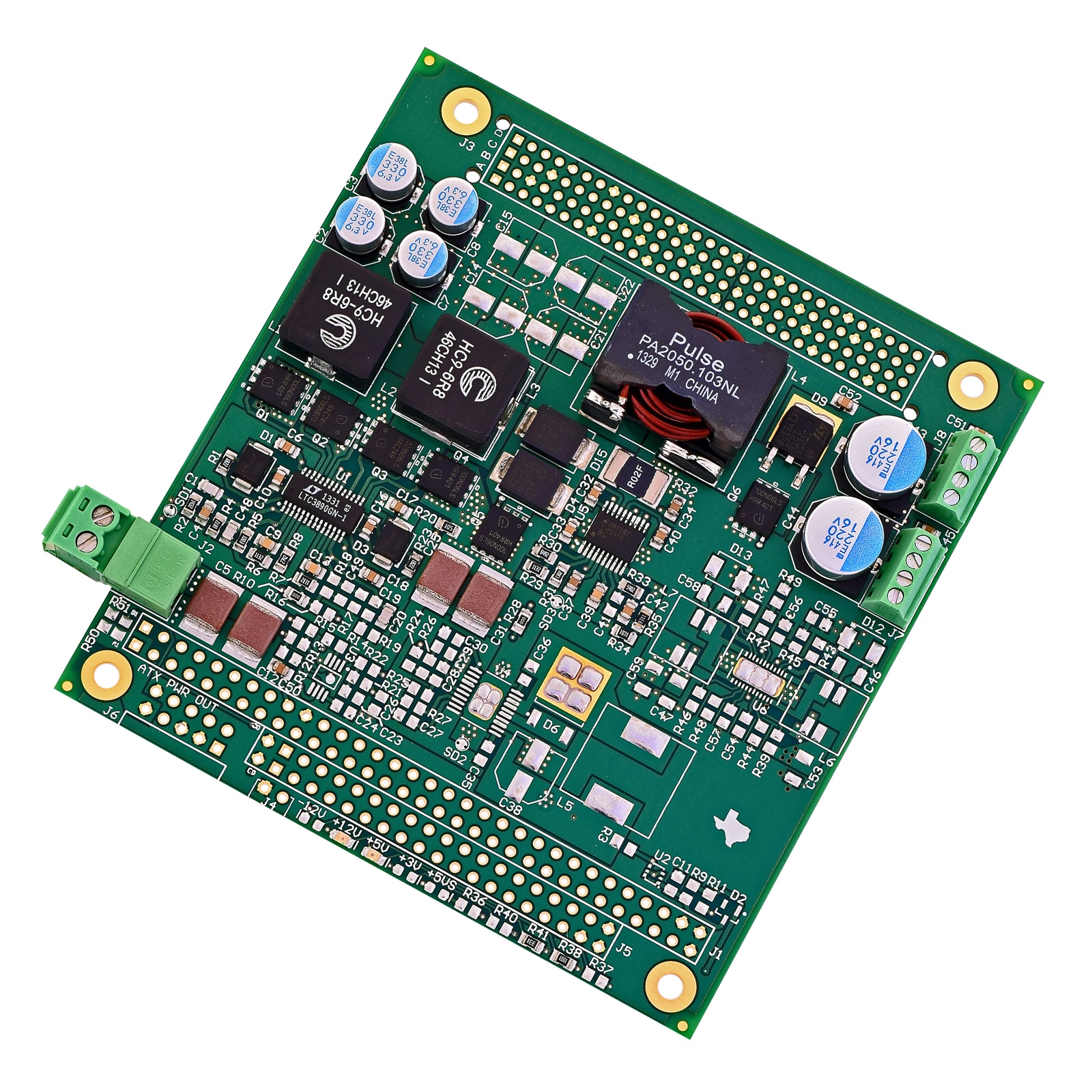

ISM-DC-AT512-P Industrial +5V and +12V DC/DC power supply
The ISM-DC-AT512-P is a dual output, DC/DC power supply designed for small form factor embedded systems. It features a very wide voltage input range from 10 to 50 volts DC. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems. It opens up a wide array of applications including transportation, Mil/COTS, security, solar-powered, and telecommunications.
DATA SHEET PRODUCT INFO-40° C to +85° C
ROHS COMPLIANT

MADE IN THE USA
Features
- Wide input range: 10V to 50 VDC
- Voltage output: +5V @ 20A and +12V @ 3A
- -40 to +85°C operation
- No fan or heat sink required
- No minimum load required for regulation
- Outputs with short circuit, overload and overvoltage protection
- Power-on LEDs provide visual status of power
- Screw terminals for accessory power connection
- High efficiency design
- Fast transient response
- ISM-DC-AT512-P Datasheet (PDF)
Datasheets
- ISM-DC-AT512-P Product Manual (PDF)
Product Manuals
