Features | |
---|---|
Power Supply Module | PC104 +5V output DC/DC power supply |
Input Voltage | Wide range: 10-50 VDC |
Output Voltage | +5V @ 20A |
Bus Expansion | PC104 |
Mechanical | PC104 Compliant |
Operating Temperature Range | -40°C to 85°C |

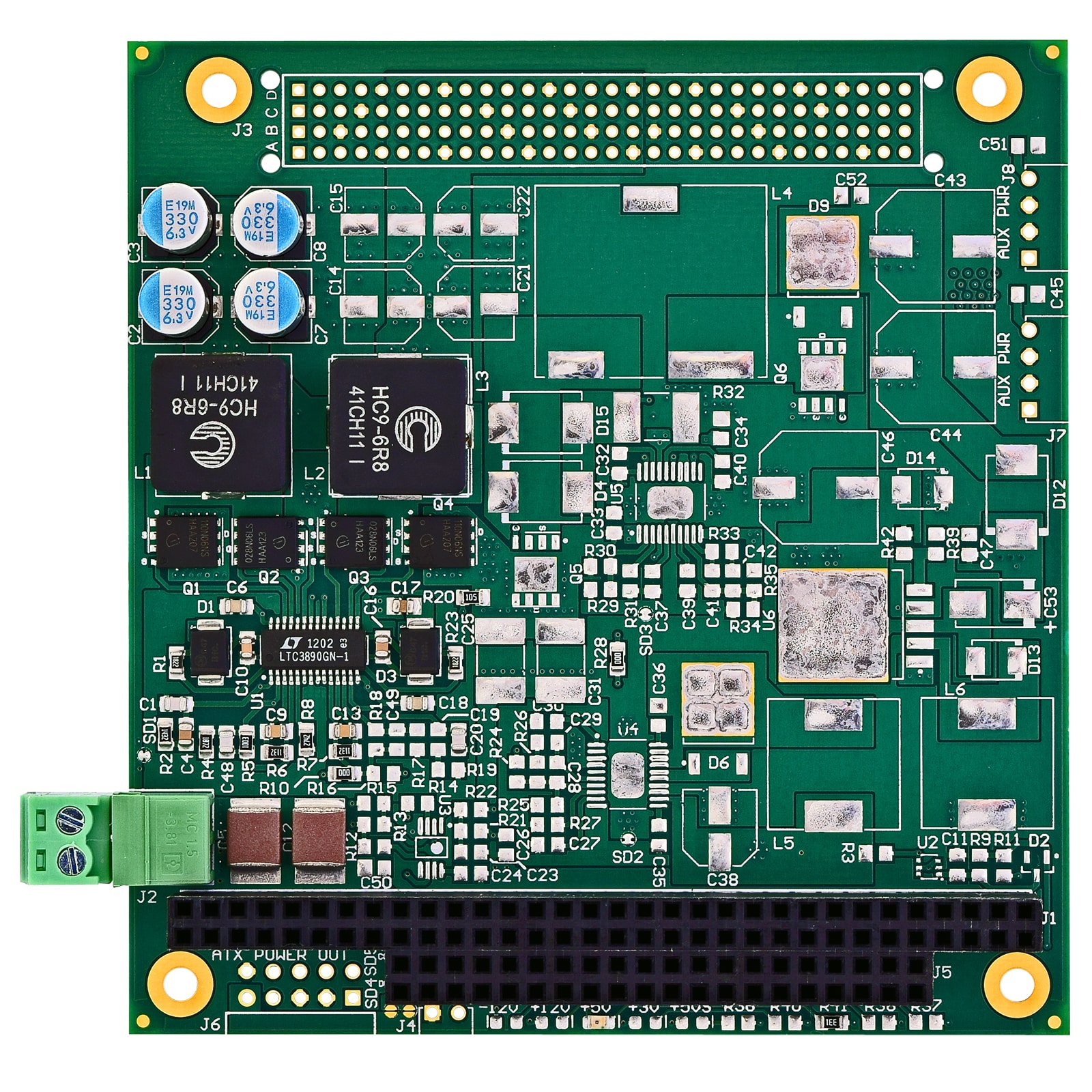

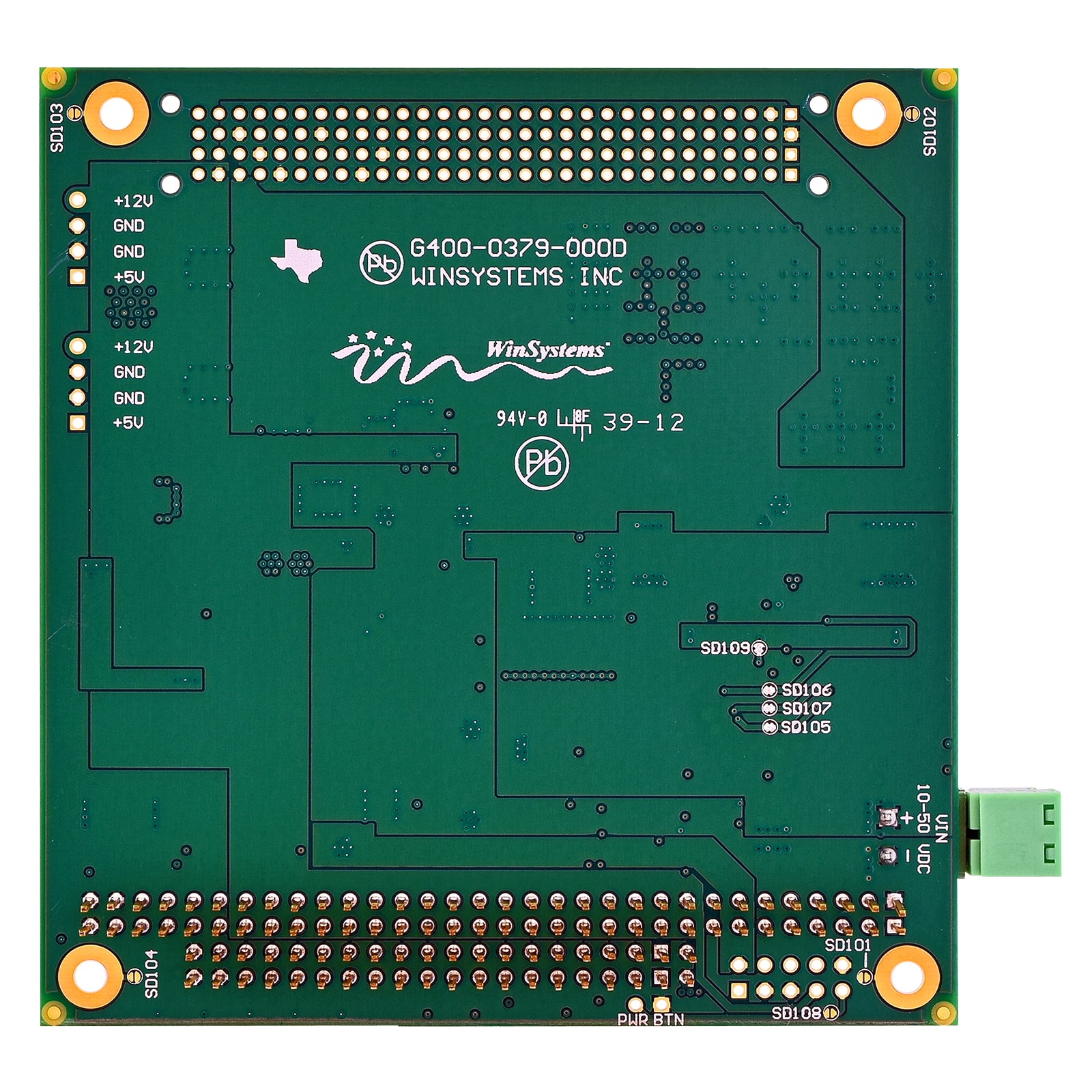

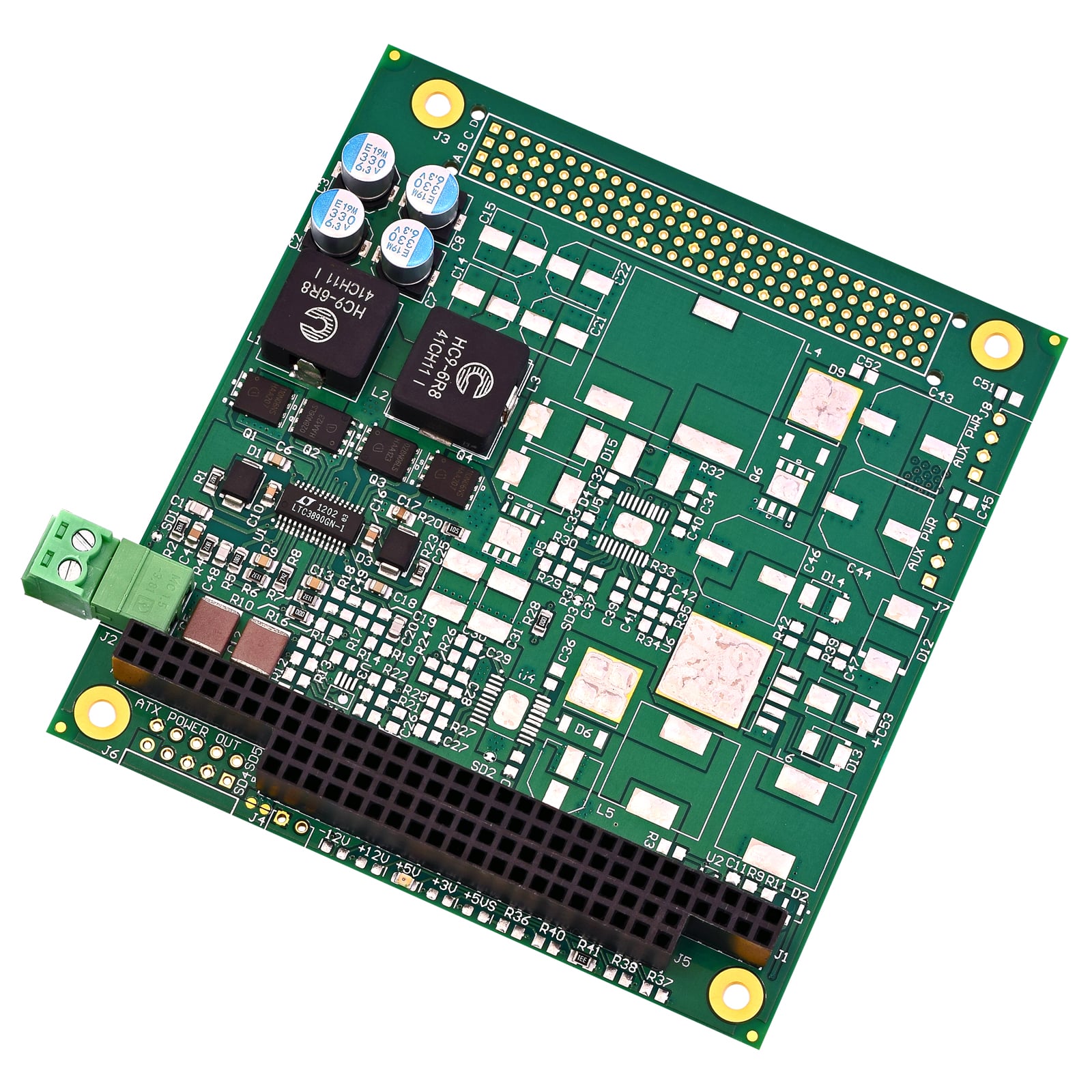

PCM-DC-AT500 PC/104 +5V output power supply
No longer in production
This product is listed to provide access to its documentation.
WINSYSTEMS’ PCM-DC-AT500 is a +5 volt, 20 Amp DC/DC power supply that can mount anywhere in a PC104 stack. It features a wide voltage input range from 10 to 50 volts DC. This allows the unit to operate with 12, 24, or 48 volt battery or distributed DC power systems. It opens up a wide array of applications including Mil/COTS, transportation, security, solar-powered, and telecommunications.
DATA SHEET PRODUCT INFOFeatures
- Wide input range: 10V to 50 VDC
- Voltage output: +5V @ 20A
- -40 to +85°C operation
- No fan or heat sink required
- No minimum load required for regulation
- Outputs with short circuit, overload and overvoltage protection
- LED provides visual status for +5V
- Up to 95% efficient
- High efficiency design
- Fast transient response
- PCM-DC-AT500 Datasheet (PDF)
Datasheets
- PCM-DC-AT500 Product Manual (PDF)
Product Manuals
- PCM-DC-AT500 Mechanical Drawing (PDF)
- PCM-DC-AT500 Solid Works (ZIP)
- PCM-DC-AT500 Step (ZIP)
- PCM-DC-AT500 IGS (ZIP)
Mechanical Drawings
- Product EOL Notice
Product Change_Notice
