| Features | |
|---|---|
| PPC3-12-0-384-D2 | 12.1″ Panel PC with Dual-Core Atom D525 processor |
| PPC3-12-0-384-D2-4G | 12.1″ Panel PC with Dual-Core Atom D525 processor and 4GB RAM |
| PPC3-12-1-384-D2 | 12.1″ Panel PC with Dual-Core Atom D525 processor and 300+GB HDD |
| PPC3-12-0-384-S2 | 12.1″ Panel PC with Atom N455 processor |
PPC3-12-0-384 12.1″ Panel PC with Dual-Core Atom D525 processor
No longer in production
This product is listed to provide access to its documentation.

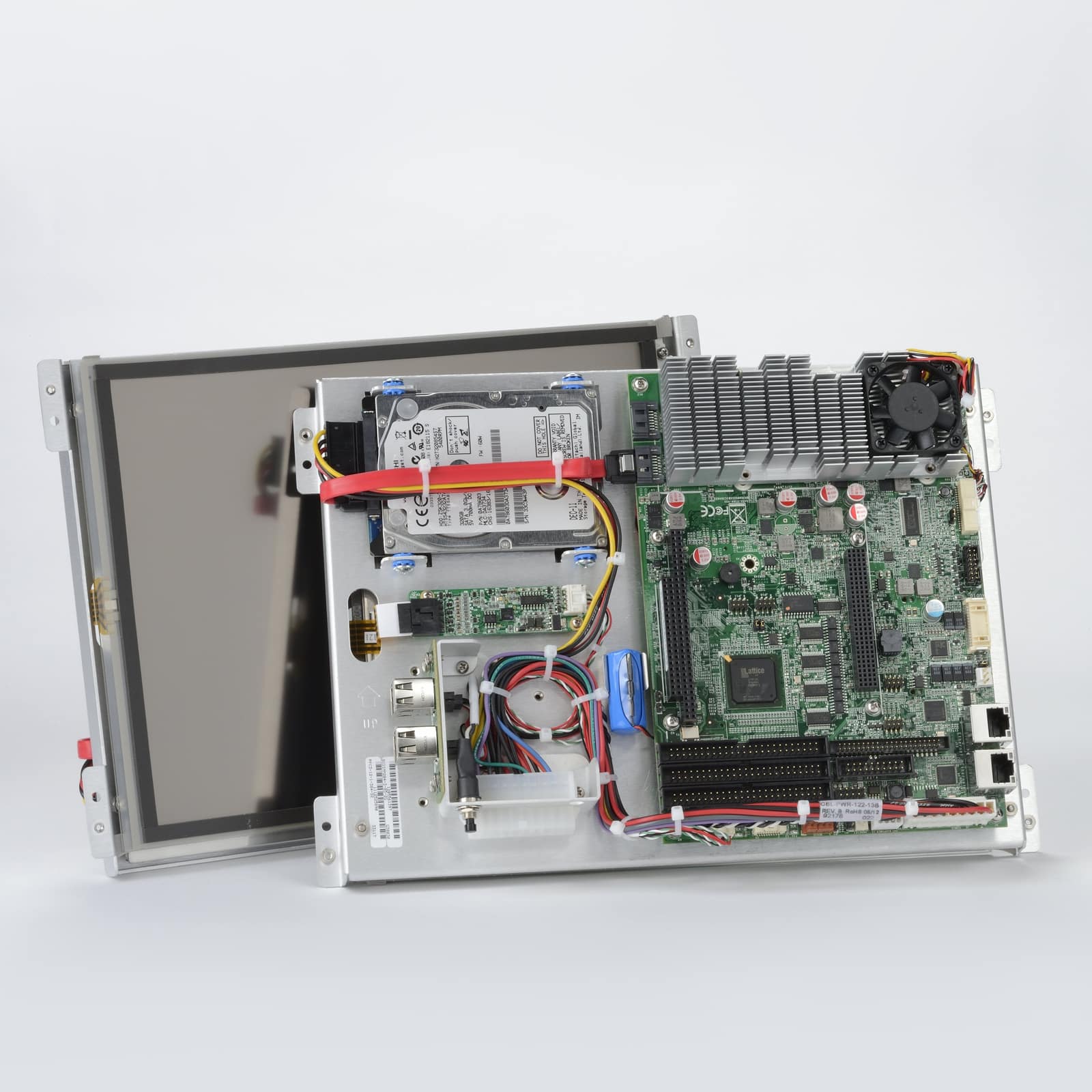

WINSYSTEMS’ PPC3-12 Panel PC is a compact, open frame display subsystem that includes a 12.1-inch flat panel, PC-compatible Single Board Computer with dual Ethernet ports integrated into an open-frame enclosure less than three inches thick. An integrated touchscreen is included and other input devices can be added, such as PS/2 or USB keyboard and mouse.
DATA SHEET PRODUCT INFOFeatures
- Compact 12.1-inch AM TFT Flat Panel display
- 1024×768 resolution with LED backlight
- Quick response resistive touchscreen
- Single Board Computer (EBC-C384-D2-1)
- Dual 1.80 GHz Intel GHz Intel®Atom™ D525 processor
- PC/104, PC/104-Plus, and Mini-PCI expansion connectors
- Seven USB 2.0 ports
- One 10/100/1000 Mbps Ethernet port
- Four serial ports (RS-232/422/485)
- Two 10/100/1000 Mbps Ethernet ports
- 48 Bidirectional GPIO; 24 with event sense
- PPC3-12-0-384-D2 Datasheet (PDF)
Datasheets
- PPC3-12-0-384-D2 Product Manual (PDF)
Product Manuals
- EBC - Windows 7 (32-bit)
- EBC - Windows XP SP3
- Windows 7/8/10 (32-bit) - Watchdog Timer
- Windows 7/8/10 (64-bit) - Watchdog Timer
- Windows 7/8/10 (32-bit) - WS16C48 Digital I/O
- Windows 7/8/10 (64-bit) - WS16C48 Digital I/O
- Linux - Kernel 2.6.18+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - WS16C48 Digital I/O
- Linux - Kernel 3+ - WS16C48 Digital I/O
- Linux - Kernel 2.6.36+ - Watchdog Timer
- Linux - Kernel 3+ - Watchdog Timer
- Windows 7 – Touch controller (Hantouch)
- Windows XP – Touch controller (Hantouch)
Drivers
