Features | |
---|---|
PPC65B-10 | 10.4″ IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422 |
PPC65B-12 | 12″ IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422 |
PPC65B-15 | 15″ IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422 |
PPC65B-17 | 17″ IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422 |
PPC65B-19 | 19″ IP65 Panel PC with RAM, 4xUSB, and 2xRS-232/485/422 |

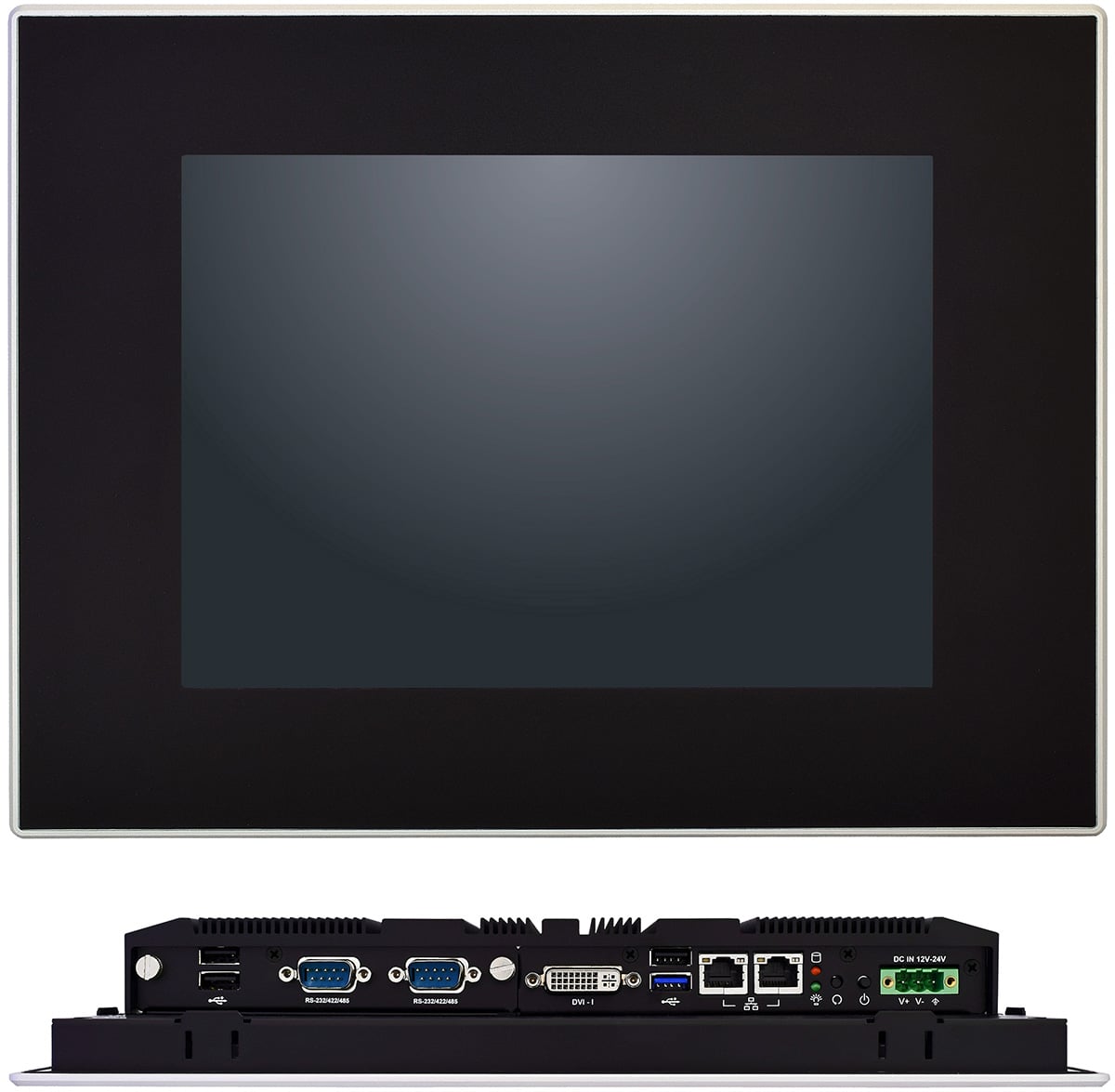

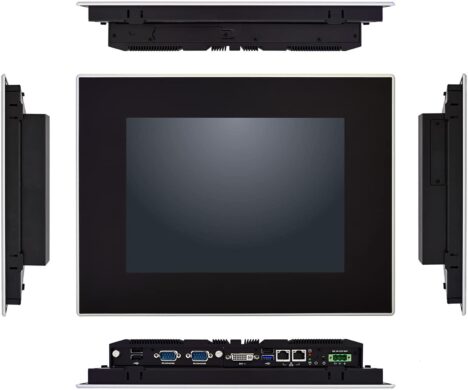

PPC65B IP65 Touch Panel PC with Intel Atom E3845 Processor
WINSYSTEMS’ PPC65B-1x Panel PC Series is IP65-certified and optimized for use in demanding market applications including industrial machinery, utilities, petroleum, transportation, pipeline and food processing, wherever there is a need for tight system integration in a minimal footprint.
The PPC65B is available in 5 screen sizes: 10.4″, 12″, 15″, 17″, and 19″. Choose from 2GB or 4GB of RAM, and three I/O combinations. Technical specifications for all size options are available on the product datasheet.
DATA SHEET PRODUCT INFO-25°C to +70°C
ROHS COMPLIANT
Features
- Performance for Industrial IoT Applications
- 1.9 GHz Quad-Core Intel Atom® E3845 processor
- Up to 8 GB of RAM
- Supports Linux, Windows 10 Operating Systems
- Rugged Design for Demanding Environments
- IP65-compliant fanless panel PC
- Front display sealed against water and dust
- -20°C to +70°C operating temperature range
- Wide input power: 12-24V DC
- Rugged Design for Demanding Environments
- 2x Gigabit Ethernet ports
- 1x USB 2.0 port (up to 3x with expansion)
- 1x USB 3.0 port
- Watchdog timer
- PPC65B-x1 Datasheet (PDF)
Datasheets
- PPC65B-x1 Manual (PDF)
Product Manuals
