| Features | |
|---|---|
| Processors | Multi-Core Intel Atom® E3800 Processors |
| Operating System Compatibility | Linux, Windows, DOS and other x86 compatible OS |
| Memory (RAM) | Up to 4 GB of Soldered Down DDR3 |
| Display | Intel Gen7 Graphics |
| Storage | SATA 2.0 channel |
| Digital I/O | 24 Bidirectional GPIO with event sense |
| Serial I/O | 4 serial ports (2x RS-232/422/485, 2x RS232) |
| Bus Expansion | PC/104 |
| USB | 4 USB 2.0 ports with surge suppression |
| Watchdog Timer | Adjustable from 3 seconds to 300 seconds reset |
| Audio | Audio |
| Power | +5V DC required |
| Compliance | RoHS-Compliant |
| Mechanical | Dimensions: 4.55 x 4.02 x 0.513 inches |
| Operating Temperature Range | -40°C to 85°C |
| Ordering Information | PPM-C407-p-m-t-x |
| Cables & Accessories | CBL-SET-407-1 |

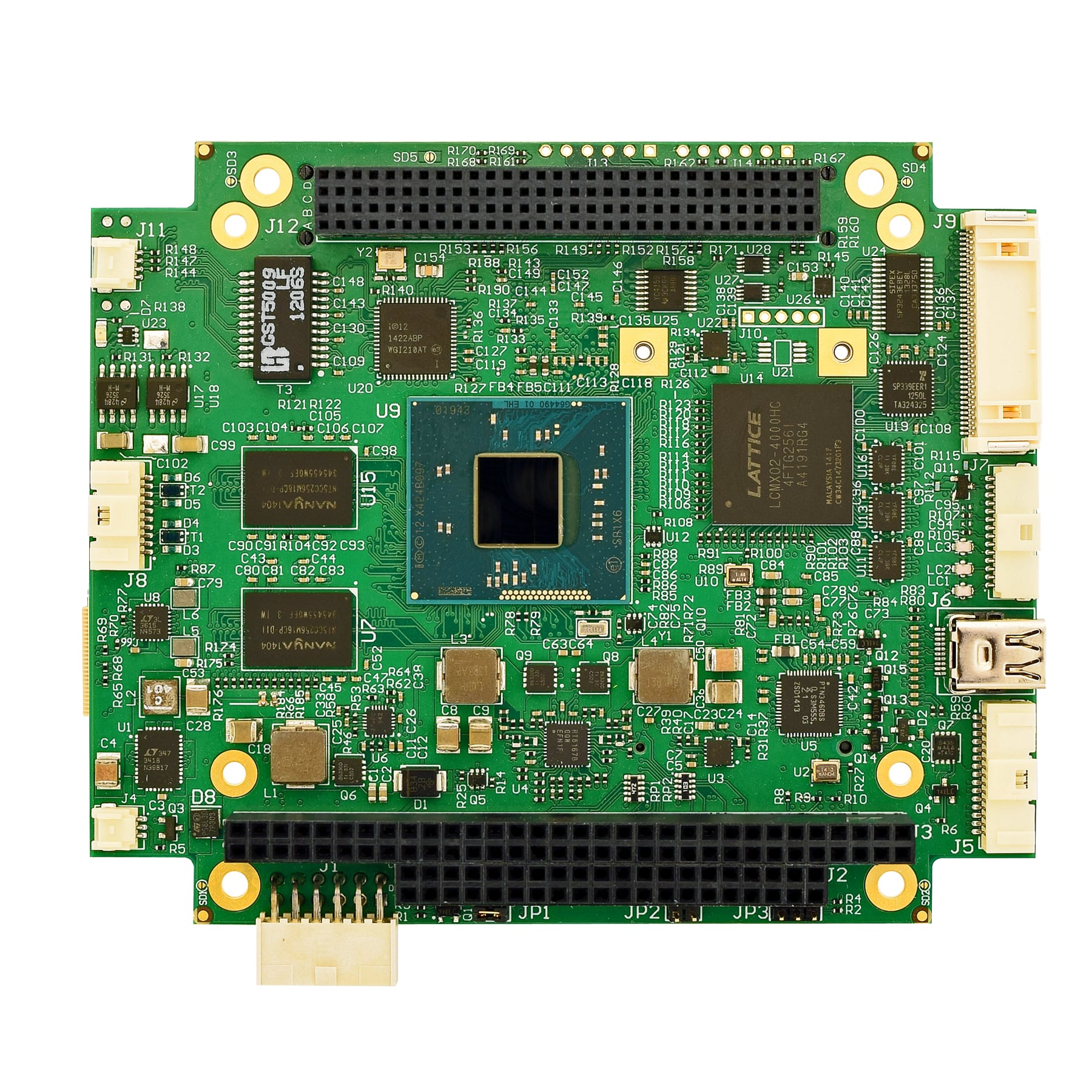

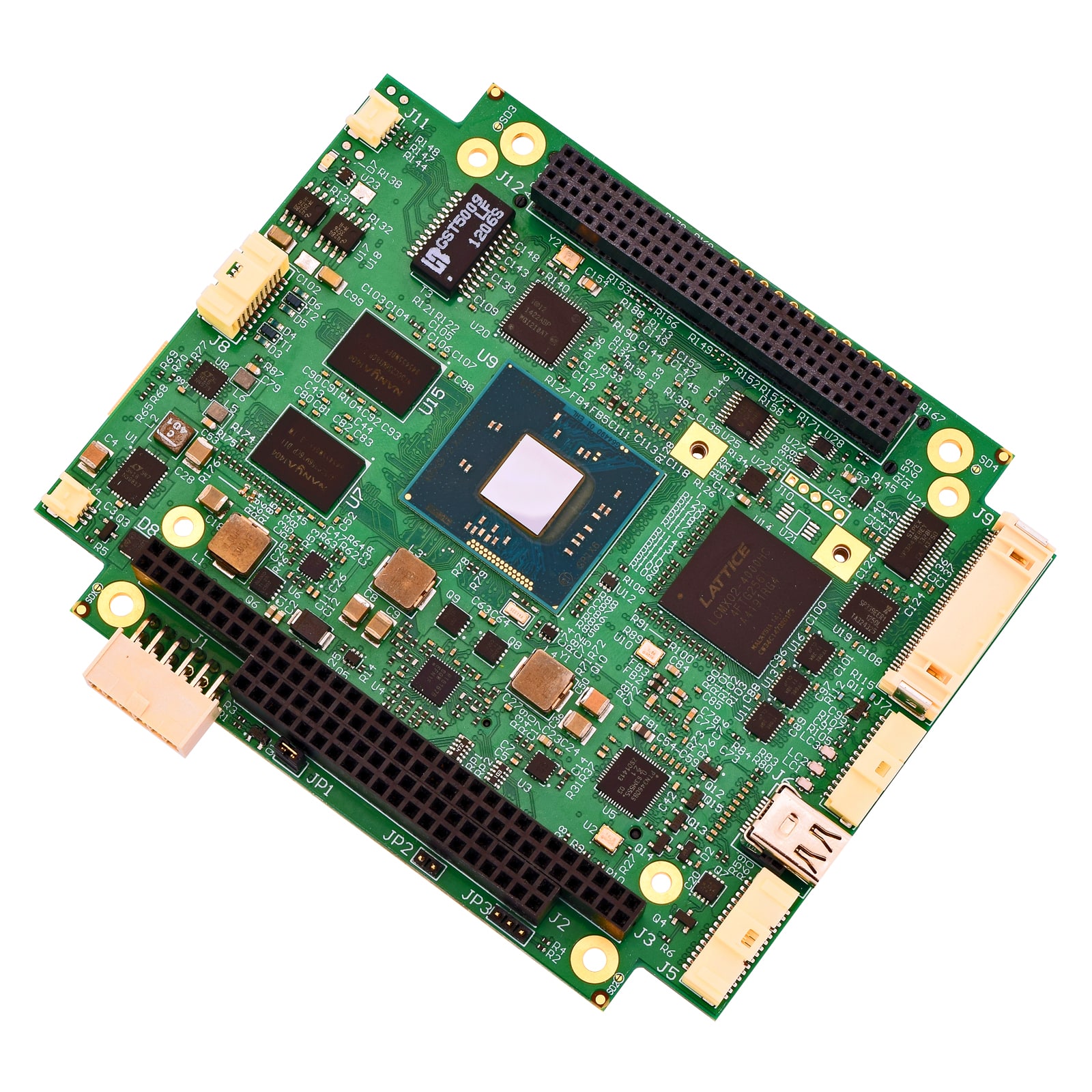

PPM-C407 Fanless E3800 PC104 Single Board Computer
Description
WINSYSTEMS’ PPM-C407 is a low power PC104 Single Board Computer (SBC) with long term availability. It utilizes the Intel Atom® E3800 family of processors, which allows you to choose between low power single-core and higher performance dual or quad-core solutions in the versatile PC104-Plus form factor. Designed for harsh environments and reliability, it includes soldered RAM for added shock and vibration resistance with an operating temperature range from -40oC up to +85oC.
