PPM-WIRELESS Industrial PC/104-Plus Mini-PCI Wireless Adapter

No longer in production

This product is listed to provide access to its documentation.

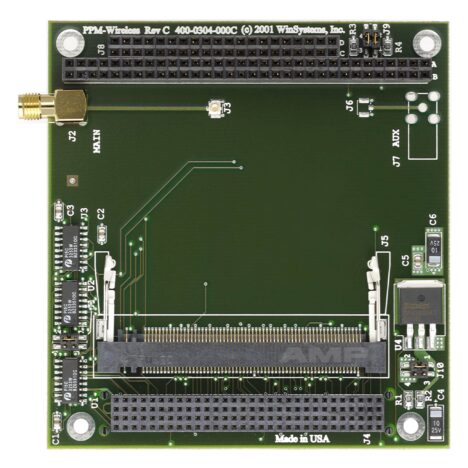

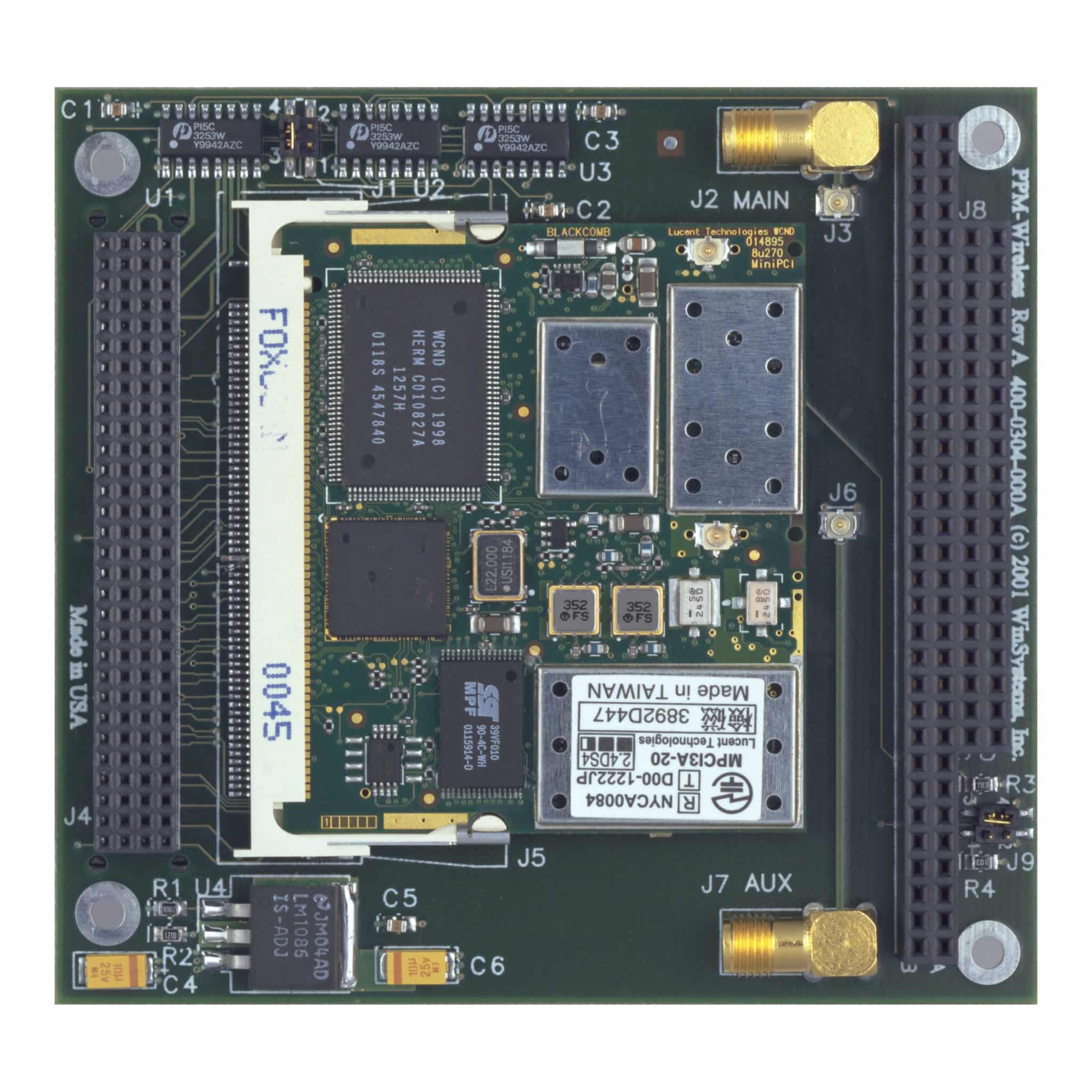

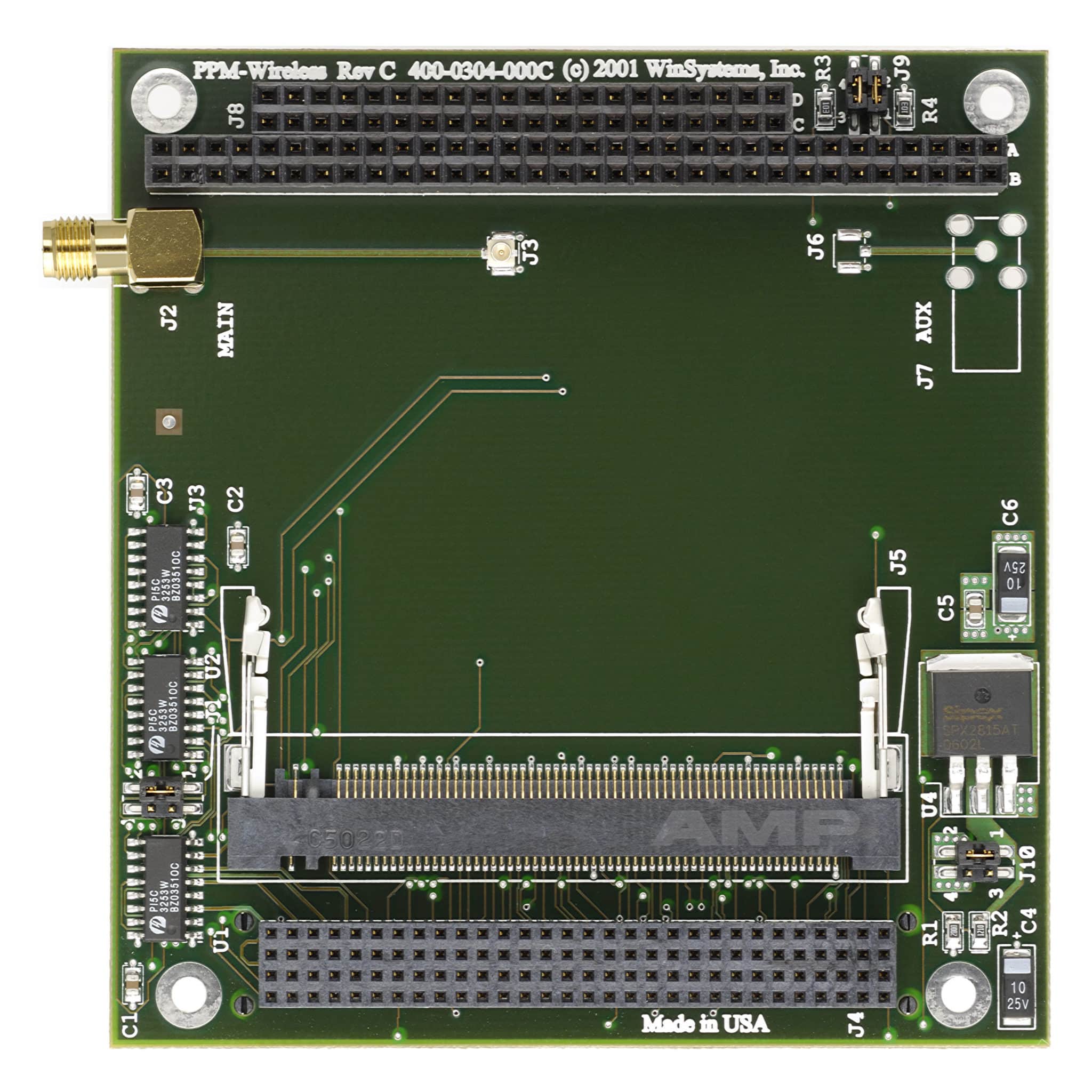

The PPM-Wireless is a small, PC/104-Plus-compliant module that measures only 90-mm x 96-mm. The PPM-Wireless can be stacked on top of a host PC/104-Plus, EPIC, or EBX single board computer. On board the PPM-Wireless are the interface electronics, a miniPCI connector, power supply, and antenna connector.

DATA SHEET PRODUCT INFO

Features

  • IEEE 802.11 wireless adapter module
  • Supports Intel, Boardcom, Atheros and other 802.11 MiniPCI modules
  • RP-SMA external antenna connector
  • Optional diversity second antenna connector
Features
Wireless

IEEE 802.11 module supported
Supports Intel, Boardcom, Atheros and other 802.11 MiniPCI modules
RP-SMA external antenna connector
Second antenna connector (optional)
Power

+5V or +3.3V operation
Mechanical

PC/104-Plus-compliant
Dimensions: 3.6 x 3.8 inches (90 x 96 mm)
Operating Temperature Range

-40°C to 85°C
