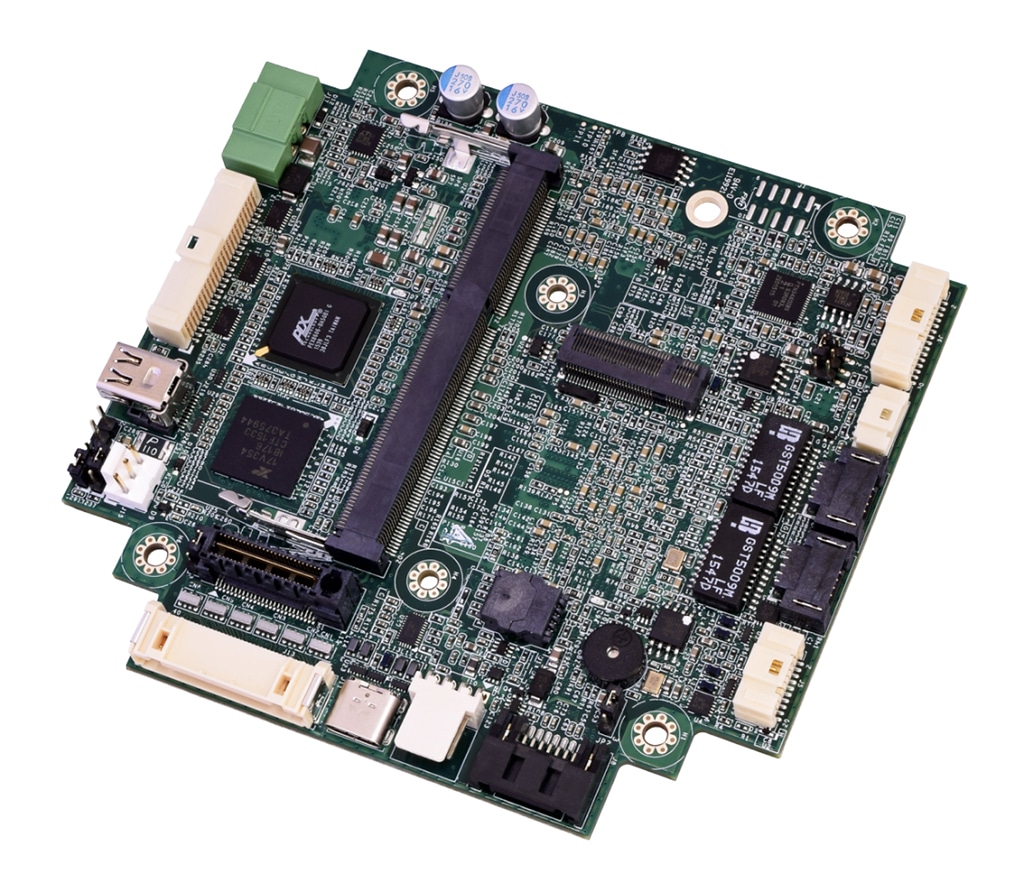

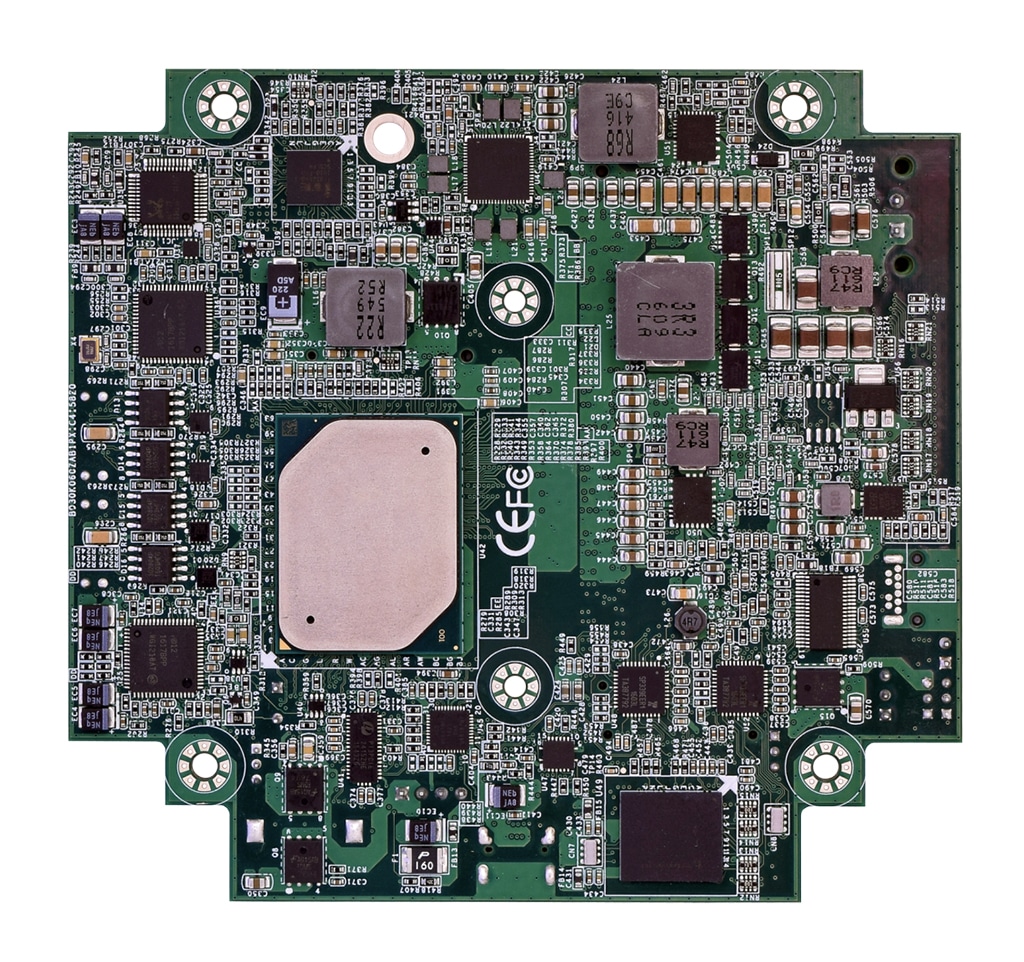

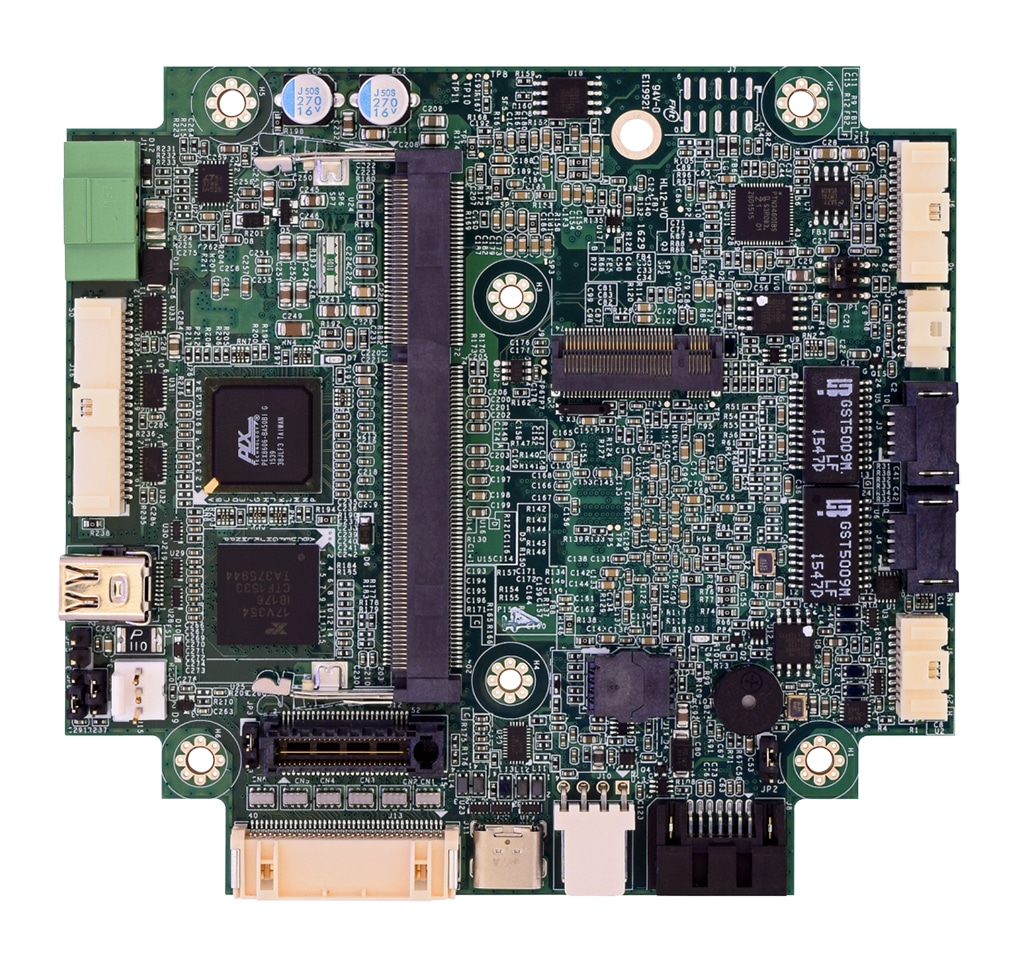

PX1-C415 PC104 OneBank Intel E3900 SBC with Dual Ethernet

WINSYSTEMS’ PX1-C415 single board computer (SBC) is a PC104 form factor SBC with PCIe/104™ OneBank™ expansion featuring the latest generation Intel® Atom™ E3900 series SOC processors (formerly known as Apollo Lake-I). Its small size, rugged design and extended operational temperature make it a great fit for Industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.

DATA SHEET PRODUCT INFO

Features

Intel Apollo Lake-I E3900 Processor (Dual or Quad core)
Up to 8 GB DDR3-LV System RAM
-40°C to +85°C Operating Temperature Range
PC/104 Small Form Factor with PCIe/104™ OneBank™
Multiple Displays Supported
Secure and Trusted Data
- ECC RAM
- Intel Security Engine
- Cryptographic acceleration
Connectivity and I/O for Embedded Systems
- USB Type C 3.0 and 8x USB 2.0
- 24 GPIO with event sense
- Four Serial Ports
Expansion Options
- PCIe/104™ OneBank™
- M.2 Expansion Socket

Features
Processors	Intel® Atom™ E3900 (Apollo Lake) Processors x5 E3930 dual-core, 1.8GHZ x5 E3940 quad-core, 1.8GHz x7 E3950 quad-core, 2.0GHz
Memory (RAM)	up to 8 GB storage of ECC capable DDR3-LV RAM
Storage	eMMC Solid State Disk supporting up to 64 GB of Flash M.2 SSD support with 22mm x 42mm B-Key Socket SATA Connector
Display	Intel Gen9 Graphics Engine Up to 2 Simultaneous Active Displays LVDS DisplayPort
Network Interface	Two 1000 Mbps using the Intel i210 LAN controller
ONBOARD I/O	Eight USB 2.0 with overcurrent protection Four USB 2.0 available on USB header One USB 3.0 port with overcurrent protection available on the USB Type-C connector Four 16C550-compatible, serial channels with speeds up to 30 Mbps in RS-422/485 modes 24 lines of general purpose digital I/O Stereo audio output Speaker output for beep tones Real-time Clock (RTC) with optional battery back up Watchdog timer adjustable from 1 second to 255 minutes
Bus Expansion	PCe/104 OneBank M.2
Power	+10 to 30V DC required
Software	UEFI compliant BIOS in SPI Flash Device Compatible with Linux, Windows, Windows 10-IoT Core and other x86 operating systems
Mechanical	Dimensions – 4.55 x 4.28 inches (115.6 x 108.6 mm) Weight – 4.2 oz (120 gm) without heatsink PC Board thickness 0.078 inches
Environmental	Operational from -40°C to 85°C RoHS compliant
Cables	CBL-DIO24-002-12
	Digital I/O – 50-pin IDC Female, 12″ CBL-DIO24-001-12
	Digital I/O – Molex Pico-Clasp, 12″ CBL-SATA-701-20
	SATA – Data (Latching), 20″ CBL-PWR-117-12
	Power cable to SATA drive CBL-LVDSAB-009-18
	LVDS/backlight with analog audio
