PX1-C441-3950 PC/104 OneBank™ Intel® Apollo Lake-I E3845 SBC with Dual Ethernet

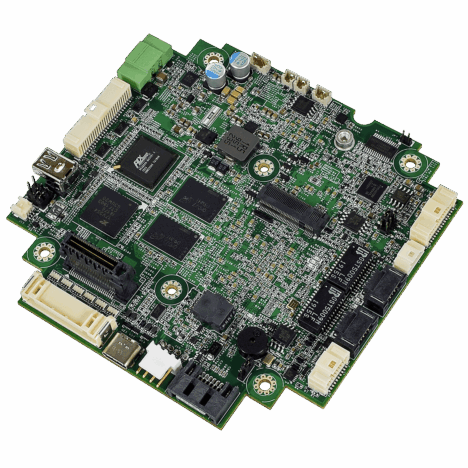

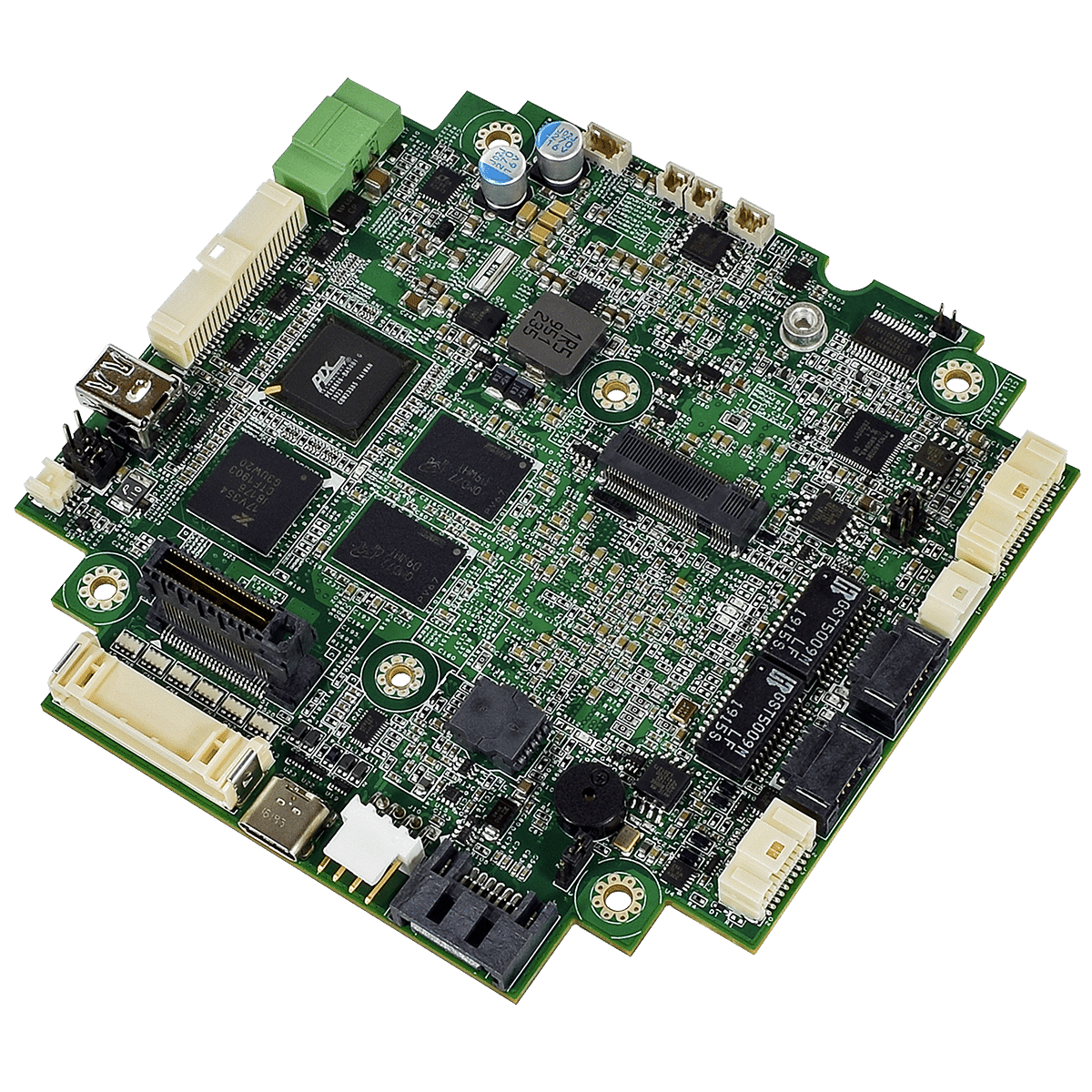

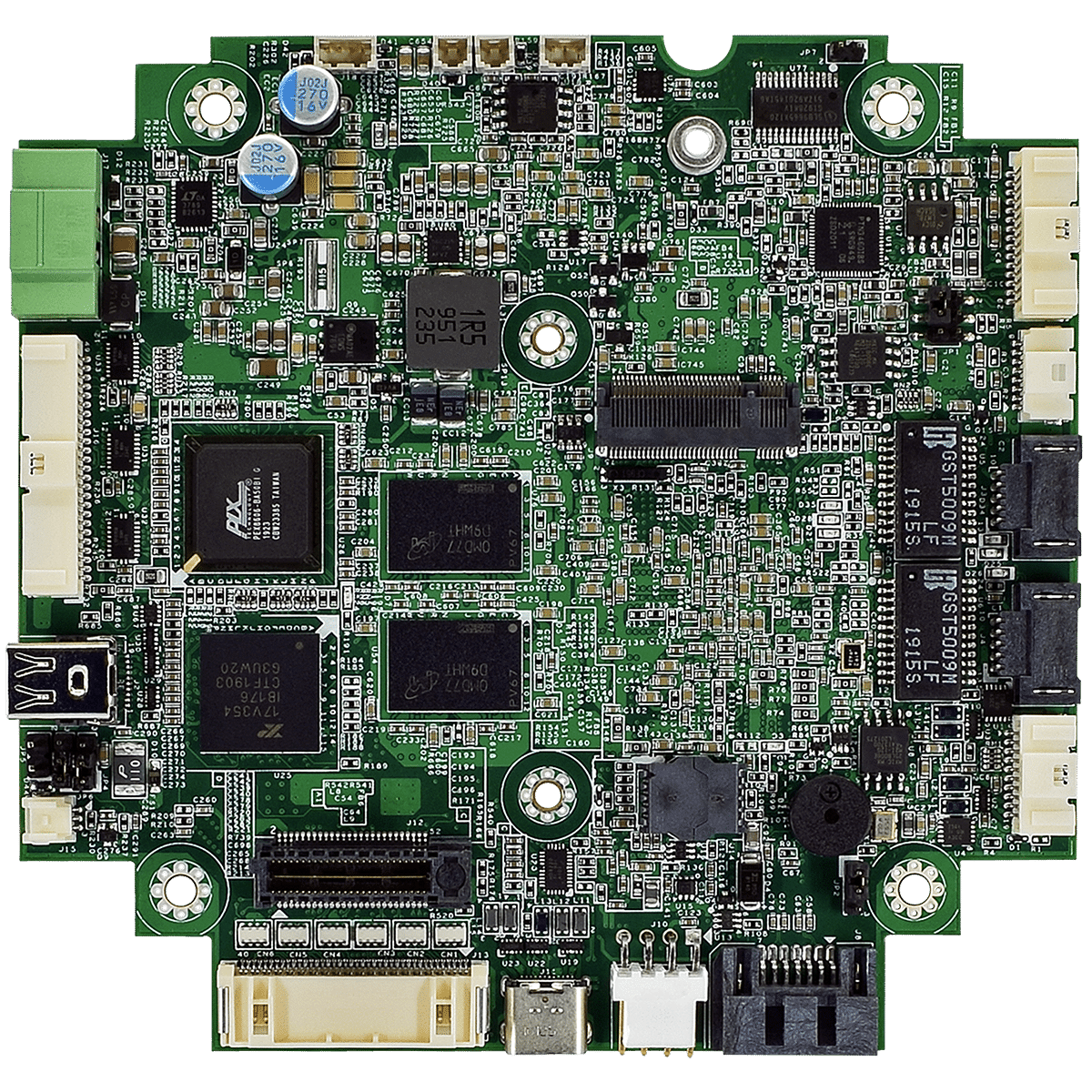

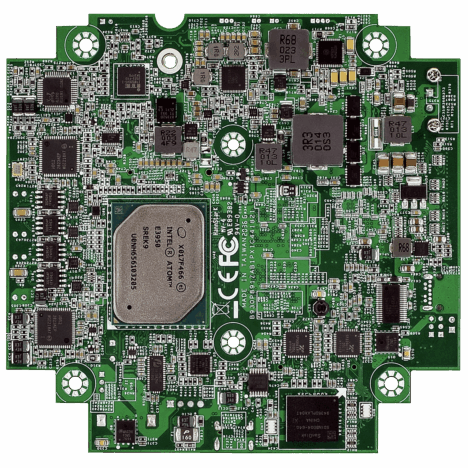

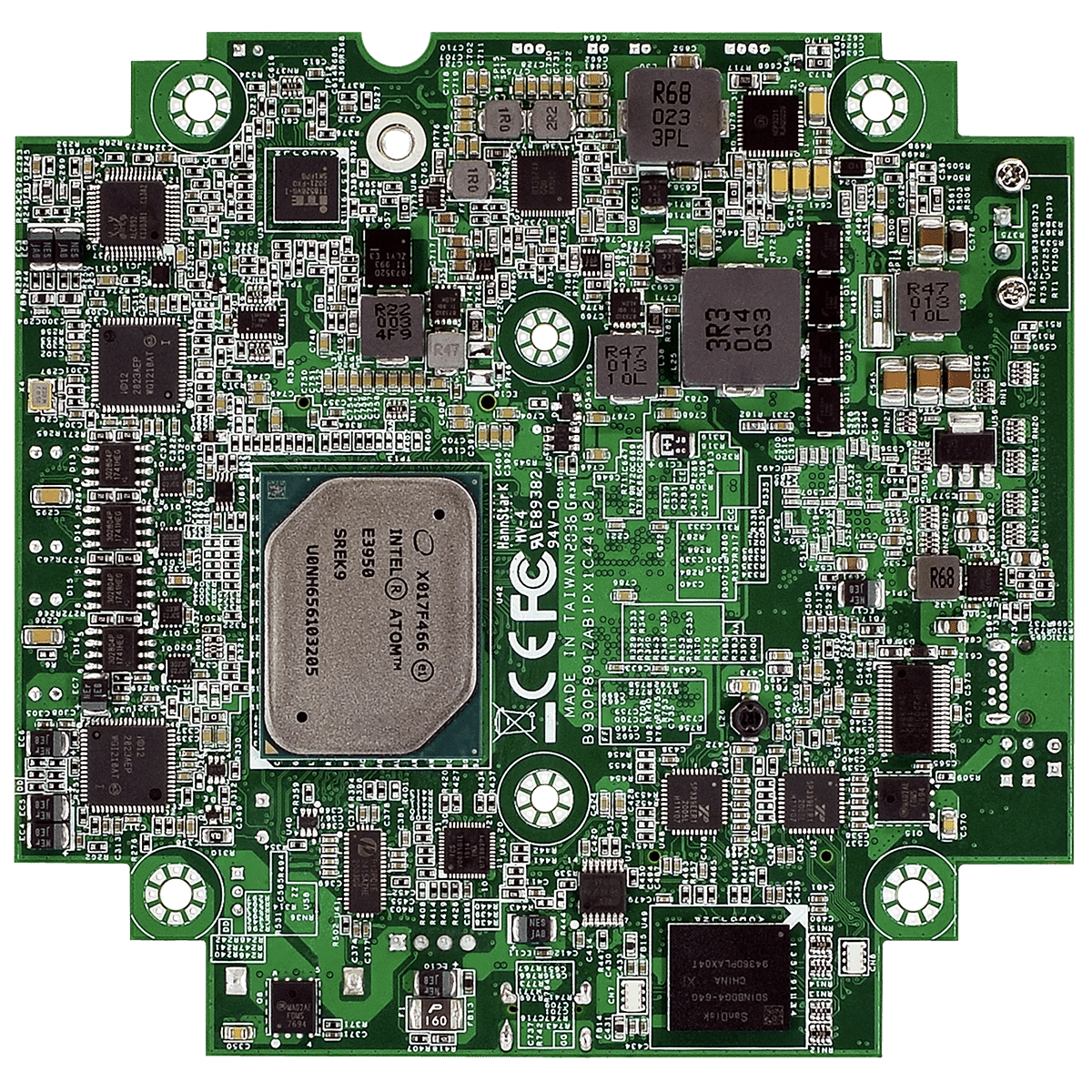

WINSYSTEMS’ PX1-C441-3950 single board computer (SBC) is a PC/104 form factor SBC with PCIe/104™ OneBank™ expansion featuring an Intel Apollo Lake-I x7 E3950 Quad-core SoC processor for processing graphics. It includes up to 8 GB of soldered down LPDDR4 system memory and a non-removable eMMC device for solid-state storage of an operating system (OS) and applications. In addition, the board supports M.2 and SATA devices.

Its small size, rugged design, and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

Features

Intel Apollo Lake-I x7 E3950 Processor (Quad core)
Up to 8 GB Soldered LPDDR4 System Memory
Time Coordinated Computing
Precision Time Measurement
-40°C to +85°C Operating Temperature Range
PC/104 Small Form Factor with PCIe/104™ OneBank™
Multiple Displays Supported
Secure and Trusted Data
- TPM 2.0 Hardware Security Enabled
- Intel Security Engine
- Cryptographic Acceleration
Connectivity and I/O for Embedded Systems
- Dual Ethernet
- 1x USB 3.2 Gen 1 Type C and 8x USB 2.0
- 24x GPIO with Event Sense
- 4x Serial Ports, 1x Serial Console Port
- 1x I2C Bus
Expansion Options
- PCIe/104™ OneBank™
- M.2 Expansion Socket

Features
PROCESSOR	Intel® Atom™ x7 E3950 (Apollo Lake) Processor Quad-core, 2.0GHz
MEMORY (RAM)	4GB or 8GB of soldered down LPDDR4 system memory (RAM)
STORAGE	eMMC Solid State Disk supporting 32GB or 64GB of Flash M.2 SSD support with 22mm x 42mm B-Key Socket SATA Connector
DISPLAY	Intel Gen9 Graphics Engine Up to 2 Simultaneous Active Displays LVDS DisplayPort
NETWORK INTERFACE	Two 1000 Mbps using the Intel i210 LAN controller
ONBOARD I/O	Eight USB 2.0 with overcurrent protection − Four USB 2.0 available on USB header − Two USB 2.0 available on PCIe/104 OneBank − One USB 2.0 available on USB Type-C − One USB 2.0 available on M.2 One USB 3.2 Gen 1 port with overcurrent protection available on the USB Type-C connector Four 16C550-compatible, serial channels with speeds up to 30 Mbps in RS-422/485 modes − Two capable of RS-232 operation − Two capable of RS-232/422/485 operation One RS232 serial console port 24 lines of general purpose digital I/O (user selectable input/output supported voltages: 1.8/2.5/3.3/5V) Stereo audio output One I2C Bus One SATA 3.0 channel Speaker output for beep tones Real-time Clock (RTC) with optional battery back up Watchdog timer adjustable from 1 second to 255 minutes
EXPANSION	PCe/104 OneBank M.2
POWER	Input: +9 – 36V DC Typical: 9W Sleep: 3W Max: 23W
SOFTWARE	UEFI compliant BIOS in SPI Flash Device Compatible with Linux, Windows, Windows 10-IoT Core and other x86 operating systems
MECHANICAL	Dimensions: 4.55 x 4.39 inches (115.6 x 111.6 mm) Board thickness: 0.078 inches Weight: 4.2 oz (120 gm) without heatsink
ENVIRONMENTAL	Operational from -40°C to +85°C (Requires airflow and high-temperature grade DRAM) RoHS compliant
ORDERING INFORMATION	PX1-C441-3950-m-e-t m = 4GB or 8GB system memory (RAM) e = 0 (none)/32GB/64GB eMMC t = thermal option: 0=heat spreader, 1=heatsink
CABLES & ACCESSORIES	CBL-SET-441-2 cable and accessories set includes: − USB Adapter ADP-IO-USB-002 (Adapter to 4x USB 2.0 Type A connectors) − USB CBL-USB4-002-12 (Cable to USB Adapter, 12”) − Ethernet (2) CBL-ENET1-302-12 (ENET cable with two connectors, 12”) − Serial CBL-SER4-002-12 (Cable to four DB9 connectors, 12”) − Battery BAT-LTC-E-36-16-2 (External 3.6 V, 1650 mAH battery) Additional Cables − CBL-DIO24-002-12
	Digital I/O – 50-pin IDC Female, 12″ − CBL-DIO24-001-12
	Digital I/O – Molex Pico-Clasp, 12″ − CBL-SATA-701-20
	SATA – Data (Latching), 20″ − CBL-PWR-117-12
	Power cable to SATA drive − CBL-LVDSAB-009-18
	LVDS/backlight with analog audio Optional Battery − BAT-LTC-E-36-16-2 (External 3.6 V, 1650 mAH) − BAT-LTC-E-36-27-2 (External 3.6 V, 2700 mAH)
