Features | |
---|---|
ADC MODULE | 16-bit, Linear Technology LTC2335-16 Analog-to-Digital Converter |
CHANNELS | Eight Differential Inputs |
ADC POWER RANGES | 0-5V, 0V-5.12V, ±5V, ±5.12V, 0V to 10V, 0V to 10.24V, ±10V, ±10.24V 4mA to 20mA (PX1-I440-ADC-420) |
SOFTWARE | Compatible with Linux, Windows 10 |
ENVIRONMENTAL |
|
MECHANICAL | Dimensions: 3.55 x 3.775 inches (90 x 96 mm) Weight: 0.1 oz (100g) |

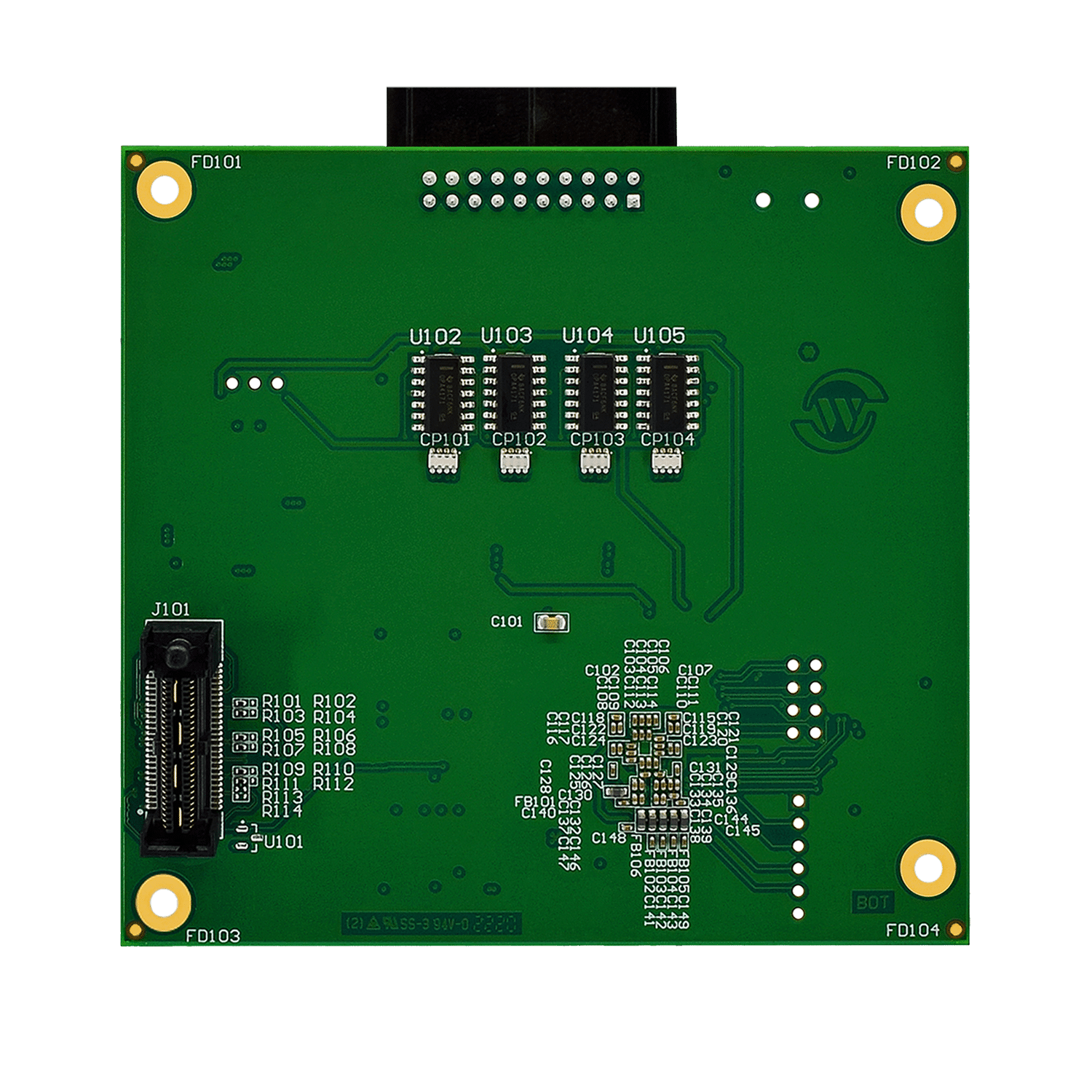

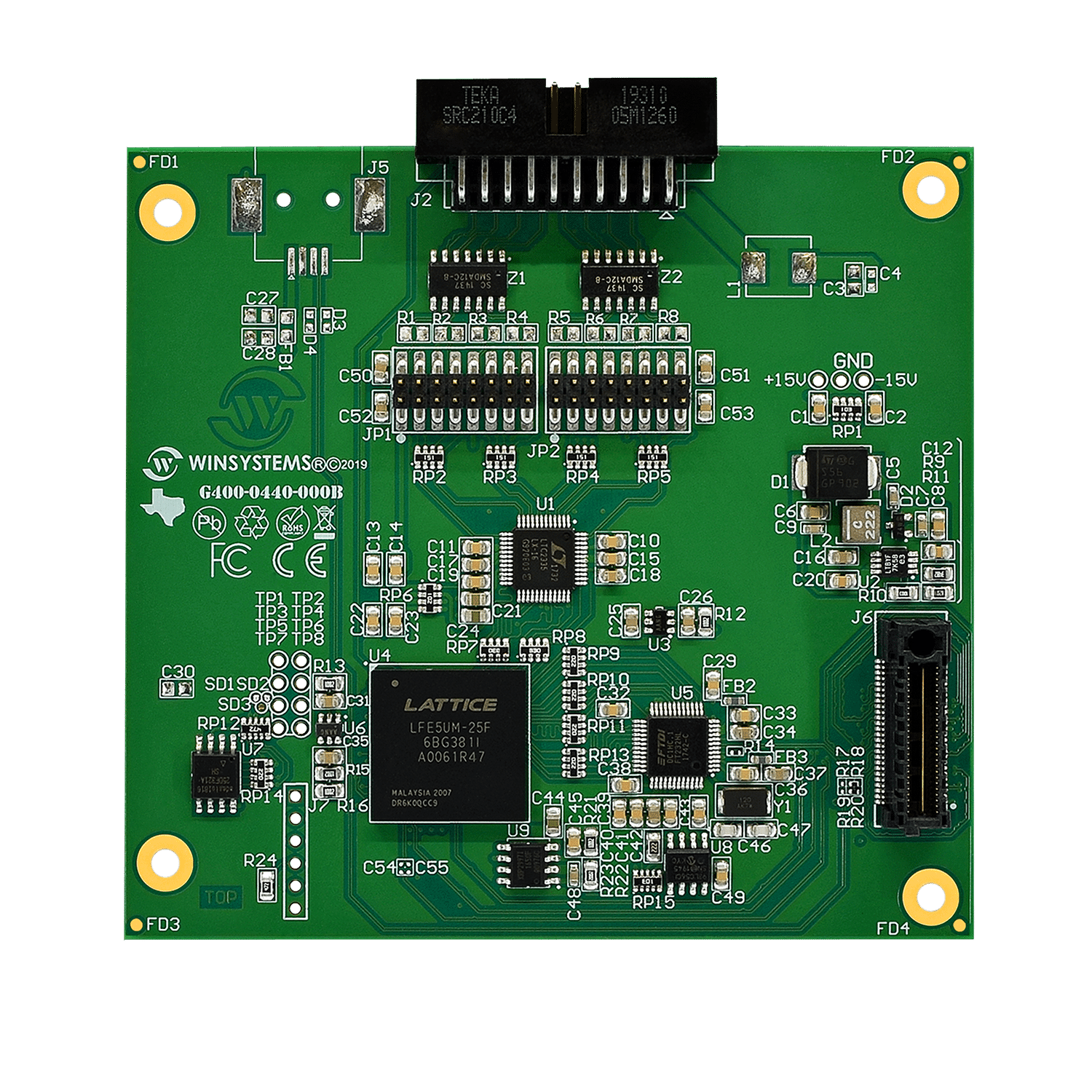

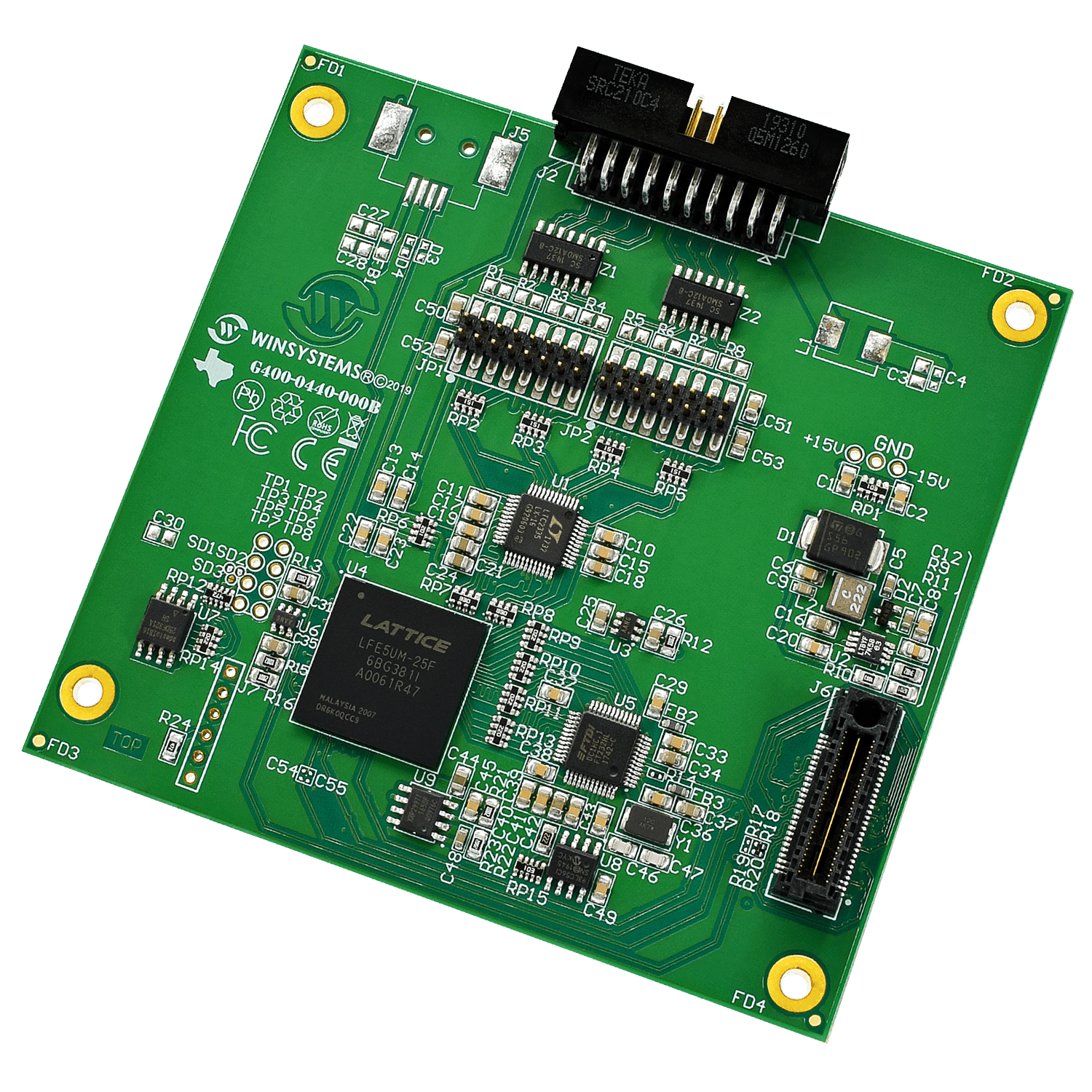

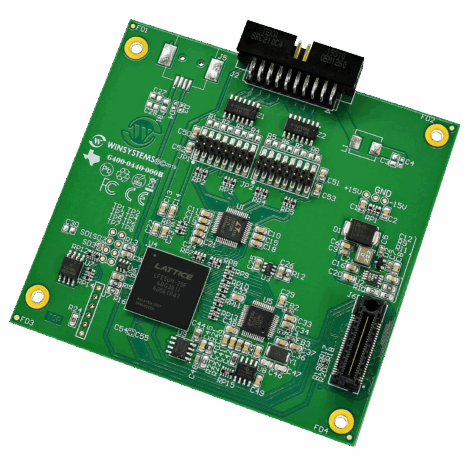

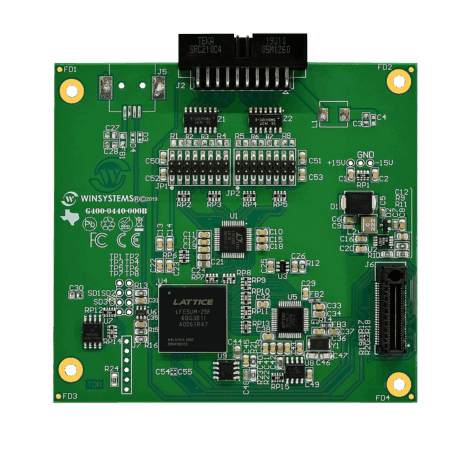

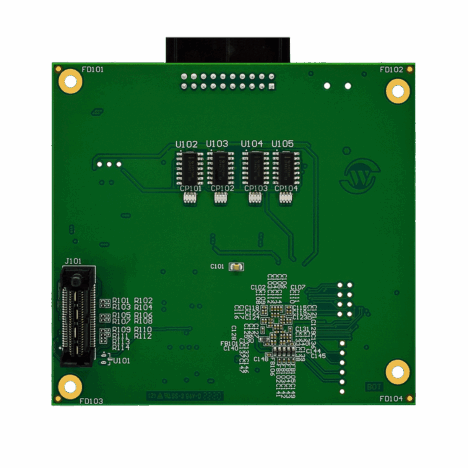

PX1-I440-ADC Industrial analog-to-digital data acquisition module
The PX1-I440-ADC is an industrial data acquisition module for embedded systems with PCIe/104 OneBank expansion. This module features eight differential ADC (analog-to-digital converter) inputs based on the Analog Devices LTC2335-16 ADC. Analog to digital inputs terminate to a single 20-pin box header connector. The PX1-I440-ADC provides flexible voltage ranges from 0V-5V, 0V-5.12V, ±5V, ±5.12V, 0V to 10V, 0V to 10.24V, ±10V, ±10.24V. The PX1-I440-ADC-420 configuration includes precision resistors on-board for measuring 4-20mA current loop inputs from a variety of sensors. Customized populations are available for OEM clients that need a mix of 4-20mA and Voltage inputs.
DATA SHEET PRODUCT INFOROHS COMPLIANT
Features
- Connectivity
- PCIe/104 One Bank (USB Interface)
- Analog Inputs
- 16-bit Analog-to-Digital (ADC) converter
- Wide Common Mode Range Inputs
- Eight Analog Input Ranges:
- 0V-5V, 0V-5.12V, ±5V, ±5.12V, 0V to 10V, 0V to 10.24V, ±10V, ±10.24
Configurable on a conversion-by-conversion basis
- 0V-5V, 0V-5.12V, ±5V, ±5.12V, 0V to 10V, 0V to 10.24V, ±10V, ±10.24
- Eight Differential Input Channels support both Unipolar and Bipolar Inputs
- Available with 4-20mA Input Configuration
- Capabilities
- Sample Rate up to 1Msps in Burst Mode
- Programmable to cycle through a sequence of channels and ranges
- Test Jumpers Provide Onboard Voltages
- Rugged Design for Demanding Environments
- -40°C to +85°C Operating Temperature Range
- PC/104 Form Factor
- Shock and Vibration Tested
- PX1-I440-ADC Datasheet (PDF)
Datasheets
- PX1-I440-ADC Manual (PDF)
Product Manuals
