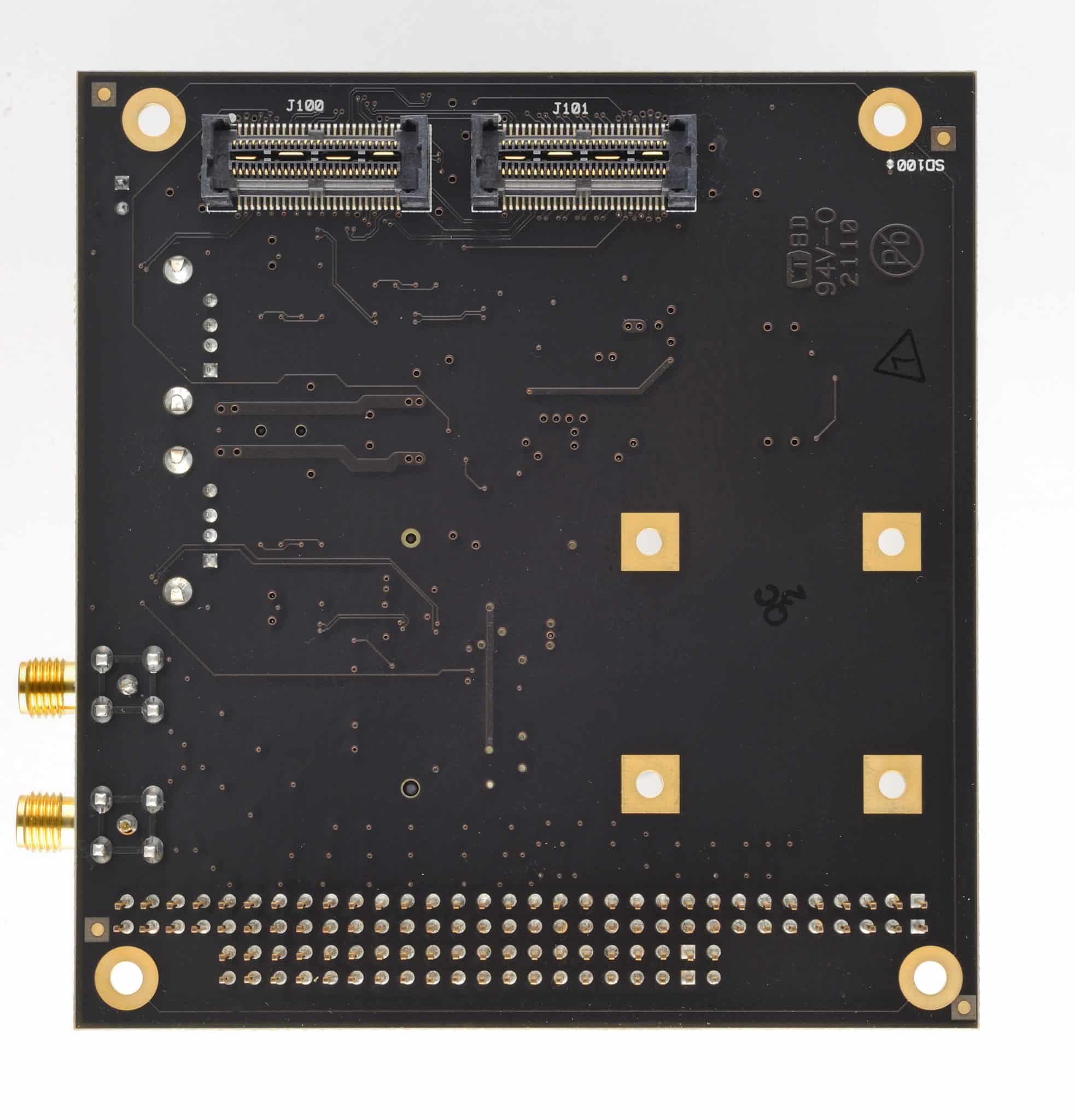

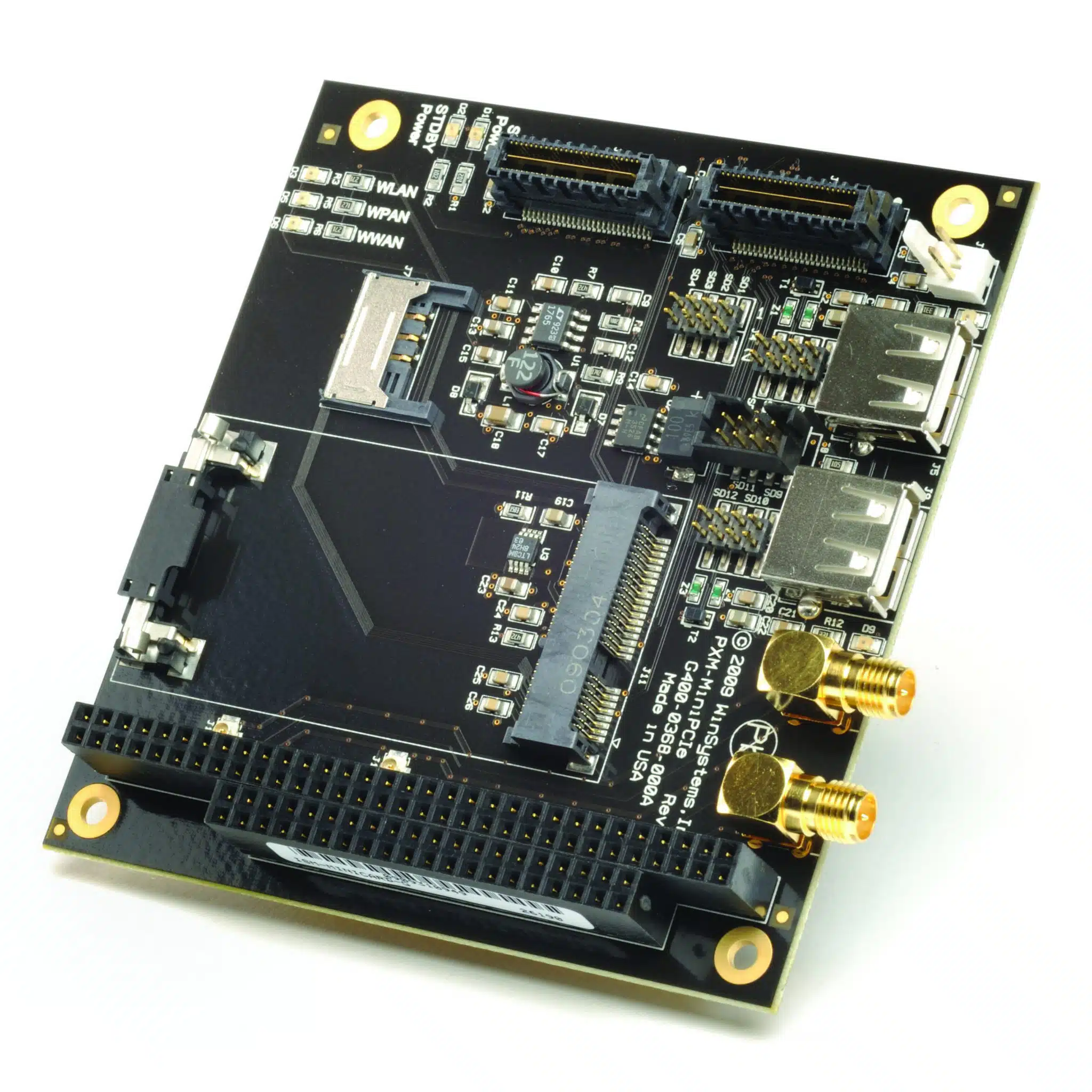

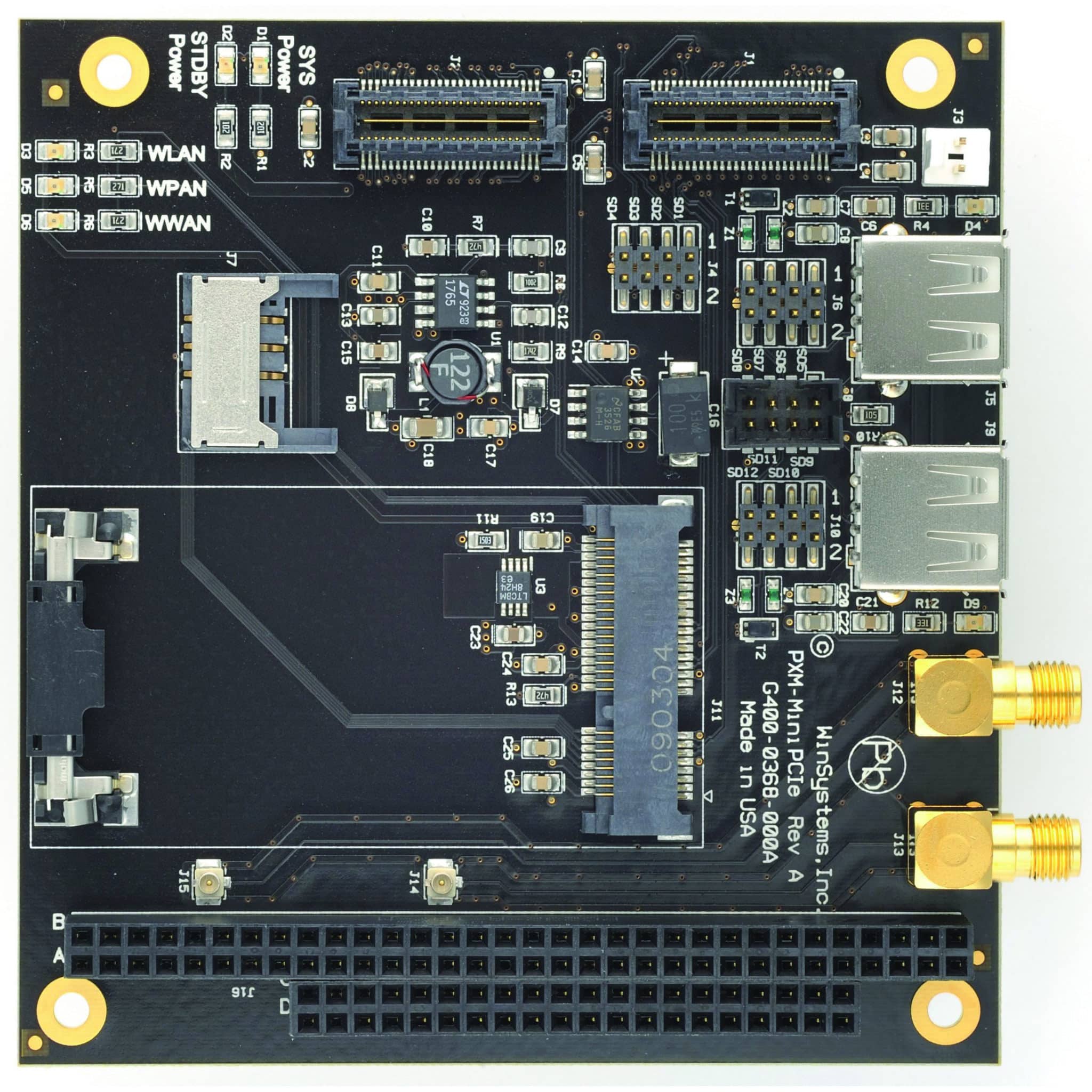

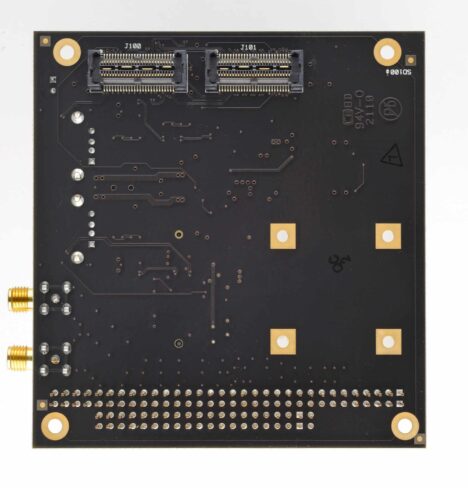

PXM-MINIPCIE-G SUMIT-ISM module with MiniPCIe and USB support

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ PXM-MiniPCIe is a SUMIT-ISM module that supports both standard and half-size MiniPCIe cards plus two USB ports. This provides expansion of additional functions such as 802.11 a/g wireless, WLAN, and other high-performance functions that have been developed for mobile computing environments.

DATA SHEET PRODUCT INFO

Features

SUMIT-ISM module with MiniPCIe and USB support
MiniPCIe connector includes:
- Full- and half-size PCIe MiniCard support
- x1 PCIe and USB 2.0 interface available through SUMIT-AB connectors
- Two RF connectors for multiple antenna support
- SIM card socket
- On-board DC/DC generates +1.5V and +3.3V aux.
Two USB 2.0 ports feature:
- Connector options of either shielded Type A connectors or two 8-pin jumper headers
- Each port with overcurrent and inrush protection
- LED on each port for visual status
PCIe and USB automatic lane shifting on SUMIT-AB connectors

SPECIFICATIONS
DOCUMENTATION

Features
MiniPCIe	Full- and half-size PCIe MiniCard support x1 PCIe and USB 2.0 interface available through the SUMIT-AB connectors Two RF connectors for multiple antenna support SIM card socket
USB	USB capability via SUMIT connector Overcurrent and inrush protection for each port Automatic USB signal lane shifting LED on each port for visual status
Bus Expansion	PC/104 SUMIT
Power	+5V or +3.3V operation
Mechanical	SUMIT-compliant Dimensions: 3.6 x 3.8 inches (90 x 96 mm) Weight: 3.0 oz (84g)
Operating Temperature Range	-40°C to 85°C

Datasheets

PXM-MINIPCIE-1 Datasheet (PDF)

Product Manuals

PXM-MINIPCIE-1 Product Manual (PDF)

Product Change_Notice

PCN - PXM-MINIPCIE EOL Notice
