| Features | |
|---|---|
| RISER-PPM-1 | Spacer board with PCI-104 Connector |
| RISER-PPM-0 | Spacer board without PCI-104 Connector |

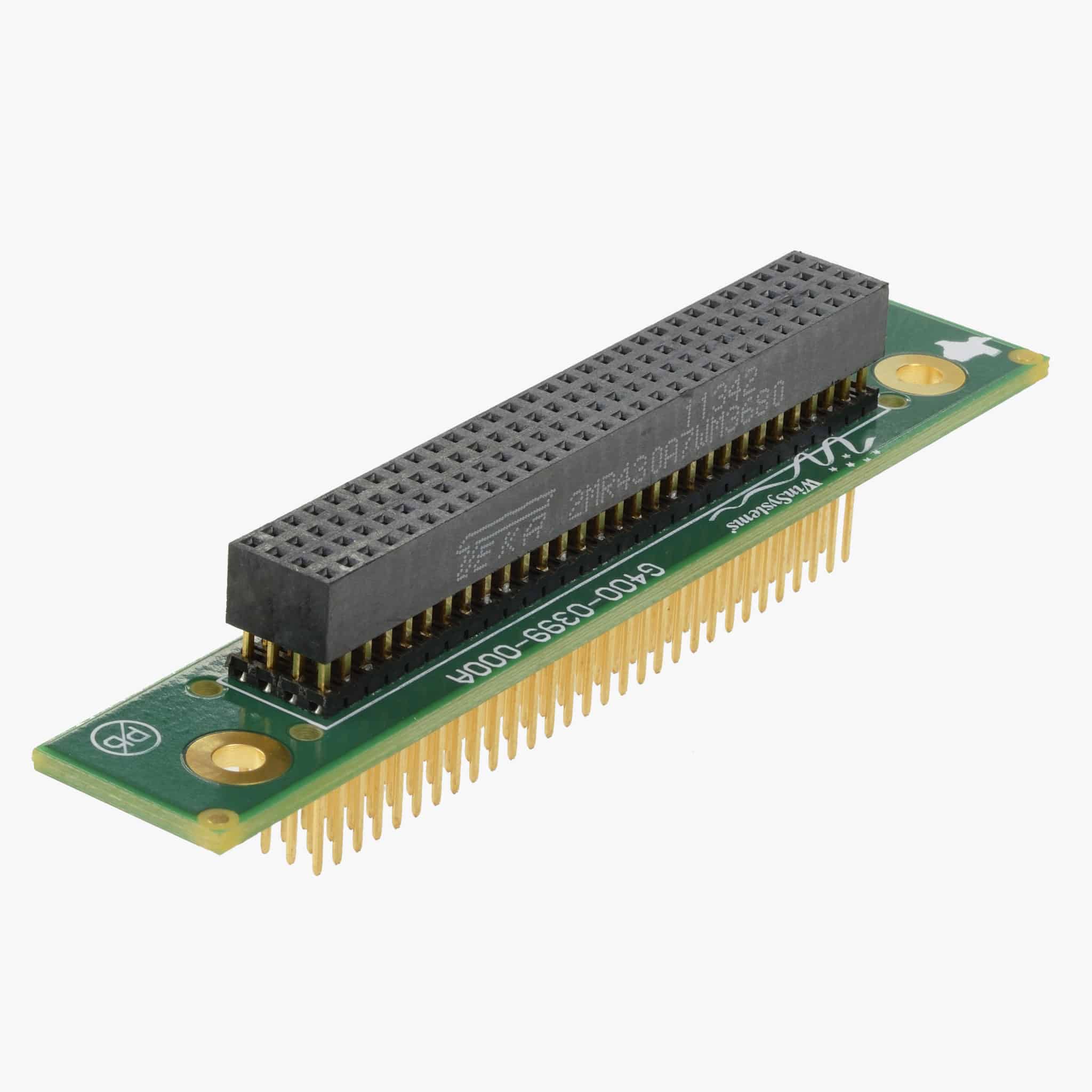

RISER-PPM-1 Spacer board with PCI-104 Connector
WINSYSTEMS’ RISER-PPM-1 boards are designed to provide extra space in a PC/104-Plusstack. They are printed circuit boards (PCBs) with PCI-104 mounting holes and bus connectors. They allow a board with either tall components or heat sinks to be placed in a stack of boards in a location other than only at the top. The additional separation is 0.60 inches using standard PC/104-type spacers.
DATA SHEET PRODUCT INFOFeatures
- Provides additional space between boards for tall components, heat sinks, and other thermal solutions
- RISER boards available with and without connectors
- Includes nylon standoffs
- RoHS-compliant
- -40 to +85°C operation
- RISER-PPM Datasheet (PDF)
