SBC-472-TCA7 Rugged SBC with Intel Atom® x6425RE COM Express Type 6 Module on Carrier and USB 2.0

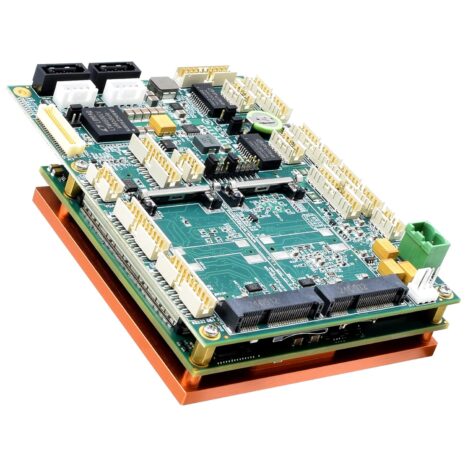

WINSYSTEMS’ SBC-472-TCA7 embedded computer pairs a COM Express Type 6 processor module and small form factor carrier board making it an ideal solution for space-constrained applications. This rugged industrial SBC uses the Intel Atom® x6425RE processor for low-power efficiency, provides Mini PCIe expansion and 8x USB 2.0 connectivity. It supports Windows 10 IoT, Windows 11 IoT, Linux, and other x86 real-time operating systems.

The SBC-472-TCA7 is designed to enable a broad spectrum of use cases across multiple industry sectors including transportation and energy management, industrial automation, building automation, digital signage, and more.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

Features

Compact form factor for space-constrained applications
Intel Atom® Elkhart Lake x6425RE
-40°C to +85°C extended temperature range with thermal solution
Extended product life cycle of 15+ years
High MTBF
Ruggedized locking pin header connectors
Mini PCIe expansion
8x USB 2.0

Features

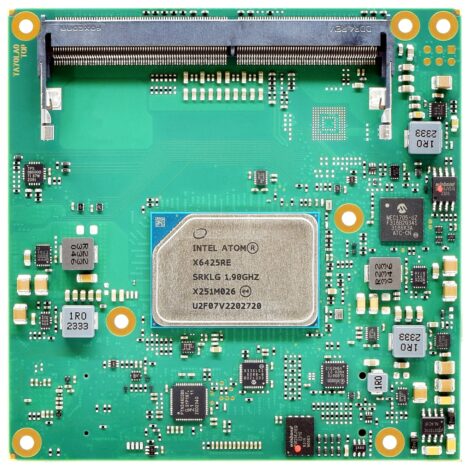

PROCESSOR OPTIONS	Intel® Atom® Elkhart Lake x6425RE Core Speed: 1.9 GHz Cache: 1.5 MB L2 Power: 12W typical
OPERATING SYSTEM	Linux Ubuntu, Windows 10/11 IoT, other x86 real-time OS
SOFTWARE	Custom configurable UEFI-based AMI BIOS System Management Libraries and Tools
SECURITY	On-board discrete TPM 2.0 hardware security vPro® Security Platform
RAM	16GB or 32GB DDR4 SODIMM
STORAGE	2x SATA ports with External Vertical Locking Connectors
DISPLAY	2x DisplayPort++ (DDI) interface which can be used for DisplayPort, HDMI, DVI or VGA LVDS interface (single ch 24-bit, dual ch 48-bit)
AUDIO	HD Audio (Cirrus Logic CS4207 codec) 1x stereo input 1x stereo output
NETWORK	Port 0, Intel I226IT, 2.5Gb Ethernet Port 1, Intel 82574I, 1Gb Ethernet
EXPANSION	MiniPCIe Expansion: 2x full-length cards (Both sockets have PCIe and USB) 1x SIM Card Expansion option
I/O	8-bit GPIO 8x USB 2.0 (2 used for miniPCIe) 1x Console RS-232 (TX/RX) 2x RS-232 (w/ full modem signals) 2x RS-422/485 SMBus I2C
POWER	Input: Single +12V input +/- 5% (5mm pitch terminal connector) Power Supply: > 60W power budget recommended

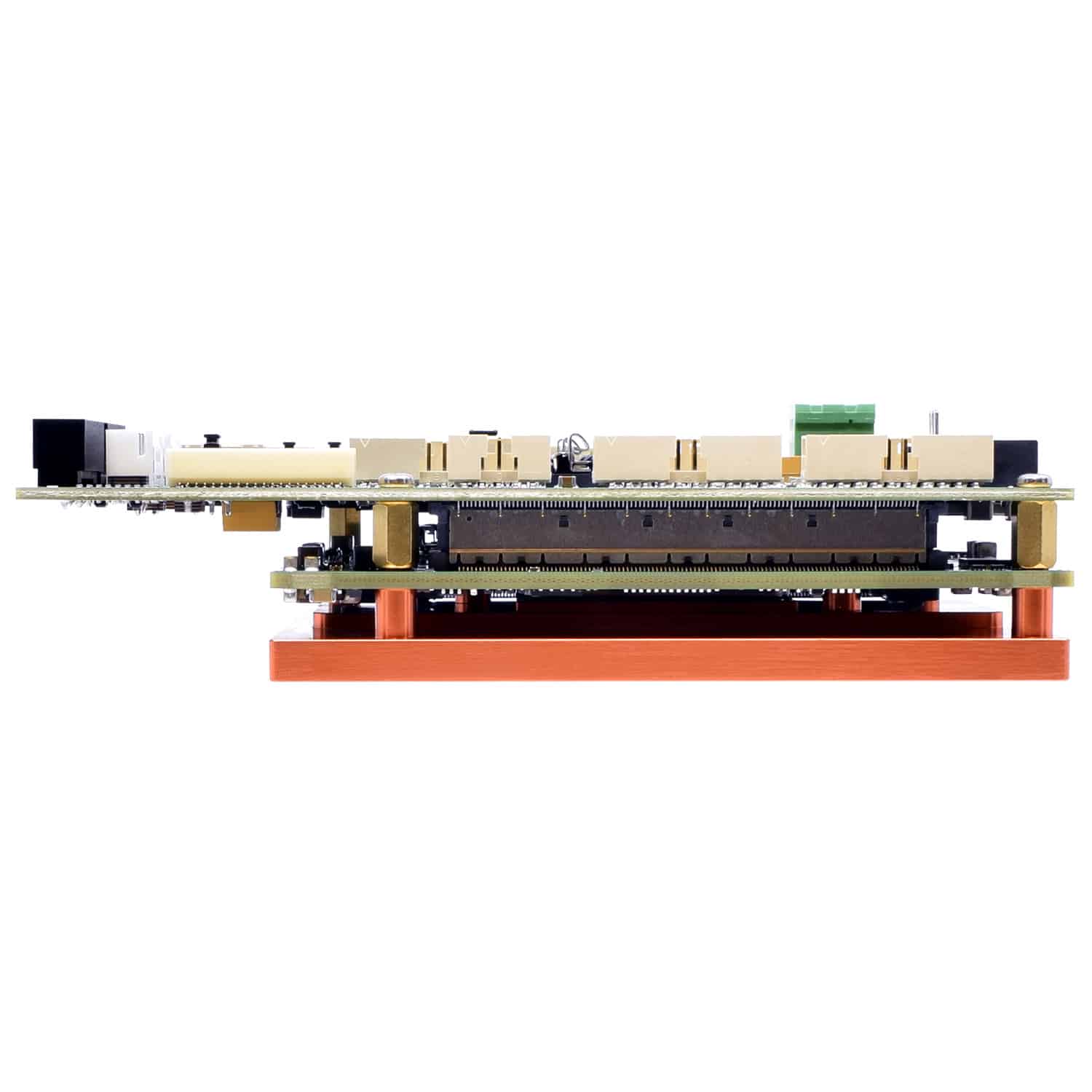

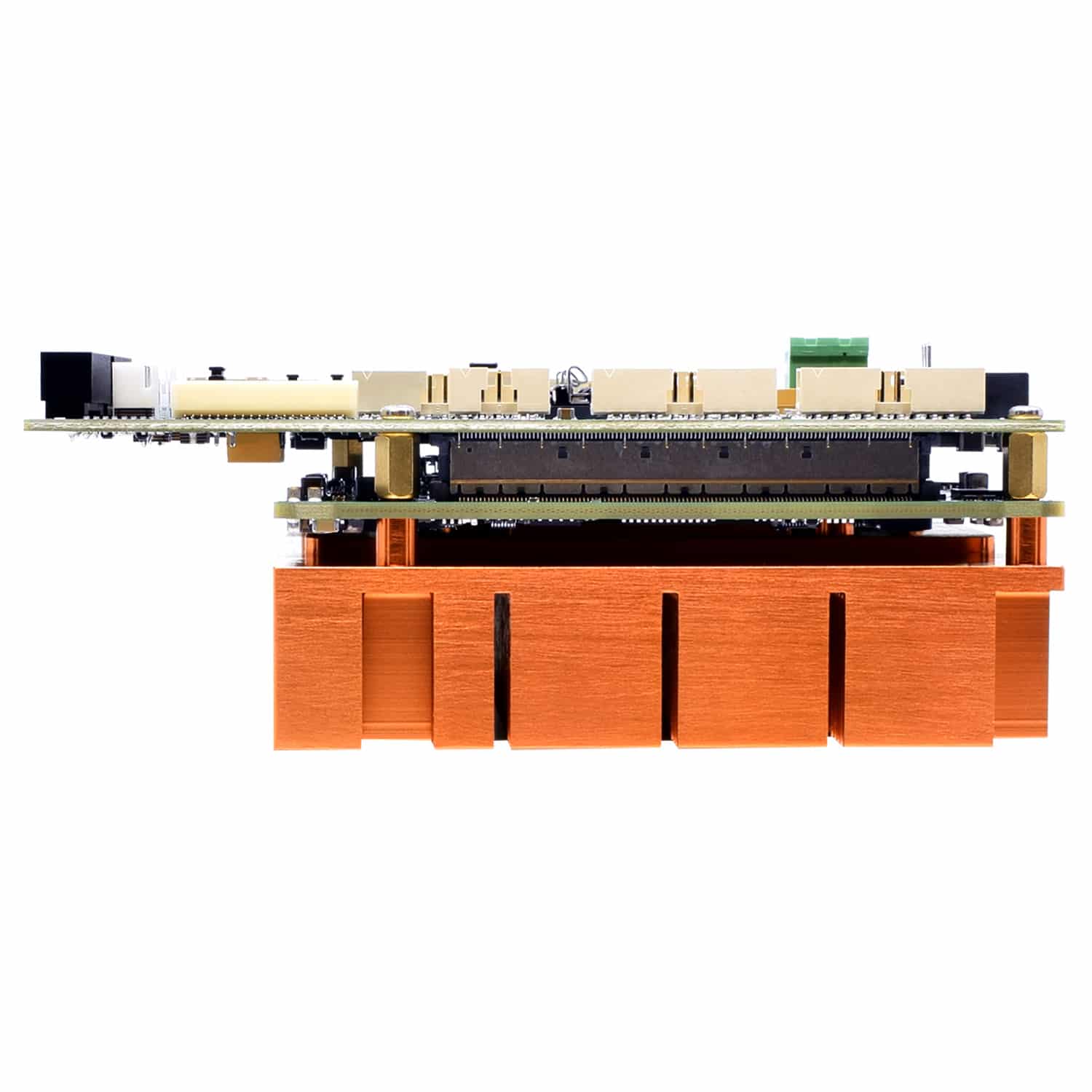

THERMAL OPTIONS	SBC-472-TCA7-1 with Heat Spreader SBC-472-TCA7-2 with Heatsink
MECHANICAL	SBC-472-TCA7-1 – Dimensions: 125mm x 95mm x 34.95mm – Weight: 355g / 12.5oz SBC-472-TCA7-2 – Dimensions: 125mm x 95mm x 52mm – Weight: 425g / 15oz MTBF: 717128 hrs
ENVIRONMENTAL	Industrial Temperature (w/ -3 Heatsink + Fan): -40°C to +85°C (-40ºF to +185°F)¹ Commercial Temperature: 0°C to +60°C (32ºF to +140°F)¹ Humidity: 5% to 95% non-condensing CE Compliant RoHS Compliant ¹ With model -2 or other adequate thermal solution
ORDER INFORMATION	SBC-472-TCA7-1: With Heat Spreader SBC-472-TCA7-2: With Heatsink SODIMM260-4-3200-16GB (16GB RAM) or SODIMM260-4-3200-32GB (32GB RAM) CBL-SET-472-CNT-1
