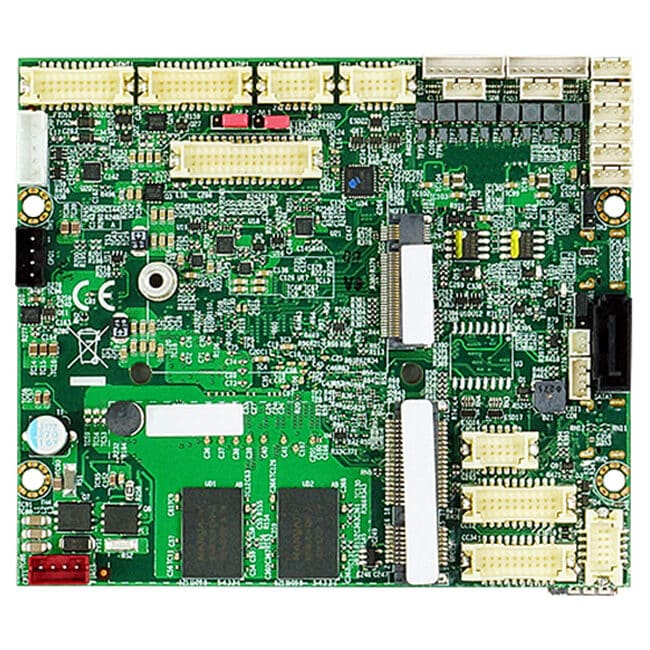

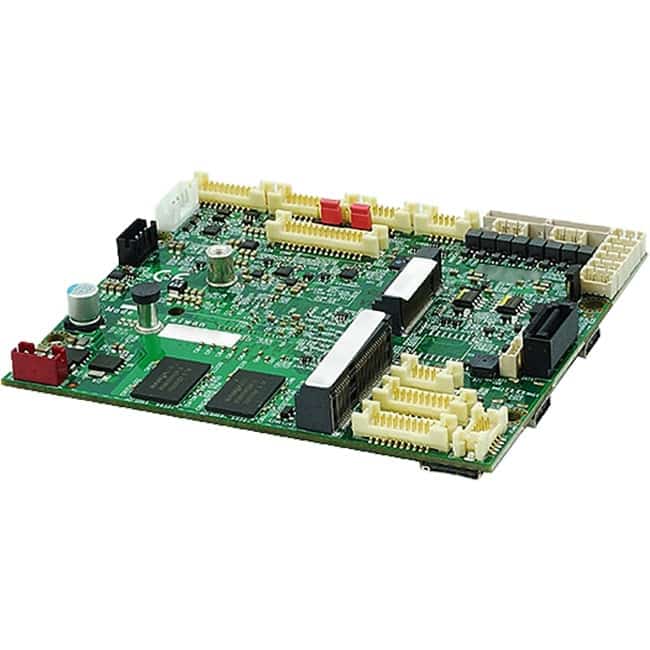

SBC25-C466 2.5” SBC with Intel® Atom® x6413E Processor

Description

WINSYSTEMS’ SBC25-C466 single board computer packs an impressive feature set into a small form factor 2.5-inch SBC (3.46” x 4.02”). The SBC is based on the Intel® Atom® x6413E Processor and is a perfect choice for applications requiring low power and Intel performance in a small form factor package with industrial connectors and I/O.

The compact all-in-one SBC25-C466 SBC is fully compatible with industry standards featuring technical enhancements for industrial applications and high reliability. It can run Microsoft’s Windows 10 IoT Enterprise, Linux, and real-time operating systems (RTOS). The SBC25-C466 from WINSYSTEMS is a very compact, PC-compatible single board computer that is a perfect fit for applications in UAV, energy, medical diagnostics, and industrial control.

Features

Quality Certified
Lifetime Support
Extended Temperature
SKU: SBC25-C466 Categories: ,
Features
Processor

Quad-Core Intel® Atom® x6413E at 1.5GHz

Memory

8GB LPDDR4 3200MHz

Storage

1x SATA port

1x M.2 B Key with SATA support

Display

Intel’s 10th generation (Gen 10) graphics and media encode/decode engine supports DirectX 12.1 & OpenGL 4.5

Dual, simultaneous video output support
− HDMI
− eDP
− LVDS (Supports 48bits / 2 channel LVDS up to 1920 x 1080 resolution

Touch Screen: Onboard USB touch controller

Network Interface

2x 2.5 GBit Intel i225V Ethernet controllers
− Supports Wake on LAN on both channels
− Status & Activity LEDs for both Ethernet controllers
− PXE support through BIOS

Onboard I/O

1x RS-232/422/485, 3x RS-232 serial ports

5x USB 2.0 internal headers

1x USB 3.2 Gen 1 (type C)

4x Digital inputs

4x Digital outputs

SMBus

Audio
− High-definition audio codec, supports line-out / mic-in
− Two-channel Class D audio amplifier

Watchdog timer adjustable from 1 second to 255 minutes

Expansion BUS

1 x mPCIe Mini-Card slot with PCIe and USB interface

1x M.2 B Key 2242/ 3042 slot with SATA, USB 3.2 Gen 1, USB 2.0

Power

Wide Range VDC-in +9~36V

Software

Insyde UEFI BIOS

Supports Windows 10, Windows 10 IoT Enterprise, Linux, and real-time operating systems

Environmental

Operational temperature -20 to +70 C

Humidity 5 – 95%, non-condensing

Mechanical

Dimensions: 2.5” SBC
− Length: 4.02 in. (102mm)
− Width: 3.46 in. (88mm)
