| Features | |
|---|---|
| Processor | Industrial Freescale i.MX6DL |
| Operating System Compatibility | Linux, Android™ |
| Memory (RAM) | 2 GB DDR3 RAM (Soldered) |
| Video | Up to 2 Active Displays |
| Camera | 8 bit CMOS interface |
| Ethernet | 1 Gbps Wake on LAN (WOL) IEEE-1588 |
| Storage | SD/SDIO Socket (Bootable) |
| Digital I/O | 24 GPIO lines tolerant to 30V |
| Serial I/O | 1 Serial port (RS-232/422/485) up to 1 Mbps |
| Control Area Network (CAN) | Two FlexCAN Ports |
| Bus Expansion | IO60 |
| USB | 6 USB 2.0 ports |
| Audio | HDMI 1.4 Type A |
| Power | POE PD: IEEE 802.3at (Up to 25W) |
| Mechanical | Dimensions: 4 x 5.75 inches(102 x 146 mm) |
| Operating Temperature Range | -40°C to 85°C |
| Random Vibration Testing | MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis |
| Mechanical Shock Testing | MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis |

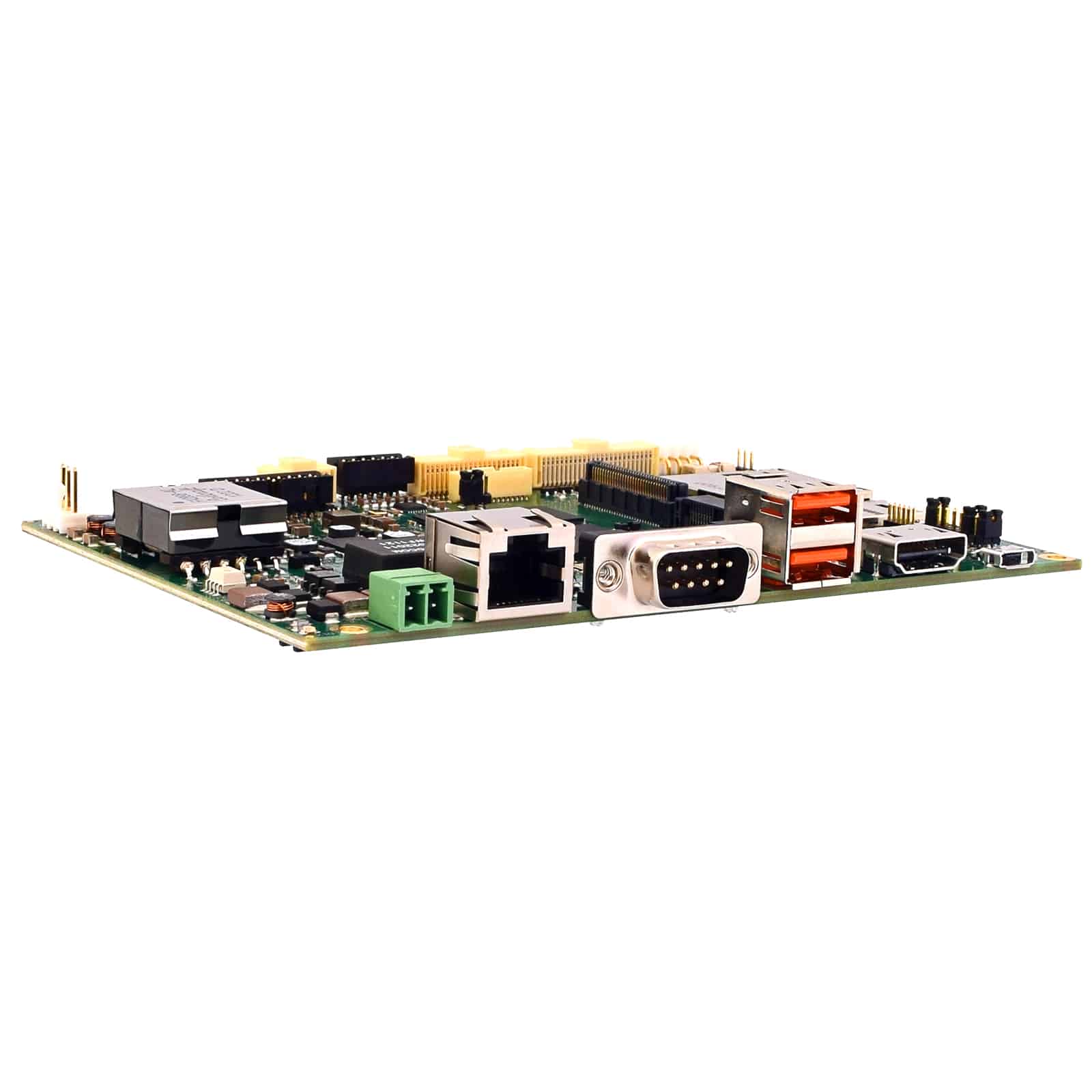

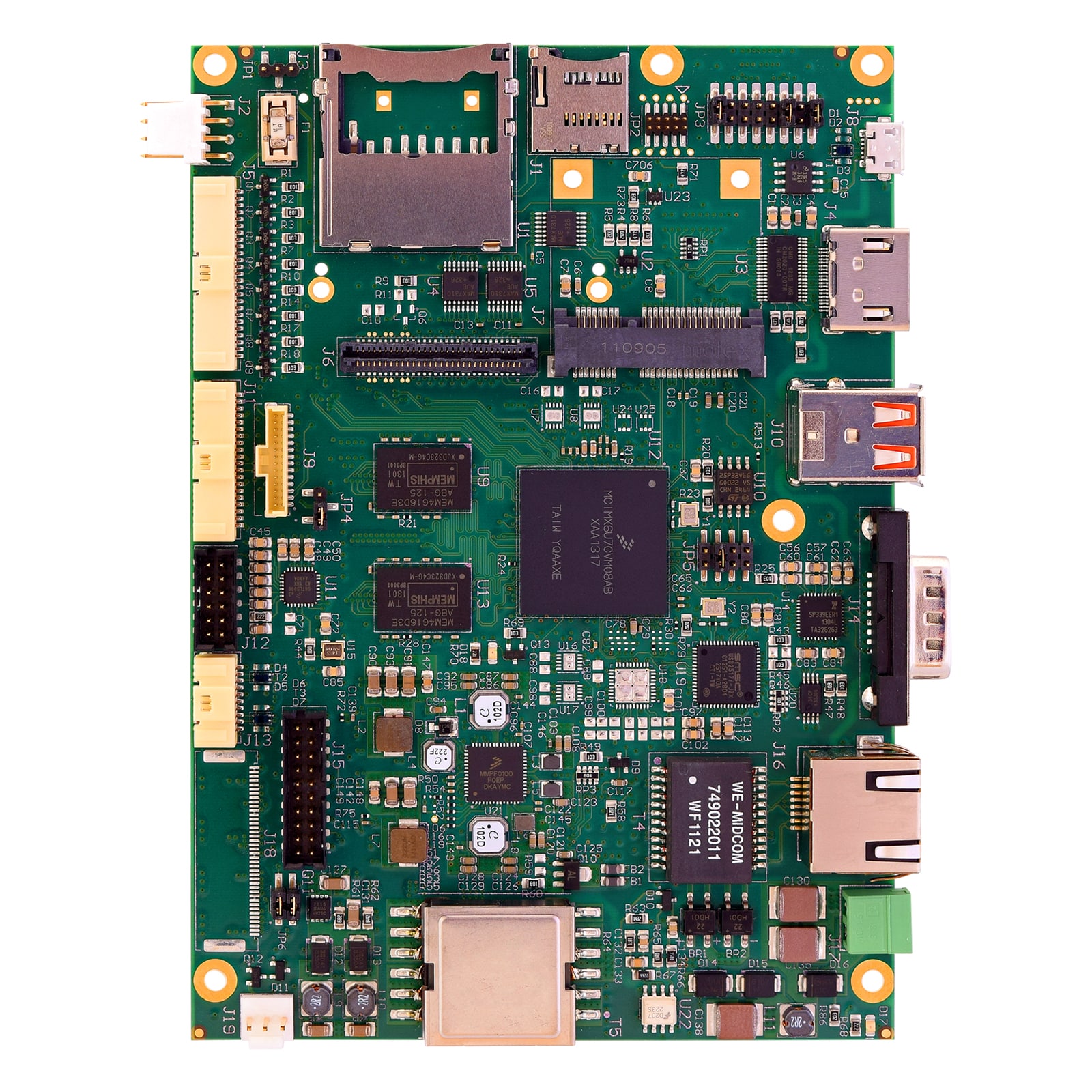

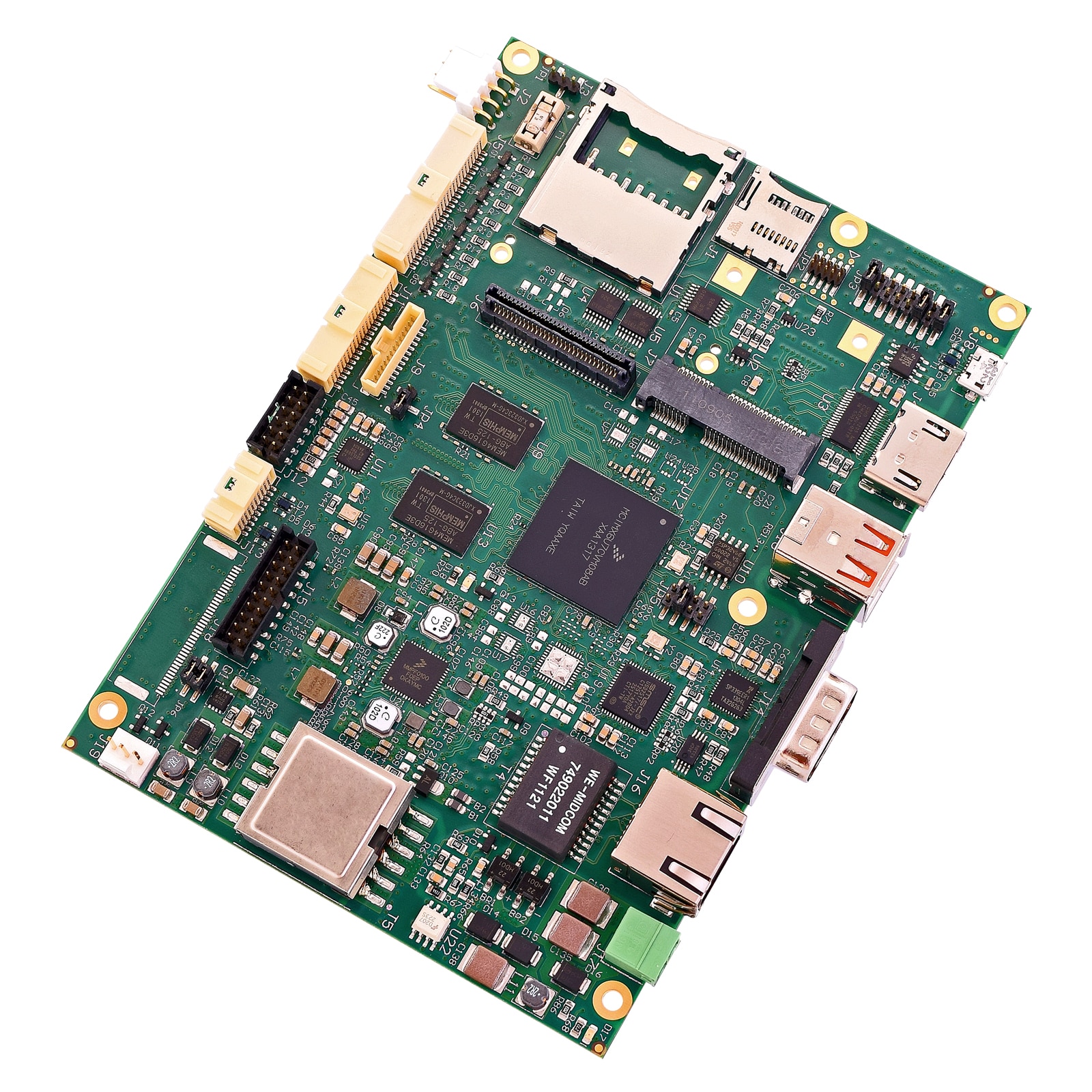

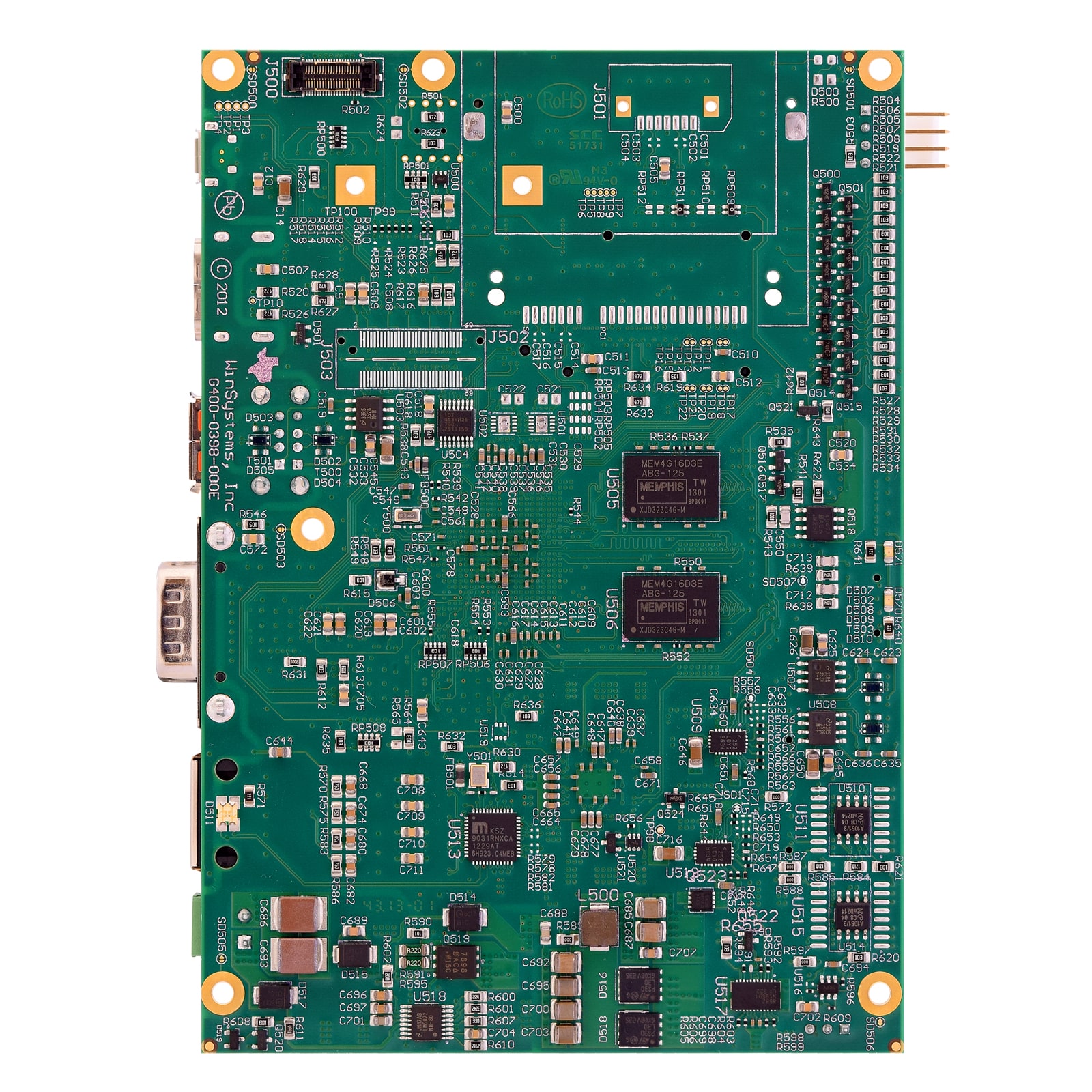

SBC35-C398DL-2-0 Industrial ARM® SBC with Dual-Core Freescale i.MX
Description
WINSYSTEMS’ SBC35-C398DL dual-core single board computer combines high performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6DL processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.
Features
- SBC35-C398DL-2-0 Datasheet (PDF)
Datasheets
- SBC35-C398DL-2-0 Product Manual (PDF)
Product Manuals
- PS-WT24-48-US | 24Watt +48V DC output power supply with US AC inlet plug
- PS-RS35-24-0 | 35W power supply +24V DC output
- CBL-LVDSB-012-18 | Video – (LVDS) Single – Ampire AM800480R3TMQWA1H, 18″
- CBL-LVDSB-009-12 | Video – (LVDS) Dual – Ampire AM800480R3TMQWA1H, 12″
- CBL-LVDSB-012-18 | Video – (LVDS) Unterminated, 14″
- CBL-USB4-002-12 | USB – Dual 2mm Molex Milli-Grid, 12″
- CBL-USB4-001-12 | USB – Dual 1mm Molex Pico-Clasp, 12″
- ADP-IO-USB-002 | Termination Board – USB, Dual Type A
- CBL-SER2-202-12 | Serial – Dual DB9, 12″
- CBL-DIO24-002-12 | Digital I/O – 50-pin IDC Female, 12″
- CBL-DIO24-001-12 | Digital I/O – Molex Pico-Clasp, 12″
- CBL-AUDIO2-202-12 | Audio – Four 3.5mm Mini-Jacks (Line In, Line Out, Headphone and Mic), 12″
- BAT-LTC-E-36-27-1 | External 3.6V, 2400 mAH battery
- BAT-LTC-E-36-16-1 | External 3.6V, 1650 mAH battery
