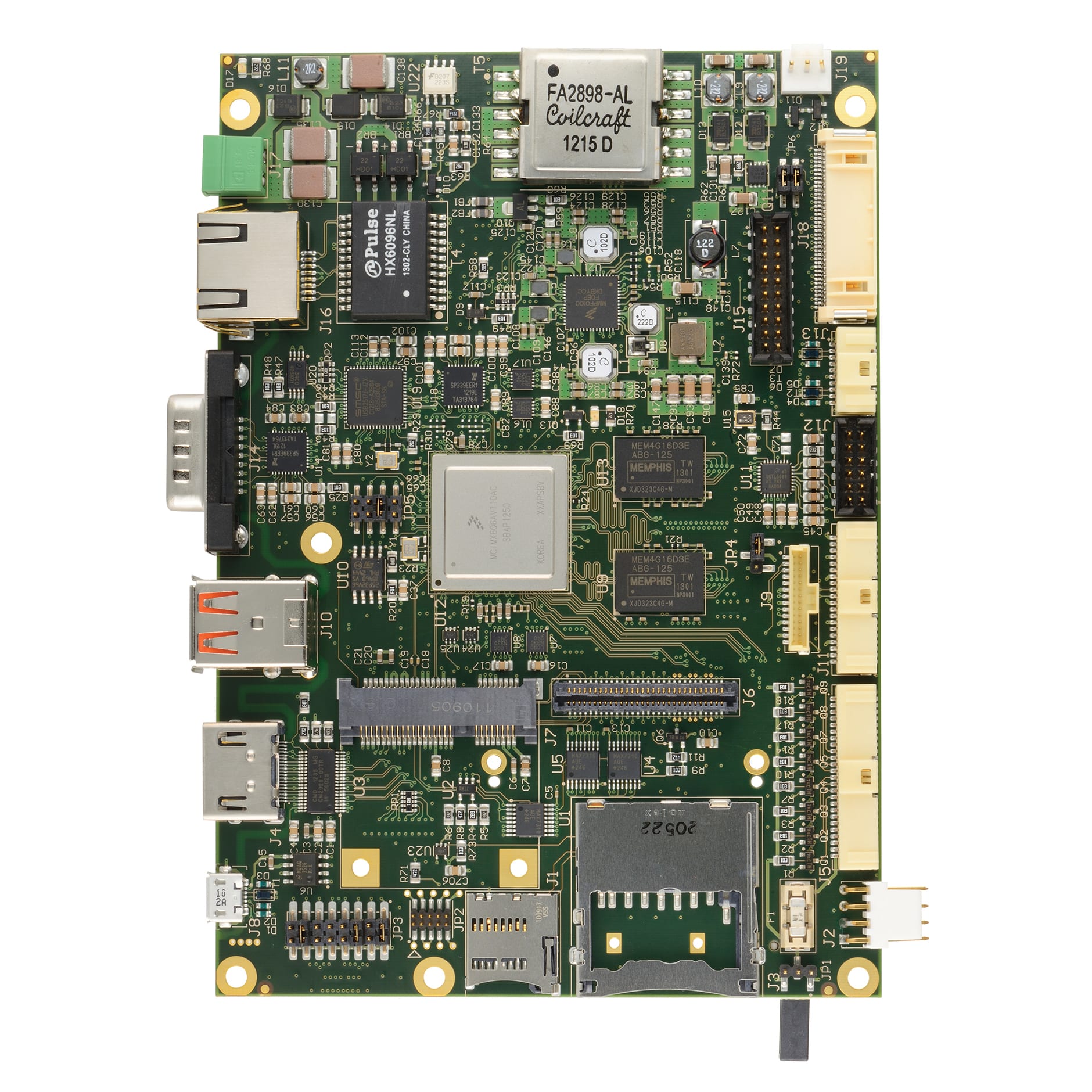

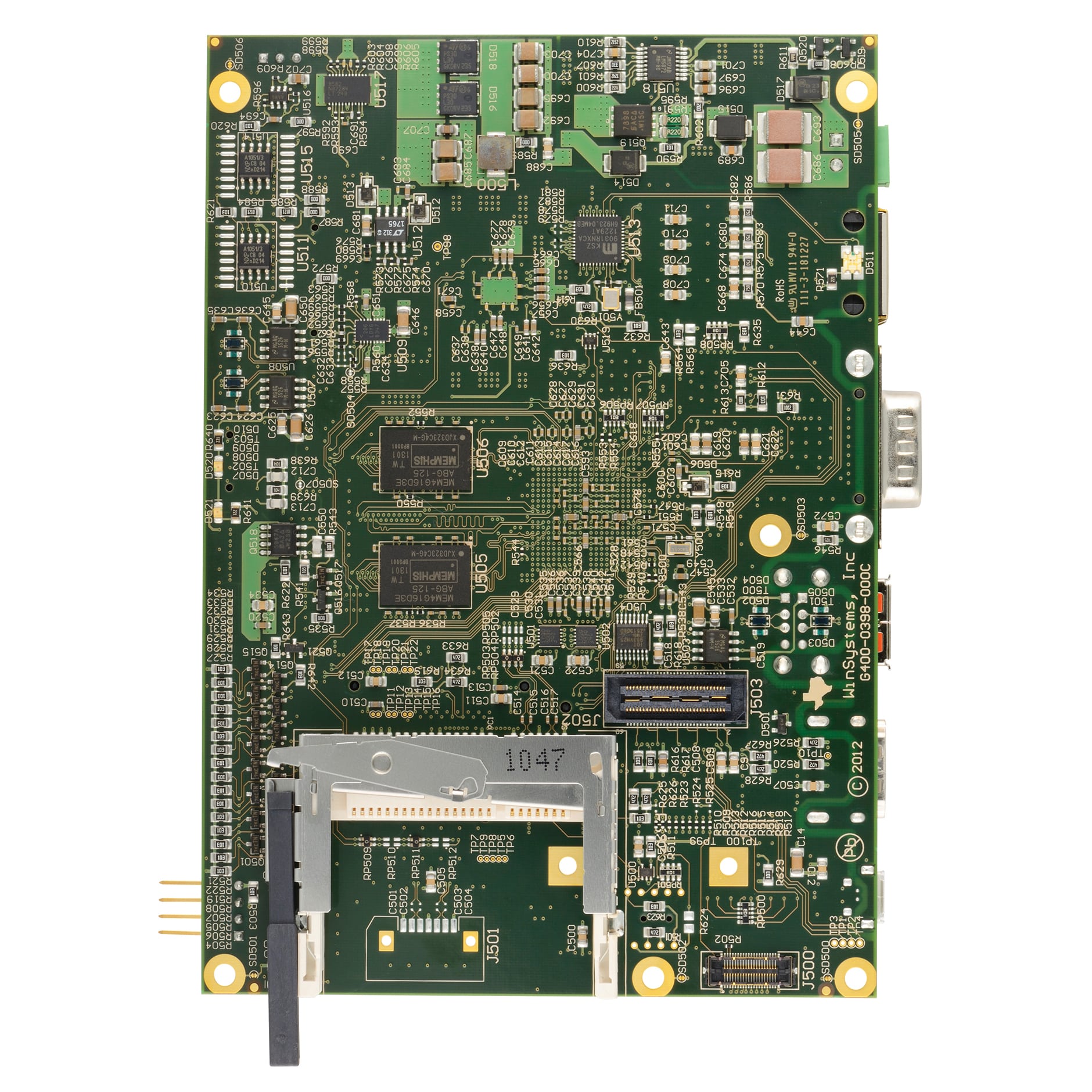

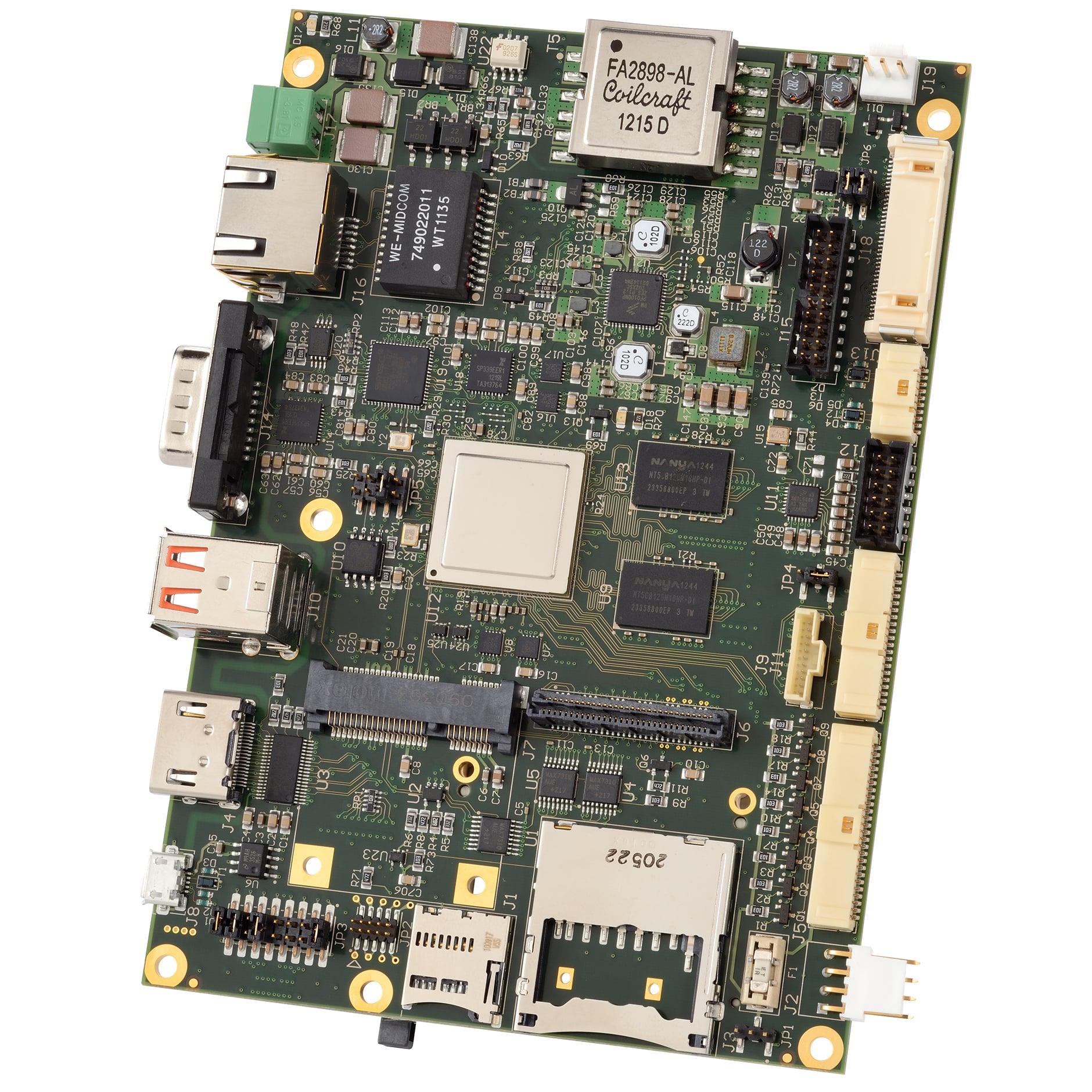

SBC35-C398Q-2-0 Quad-Core Freescale i.MX 6Q Cortex A9 Industrial ARM® SBC

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ SBC35-C398Q quad-core single board computer combines high-performance multimedia graphics with a rich mix of industrial I/O. The Freescale i.MX 6Q processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

MADE IN THE USA

Features

Quad-core Freescale® i.MX 6Q Cortex A9 Industrial ARM CPU @ 800 MHz
2GB of Soldered DDR3 RAM
High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
Multiple Video Interfaces: HDMI 1.4, Two LVDS, and MIPI
MIPI Capture/Display CMOS Camera Input
Gigabit Ethernet with IEEE-1588™
Six USB 2.0 ports and one USB On-The-Go Port
Two CAN Bus ports, Five High Speed Serial ports
24 lines GPIO tolerant up to 30 VDC
CFast, SD/SDIO, and MicroSD sockets
MiniPCIe and IO60 expansion
Wide range DC or Power over Ethernet (PoE) PD Power Input
Fanless -40° to +85°C operational temperature

Features
Processor	Industrial Freescale i.MX6Q – 800 MHz – 4x ARM Cortex A9 Cores – 32KB/32KB L1, 1 MB L2 Cache
Operating System Compatibility	Linux, Android™
Memory (RAM	2 GB DDR3 RAM (Soldered) 256 KB Embedded SRAM
Video	Up to 3 Active Displays HDMI 1.4 Type A (HD1080p60) Two Channel LVDS (2048X1536 or 1280X720)
Camera	8 bit CMOS interface
MIPI	Capture and display supported
Ethernet	1 Gbps Wake on LAN (WOL) IEEE-1588
Storage	CFast Socket (Bootable) SD/SDIO Socket (Bootable) MicroSD Socket (Bootable)
Digital I/O	24 GPIO lines tolerant to 30V
Serial I/O	2 Serial ports (RS-232/422/485) up to 1 Mbps 3 Serial ports (RS-422/485) up to 5 Mbps
Control Area Network (CAN)	Two FlexCAN Ports
Bus Expansion	IO60 MiniPCIe
USB	6 USB 2.0 ports 1 USB On-The-Go
Audio	HDMI 1.4 Type A Stereo audio supported
Power	POE PD: IEEE 802.3at (Up to 25W) DC Input: +10 to +50 VDC
Mechanical	Dimensions: 4 x 5.75 inches(102 x 146 mm) Weight: 5.0 oz (142.2g) PCB Thickness: 0.078″
Operating Temperature Range	-40°C to 85°C
Random Vibration Testing	MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis (CFast card not installed)
Mechanical Shock Testing	MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis (CFast card not installed)

Datasheets

SBC35-C398Q-2-0 Datasheet (PDF)

Product Manuals

SBC35-C398Q-2-0 Product Manual (PDF)
