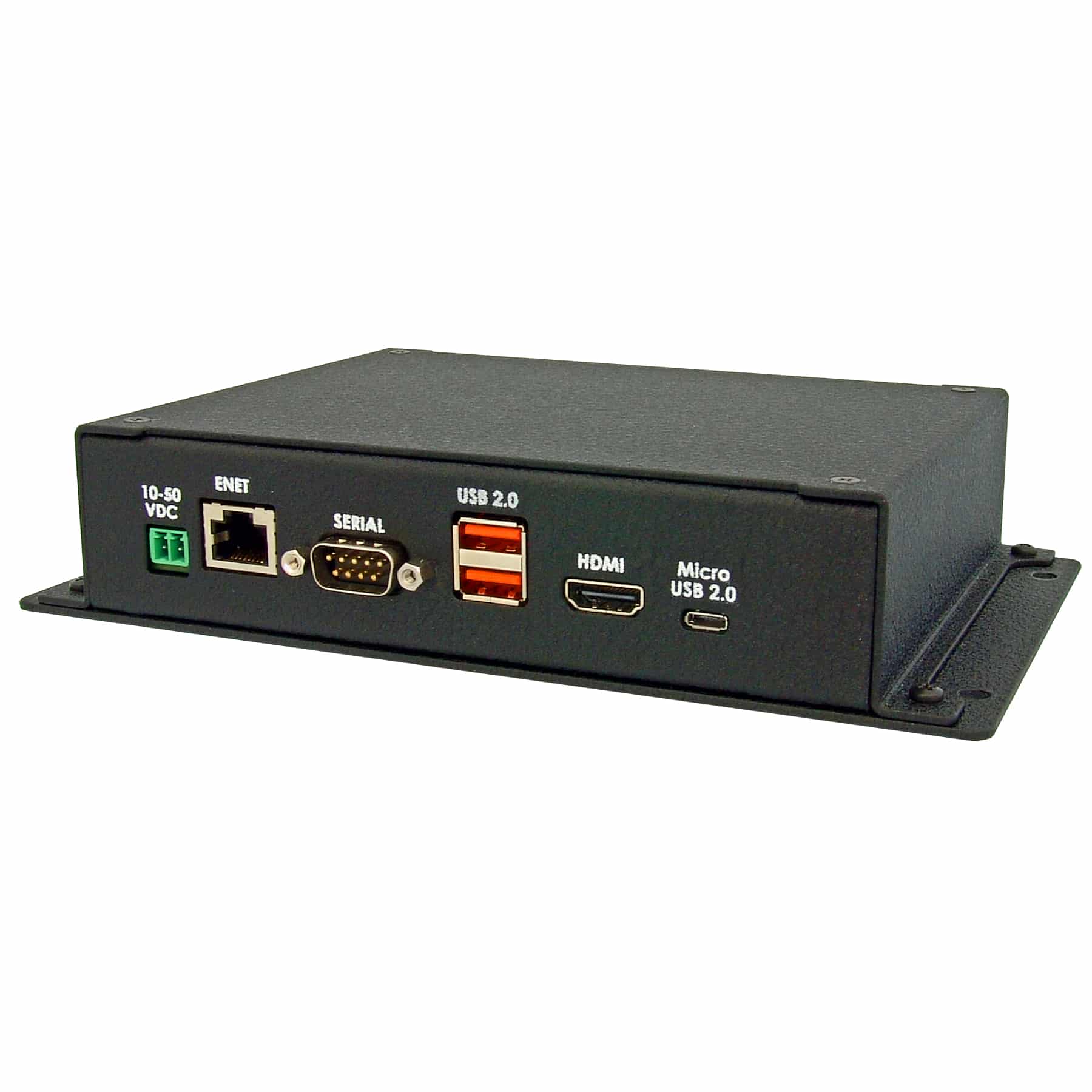

SYS-398D-2G-0 Dual-Core NXP® i.MX 6DL Cortex A9 Industrial ARM® Computer

No longer in production

This product is listed to provide access to its documentation.

WINSYSTEMS’ SYS-C398DL single board computer combines high-performance multimedia graphics with a rich mix of industrial I/O. The NXP i.MX 6DL processor’s integrated power management provides excellent efficiency and allows operation from -40° to +85°C without active cooling. It is designed for demanding graphical applications in security, transportation, medical, and digital signage.

DATA SHEET PRODUCT INFO

ROHS COMPLIANT

MADE IN THE USA

Features

Dual-core NXP® i.MX 6DL Industrial ARM® CPU @ 800 MHz
2GB of Soldered DDR3 RAM
High-Performance Video and Graphics: HD1080p, 3D, and 2D HW Accelerators
Multiple Video Interfaces: HDMI 1.4 and Two LVDS
Gigabit Ethernet with IEEE-1588™
Six USB 2.0 ports and one USB On-The-Go Port
24 lines GPIO tolerant up to 30 VDC
SD/SDIO and MicroSD sockets
MiniPCIe and IO60 expansion
Wide range DC or Power over Ethernet (PoE) PD Power Input
Fanless -40° to +85°C operational temperature

Features
Processor	Industrial NXP i.MX6DL – 800 MHz – ARM Cortex A9 Core – 32KB/32KB L1, 512 KB L2 Cache
Operating System Compatibility	Linux, Android™
Memory (RAM)	2 GB DDR3 RAM (Soldered) 256 KB Embedded SRAM
Video	Up to 2 Active Displays HDMI 1.4 Type A (HD1080p30) Two Channel LVDS (1366×768)
Ethernet	1 Gbps Wake on LAN (WOL) IEEE-1588
Storage	SD/SDIO Socket (Bootable) MicroSD Socket (Bootable)
Digital I/O	24 GPIO lines tolerant to 30V
Serial I/O	1 Serial port (RS-232/422/485) up to 1 Mbps
Bus Expansion	IO60
USB	6 USB 2.0 ports 1 USB On-The-Go
Audio	HDMI 1.4 Type A Stereo audio support
Power	POE PD: IEEE 802.3at (Up to 25W) DC Input: +10 to +50 VDC
Mechanical	Dimensions: 4 x 5.75 inches(102 x 146 mm) Weight: 4.2 oz (113.4g) PCB Thickness: 0.078″
Operating Temperature Range	-40°C to 85°C
Random Vibration Testing	MIL-STD-202G, Method 214A, Condition D 0.1g/Hz (11.95g rms), 20 minutes per axis, 3 axis (CFast card not installed)
Mechanical Shock Testing	MIL-STD-202G, Method 213B, Condition A 50g half-sine, 11 ms duration per axis, 3 axis (CFast card not installed)

Datasheets

SYS-398D-2G-0 Datasheet (PDF)

Product Manuals

SBC35-C398DL-1-0 Product Manual (PDF)

Product Change_Notice

Product EOL Notice
