SYS-405Q-TCA7 Fanless Industrial Computer with Intel Atom® x6425RE Quad-Core Processor

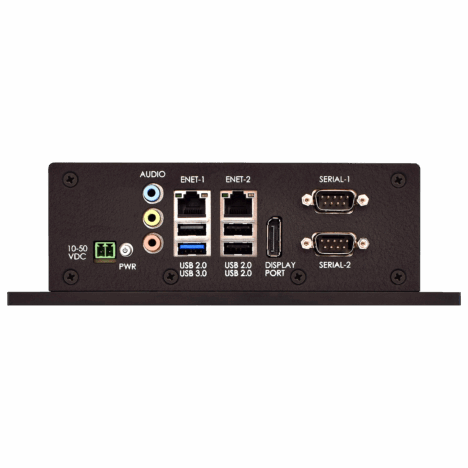

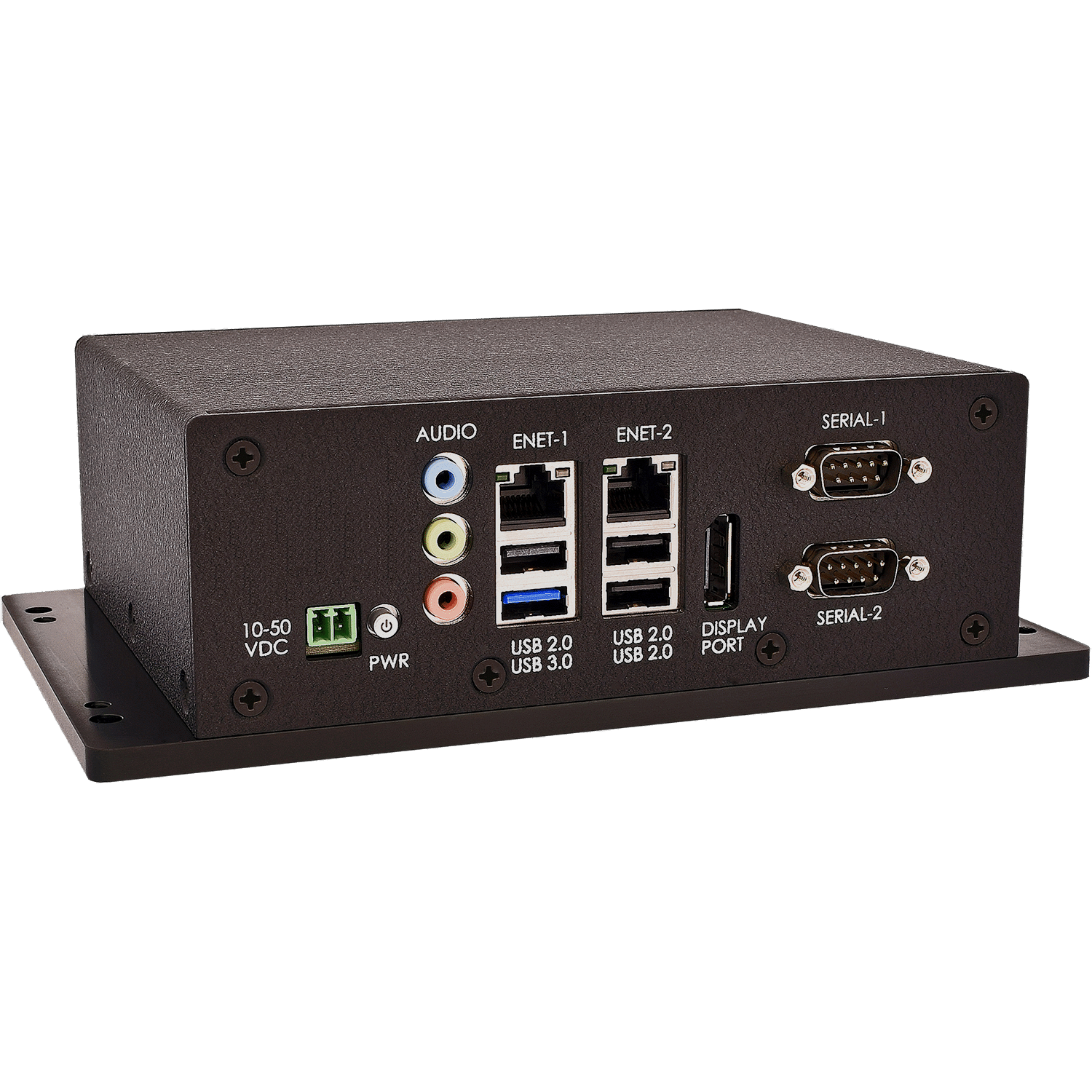

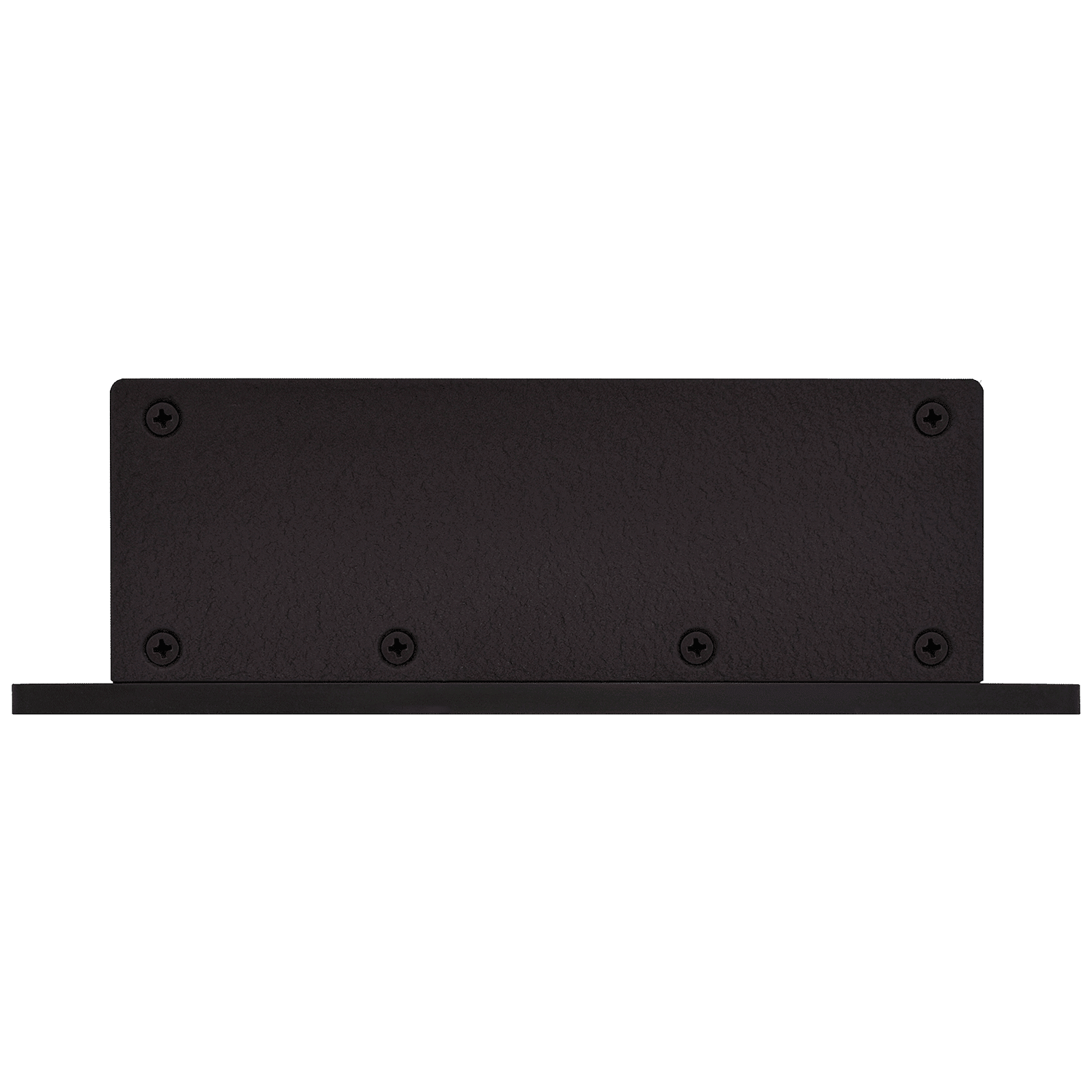

The SYS-405Q-TCA7 is a rugged industrial system capable of operating at extended temperatures from -40° to +85°C without requiring a fan or heat pipe. It features the Intel Atom® x6425RE quad-core 1.9 GHz processor, TPM 2.0 hardware security, and is protected by a rugged enclosure. External connectivity includes dual Gigabit Ethernet ports, two RS-232/422/485 serial ports, a Display port supporting 4K UltraHD Video, one USB 3.0 port, and three USB 2.0 ports. It also accommodates expansion with 2x full-size Mini PCIe cards, of which one is used if ordering the dual display configuration option. This industrial computer supports Linux Ubuntu, Windows 10 IoT, Windows 11 IoT, and other x86 real-time operating systems.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

MADE IN THE USA

Features

Intel Atom® x6425RE Quad-Core 1.9 GHz Processor
16GB or 32GB DDR4 3200MHz RAM
4K UltraHD Video
Wide Range Power Input (10-50 VDC)
Fanless Wide Operating Temperature Range -40°C to +85°C
TPM 2.0 Hardware Security
Compatible with Linux Ubuntu, Windows 10/11 IoT, other x86 RTOS

Features
System	Processor: Intel Atom x6425RE Quad-Core 1.9 GHz Processor 1.5 MB cache, 12W Ethernet: 2x Gigabit Ethernet ports (Front Panel I/O) RAM: DDR4 3200MHz RAM (16GB or 32GB) BSP UBOOT Software: Custom configurable UEFI-based AMI BIOS Watchdog Timer: Adjustable from 1 second to 255-minute reset Security: Trusted Platform Module (TPM) 2.0 Enabled
Display Support	Video Output: 1x DisplayPort Resolution: 4K UltraHD Option: Dual Display with additional HDMI port at 1028p
Storage	CFast: Up to 1TB (Certification-Ready) mSATA: Up to 2TB
Expansion	2x Full-size Mini PCIe (1 used for optional Dual Display)
I/O	USB: – 1x USB 3.0 (Front Panel I/O) – 3x USB 2.0 (Front Panel I/O) Serial: 2x RS-232/422/485 Serial ports Audio: Line-In, Line-Out, Mic-In
Operating System	Linux Ubuntu Windows 10 IoT, Windows 11 IoT Other x86 real-time OS
Power	Power Mode: AT, ATX Power Supply Voltage: Wide Range 10-50 VDC Power Connector: Phoenix Contact Terminal Block Header
Environment	Operating Temp: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 10% to 95% (non-condensing) Certification: RoHS Compliant
Mechanical	Dimensions: 8.0 in x 5.0 in x 2.5 in (203 mm x 127 mm x 63 mm) Weight: 2.65 lbs (42.4 oz), 1.2 kg Construction: Aluminum with durable coating Mounting Options: See mechanical drawings
Options	Contact WINSYSTEMS for additional options, configurations, and customization.

Datasheets

SYS-405Q-TCA Datasheet

Product Manuals

SYS-405Q-TCA7 Product Manual
