Features | |
---|---|
SYS-405S-8G-0 | Rugged embedded computer with Two Ethernet, USB 3.0, and 8GB DDR3 SDRAM |
SYS-405S-4G-0 | Rugged embedded computer with Two Ethernet, USB 3.0, and 4GB DDR3 SDRAM |
SYS-405S-2G-0 | Rugged embedded computer with Two Ethernet, USB 3.0, and 2GB DDR3 SDRAM |

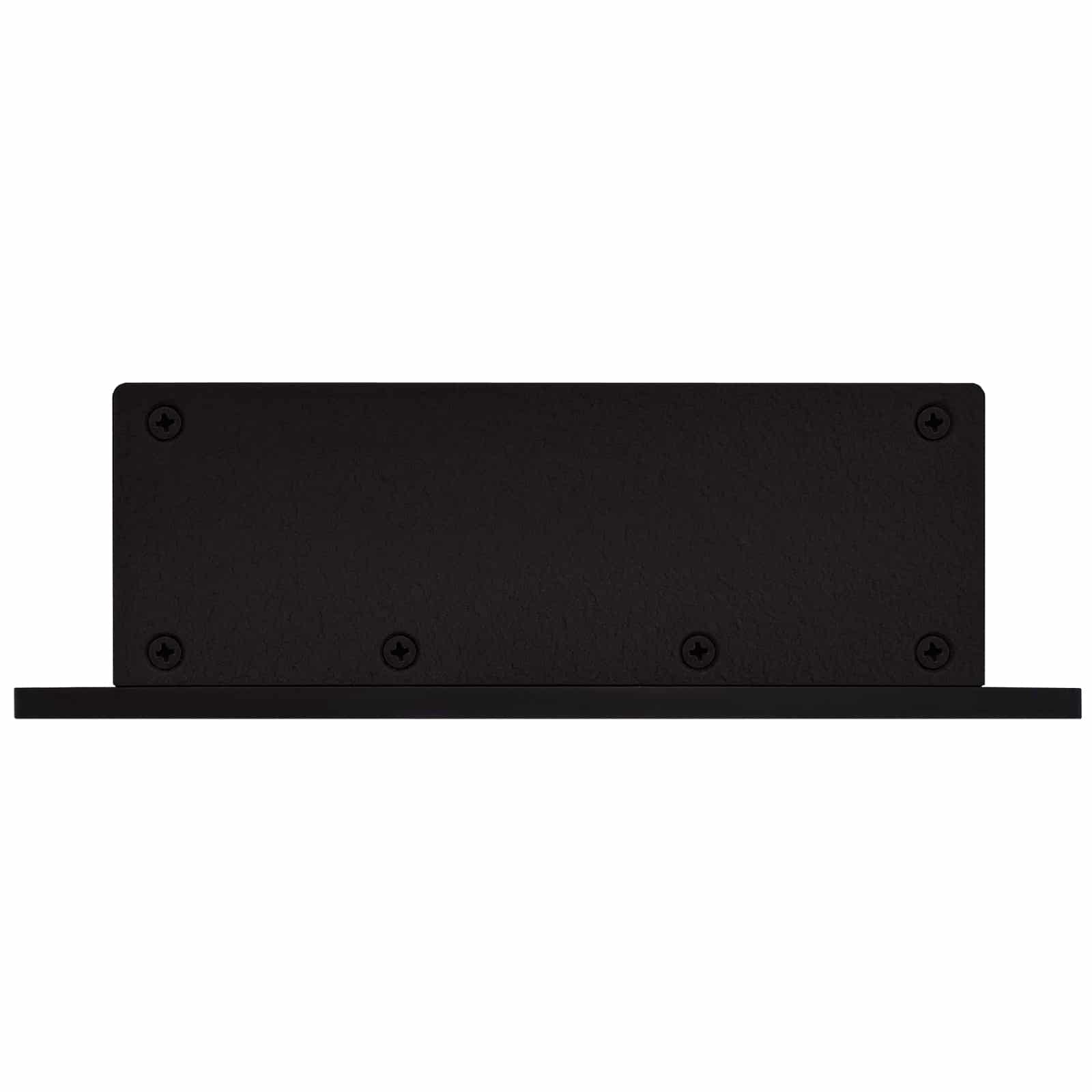

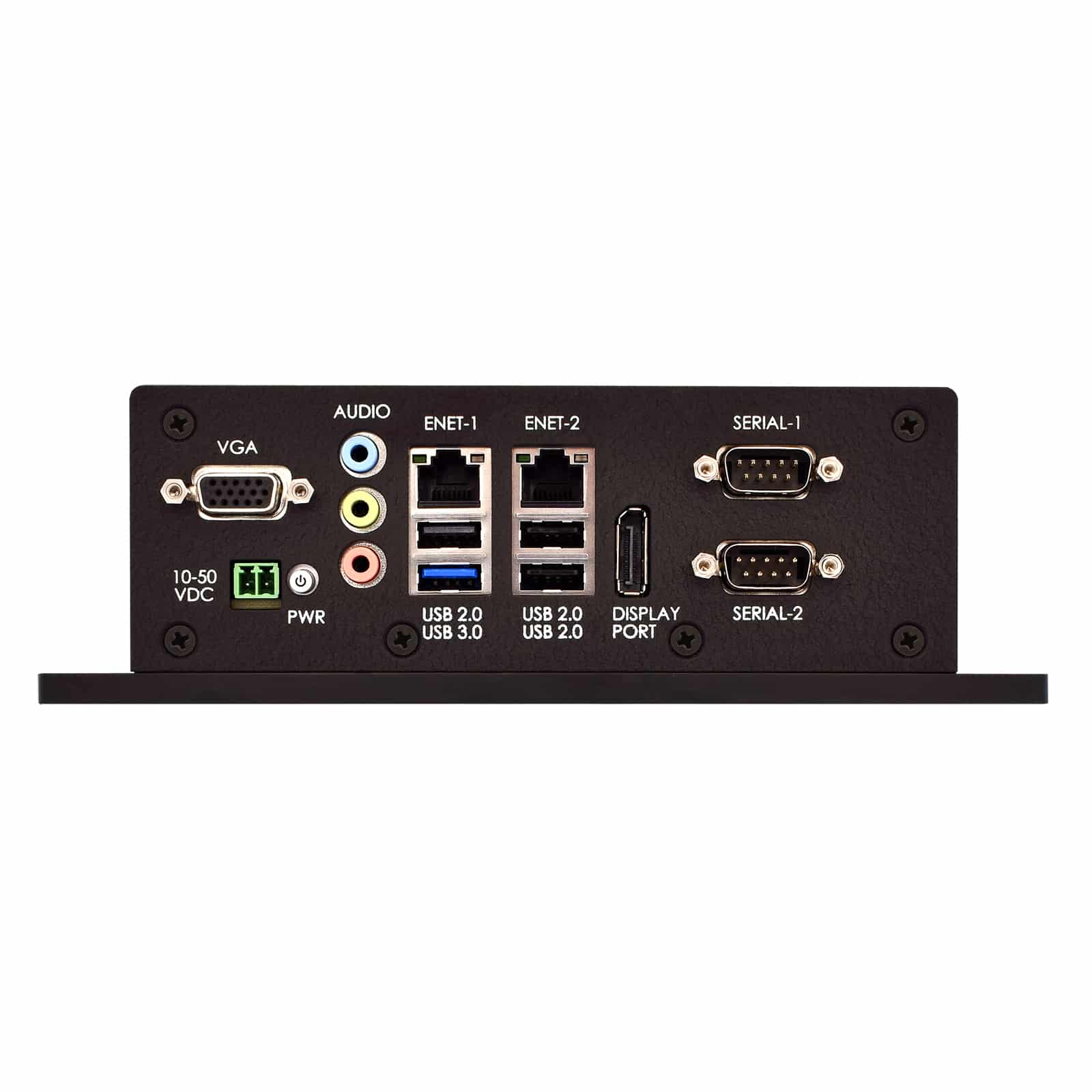

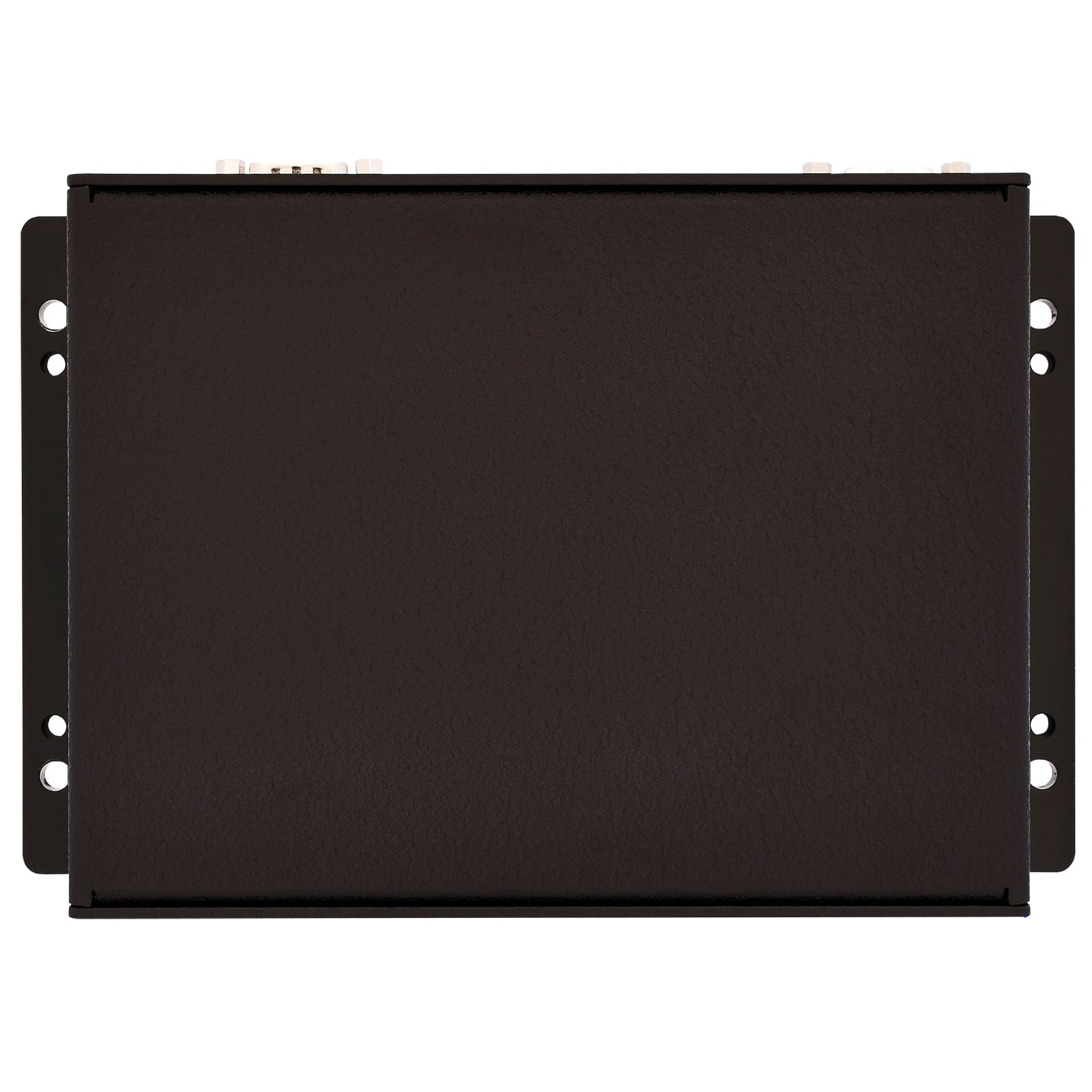

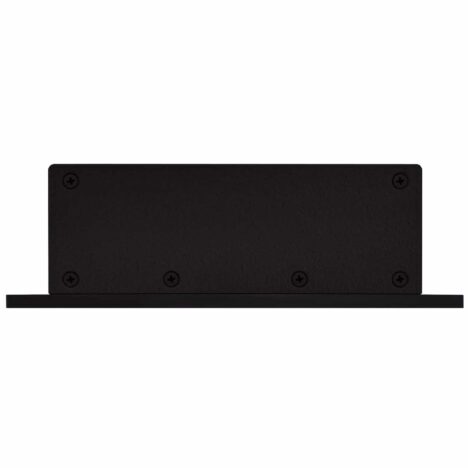

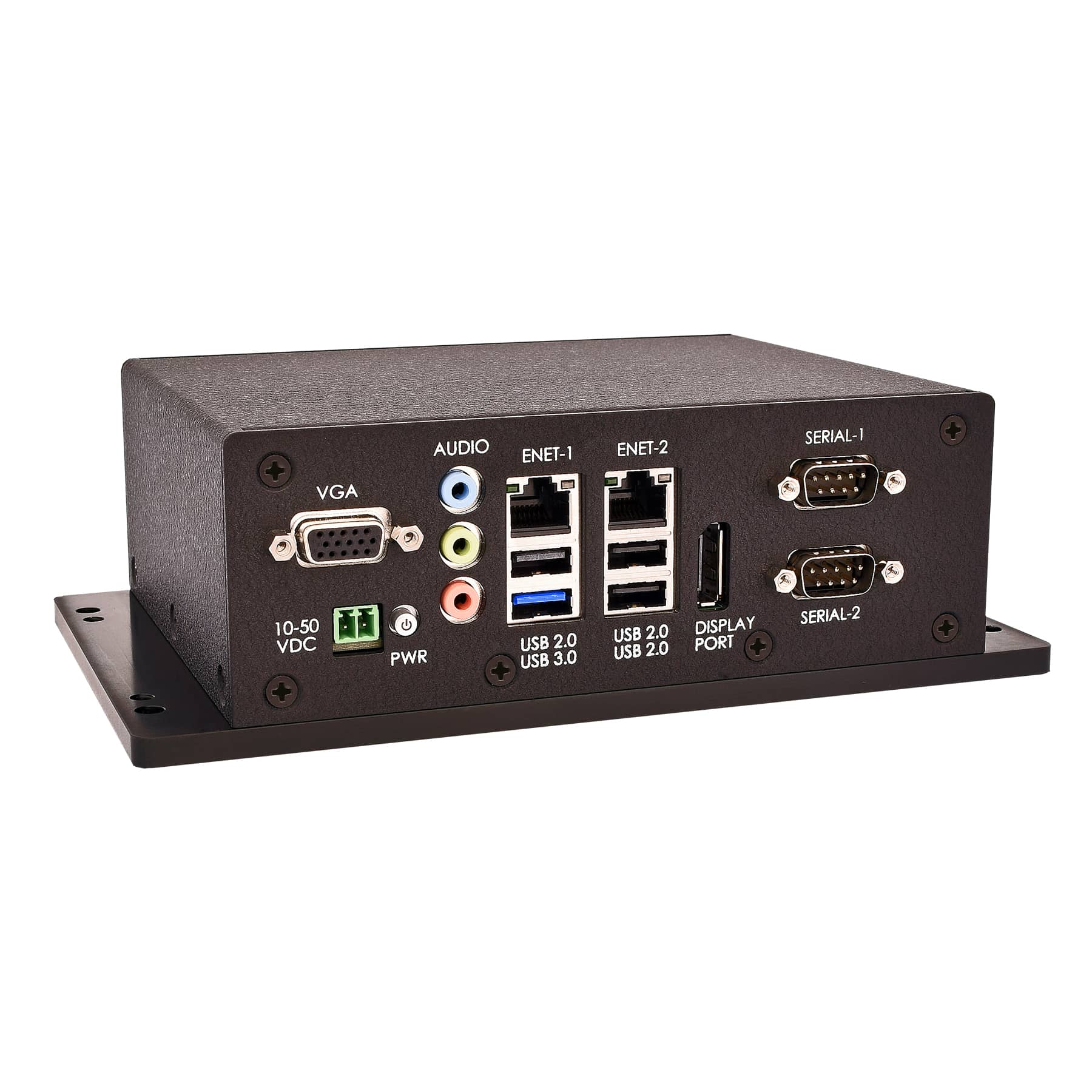

SYS-405S Industrial Intel Atom® Computer with Two Ethernet and USB 3.0
The SYS-405S is a rugged, industrial system capable of operating at extended temperatures without requiring a fan or heat-pipe. The SYS-405S is based on the quad-core Intel Atom® E3815 processor and protected by a rugged enclosure. The SYS-405S includes dual Ethernet, dual Mini PCIe, USB 3.0, serial ports with RS-232/422/485 and two independent displays via DisplayPort, and/or Analog VGA.
DATA SHEET PRODUCT INFO-40° C to +85° C
ROHS COMPLIANT

MADE IN THE USA
Features
- Intel® Dual-Core Processor (Bay Trail) Atom E3815
- Intel® Gen7 Graphics and HD Audio
- Up to 2 independent displays
- VGA, and DisplayPort
- Two 10/100/1000 Ethernet (Intel I210)
- Two serial ports (RS-232/422/485)
- Four USB ports (1x USB 3.0 and 3x USB 2.0)
- Bus Expansion
- Two MiniPCIe (one with mSATA)
- IO60 (SPI, I2C, PWM and UART)
- Bootable SATA, CFast, and mSATA
- Wide range +10 to +50V DC input
- Fanless -40° to +85°C operational temperature
- SYS-405S Datasheet (PDF)
Datasheets
- SYS-405S Product Manual (PDF)
Product Manuals
- Windows 7 32bit
- Windows 7 64bit
- Windows 8 32bit
- Windows 8 64bit
- Linux – IO60 SPI interface drivers
- Linux – IO60 I2C interface drivers
- Linux – IO60 Examples v1.1
- Linux – IO60 Examples v1.0
- Windows 7 IO60 SPI Examples
- Windows 7 IO60 I2C Examples
- Windows 7 32bit IO60 drivers
- Windows 7 64bit IO60 drivers
- Windows 10 64bit drivers
Drivers
