SYS-444Q Enclosed Fanless Industrial Embedded Computer with NXP® i.MX 8M Application Processor

The SYS-444Q is a rugged enclosed fanless embedded computer system with NXP’s i.MX 8M industrial application processor with quad-core Arm Cortex®-A53 for low-power processing. This rugged system has dual Ethernet, industrial I/O, expansion options, TPM 2.0 hardware security, and options for wireless connectivity. The processor supports industry-leading video processing along with an M4 microcontroller for real-time subsystems making it an ideal fit for industrial IoT applications requiring highly reliable performance in harsh conditions such as digital signage, industrial automation, energy management, building automation, and others. Supports Qt software development tools.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

MADE IN THE USA

Features

Performance

NXP. i.MX 8M Industrial Processor @ 1.3 GHz
Quad-Arm Cortex®-A53
Cortex-M4 core processor for low-power processing
Up to 4GB LPDDR4 RAM

Environment

-40°C to +85°C Operating Temperature Range
Wide Range Power Input (9 – 36 DC)

Connectivity and I/O for Embedded Systems

2x Gigabit Ethernet (GbE)
1x USB 3.1 Gen 1
3x USB 2.0
2x RS-232/422/485 Serial ports
6x General Purpose Input/Output (GPIO)
1x MIPI-CSI (4-Lanes)
1x SPI bus
1x I2C bus
HD Audio Interface

Graphics Support

HDMI output with 4K UltraHD resolution and HDR capability
Single-channel LVDS output with backlight

Storage

Up to 32GB onboard eMMC
MicroSD Socket

Expansion Options

Full-size PCIe Mini Card (mPCIe)

SPECIFICATIONS
DOCUMENTATION

Features
Processor	NXP® i.MX 8M industrial processor with 1.3 GHz quad-core Arm Cortex®-A53 for low-power processing
OS Compatibility	Linux, Android
Memory	Embedded LPDDR4 (up to 4GB)
Display	HDMI 2.0a – 4096 x 2160 at 60 Hz – HDR10 Single-channel LVDS output with backlight (18 and 24 bpp color panel support) Hardware acceleration utilized for video playback
Storage	eMMC MicroSD

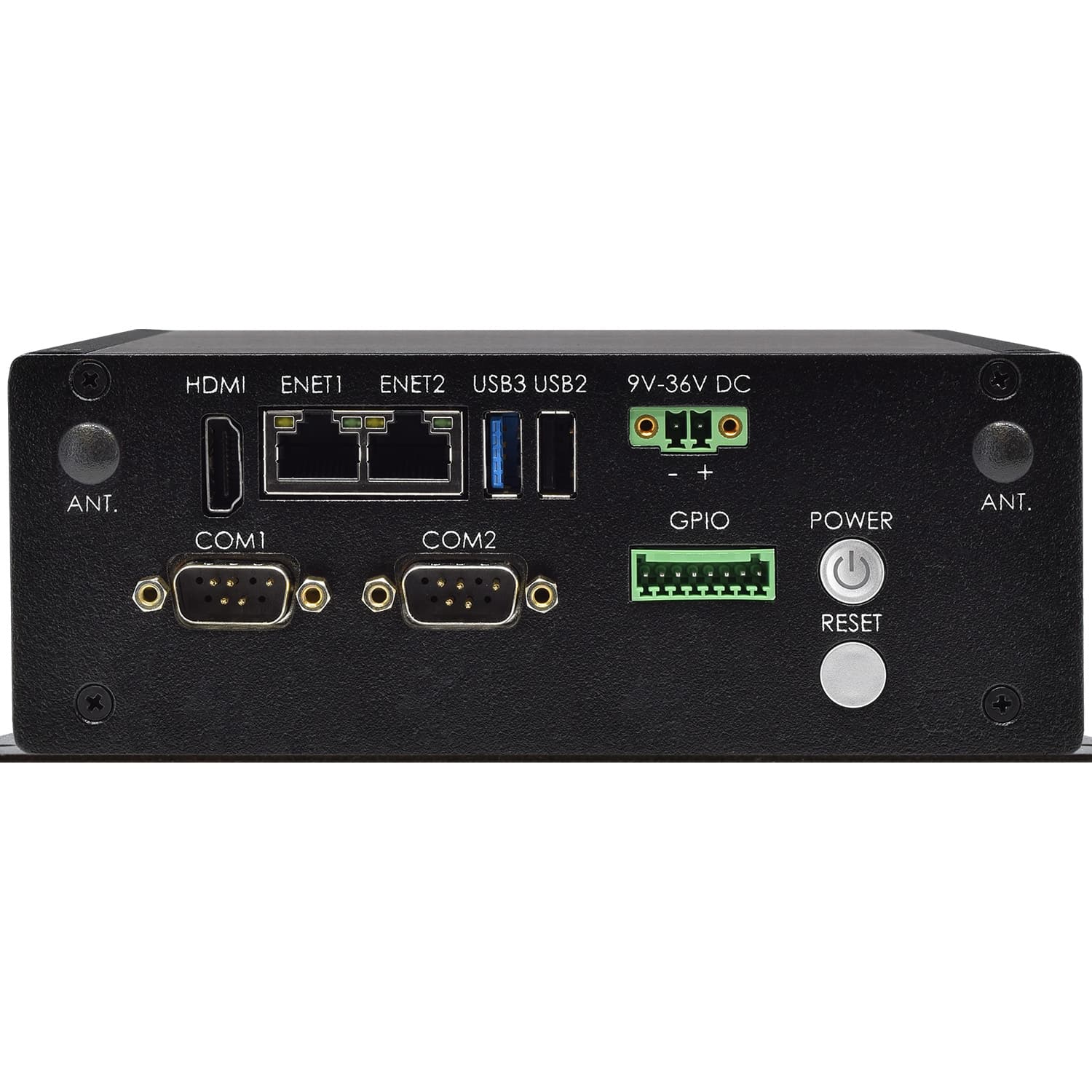

Network Interface	2x Gigabit Ethernet ports (Front Panel I/O)
Onboard I/O	1x USB 3.1 Gen 1 (Front Panel I/O) 3x USB 2.0 (1x Front Panel I/O) 2x RS-232/422/485 Serial ports 8x General Purpose Input/Output (GPIO) 1x MIPI-CSI (4-Lane) 1x SPI bus 1x I2C bus HD Audio Interface (Line Out, Line In, Mic In)
Expansion BUS	Full-size PCIe Mini Card (mPCIe)
Power	Wide power input: +9 to 36 V DC Power usage: Dual Processor: ITX-P-C444D-2-16 = 7.34 W Quad Processor: ITX-P-C444Q-2-16 = 7.65 W
Environmental	Operational from -40°C to +85°C (-40°F to +185°F) C E and RoHS compliant

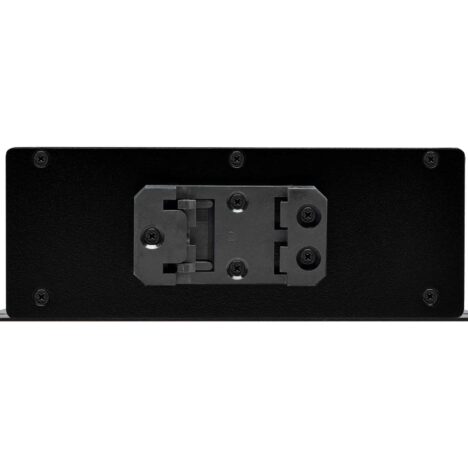

Mechanical	Dimensions: 6.5 in x 4.5 in x 2.5 in (165 mm x 11.3 mm x 3.5 mm) Weight: 1.53 lbs (24.5 oz), 695 g Enclosure: Extruded aluminum with heavy-duty metal Mounting Options: Wall / Side / VESA / DIN-Rail (optional)
Additional Features	Hardware security – Trusted Platform Module (TPM) 2.0 enabled Watchdog timer adjustable from 1 second to 255-minute reset C E, RoHS compliant Backlight power supported TXCO RTC clock/calendar

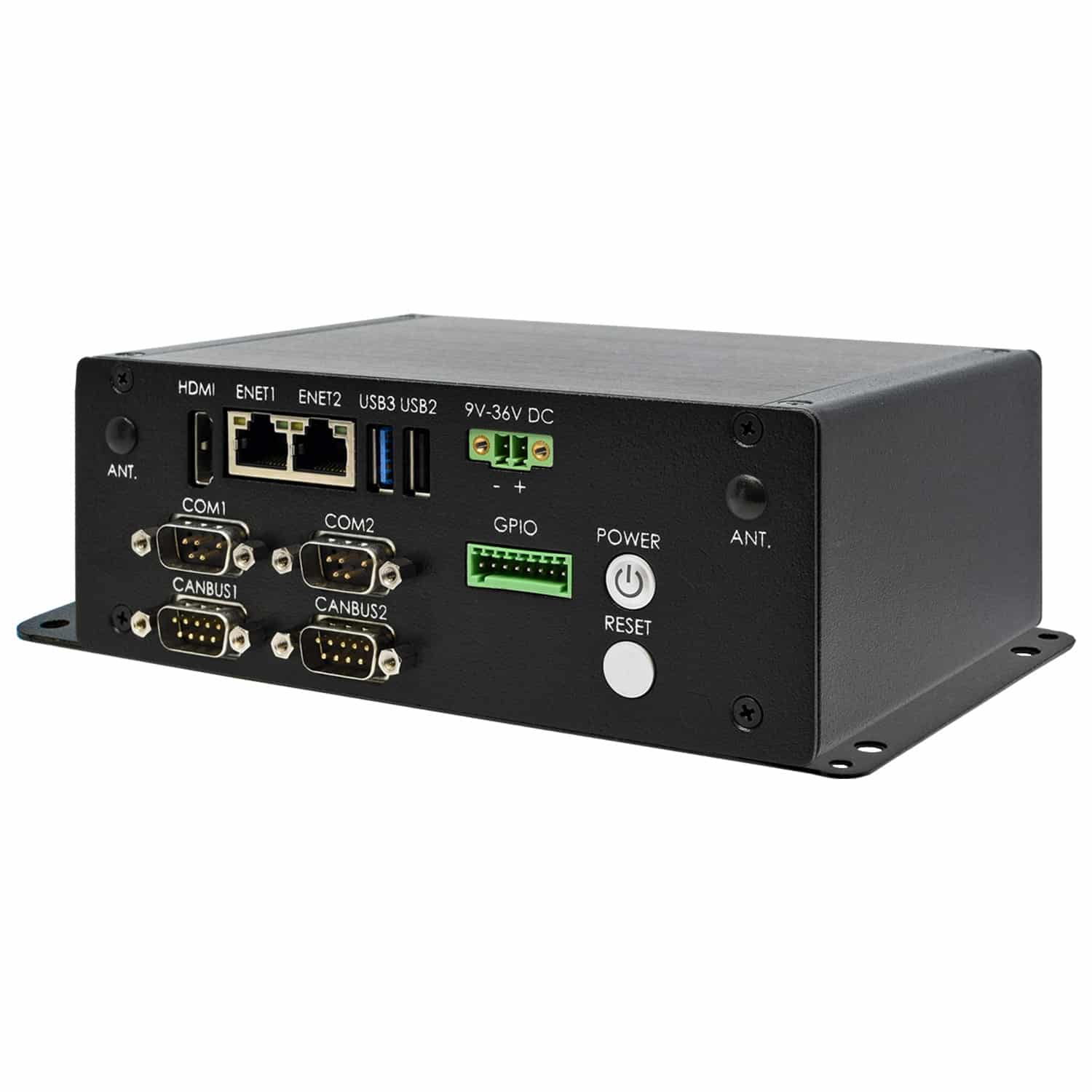

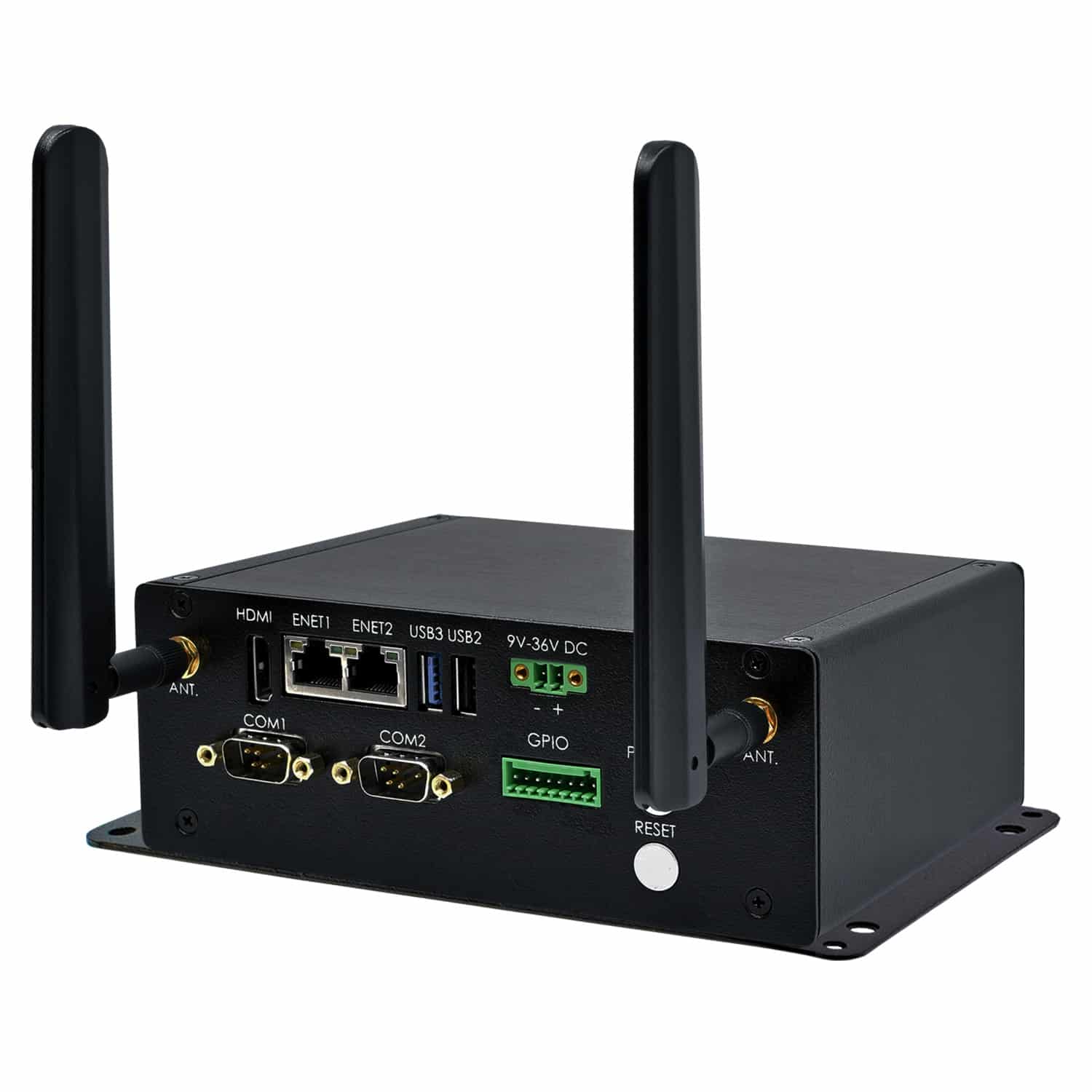

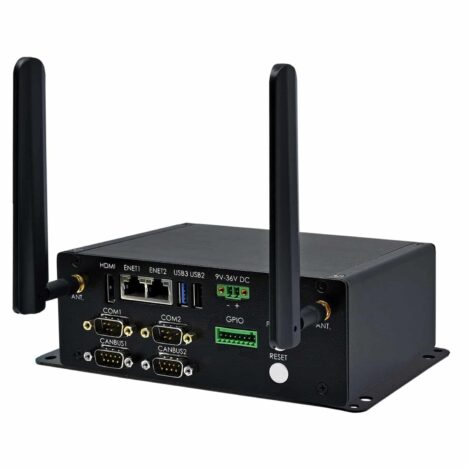

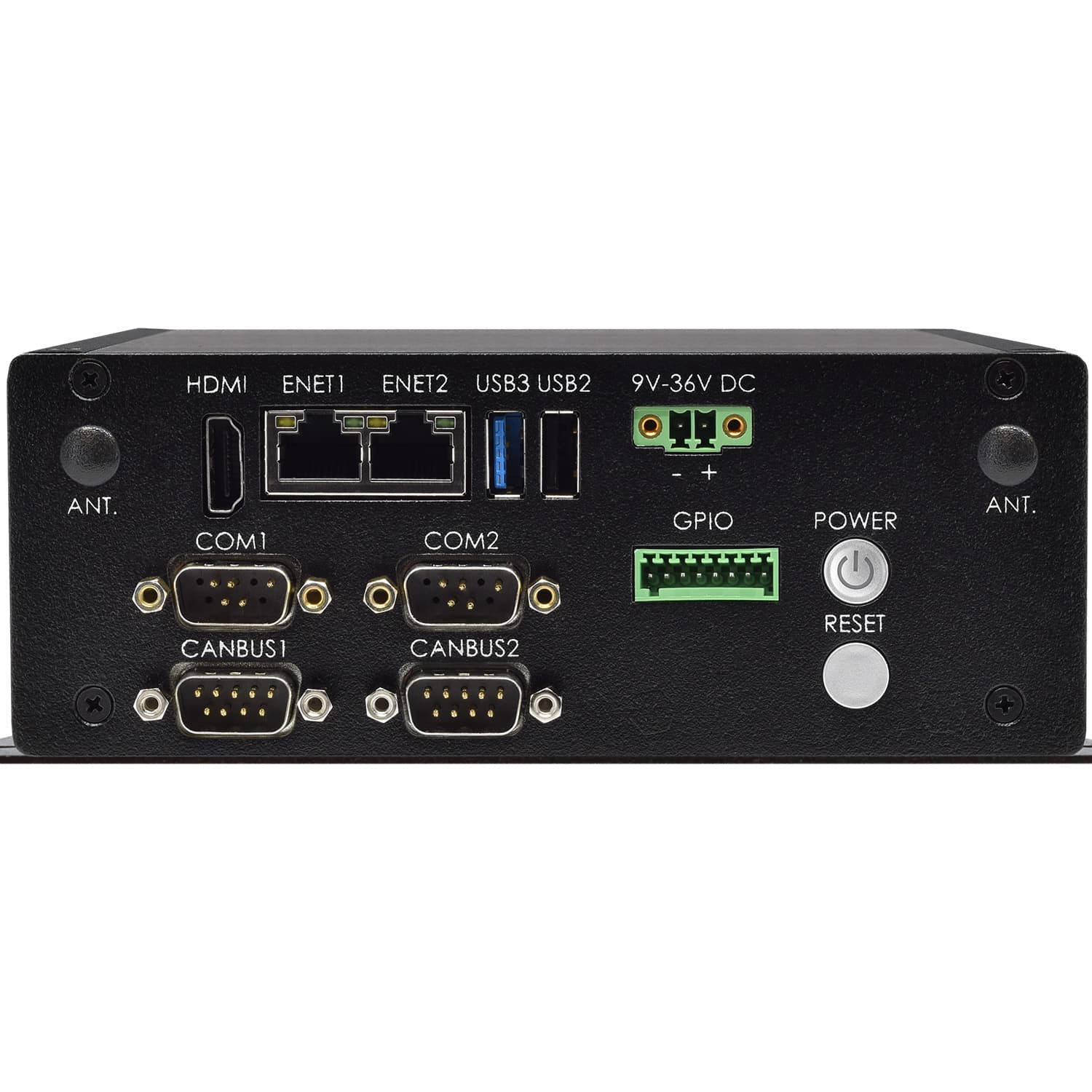

Options	CANbus mPCIe Card –USB to dual isolated CANbus; 2.0B/J1939/CANopen mPCIe/M.2 Converter –Required for M.2 WiFi option WiFi 5 M.2 Card – 802.11a/b/g/n WiFi; M.2; mPCIe/M.2 Adapter Required – Dual Diversity Antennas; SMA; Elbow Type WiFi 6 M.2 Card Upgrade to Wifi 6 post-launch
