| Features | |
|---|---|
| Processor | Intel® Atom™ x6425E SOC, Quad-Core (formerly Elkhart Lake) |
| Memory | Supports DDR4 up to 32GB 3200 MT/s |
| Storage | 1x SATA III port 1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) 1x Micro-SD socket |
| Display | Intel Low Power Gen10 Graphics Engine Supports Multiple Displays – 1x DP – 1x HDMI |
| Expansion | 1x M.2 Type E socket 1x full-size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) 2x USB 3.2 Gen 2 ports on board with header (10Gbps) |

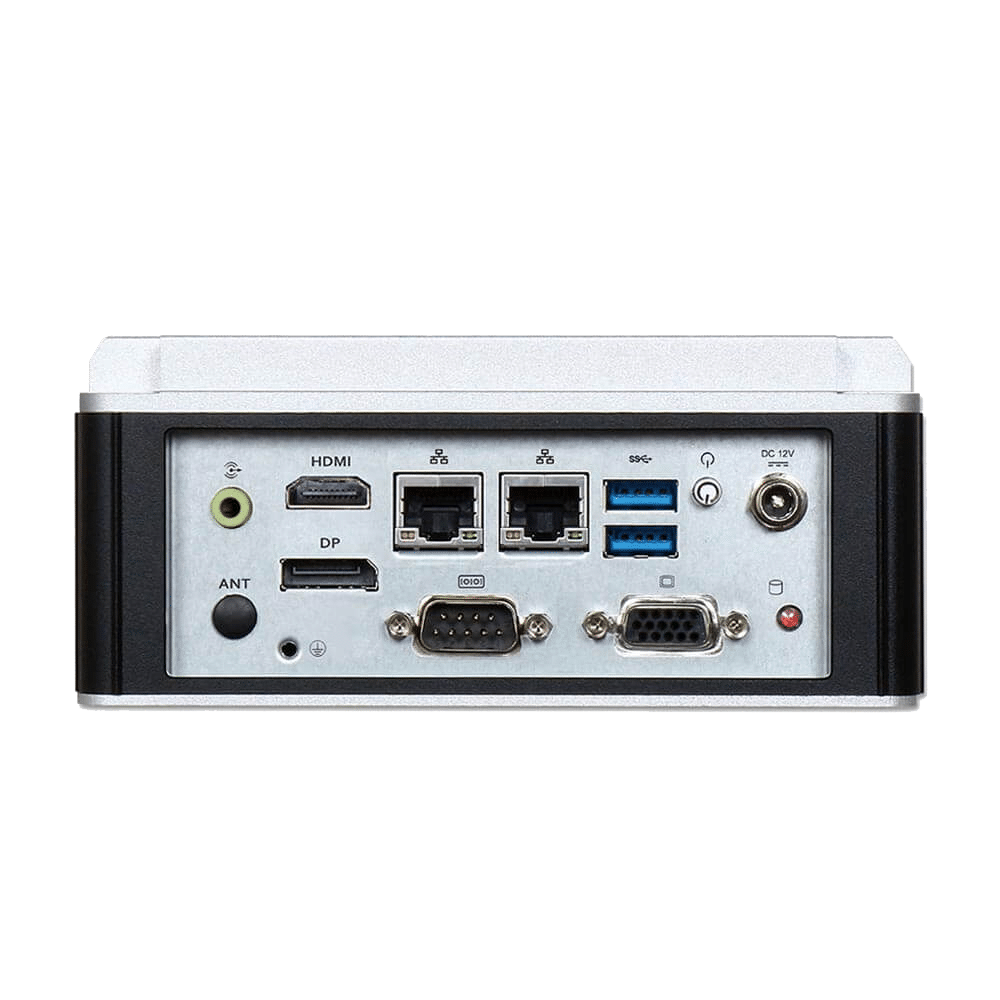

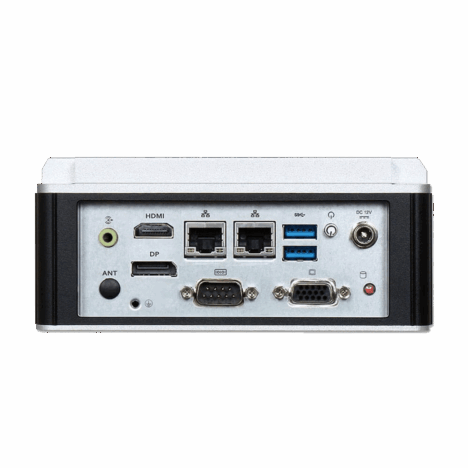

| I/O | 2x Gigabit Ethernet 2x USB 3.2 Gen 2 ports 1x RS-232/422/485 onboard connectors Display 1x DP, 1x HDMI Audio Audio jack on rear I/O with Line-out and onboard pin header with Line-in, Line-out, and Mic-in |
| Software | Linux, Windows® 10/11 IoT, and other x86-compatible real-time operating systems AMI UEFI BIOS |
| Power | 12V DC Input |
| Environmental | -20°C to +60°C Operating Temperature Range |

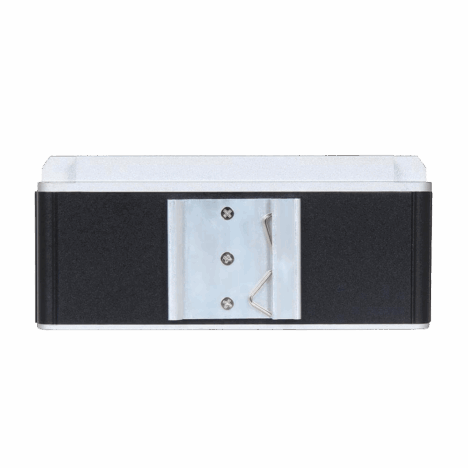

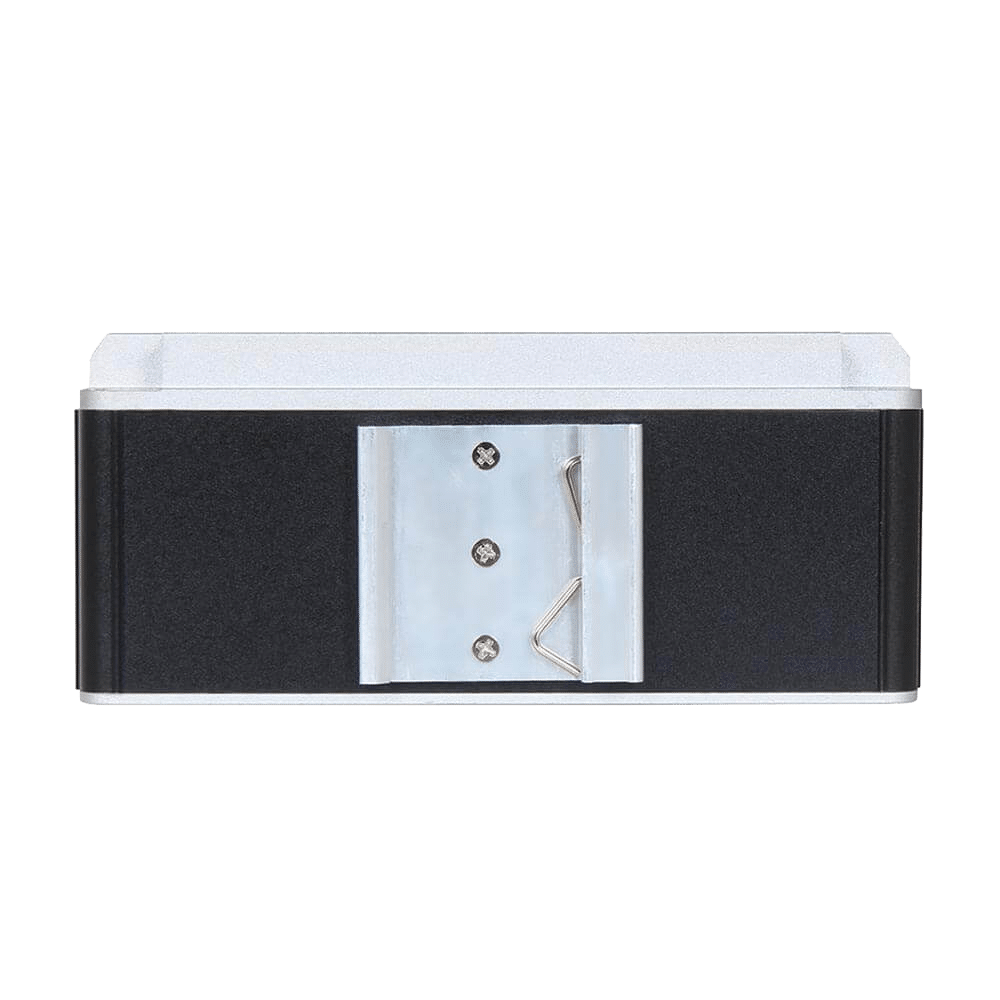

| Mechanical | Dimensions: 150 x 150 x 66mm Weight: 1.4 kg Mounting Options: Wall, DIN-rail mounting |

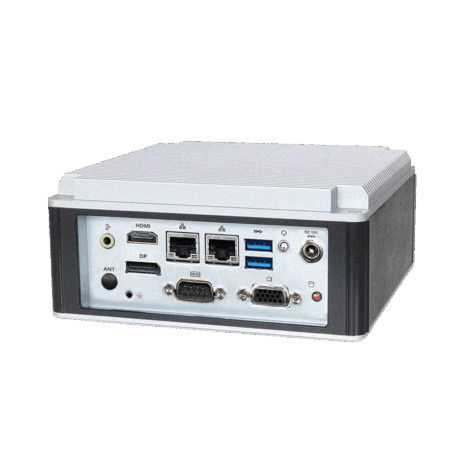

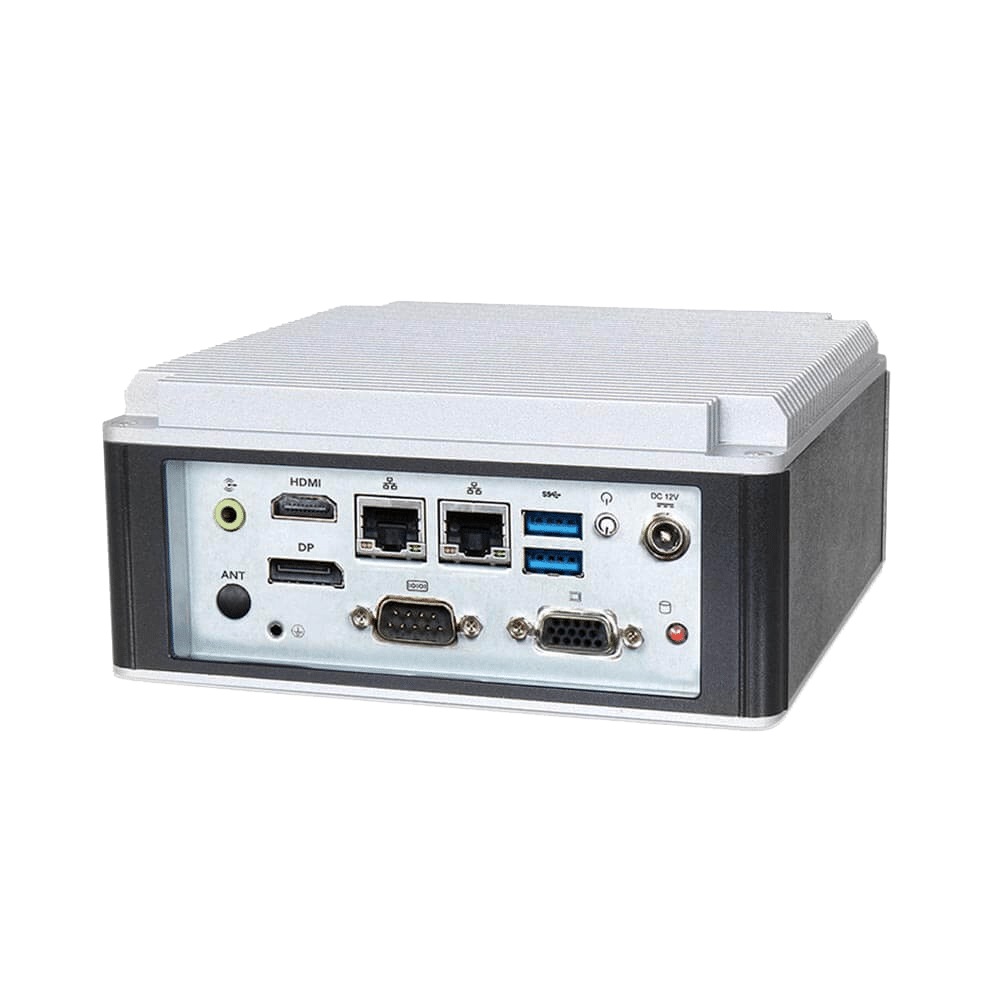

SYS-ITX-N-6425E Industrial Embedded Computer with Intel® Atom™ x6425E Processor
Description

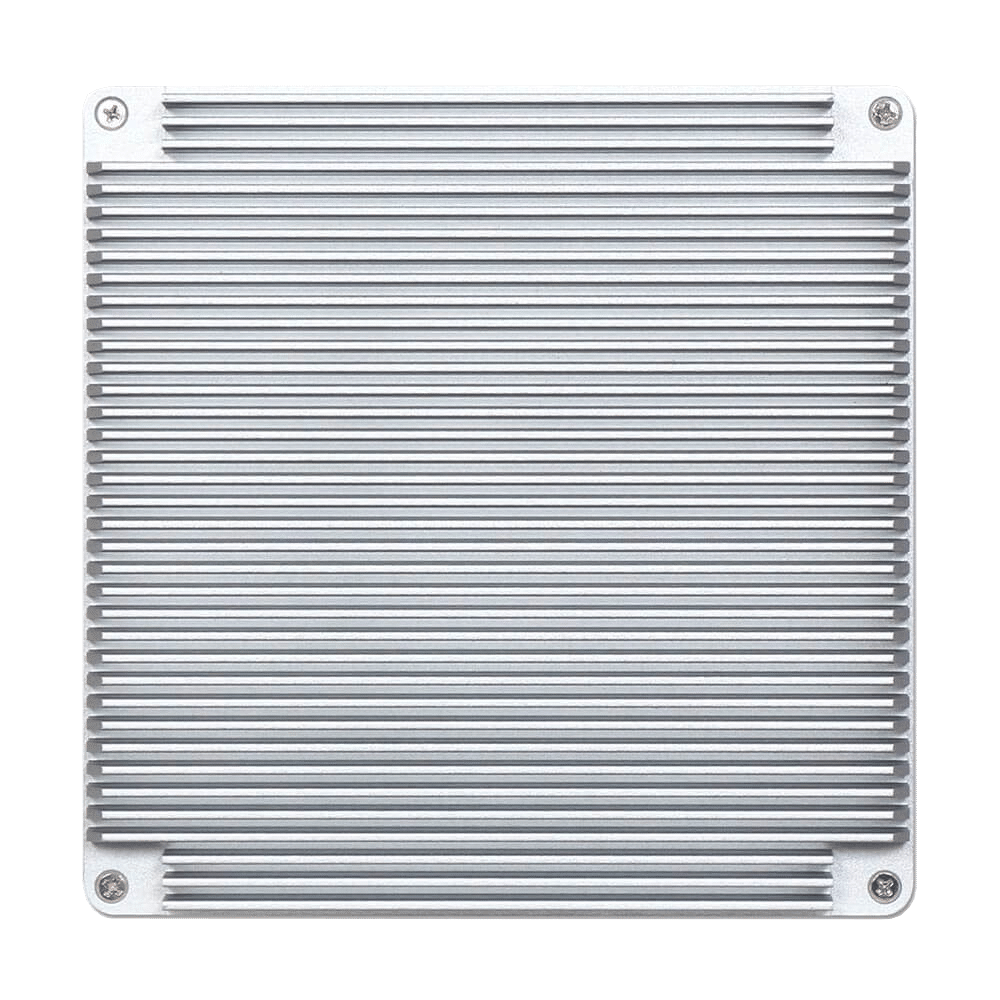

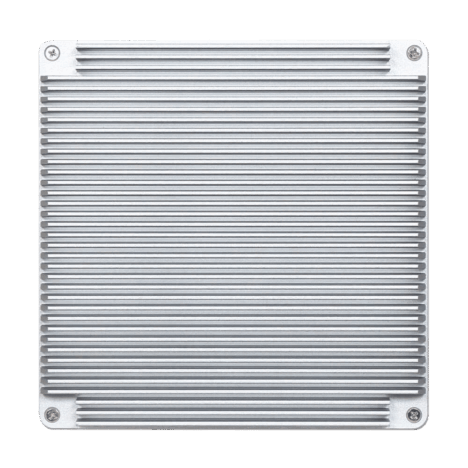

WINSYSTEMS’ SYS-ITX-N-6425E is an industrial embedded computer based on the Intel® Atom™ x6425E Elkhart Lake processor family. It uses less than 12 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -20º to +60ºC. The unit includes a SODIMM socket supporting up to 32 GB of DDR4 system memory and internal mounting support for one 2.5” SATA HDD/SSD. Additional storage is available through MiniPCIe, mSATA, and microSD.
The SYS-ITX-N-6425E is a full-featured embedded computer with onboard I/O that simultaneously supports HDMI and DisplayPort video, dual Gigabit Ethernet ports, two USB 3.2 Gen 2 ports, two serial RS-232/422/485 ports, audio, and watchdog timer. It also has a full-size MiniPCIe socket, M.2 socket, and an antenna hole for WiFi or 3G/GPS modules.
This embedded computer supports Linux, Windows® 10/11 IoT, and other x86-compatible real-time operating systems and is designed for long-term availability.
The SYS-ITX-N-6425E is FCC- and CE-certified, and designed for industrial IoT, medical, communications, and digital signage applications.
